Are Diesel Smoke Meters MOT Approved?

In the world of vehicle maintenance and compliance, particularly within the UK, emissions testing isn't merely about ticking environmental boxes. It's a fundamental health check for your diesel engines, providing vital insights that can dramatically impact your business's bottom line through improved fuel efficiency and reduced maintenance costs. While the modern smoke meters themselves are designed with user-friendliness in mind, interpreting their readings and understanding the full scope of their importance can be less straightforward than it initially appears.

This comprehensive guide aims to demystify the Diesel Smoke Meter, explaining its function, how it measures emissions, what the Driver and Vehicle Standards Agency (DVSA) expects, and crucially, how to ensure your vehicles are fully compliant with current UK regulations.

What Exactly is a Diesel Smoke Meter?

As the name subtly suggests, a Diesel Smoke Meter is a specialised piece of equipment engineered to quantify the level of smoke expelled from a diesel engine’s exhaust. Its role extends far beyond a simple measurement; it's an indispensable tool in the routine servicing of any diesel-powered vehicle, from commercial vans to heavy goods vehicles.

The readings provided by a smoke meter are incredibly insightful, offering an accurate snapshot of two critical aspects: firstly, the efficiency of the combustion process occurring within the engine's cylinders, and secondly, the volume of harmful particulate emissions the engine is producing. This dual insight makes the Diesel Smoke Meter an absolutely essential requirement for MOT tests in the UK, especially in light of increasingly stringent environmental legislation, such as the Euro 6 Standards for emissions and pollutants, which demand ever-lower levels of harmful exhaust gases.

The Science Behind the Smoke: How a Smoke Meter Works

So, how does this sophisticated device actually measure the minute particles of smoke in a vehicle’s exhaust stream? The core principle revolves around a concept known as opacity.

Understanding Opacity

Opacity is, quite simply, the measure of how much light is blocked by a substance. It's the inverse of transparency. An opacity-based smoke meter capitalises on this principle by directing a fixed beam of light through the exhaust gas sample. On the opposite side of the exhaust stream, a sensor is positioned to detect the amount of light that successfully passes through.

By comparing the amount of light received by the sensor to the initial amount of light sent from the fixed source, the smoke meter can precisely calculate how much light has been obstructed by the particulate matter within the vehicle's exhaust. A higher density of smoke in the exhaust contains a greater concentration of these light-blocking particles. Consequently, when the meter records a significant reduction in the light reaching the sensor (i.e., a higher level of light lost), it accurately determines that the exhaust possesses a higher smoke density.

Decoding Smoke Meter Readings

Most modern diesel smoke meters display their readings using a specific unit of Smoke Density, typically expressed on a 'per metre' basis, such as 1/m or 1m-1. While this unit might not immediately convey intuitive meaning on its own, it’s crucial to understand its underlying complexity.

This numerical value is, in fact, a sophisticated function derived from several interconnected factors: the total number of smoke particles present within a given volume of exhaust gas, the distribution of sizes among these particles, and their inherent light absorption and scattering properties. Therefore, for practical application in a workshop setting, the key takeaway is straightforward: a higher numerical value displayed on the smoke meter unequivocally indicates a higher density of smoke within the vehicle’s exhaust, signifying a less efficient or dirtier combustion process.

DVSA Requirements and Emissions Limits for MOTs

When you're conducting a diesel smoke test using a smoke meter, the numerical value displayed represents the density of smoke in the vehicle’s exhaust. However, this number is only meaningful when compared against established limits. The DVSA (Driver and Vehicle Standards Agency) sets clear guidelines for what constitutes a pass or fail.

Manufacturer's Limits vs. Government Limits

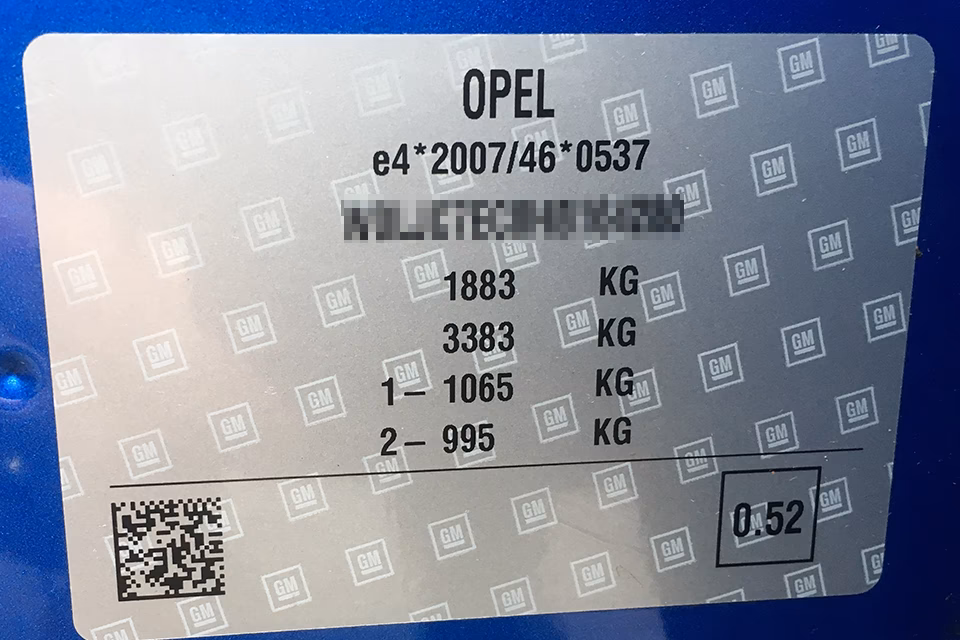

For vehicles manufactured after 1980, the maximum permissible smoke level limit for that specific vehicle is typically displayed on a manufacturer's plate. This might be found on the VIN Plate (Vehicle Identification Number) or on a separate plate or sticker located within the engine compartment. This manufacturer's limit serves as a primary benchmark for older vehicles.

However, with the continuous evolution of environmental legislation and the increasing drive for cleaner air, the government has introduced its own, more stringent smoke level limits for newer vehicles. These government-set limits supersede manufacturer limits for the vehicles they apply to, reflecting the ongoing commitment to reducing vehicular emissions:

• For diesel vehicles first used between 1st July 2008 and 31st December 2013, the maximum permissible smoke level is set at 1.5 m-1 for all engine types.
• For diesel vehicles first used on or after 1st January 2014, the maximum permissible smoke level is significantly lower, at 0.7 m-1 for all engine types, reflecting the tighter controls of Euro 6 standards.

For detailed, step-by-step instructions on how to conduct a diesel smoke test according to official protocols, you should always consult the government’s comprehensive MOT Inspection Manual. This manual provides the definitive guide for all testing procedures.

Conditions for Passing the Opacity Test

A vehicle passes its opacity test if any of the following specific conditions are met during the testing procedure:

• The smoke level recorded during the first acceleration test is either at or below the specified limit (either the manufacturer's limit or the relevant government-set limit).
• The average smoke level calculated from the first three consecutive readings taken during the test is either at or below the specified limit.
• The average smoke level derived from any three consecutive readings obtained during the test sequence is either at or below the specified limit.

Should the vehicle successfully pass the test, it is a mandatory requirement to maintain a retrievable record of the test results for a minimum period of three months. Conversely, if the vehicle fails the test, you are legally obligated to provide your customer with a copy of the results, whilst also retaining a retrievable record for three months for your own records.

Why Accurate Emissions Testing is Crucial for Your Business

Beyond merely passing the MOT, accurate and consistent emissions testing offers substantial benefits for vehicle operators and workshops:

• Enhanced Fuel Efficiency: An engine that produces excessive smoke is often an inefficient engine. High smoke levels can indicate incomplete combustion, meaning fuel is being wasted. Regular testing and subsequent rectification of issues can lead to noticeable improvements in fuel economy, translating directly into cost savings.
• Reduced Maintenance Costs: Emissions issues are often symptoms of underlying engine problems, such as worn injectors, faulty turbochargers, or clogged air filters. Identifying these problems early through smoke testing allows for proactive maintenance, preventing minor issues from escalating into costly repairs or even major engine failures.
• Environmental Compliance: Adhering to emission standards is not just good practice; it's a legal requirement. Non-compliant vehicles can face fines, restrictions on movement (e.g., in Clean Air Zones), and reputational damage for businesses. Using an MOT-approved smoke meter ensures your tests are legally sound.
• Extended Vehicle Lifespan: A well-maintained engine that runs cleanly is generally a healthier engine. By addressing emission-related issues promptly, you contribute to the overall longevity and reliability of your vehicle fleet.
• Improved Public Image: Demonstrating a commitment to environmental responsibility through reduced emissions can enhance your business's reputation, showing a dedication to sustainability and community well-being.

Choosing the Right Diesel Smoke Meter for Your Workshop

Given the critical role a diesel smoke meter plays in MOT testing and overall vehicle health, selecting the right equipment is paramount. An ideal smoke meter for a professional workshop or MOT bay should possess several key characteristics:

• MOT Approval: This is non-negotiable for any equipment used in an official MOT test. An approved meter guarantees compliance with DVSA standards for accuracy and reliability.
• Euro 6 Accreditation: With the latest emission standards, ensuring your meter is accredited to Euro 6 standards means it is capable of accurately measuring the extremely low emission levels required by newer vehicles.
• Accuracy: Precision is key. The meter must provide consistently accurate readings to avoid false passes or failures, which can have significant consequences for both the workshop and the vehicle owner.
• Portability: While some workshops prefer fixed installations, a portable unit offers flexibility, allowing for testing in various bays or even mobile operations if required.
• Robustness: An MOT bay is a demanding environment. The equipment needs to be built to withstand daily use, knocks, and the general rigours of a busy workshop.
• User-Friendly Interface: Although understanding the readings can be complex, the operation of the meter itself should be intuitive, allowing technicians to perform tests efficiently and accurately.
• Data Management: The ability to easily retrieve and store test results for the required three-month period is crucial for compliance. Look for meters with good data logging and retrieval capabilities.

Common Causes of High Diesel Smoke Emissions

When a vehicle fails its smoke test, it's a clear indication of an underlying problem. While the smoke meter identifies the symptom, diagnosing the root cause is the next step. Common culprits for excessive diesel smoke include:

• Faulty Fuel Injectors: Worn, dirty, or incorrectly spraying injectors can lead to incomplete combustion and excessive smoke.
• Clogged Air Filter: A restricted air supply means the engine isn't getting enough oxygen for efficient combustion, leading to unburnt fuel and smoke.
• Turbocharger Issues: A malfunctioning turbocharger can affect the air-fuel mixture, leading to either too much fuel or not enough air, resulting in smoke.
• EGR Valve Problems: A sticking or faulty Exhaust Gas Recirculation (EGR) valve can disrupt the air-fuel mixture and increase particulate emissions.
• Worn Engine Components: General engine wear, such as worn piston rings or valve seals, can lead to oil burning, which produces blue or white smoke.
• Incorrect Fuel Grade: Using the wrong type of diesel or contaminated fuel can significantly impact combustion efficiency.
• DPF (Diesel Particulate Filter) Issues: A clogged or damaged DPF will prevent it from effectively trapping soot, leading to high smoke readings.

Frequently Asked Questions About Diesel Smoke Meters and MOTs

Is a Diesel Smoke Meter mandatory for MOTs?

Yes, for all diesel vehicles, an emissions test using an approved diesel smoke meter is a mandatory part of the annual MOT test in the UK. This ensures the vehicle complies with current emission standards.

What does Euro 6 have to do with smoke meters?

Euro 6 is the latest European emission standard for vehicles, setting very strict limits on pollutants, including particulate matter (soot). For vehicles meeting Euro 6, the permissible smoke limit is significantly lower (0.7 m-1). An MOT-approved smoke meter must be accurate enough to reliably measure these lower levels and be accredited to Euro 6 standards to ensure compliance.

What happens if my vehicle fails the diesel smoke test?

If your vehicle fails the smoke test, it will not pass its MOT. You will receive a copy of the test results, and the vehicle will need to have the underlying issue rectified before it can be re-tested and achieve an MOT pass. Failure to address these issues can lead to increased fuel consumption and potential engine damage.

Can I use any smoke meter for MOT testing?

No, you cannot. For official MOT testing in the UK, the smoke meter must be specifically 'MOT-approved' by the DVSA. This ensures the equipment meets rigorous standards for accuracy, reliability, and functionality required for legal compliance.

What do different smoke colours indicate?

• Black Smoke: Typically indicates incomplete combustion of fuel. Common causes include faulty injectors, a clogged air filter, or issues with the turbocharger.
• Blue Smoke: Usually signifies that engine oil is being burnt. This can be due to worn piston rings, valve seals, or issues with the turbocharger's oil seals.
• White Smoke: Often indicates unburnt fuel passing through the exhaust or, in some cases, coolant burning if there's an internal engine leak (e.g., head gasket). In cold weather, it can also be normal condensation initially.

How often should a smoke meter be calibrated?

To ensure consistent accuracy and compliance with MOT regulations, diesel smoke meters require regular calibration. The specific frequency will depend on the manufacturer's recommendations and DVSA guidelines, but typically, an annual calibration by an accredited service provider is required, along with daily or weekly checks using a zero-point and span check procedure.

Ready to Get Testing?

Testing exhaust emissions is far more than a regulatory hurdle; it's an essential component of comprehensive diesel vehicle servicing. It plays a pivotal role in ensuring environmental responsibility, optimising operational costs, and maintaining the long-term health of your vehicle fleet. Equipping your workshop with an MOT-approved Diesel Smoke Meter is not just about compliance; it's an investment in accuracy, efficiency, and professionalism.

The right equipment, accredited to the latest Euro 6 Standards and built with accuracy, portability, and robustness in mind, is fundamental for the demanding environment of any busy MOT bay. By understanding the intricacies of diesel smoke testing and utilising reliable, approved equipment, you empower your business to deliver exceptional service, ensure vehicle compliance, and contribute to a cleaner, more efficient transport sector.
