Unravelling Triumph 650 Heads: 9-Studs, PRTs & Beyond

Navigating the intricacies of classic Triumph motorcycle parts can often feel like deciphering an ancient scroll, particularly when it comes to vital components like the cylinder head. For owners of the venerable Triumph 650 twin, questions frequently arise regarding the compatibility of cylinder heads, especially concerning the notorious 9-stud design and the various iterations of Push Rod Tubes (PRTs). This article aims to demystify these complexities, providing a clear understanding of what fits where, why, and how to avoid common pitfalls.

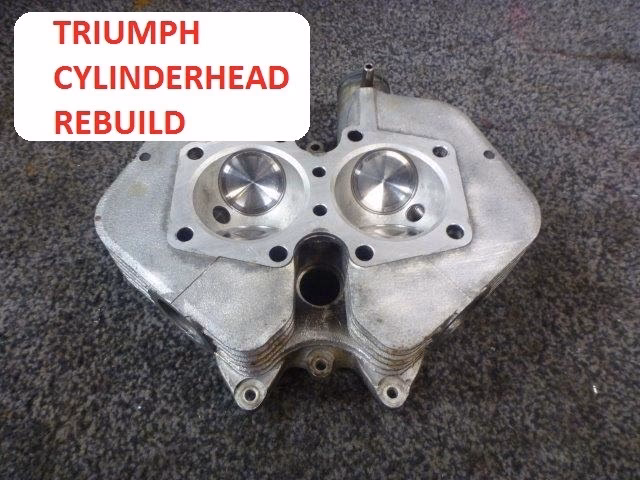

The 9-Stud Cylinder Head: A Mark of Progress

One of the most common points of confusion for Triumph 650 twin enthusiasts revolves around the '9-stud' cylinder head. To truly understand its significance, we must first delve into a pivotal moment in Triumph's engineering history: the transition from pre-unit to unit construction engines.

Pre-Unit vs. Unit Construction: The Fundamental Difference

Prior to the 1963 model year, Triumph 650 twins, such as the Bonneville and Tiger, featured 'pre-unit' engines. In these designs, the engine and gearbox were separate entities, bolted together via mounting plates. The cylinder head on these models typically secured to the crankcase with eight studs.

However, for the 1963 model year, Triumph introduced 'unit construction' for its 650cc range. This was a significant engineering leap, integrating the engine and gearbox into a single, compact casting. This design offered increased rigidity, better oil sealing, and a more streamlined assembly process. Crucially, as part of this redesign, an additional ninth stud was introduced through the cylinder head, directly into the engine block, specifically located between the bores. This ninth stud provided enhanced clamping force and improved sealing for the cylinder head gasket, a vital upgrade for the more powerful and refined unit engines.

Therefore, the simple answer to 'Will a 9-stud cylinder head work on a Triumph 650 twin?' is yes, but with a crucial caveat: it will only work on a Triumph 650 twin that is of unit construction. If your bike is a pre-1963 pre-unit model, its crankcase simply won't have the boss or threaded hole for that ninth stud. Attempting to fit a 9-stud head to an 8-stud pre-unit block is fundamentally incompatible without significant, often impractical, modifications to the crankcase itself.

Date Stamps vs. Model Years: Decoding the '62+' Conundrum

Another source of vexation for many Triumph owners is the interpretation of date stamps found on castings, particularly cylinder heads. It's common to find a head with a '62+' or similar date stamp on a later model year bike, leading to questions about originality and compatibility.

The key distinction here is between the *casting date* and the *model year* for which the finished part was intended. A date stamp like '62+' simply indicates that the raw casting was produced sometime during the 1962 calendar year. However, a raw casting is far from a finished cylinder head ready for assembly. Castings often sat in inventory, waiting to be machined to the precise specifications required for a particular engine type.

For example, a casting produced in late 1962 (stamped '62+') could very well have been machined in early 1963 to meet the specifications for the new unit construction 650 engines. This machining process would include drilling and tapping the additional ninth stud hole, as well as preparing the ports and valve seats for the unit engine's requirements. So, a head stamped '62+' found on a 1968 TR6P, as described by one enthusiast, is entirely plausible; it simply means the raw material originated in 1962, but the final product was machined for a unit construction engine, which debuted for the '63 model year.

Push Rod Tubes (PRTs) and Seals: A Tale of Subtle Differences

Beyond the head itself, the Push Rod Tubes (PRTs) and their associated seals are critical components that ensure oil retention and proper valve train operation. The compatibility of these parts is another area ripe for misinterpretation, especially given the subtle changes Triumph introduced over the years.

Understanding PRT Part Numbers and Model Years

The discussion often revolves around specific PRT part numbers, such as 70-6000 and 70-3646, and their alleged compatibility with certain model years. While some historical articles might suggest strict year-to-year incompatibility, a closer look reveals a more nuanced picture.

• 70-3646 PRT: Generally associated with pre-1965 models.
• 70-6000 PRT: Often cited for 1965-1967 model years.

However, it's important to note that some published resources may contain minor misprints regarding the exact year ranges. The more significant shift in PRT and seal design occurred around the 1968-1969 period, coinciding with the transition from the older 'white oblong-section seals' to the more modern O-ring seals.

The Role of Seals in PRT Compatibility

The critical factor influencing PRT compatibility isn't just the length of the tube itself, but how that length interacts with the thickness of the seals used at the top and bottom of the tube. Triumph made changes to seal materials and dimensions, which in turn necessitated slight adjustments to PRT lengths to maintain proper fit and sealing.

Consider the difference between PRT lengths 70-3646 and 70-6000, which is only approximately 0.070 inches (1.78mm). This seemingly minor difference is directly related to changes in seal thickness:

• Pre-1965 (70-3646 PRT): Used different 'white seals' top and bottom.
• 1965-1968 (70-6000 PRT): Used the same 70-3547 'white seal' top and bottom. The 70-3547 seal is approximately 1/10 inch (0.1000") thick, while a superseded seal (70-1476) was thicker, around 3/16 inch (0.1875"). The difference in these seal thicknesses (approx. 0.0875") is remarkably similar to the difference in PRT lengths.

What this means in practical terms is that the slight variations in PRT length were designed to accommodate the varying thicknesses of the seals, ensuring the overall height of the PRT-and-seal assembly remained consistent. This ingenious design choice means that, for pre-1969 unit 650 heads, either combination of PRT (70-3646 or 70-6000) with its corresponding seals (different pre-65 white seals or the same 65-68 white seals) will generally work. The goal was to maintain consistent pressure on the seals for effective oil retention.

Even for the less common scenario of a '62 model year pre-unit head, the same 70-3646 PRT and different white seals were fitted, demonstrating a surprising degree of interchangeability within certain design paradigms.

Table: Triumph 650 Twin Cylinder Head & PRT Compatibility Overview

Common Pitfalls and How to Avoid Them

Understanding the nuances of Triumph 650 cylinder heads and their ancillaries is crucial for successful maintenance and restoration. Here are some common pitfalls and how to navigate them:

• Misinterpreting Date Stamps: Never assume a date stamp on a casting dictates the model year of the finished part or its original engine. Always verify the physical characteristics, such as the number of stud holes, to determine its true application.
• Assuming Rigid Incompatibility: While some part numbers might seem to suggest strict incompatibility, especially with PRTs and seals, the reality is often more flexible. As demonstrated, slight variations in PRT length were often designed to work with corresponding seal thickness changes, allowing for interchangeability within certain ranges. Always consider the entire assembly (PRT + seals) rather than just the PRT length in isolation.
• Ignoring the Unit/Pre-Unit Divide: This is the most fundamental distinction. A 9-stud head is for a unit engine; an 8-stud head is for a pre-unit engine. There's no practical direct interchangeability between these two core designs.
• Relying Solely on Anecdotal Evidence: While community forums are invaluable, always cross-reference information with reliable workshop manuals and parts catalogues where possible. The details provided here are based on common understanding and documented changes.

Frequently Asked Questions (FAQs)

Q1: What is the significance of the 9th stud on a Triumph 650 cylinder head?

The 9th stud signifies that the cylinder head is designed for a Triumph 650 twin unit construction engine, introduced from the 1963 model year onwards. This design integrates the engine and gearbox into a single casting, and the extra stud provides enhanced clamping force for the head gasket.

Q2: Can I put a pre-unit 8-stud head on a unit construction 9-stud engine?

No, you cannot. A pre-unit head lacks the hole for the ninth stud that is present on unit construction engine blocks. The bolt patterns are fundamentally different, making them incompatible without major, impractical modifications.

Q3: Do all Triumph 650 twin unit heads use the same Push Rod Tubes (PRTs)?

No, not exactly the same. Triumph used different PRT part numbers (e.g., 70-3646, 70-6000, 70-9349) and associated seals over the years. However, for unit heads prior to 1969, the minor differences in PRT length (like between 70-3646 and 70-6000) were often compensated for by changes in seal thickness, meaning some combinations are interchangeable if the correct seals are used.

Q4: How do I identify my Triumph 650 cylinder head if the date stamp is confusing?

The most reliable way to identify your head for compatibility purposes is to count the number of stud holes. If it has 9 holes, it's for a unit construction engine. If it has 8 holes, it's for a pre-unit engine. The casting date stamp ('62+') merely indicates when the raw casting was made, not necessarily the model year of the finished engine it was designed for.

Q5: What's the difference between the 'white seals' and O-ring seals for PRTs?

The 'white seals' (e.g., 70-3547) were oblong-section rubber seals used on Triumph 650 twins up to the 1968 model year. From 1969 onwards, Triumph transitioned to O-ring seals (e.g., 70-7310, superseded by 71-1283). This change also involved a modification to the internal diameter of the PRT 'socket' on the cylinder head, meaning O-ring PRTs and seals are generally not compatible with earlier heads designed for white seals, and vice-versa.

Conclusion

The world of classic Triumph 650 twins is rich with engineering evolution, and understanding the nuances of components like the cylinder head is key to successful ownership and maintenance. While the 9-stud head clearly delineates unit from pre-unit engines, the complexities of Push Rod Tubes and their seals often boil down to careful matching of PRT length with seal thickness. By recognising the difference between a casting date stamp and a model year, and appreciating the subtle interplay of components, you can confidently navigate the challenges of Triumph 650 cylinder head compatibility, ensuring your classic British machine runs as smoothly as it should.
