While specifics on the cost of a Triumph Bonneville backrest pad aren't readily available within our current data, shifting our focus to a universally crucial aspect of motorcycle ownership – braking performance – is paramount. Your motorcycle's brake pads are undeniably one of its most critical components, directly influencing your safety, control, and overall riding experience. For owners of the iconic Triumph Bonneville models produced between 2001 and 2014, understanding your options for high-quality replacement brake pads is essential. This article delves into the specifics of EBC brake pads, a renowned manufacturer, detailing their offerings for your Bonneville and helping you make an informed decision for superior stopping power.
The Unyielding Importance of Quality Brake Pads
Imagine a scenario where you need to stop quickly, perhaps due to unexpected traffic or a sudden hazard. Your ability to do so safely and efficiently hinges almost entirely on the effectiveness of your brake pads. Worn, inferior, or ill-suited brake pads can dramatically increase your stopping distance, compromise stability, and even lead to dangerous situations. Investing in top-tier brake pads isn't merely about maintenance; it's about safeguarding yourself and others on the road. For a classic machine like the Triumph Bonneville, which offers a blend of heritage and modern rideability, pairing it with equally capable braking components is non-negotiable.
EBC Brake Pads: A Trusted Name for Triumph Bonneville
EBC Brakes is a global leader in the manufacture of brake components, with a strong reputation for producing high-performance pads for a vast array of motorcycles, including your Triumph Bonneville. They cater to all riding styles, from leisurely road cruising to demanding race track conditions and off-road adventures. For the Triumph Bonneville models spanning 2001 to 2014, EBC specifically recommends two primary compound options: the high-performance Double-H Sintered pads and the versatile Kevlar/NAO series.

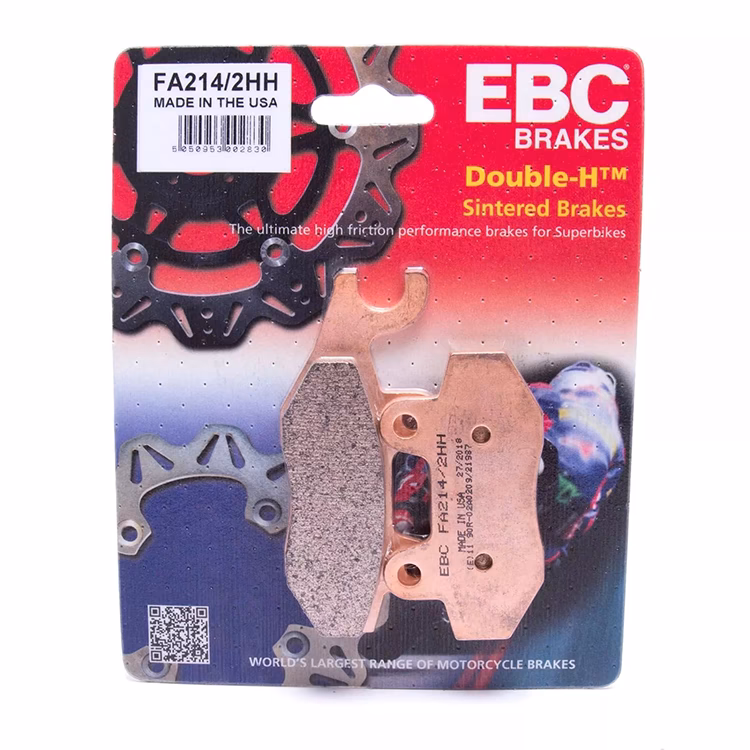

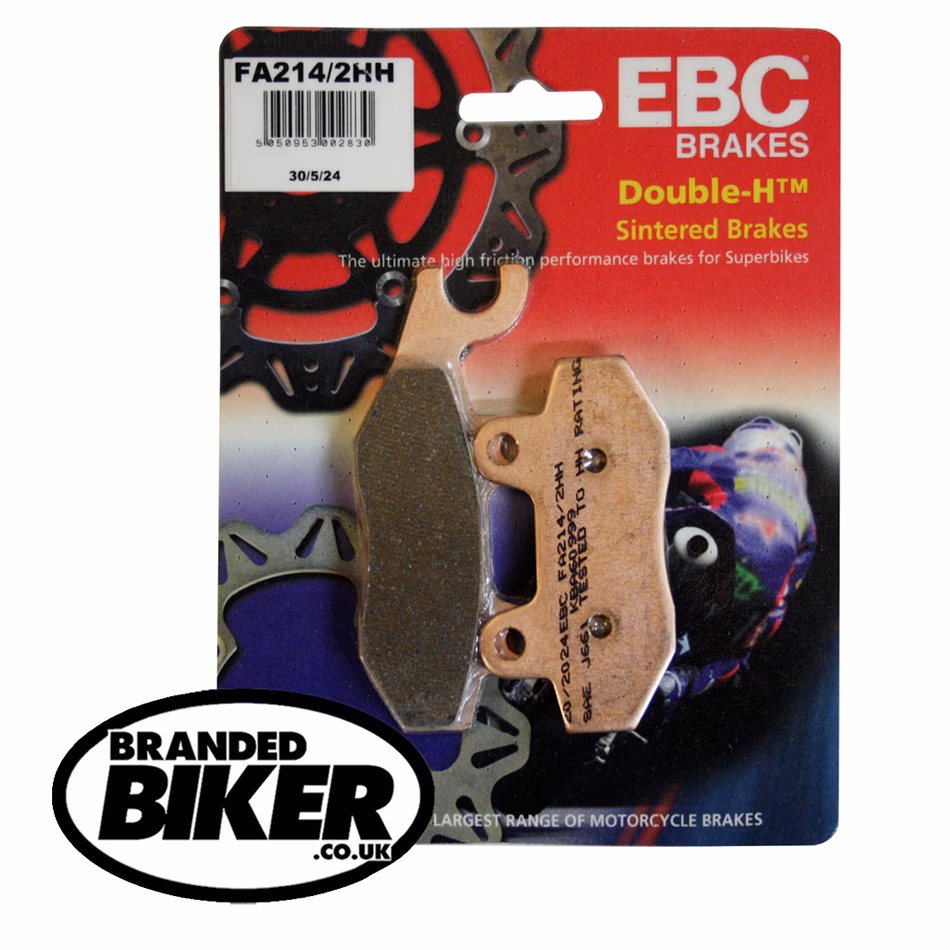

EBC Double-H Sintered (FA Series HH) – Maximum Stopping Power
The EBC Double-H Sintered pads are engineered for riders who demand the absolute best in braking performance. These pads boast the highest friction Double-H rating, signifying their exceptional ability to generate maximum stopping power. They are crafted from a sintered copper alloy, mirroring the material found in many original equipment (OE) pads, which contributes to their impressive longevity and consistent performance across all riding conditions – be it wet, dry, hot, or cold.
One of the innovative features often found with Double-H pads, when required by design, is the inclusion of unique stainless steel radiator plates. These plates are crucial in reducing heat transfer from the brake pad into the bike's hydraulic system, preventing brake fade and maintaining consistent lever feel during prolonged or heavy braking. Furthermore, certain applications may feature a unique double segment vented design. This design serves a dual purpose: it helps to keep the pads cooler during intense use and actively prevents pad drag and premature wear or fade. It's vital to heed EBC's caution regarding these pads: to avoid brake imbalance and ensure optimal safety, you should NOT use Double-H pads on the rear of your motorcycle unless they are also fitted to the front. This ensures a balanced and predictable braking response.
EBC Kevlar / NAO Series – The Classic Organic Feel
Proudly made in England, the EBC Kevlar series has recently been rebranded as the NAO series, or Non-Asbestos Organic. While the name has changed, EBC continues to utilise the renowned Dupont Kevlar fibre in conjunction with other advanced high-tech fibres that have emerged in the market. The NAO series pads are celebrated as a superb, all-round, value-for-money replacement option for all levels of motorcycle use. They remain incredibly popular with many riders who prefer the distinct "feel" of organic pads – often described as a more progressive, less aggressive initial bite compared to sintered pads, offering excellent modulation.
These pads are fully TUV tested and KBA certified, demonstrating their adherence to stringent European quality and safety standards. Moreover, they conform to the new ECE R90 brake regulations, which are becoming a standard requirement across the European market. EBC has been at the forefront of this technology, being among the first to offer Reg. 90 approved pads and accompanying packaging. Most EBC organic pads feature expansion grooves, intelligently designed to reduce noise during braking and prevent cracking under thermal stress. The aramid fibre compound, combined with non-ferrous particles, further assists in preventing surface "scorching" under heavy load, ensuring consistent performance and pad integrity.
Choosing the Right EBC Brake Pads for Your Triumph Bonneville
Deciding between the Double-H Sintered and the Kevlar/NAO series largely depends on your individual riding style, preferences, and the conditions you typically encounter. If you prioritise maximum stopping power, aggressive initial bite, and superior performance in all weather conditions, especially for spirited riding or heavier touring, the Double-H Sintered pads are likely your best choice. Remember the crucial advice about fitting them to both front and rear for balanced braking.
Conversely, if you prefer a more progressive brake feel, excellent modulation, and primarily engage in general road riding, the Kevlar/NAO series offers superb value and a comfortable, consistent performance. Many riders find the organic pads provide a more tactile connection with the braking system, which can enhance confidence and control during everyday commutes and weekend rides.
Triumph Bonneville EBC Front and Rear Brake Pad Model Applications (2001-2014)
To ensure you select the correct EBC brake pads for your specific Triumph Bonneville model and year, refer to the compatibility table below. EBC specifies different front (FA196) and rear (FA214/2) pads, and it's vital to match them to your bike's exact specifications.
| Triumph Bonneville Model | Engine (cc) | Years Compatible | EBC Front Pad (FA196) | EBC Rear Pad (FA214/2) |
|---|---|---|---|---|
| Bonneville 800 | 790cc | 2001, 2002, 2003, 2004, 2005, 2006 | Yes | Yes |
| Bonneville T100 | 790cc | 2002, 2003, 2004 | Yes | Yes |
| Bonneville T100 | 865cc | 2005, 2007-2014 | Yes | Yes |
| Bonneville T100 Black | 865cc (Spoke Wheel) | 2014 | Yes | Yes |
| Bonneville | 865cc | 2009-2014 | Yes | Yes |
| Bonneville Steve McQueen SE | 865cc | 2012 | Yes | Yes |
| Bonneville Black | 865cc | 2007, 2008 | Yes | Yes |
| Bonneville SE | 865cc | 2009, 2010, 2011 | Yes | Yes |
Recognising When Your Brake Pads Need Replacing
Even the best brake pads will eventually wear out. Knowing the signs of wear is crucial for timely replacement and maintaining your bike's safety. Common indicators include:
- Audible Warnings: A high-pitched squealing sound when you apply the brakes often indicates that the wear indicators on your pads are touching the brake disc. A grinding noise, however, suggests the pads are severely worn, and metal-on-metal contact is occurring, which can damage your discs.
- Reduced Braking Performance: If your brakes feel less effective, require more lever pressure, or the lever/pedal feels spongy, it's a strong sign of worn pads or other braking system issues.
- Visual Inspection: Most brake pads have a minimum thickness indicator groove. If the friction material is worn down to this groove, or appears very thin (typically less than 2mm), it's time for replacement. Always inspect both pads on each caliper, as wear can sometimes be uneven.
- Pulling or Pulsation: While often indicative of warped discs, uneven pad wear can also contribute to the bike pulling to one side under braking or a pulsating sensation through the brake lever.
Essential Brake Pad Maintenance Tips
Beyond simply replacing worn pads, a proactive approach to brake system maintenance can significantly extend the life of your pads and ensure consistent performance:
- Regular Cleaning: Keep your brake calipers and pads free of dirt, grime, and road debris. A build-up can interfere with pad movement and accelerate wear.
- Check Brake Fluid: Ensure your brake fluid is at the correct level and replace it according to your Triumph's service schedule. Old or contaminated fluid can compromise braking efficiency.
- Inspect Brake Discs: Regularly check your brake discs for signs of warping, scoring, or excessive wear. A damaged disc can quickly chew through new pads.
- Proper Installation: If you're undertaking a DIY pad replacement, ensure you follow the manufacturer's instructions meticulously. Incorrect installation can lead to premature wear, noise, or even brake failure. Use appropriate tools and torque settings.
- Bedding-In New Pads: After installing new pads, it's crucial to "bed them in." This process involves a series of gentle stops from increasing speeds, allowing the pad material to transfer evenly onto the brake disc. This optimises performance and prevents glazing. Consult the pad manufacturer's recommendations for the specific bedding-in procedure.
Frequently Asked Questions (FAQs)
Q1: How often should I replace my Triumph Bonneville's brake pads?
A1: There's no fixed interval, as it depends heavily on your riding style, conditions, and the type of pads. However, regular visual inspections are key. If you notice any of the wear signs mentioned above (squealing, grinding, reduced performance, thin pads), it's time for replacement. Generally, road riders might expect 10,000 to 20,000 miles from a set of pads, but this can vary wildly.
Q2: Can I use EBC Double-H Sintered pads on the rear of my Bonneville only?
A2: EBC explicitly advises against this. To maintain brake balance and ensure optimal safety, Double-H Sintered pads should only be used on the rear if they are also fitted to the front. Mixing different friction characteristics between front and rear can lead to unpredictable braking behaviour.
Q3: What's the main difference in feel between sintered and organic brake pads?
A3: Sintered pads (like EBC Double-H) typically offer a more aggressive, immediate initial bite and superior stopping power, especially in wet conditions or under heavy braking. Organic pads (like EBC Kevlar/NAO) generally provide a more progressive, modulated feel, which some riders prefer for everyday riding, offering excellent control and less harshness.
Q4: Are EBC brake pads difficult to install for a DIY mechanic on a Triumph Bonneville?
A4: Replacing brake pads on a Triumph Bonneville is a relatively straightforward maintenance task for a competent DIY mechanic. However, it requires basic mechanical knowledge, appropriate tools, and strict adherence to correct procedures, including cleaning calipers, ensuring pistons retract smoothly, and proper torqueing of bolts. If you're unsure, it's always best to consult a professional mechanic.
Q5: Does ECE R90 certification make a significant difference for me as a rider?
A5: Yes, ECE R90 certification is a European standard that ensures aftermarket brake pads perform within a specified tolerance of the original equipment pads. This means you can be confident that R90-approved pads, like the EBC NAO series, will provide a consistent and safe braking performance comparable to your original pads, offering peace of mind regarding quality and safety compliance.
Conclusion
Choosing the right brake pads for your Triumph Bonneville is a decision that directly impacts your riding safety and enjoyment. EBC offers excellent choices for Bonneville owners from 2001 to 2014, whether you lean towards the high-performance stopping power of their Double-H Sintered pads or the classic, modulated feel of their Kevlar/NAO series. By understanding the characteristics of each, ensuring correct fitment for your specific model year, and adhering to regular maintenance, you can ensure your beloved Bonneville continues to offer reliable and confident braking performance for many miles to come. Remember, when it comes to brakes, cutting corners is never an option.
