Few things are as unnerving on the road as the feeling of your brakes dragging, even when your foot is off the pedal. This phenomenon, known as binding or locking brakes, is not just an irritation; it's a significant safety hazard that can lead to accelerated component wear, reduced fuel efficiency, and even complete brake failure if left unaddressed. For owners of popular Ford models, including the Fiesta, B-Max, C-Max, and Transit, this issue has become a surprisingly common concern, often pointing towards a specific piece of automotive technology: the ATE MK100 ABS system.
Understanding what causes this problem and how to accurately diagnose it is crucial for any vehicle owner or technician. This article will delve into the intricacies of binding brakes, with a particular focus on the notorious ATE MK100 ABS unit, and guide you through the effective steps for troubleshooting and repair.
What Exactly Are Binding Brakes?
At its core, binding or locking brakes describe a situation where the brake pads remain in contact with the brake discs even after the driver has released the brake pedal. Under normal operation, when you lift your foot from the pedal, the hydraulic pressure in the brake lines dissipates, allowing the calipers to retract the pads away from the discs, ensuring the wheel spins freely. When brakes bind, this retraction doesn't happen fully or at all. The constant friction generates immense heat, which can manifest as a burning smell, a noticeable drag on the vehicle, reduced acceleration, and in severe cases, a glowing red brake disc, as experienced by one unfortunate Ford Transit owner.
The implications of persistent binding are severe. Beyond the immediate safety risk, continuous friction leads to rapid and uneven wear of brake pads and discs, potentially warping the discs and necessitating premature replacement of expensive components. Fuel economy also takes a hit as the engine constantly fights against the unintended braking force.
The Prime Suspect: The ATE MK100 ABS System
While various components can contribute to binding brakes, for a growing number of Ford Fiesta, B-Max, C-Max, and Transit vehicles, the finger often points squarely at the ATE MK100 ESP/ABS unit. The Anti-lock Braking System (ABS) is a critical safety feature designed to prevent wheels from locking up during hard braking, allowing the driver to maintain steering control. The Electronic Stability Program (ESP) further enhances vehicle control by detecting and reducing skidding.
The ATE MK100 unit integrates the ABS pump, control module, and various hydraulic valves. Its sophisticated design relies on precise electronic signals and hydraulic pressure to manage braking force at each wheel independently. When a fault develops within this complex unit, particularly in its hydraulic section or control module, it can lead to unintended pressure retention in one or more brake lines, causing the pads to remain engaged with the discs.
The hydraulic section of the ABS module contains intricate valves and pumps that regulate brake fluid flow. If these components malfunction, perhaps due to internal contamination, wear, or an electrical fault within the module, they may fail to release pressure efficiently. This results in the characteristic binding sensation, often localised to one wheel or an axle, though it can affect all wheels.
Other Potential Causes of Brake Binding
While the ATE MK100 system is a strong suspect, it's vital to consider other potential culprits during diagnosis. A thorough investigation is key to avoiding misdiagnosis and unnecessary part replacement.
Defective ABS Sensors
Each wheel on your vehicle is equipped with an ABS wheel speed sensor. These sensors constantly monitor the rotational speed of the wheels and send this data to the ABS module. If a sensor is faulty, damaged, misaligned, or has a loose connection, it can send inaccurate or erratic signals. The ABS module, receiving incorrect data, might misinterpret the situation and, in an attempt to prevent a perceived lock-up, could apply or maintain pressure to a brake caliper incorrectly. Always inspect these sensors for physical damage and their wiring for integrity. Diagnostic equipment is indispensable here, allowing technicians to monitor live sensor data and verify accurate readings.
Brake Fluid Pressure Issues and the Master Cylinder
The brake master cylinder is the heart of your vehicle's hydraulic braking system. When you press the brake pedal, the master cylinder converts that mechanical force into hydraulic pressure, pushing brake fluid through the lines to the calipers. A malfunctioning master cylinder can lead to uneven distribution of brake fluid pressure or, crucially, prevent the rapid release of pressure after the pedal is released. This can cause brakes to lock or bind.
Consider the scenario of the Ford Transit owner mentioned earlier, whose front right wheel was glowing red. Initially, a mechanic might suspect a faulty caliper, as the problem was localised to one wheel. However, as the mechanic later pondered, a master cylinder issue could also manifest as a single-wheel problem if its internal seals or valves are failing in a way that affects one circuit more than others, or if a blockage exists downstream. The critical point is that the hydraulic system must be thoroughly examined. This includes checking for clogged or restricted brake lines, which can prevent fluid from returning to the master cylinder or reservoir promptly. Faulty valves or damaged seals within the system, especially those leading into the hydraulic section of the ABS module, can also trap pressure, leading to binding.
Sticking Brake Calipers
The brake caliper houses the pistons that push the pads against the disc. If a caliper piston becomes seized or sticky due to corrosion, dirt, or worn seals, it won't retract properly when the brake pedal is released. This can cause constant contact between the pads and the disc on that specific wheel. While the Transit owner's mechanic initially suspected calipers, the intermittent nature and eventual resolution by replacing a master cylinder (or potentially an ABS module, as per the article's main point) highlights that single-wheel binding isn't *always* a caliper issue, but it's certainly a common one to rule out first.
Diagnosing the Problem Effectively
Accurate diagnosis is paramount to resolving binding brake issues without incurring unnecessary costs. Here's a systematic approach:

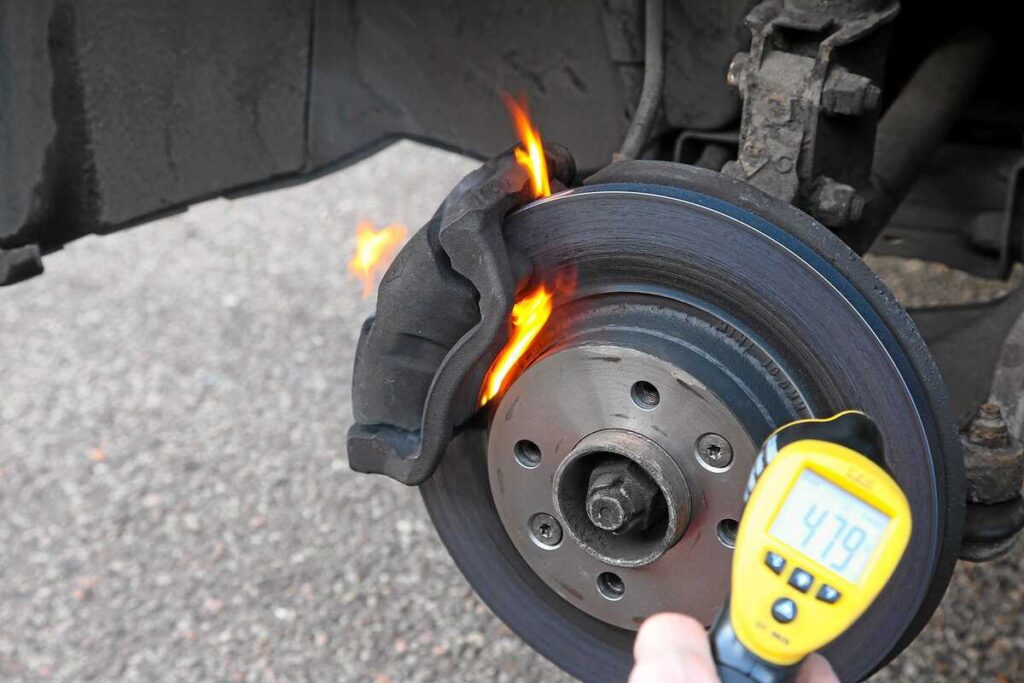

- Visual Inspection: Check all wheels immediately after experiencing the binding. A wheel that is significantly hotter than the others, or a disc that is discoloured or glowing, points to a specific binding point. Look for obvious signs of damage or wear on brake components.
- Brake Fluid Check: Inspect the brake fluid level and condition in the reservoir. Contaminated or old fluid can contribute to component wear and sluggish hydraulic action.
- Lifting and Spinning Wheels: With the vehicle safely raised on a lift, attempt to spin each wheel by hand. A binding wheel will be noticeably harder to turn than the others.
- Diagnostic Scan Tool: Connect a professional diagnostic tool to the vehicle's OBD-II port. This allows you to read fault codes from the ABS module and monitor live data from wheel speed sensors and brake pressure sensors. Erratic sensor readings or unexpected pressure values can pinpoint issues within the ABS system.
- Bleeding the Brakes: Improperly bled brakes can trap air, leading to spongy pedal feel and potential pressure issues. While not a direct cause of binding, it's a good step to ensure the hydraulic system is free of air.
The Optimal Solution: ATE MK100 ABS Remanufacturing
Given the prevalence of the ATE MK100 ABS system as the root cause of binding brakes in these Ford models, remanufacturing this unit has emerged as the most effective and economically sound solution. Rather than simply replacing the entire unit with a new one – which can be prohibitively expensive – remanufacturing involves a meticulous process of repairing and restoring the original unit to 'as new' or even better than OEM specifications.
Why Choose Remanufacturing?
Specialist companies, like those mentioned, have developed sophisticated processes for dealing with these complex ABS units. Their teams of experienced technicians possess in-depth knowledge of the ATE MK100's design flaws and failure modes. The remanufacturing process typically involves:
- Thorough Diagnostics: Identifying the precise internal fault within the hydraulic or electronic sections.
- Component Replacement: Replacing faulty internal components with upgraded, more robust parts where necessary, addressing known weaknesses.
- Extensive Testing: Subjecting the remanufactured unit to rigorous, multi-stage testing, often simulating real-world driving conditions, to ensure all functions operate flawlessly and meet or exceed original equipment manufacturer (OEM) specifications.
- Quality Control: A stringent quality control process guarantees reliability and durability.
This approach offers several significant benefits:
- Cost-Effectiveness: Remanufacturing is typically a fraction of the cost of a brand-new OEM unit, making it a more accessible repair for vehicle owners.
- Reliability: Because known failure points are addressed and components are upgraded, a remanufactured unit can often be more reliable than a new unit that might still contain the original design flaws.
- Sustainability: By restoring existing components, remanufacturing reduces waste and the demand for new raw materials, making it an environmentally friendlier option.
- Guaranteed Performance: Reputable remanufacturers offer warranties, providing peace of mind that the repaired unit will perform as expected.
It's worth noting that the issue with the ATE MK100 ABS module causing brake pressure problems isn't exclusive to Ford. This particular module has also been increasingly identified as a problem source in other popular vehicles, including the BMW 1 Series (F20/F21), BMW 3 Series (F30/G20), Volkswagen Caddy III facelift/Caddy IV, and Volkswagen Golf VII. This broadens the scope of impact and further solidifies the importance of understanding this specific component's potential for failure.
Comparing Binding Brake Scenarios
To help you distinguish between potential causes, consider this comparative table:
| Symptom | Common Causes | Diagnostic Clues |
|---|---|---|
| One wheel extremely hot, glowing disc, intermittent. | Sticking caliper, localised brake line restriction, ABS sensor fault, *sometimes* ABS module or master cylinder affecting one circuit. | Visual inspection, wheel spin test on affected wheel, check caliper piston movement. Joe's Transit experience fits here. |
| Multiple wheels hot, general drag, spongy pedal. | Master cylinder internal fault, general brake fluid contamination, ABS module hydraulic section failure (affecting multiple channels). | Check brake fluid, pressure test system, full diagnostic scan for ABS codes. |
| Brakes bind after hard braking or ABS activation. | ABS module internal valve failure, ABS sensor sending erroneous signals. | Diagnostic scan tool is essential to monitor ABS activity and sensor data. |
| Brakes bind randomly, then release themselves. | Intermittent ABS module fault (electrical or hydraulic), master cylinder internal fault. | Difficult to diagnose without live data logging, often points to an electronic or hydraulic control issue. |
Frequently Asked Questions (FAQs)
Can I continue to drive my car with binding brakes?
No, driving with binding brakes is highly dangerous and not recommended. It significantly increases the risk of brake failure, causes extreme wear to components, can lead to a fire due to excessive heat, and severely compromises vehicle control. You should address the problem immediately.
How much does it cost to fix binding brakes?
The cost varies significantly depending on the root cause. A simple caliper replacement might be relatively inexpensive, whereas a new ABS module can be very costly. Remanufacturing an ATE MK100 ABS unit typically offers a substantial saving compared to buying a new one, often coming in at a fraction of the new part's price, plus labour for removal and reinstallation.
How long does ABS module remanufacturing take?
The actual remanufacturing process by a specialist typically takes a few days, plus shipping time to and from the service centre. Your technician will need to remove the unit from your vehicle and then refit it once it's returned.
How can I prevent brake binding?
Regular brake system maintenance is key. This includes periodic inspection of brake pads and discs, checking brake fluid levels and condition, and ensuring brake lines are free of corrosion or damage. While you can't prevent a specific component like an ABS module from failing due to internal design, good general maintenance can catch other issues early and ensure the rest of your system functions optimally.
Is it always the ATE MK100 ABS module on Ford models?
While the ATE MK100 ABS module is a very common cause for binding brakes on Ford Fiesta, B-Max, C-Max, and Transit models, it is not the *only* cause. Other issues like sticking calipers, restricted brake lines, or a faulty master cylinder can also lead to similar symptoms. A thorough diagnostic process is always necessary to confirm the exact problem.
Conclusion
Binding or locking brakes on your Ford Fiesta, B-Max, C-Max, or Transit is a serious issue that demands immediate attention. While various components can contribute, the ATE MK100 ABS system has emerged as a particularly common culprit, leading to frustrating and potentially dangerous situations. Understanding the problem, along with the tell-tale signs and diagnostic steps, empowers you to seek the right solution. Opting for professional ABS system remanufacturing offers a reliable, sustainable, and cost-effective repair that can restore your vehicle's braking performance and ensure your safety on the road. Don't ignore those hot wheels; get them checked by a qualified technician without delay.
