Resurrecting a Legend: My Triumph TR7 Suspension Rebuild

For many, a classic car isn't just a vehicle; it's a time capsule, a project, and often, a long-held dream. My 1977 Triumph TR7 is certainly that. Acquired in 1983 for a modest £1500, it served me well for four years, witnessing milestones like my marriage and a house move. But as life took over, with a new cottage needing renovation and a company car arriving, the TR7 was gently ushered into the garage at the end of the garden in 1987. For over two decades, it sat there, a silent promise. I often joked, saying, "that one day I'd put it back on the road." Twenty-four years later, in November 2011, that day finally arrived. The journey of its restoration began, starting with the heart of its ride: the front suspension.

Understanding Your Triumph's Foundations: TR7 vs. TR8 Suspension

Before diving into the intricate details of a suspension rebuild, it's crucial to understand the fundamental differences and shared characteristics, especially when considering upgrades or replacements. A common question among enthusiasts is, "What's the difference between a TR7 and TR8?" While the most significant divergence lies in the engine – the TR8 boasting a Rover V8 – their suspension setups also feature notable distinctions, primarily in spring rates and subtle variations designed to handle the differing weight and power outputs. Understanding these nuances is key to achieving the desired ride and handling characteristics for your classic Triumph.

Spring Rates: A Comparative Look

The spring rate, measured in pounds per inch (lbf/in), dictates how stiff a spring is – how much force is required to compress it by one inch. This directly impacts the car's ride comfort, handling, and stability. Through extensive research into reference books and detailed records, the following statistics shed light on the differences between various TR7 and TR8 configurations:

As you can see, there's a subtle progression in front spring rates, with the air-conditioned TR7 and UK-spec TR8 sharing the stiffer 94 lbf/in spring. The USA-spec TR8, perhaps due to its heavier V8 engine, features a slightly higher 96 lbf/in. For the rear, the standard TR7 generally uses a 165 lbf/in spring, with the genuine TR8 being marginally stiffer. When considering upgrades, a common uprate for the rear is 200 lbf/in, aiming for a more balanced ride and improved handling.

Beyond Springs: Shock Absorbers and Ride Height

While springs define the car's stiffness, shock absorbers (or dampers) control the rate at which the suspension compresses and rebounds, preventing excessive bouncing. For my TR7, the choice came down to Koni heavy-duty adjustable shock absorbers or Spax heavy-duty adjustable inserts. Both are reputable brands widely available from Triumph specialists and aftermarket suppliers. My personal preference leaned towards the Koni units. A crucial piece of advice for adjustable dampers: only adjust them by a maximum of two half-turns from the softest setting. Over-adjustment can severely impact ride stiffness, leading to an uncomfortable experience for both driver and passenger. As someone once quipped, "...screw 'em up as far as you can and she will stick to the road like glue" – my only retort is, "how's your back and do you know a good welder?" Comfort and structural integrity are paramount.

The final variable for suspension tuning is ride height, controlled by the spring's length. Options typically range from 1/2" to 2" shorter than standard. My preference was for a 1/2" lowered setup. This subtly drops the wheel into the wheel arch without significantly compromising ground clearance. Deeper lowering (1" or 2") should be carefully considered, especially if you plan on carrying passengers or luggage, or if you regularly drive on less-than-perfect roads. Many an exhaust system has met an untimely end due to excessive lowering without a true material gain in road holding. For my conversion, I opted for the Triumph Tune (MOSS) 1/2" lowered 200 lbf/in springs, which are also progressive, stiffening further under heavy compression, ideal for spirited cornering.

A serious word of warning: NEVER be tempted to reduce the length of springs by cutting them shorter yourself. This incredibly dangerous practice can have terminal consequences, leading to unpredictable handling and potential catastrophic failure.

Preparing for the Rebuild: Gathering Your Arsenal

A successful rebuild hinges on meticulous preparation. Before a single spanner is turned, it's essential to ascertain all required parts and have them readily available. This foresight not only prevents frantic last-minute dashes for that elusive component but also ensures your car will be ready for the drive to work on Monday morning, avoiding unnecessary downtime. Believe me, I speak from personal experience!

Essential Parts List for Front Suspension Overhaul

For a comprehensive front suspension overhaul, here’s a list of components you'll likely need. Note that some items, particularly rubber parts and nuts, might appear serviceable but are often best replaced during a major rebuild, as they can break during dismantling or lose integrity over time.

• 2 x Springs (e.g., Triumph Tune 1/2" lowered, 200 lbf/in)
• 2 x Shock Absorbers (e.g., Koni heavy duty adjustable type or Spax heavy duty adjustable insert)
• 2 x Suspension Gaiters - Part No. UKC4981
• 2 x Tie Wraps for Suspension Gaiters - Part No. BMK1900
• 2 x Bump Stops (correct length, not original TR7 ones)
• 2 x Ball Joint Dust Covers - Part No. UKC3466
• 2 x Ball Joint Nuts (1/2" UNF Nilock or Castellated, use Part No. LN2211)
• 1 x Bag of Assorted Split Pins
• 2 x Damper Unit Closure Nuts (usually supplied with shock absorber – always check)
• 2 x Strut to Suspension Mount Nuts (12mm Nilock) - Part No. NY112041
• 6 x Suspension Mount to Body Nuts (8mm Nilock) - Part No. GHF252
• 2 x Spring Insulator Rubber
• 1 x Tin of Copper Grease
• 1 x Tube of Silicone Grease

Remember, Nilock nuts (items j and k) should never be reused. They are designed for single use to maintain their locking integrity, which is vital for safety.

Component Choices: Shocks, Springs, and Bump Stops

As mentioned, my personal preference for shock absorbers was the Koni heavy-duty adjustable type. These are adjusted for wear and cannot be adjusted once fitted to the car. The alternative, Spax, offers similar performance. Both are excellent choices, but always adhere to conservative adjustment – a maximum of two half-turns from the softest setting. Any more and the ride becomes jarring, potentially leading to discomfort and even structural strain on the chassis.

The springs, as detailed in the table, are a critical choice. For my TR7, the Triumph Tune (MOSS) 1/2" lowered 200 lbf/in progressive springs offered the ideal balance of improved handling without excessive lowering. This choice maintains a sensible ground clearance, especially important given the car's age and potential for varied road conditions.

Finally, the bump stops. The original TR7 bump stops are simply too long. While they could theoretically be cut to length, it’s far simpler and safer to acquire new ones of the correct length when purchasing your springs. This ensures proper suspension travel and prevents harsh bottoming out.

On the topic of lubricants, I tend to use copper grease wherever possible. It's excellent for inhibiting rust and preventing corrosion, particularly between steel and aluminium surfaces – a common issue on older vehicles. This makes future disassembly much easier. However, it’s critical to note that silicone grease must be used for thrust collars (Part No. UKC329), never ordinary or copper grease, as these can degrade rubber components.

The Disassembly Process: Methodical Deconstruction

With all parts gathered and the right lubricants at hand, it was time to commence the stripping down of the front end. This process requires patience, the right tools, and a methodical approach to ensure every component is accounted for and handled correctly.

Step-by-Step Guide to Stripping Down the Front End

1. Disconnect the Battery: Always start by disconnecting the battery, earth lead first, to prevent any accidental electrical shorts.
2. Loosen Wheel Nuts: Loosen the nuts on both front wheels while the car is still on the ground.

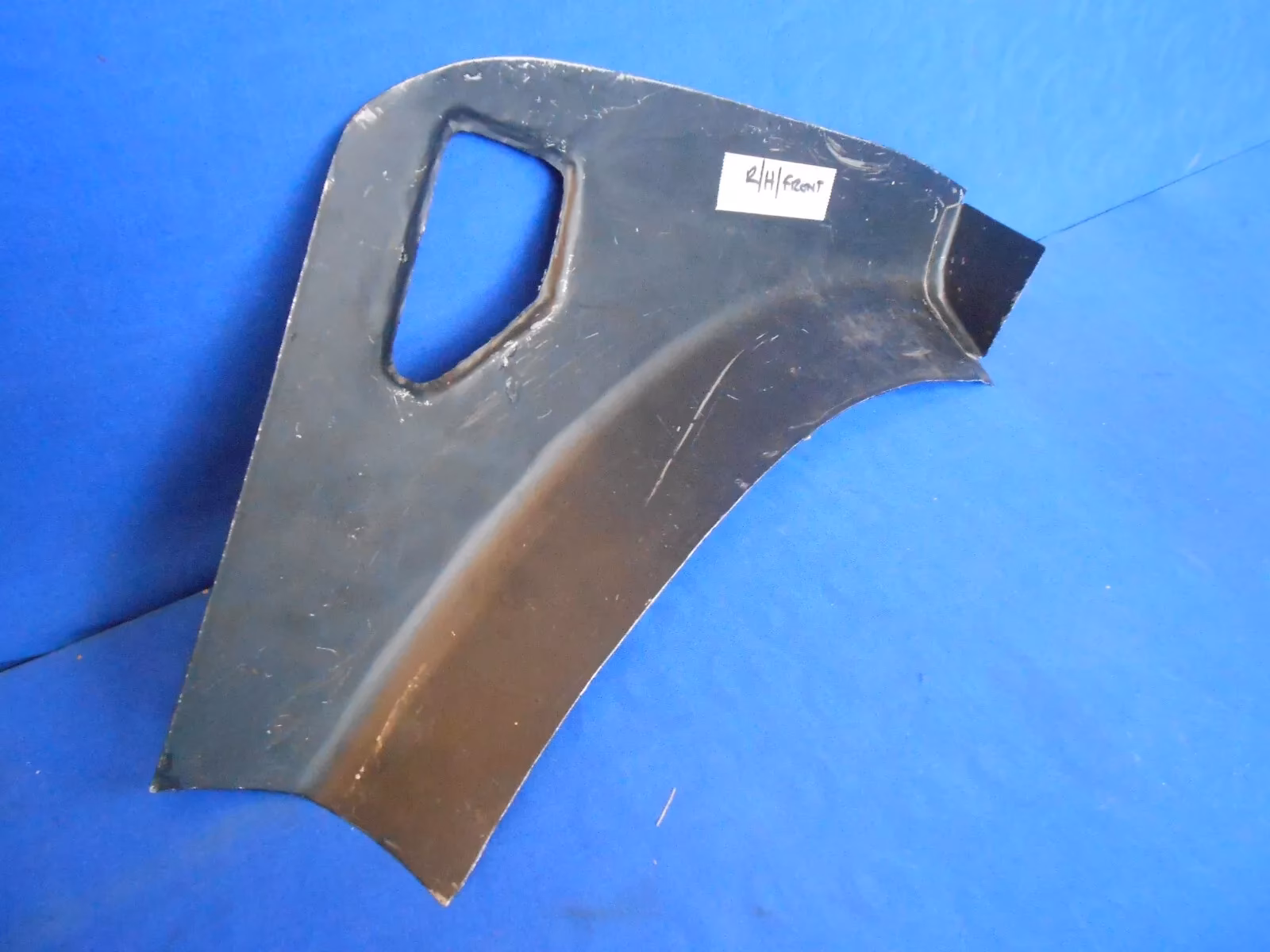

3. Remove Rubber Bungs: Locate and remove the rubber bung on the top of each suspension turret.
4. Slacken Top Strut Nut: Slacken, but DO NOT REMOVE, the nut at the top of each suspension strut (Part No. ULC2435). Leave a full nut on the thread. This may require an Allen key or other suitable tool to hold the damper shaft.
5. Jack Up the Car: Jack up the car and carefully place axle stands under the chassis rails near the front of the gearbox. Ensure the stands are securely positioned.
6. Lower onto Axle Stands: Slowly lower the jack so that the axle stands take the full weight of the front of the car. Double-check stability.
7. Remove Front Wheels: With the car safely supported, remove the front wheels.
8. Work One Side at a Time: To avoid confusion and allow for easy reference, work on one suspension leg at a time. If you have any doubts about where a part fits, you can refer to the assembled side.
9. Release Brake Pipe: Carefully release the brake pipe from the suspension leg. This joint can be stubborn and may require some penetrating oil like WD40. Be extremely careful not to disturb the main brake pipe union itself.
10. Undo Brake Caliper/Steering Arm Bolts: Undo the three bolts holding the brake caliper and steering arm. Pay close attention to the position of any spacer washers; they are critical for correct alignment.
11. Slide Caliper Aside: Gently slide the caliper away from the disc and securely tie it up to one side, ensuring no strain is put on the brake hose.
12. Undo Ball Joint Nut: Undo the nut holding the ball joint assembly to the suspension strut.
13. Free the Ball Joint (The Tricky Part): This step often requires an extra pair of hands and some brute force. Position a crowbar over the anti-roll bar and under the sub-frame, then apply downward pressure. Simultaneously, using two hammers together, strike opposite sides of the ball joint taper. The combined actions should free it. In extreme cases, a bit of extra muscle might be needed. Joint splitters can be used, but they often destroy the dust covers, necessitating replacement.
14. Remove Suspension Leg: With the ball joint free, the suspension leg should now be loose. Remove the three nuts on the top of the turret and carefully take the entire leg assembly from the car.
15. Compress the Spring: Using a pair of robust spring clamps, carefully compress the spring until the top mounting becomes loose.
16. Remove Top Nut: With the spring compressed, remove the top nut (ULC2435).
17. Layout Parts and Inspect: As each component comes off the leg, carefully lay it out in order. This attention to detail at this stage makes re-assembly significantly easier. Inspect each part for wear, damage, or corrosion.
18. Undo Damper Unit Closure Nut: Undo the damper unit closure nut (this can sometimes be problematic depending on the type of nut used) and remove the old shock absorber.
19. Inspect and Clean Leg: Thoroughly inspect the suspension leg itself for any signs of damage, cracks, or excessive wear. Clean off any surface rust before proceeding.

Reassembly: Bringing It All Back Together

After the laborious process of dismantling and cleaning, the reassembly phase is immensely satisfying. Working with clean, new parts instead of fighting rusty, dirty bits is a true pleasure. This is where precision and careful attention to detail truly pay off.

Rebuilding the Struts: Precision and Care

1. Adjust and Fit New Shock Absorber: Read the instructions for your new shock absorber carefully. Carry out any necessary adjustments (as discussed previously, typically two half-turns from softest) and refit it into the suspension leg after lightly greasing the barrel.
2. Begin Reassembling the Leg: Start fitting new parts where necessary. Smear silicone grease over the thrust collar (Part No. UKC329). Remember, DO NOT USE ordinary or copper grease here, as it can damage the rubber.
3. Fit Gaiter and Bump Stop: Fit the gaiter to the top mounting before sliding it inside the new spring. At the same time, fit the new bump stop.
4. Compress Spring and Replace Top Nut: With the new spring compressed using your spring compressors (using old foam bits to protect powder coating is a good tip!), replace the top nut.
5. Secure Gaiter: Now for the tricky bit: pull the bottom of the gaiter over the chassis leg and secure it with the tie-wrap.
6. Remove Spring Compressors: Carefully and slowly release the spring compressors. The leg is now ready to be refitted to the car.
7. Fit Swivel Bearings (Optional but Recommended): For smoother steering, especially on a car without power steering like the TR7, consider fitting swivel bearings. These replace the old washers. The bearing goes in first, followed by a greased washer. Simple, but effective.
8. Hub Reassembly: Fit the dust shields first. Then, grease the rear bearing thoroughly and fit it before the seal goes in place. Drop the hub onto the axle, bolt it in place, and secure with a new split pin.

Revitalising the Subframe: Ball Joints and Bushes

With the struts assembled, attention turned to the subframe. This assembly houses crucial components like the lower arms, ball joints, anti-roll bar, and steering rack. The lower arms were first. New ball joints needed to be pressed in. After cleaning paint overspray from the arms, a hydraulic press (a truly worthwhile investment for such jobs!) was used. The arms' unusual shape required some precarious balancing in the press. It was easier to remove the rubber boots before pressing the ball joints to prevent pinching, then refit them afterwards. Once the ball joints were in place, the circlips were fitted, and the rubber boots refitted.

Next were the bushes. The TR7 front suspension uses two-piece bushes, which are relatively easy to fit. Once greased, they were installed, and the lower arms were bolted to the subframe. The anti-roll bar followed. Normally a tough job due to tension, fitting it on the bench with the arms free to move made it significantly easier, requiring only slight persuasion. The main challenge was compressing the new bushes at the end of the bar to get the nuts on; mole grips proved invaluable here, squeezing the assembly just enough to start the threads. Finally, the steering rack was bolted down to the subframe, and the centre anti-roll bar clamps were tightened.

Integrating New Brake Lines

Before the entire suspension assembly was fitted back onto the car, it was an opportune moment to finish up the brake lines. Working in the engine bay was far easier with the subframe out of the way. New brake lines were meticulously made up and flared, ensuring a perfect, leak-free fit. The brake balancer was also refitted at this stage, completing a critical part of the braking system.

The Final Act: Marrying Components to Chassis

The moment of truth arrived: getting the fully rebuilt front suspension back onto the car. This stage involved careful planning and a good deal of physical effort, transforming the vehicle from a bare chassis to a rolling shell once more.

Preparing the Car: From Dolly to Axle Stands

First, the car needed to be positioned correctly. It had been resting on a custom-made dolly, which now needed to be removed for the last time. A minor hiccup: one of the rear tyres had gone flat due to perishing. A quick pump-up allowed enough air to move the car forward, pushing it right up against the wall to create space. With the car in position, it was carefully raised onto sturdy axle stands. These were chosen to be at a perfect height, allowing comfortable working conditions underneath and signalling the dolly's permanent retirement.

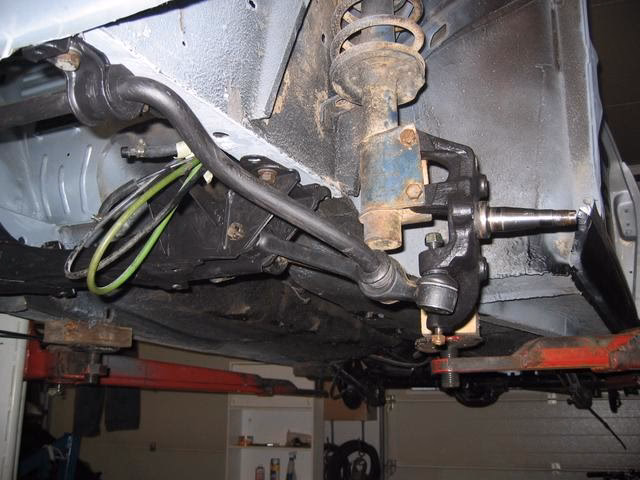

Fitting Struts and Subframe: A Balancing Act

The struts went in first. This was a fiddly but manageable job, even alone. I passed them up into the wheel arch, then leaned over to get the nuts onto the top mount. While easier with two people, patience prevailed. The nuts were left loose initially to allow for a little movement during the subframe fitting.

Fitting the subframe itself was the trickiest part. Although technically only four bolts hold it, it's a heavy and awkward component. My trolley jack was pressed into service to lift the precariously balanced subframe into position. There were a few false starts – the jack sometimes couldn't lift high enough, or the subframe slipped off. If I were to do this again, an engine hoist would undoubtedly be the tool of choice, saving much hassle and effort. Once the subframe was finally (and precariously) in place, I bolted the lower arms to the struts first. This provided enough stability to then align and insert the main subframe bolts, spacers, and bushes. The engine mount bracket was also fitted at this point. With everything roughly in place, the bolts were progressively tightened. Some, like the lower arm bolts, were left loose to be fully tightened only once the suspension was fully loaded (i.e., when the car is back on its wheels), ensuring proper bush alignment and preventing premature wear. With the subframe firmly attached, the car was truly ready for the engine and gearbox installation in due course.

Post-Restoration Checks and First Drive

With all components fitted and tightened, the wheels were refitted. This was a significant moment – it had been quite a while since the TR7 had all four wheels on the ground! After removing the axle stands and reconnecting the battery leads, a final check ensured everything was secure. Then, the moment of truth: a test drive. This initial drive is critical to check the operation of the brakes and steering under real-world conditions. Immediately after the test drive, it’s essential to recheck the wheel nuts, as they can sometimes settle after initial use. The feeling of the car back on its wheels, albeit with much more work ahead, was incredibly rewarding.

Frequently Asked Questions (FAQs)

Q: How do I know if my Triumph TR7/TR8 suspension needs replacing?

A: Common signs of worn suspension include excessive bouncing after hitting bumps, a harsh or uncomfortable ride, noticeable clunking or knocking noises over rough surfaces, uneven tyre wear, and poor handling or body roll in corners. If your car sags, especially at one corner, or if you can see visible leaks from shock absorbers or cracked/perished rubber bushes, it's definitely time for an inspection and likely replacement.

Q: Can I cut my springs to lower the car for a sportier look?

A: Absolutely NOT. Cutting springs is incredibly dangerous and can lead to catastrophic suspension failure, unpredictable handling, and a serious risk of accident. Springs are precisely engineered components, and altering their length by cutting them compromises their integrity and spring rate in an uncontrolled manner. Always purchase correctly manufactured lowered springs if you wish to adjust your car's ride height.

Q: What's the best way to free a stubborn ball joint without damaging it?

A: Stubborn ball joints are a common challenge. The method of using a crowbar to apply leverage while simultaneously striking the taper with two hammers (one on each side) is often effective. This creates a shock wave that can break the taper's grip. Alternatively, a dedicated ball joint splitter tool can be used, though some designs may damage the dust cover. Applying penetrating oil beforehand and allowing it to soak can also help significantly. Avoid using excessive heat directly on the joint, as it can damage the rubber boot and internal components.

Q: Why is it recommended to use different types of grease (copper vs. silicone) in specific areas of the suspension?

A: Different greases have different properties. Copper grease is an anti-seize compound ideal for preventing corrosion and seizing between dissimilar metals (like steel and aluminium) or on threaded components that may need to be disassembled later. It handles high temperatures well. Silicone grease, on the other hand, is generally preferred for rubber components (like thrust collars, bushes, and gaiters) because it won't degrade rubber like petroleum-based greases can. Using the correct type of grease ensures longevity of parts and ease of future maintenance.
