MOT Type 1: What's In The Mix?

When embarking on a project involving driveways, patios, or any new road construction, you'll invariably come across the term 'MOT Type 1'. It's a cornerstone of modern civil engineering and landscaping, acting as the crucial foundation upon which surfaces are laid. But what exactly is this ubiquitous material made of? Understanding its composition is key to appreciating its performance and ensuring the longevity of your project. This article delves into the granular details of MOT Type 1, explaining its constituent parts and why they are so important.

Understanding the 'MOT' Abbreviation

Before we dissect the materials, it's helpful to understand the 'MOT' designation. MOT stands for the Ministry of Transport, the UK government department responsible for roads and transportation infrastructure until 1997. While the department itself has evolved, the naming convention for certain road-building materials, like MOT Type 1, has persisted. It signifies a material that meets specific standards and specifications for use in road construction and maintenance, ensuring a certain level of quality and performance.

The Core Components of MOT Type 1

At its heart, MOT Type 1 is a hard-wearing aggregate that, when compacted, forms a stable and load-bearing sub-base. It's not a single, homogenous material but rather a blend of different-sized crushed stone particles. The key to its effectiveness lies in this carefully controlled mix, which allows for excellent compaction and interlocking of the individual pieces.

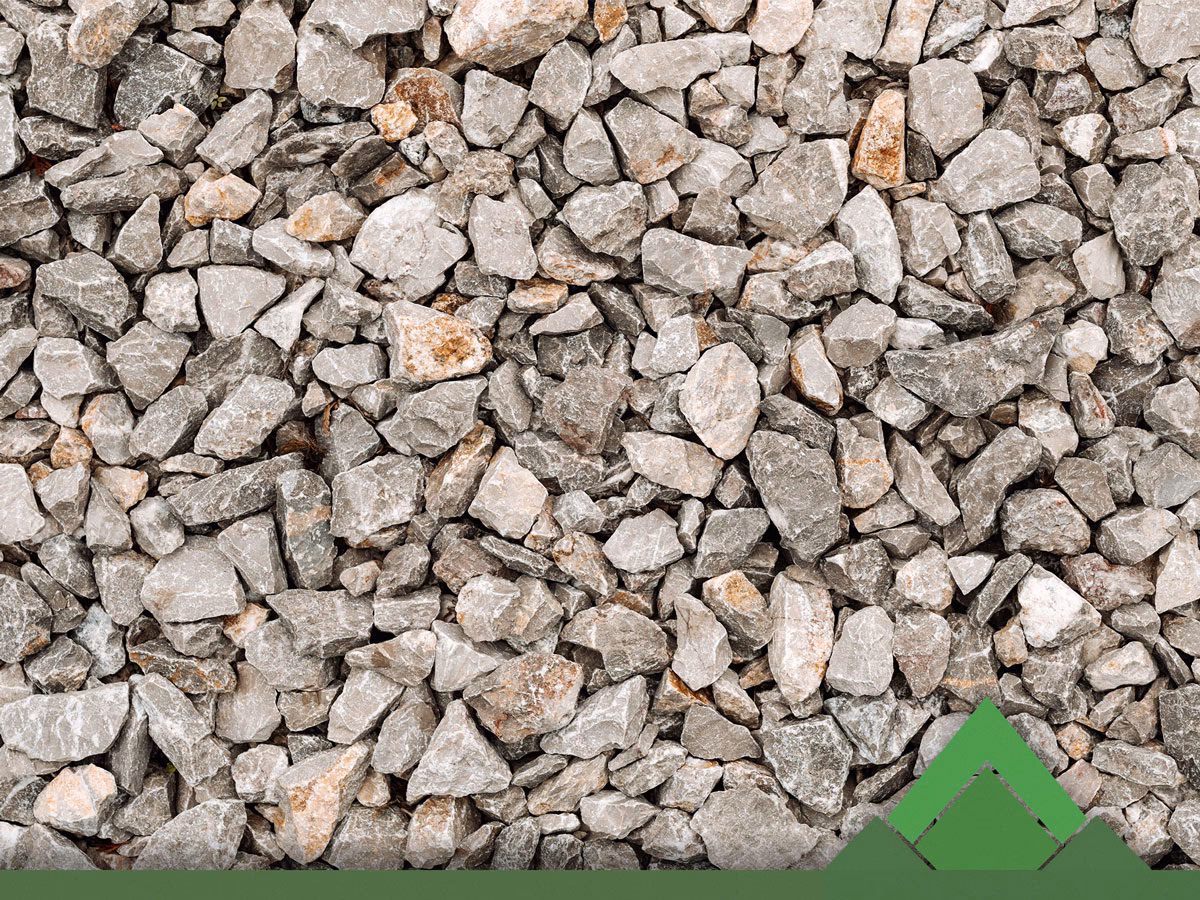

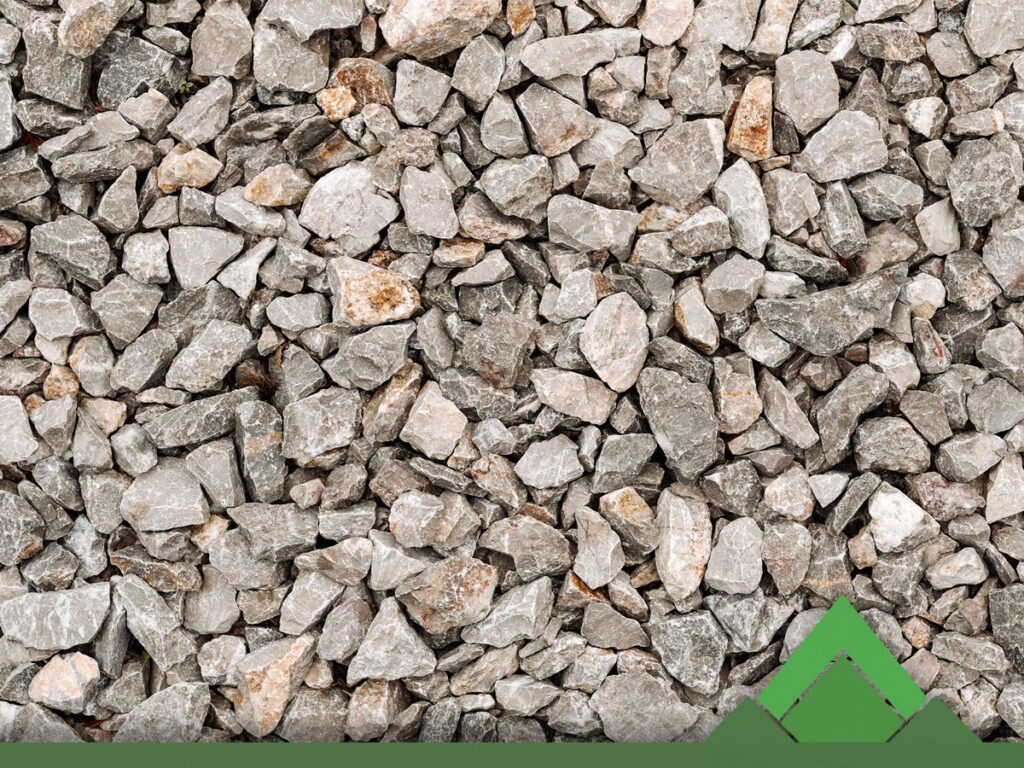

The primary constituents of MOT Type 1 are typically derived from crushed natural stone. Common sources include:

• Limestone: A widely available and cost-effective option, limestone provides good strength and durability.
• Granite: Known for its exceptional hardness and resistance to weathering, granite is a premium choice for MOT Type 1, offering superior strength.
• Basalt: Another igneous rock, basalt offers good compaction properties and is often used in MOT Type 1 mixes.
• Gravel: While the primary material is crushed stone, certain types of clean, angular gravel can also be incorporated into the mix.

The crucial aspect is that these materials are crushed and screened to achieve a specific particle size distribution. This is not simply random rubble; it's a engineered product.

Particle Size Distribution: The Secret Sauce

The defining characteristic of MOT Type 1 is its particle size range. It's designed to contain a carefully controlled mixture of sizes, from fine dust to larger chippings. This is often referred to as 'all-in-aggregate'. The typical specification allows for particles ranging from:

• Up to 40mm (or 50mm in some specifications): This is the maximum size of the aggregate.
• Down to dust (fines): The smallest particles are crucial for filling the voids between the larger stones.

A typical breakdown of the particle sizes might look something like this, though exact percentages can vary slightly between suppliers and specific project requirements:

This specific grading ensures that when the aggregate is compacted, the different sizes of stone lock together effectively. The larger stones provide the primary load-bearing capacity, while the smaller stones and fines fill the gaps, creating a dense, stable, and impermeable layer. This interlocking nature is what gives MOT Type 1 its excellent structural integrity.

Why This Specific Mix Matters

The careful grading of MOT Type 1 is not arbitrary. It's designed to achieve several critical performance characteristics:

• Load Bearing Capacity: The interlocking of particles distributes weight evenly, preventing excessive sinking or rutting under load. This is vital for roads and driveways that will experience vehicular traffic.
• Compaction: The range of particle sizes allows for efficient compaction using vibrating rollers or plate compactors. As the material is vibrated and pressed, the particles settle into a dense, solid mass.
• Drainage: While dense, the aggregate still allows for a degree of drainage, preventing water from pooling directly on the sub-base, which can lead to frost heave and instability. However, it's not designed as a primary drainage layer.
• Stability: A well-compacted MOT Type 1 sub-base provides a firm and stable platform for the final surface layer (e.g., tarmac, block paving, concrete), preventing movement and cracking.

MOT Type 1 vs. Other Aggregates

It's important to distinguish MOT Type 1 from other common aggregates. For instance:

The specific grading and angular nature of MOT Type 1 are what set it apart and make it the preferred choice for engineered sub-bases.

Frequently Asked Questions (FAQs)

Q1: Can I use any crushed stone for my sub-base?

A1: While crushed stone is the basis, it's crucial to use material that meets the MOT Type 1 specification, particularly regarding particle size distribution. Using random crushed stone might not provide the necessary compaction and load-bearing capacity.

Q2: What is the difference between MOT Type 1 and MOT Type 4?

A2: MOT Type 4 (also known as 10mm clean stone) is a different specification. It consists of crushed aggregate with a maximum particle size of 10mm and has been screened to remove all fine particles (dust). It's typically used as a clean capping layer or for drainage purposes, not as a primary load-bearing sub-base like Type 1.

Q3: Where does MOT Type 1 come from?

A3: It's typically produced by quarrying and crushing suitable rock types like limestone, granite, or basalt. The crushed material is then screened and graded to meet the specific MOT Type 1 requirements.

Q4: Is MOT Type 1 suitable for patios?

A4: Yes, MOT Type 1 is an excellent sub-base for patios, block paving, and other paved areas. It provides a stable foundation that prevents the paving from shifting or sinking over time.

Q5: How much MOT Type 1 do I need?

A5: This depends on the size of your project and the required depth of the sub-base. A common depth for driveways is 100mm to 150mm. You'll need to calculate the volume (length x width x depth) and then consult with your supplier for the correct weight or volume to order, as aggregates are often sold by tonne.

Conclusion

In summary, MOT Type 1 is a meticulously engineered aggregate, primarily composed of crushed limestone, granite, or basalt. Its effectiveness stems from a carefully controlled blend of particle sizes, ranging from 40mm down to dust. This specific grading allows for excellent compaction, creating a strong, stable, and load-bearing sub-base that is essential for the successful construction of roads, driveways, patios, and other trafficked areas. Understanding its composition highlights why it's the go-to material for professionals seeking a reliable foundation.
