Toro Power Max 824 OE: Oil Level & Maintenance

As the winter months approach, ensuring your snow clearing equipment is in prime condition is paramount. For owners of the Toro Power Max 824 OE snow blower, understanding specific maintenance procedures, such as checking the gearbox oil level, is crucial for reliable operation. This guide aims to demystify the process, address common queries, and provide comprehensive advice for keeping your Toro Power Max 824 OE running smoothly through the harshest snowfalls.

Understanding the Toro Power Max 824 OE

The Toro Power Max 824 OE is a robust snow blower designed for residential homeowners. It's engineered to efficiently clear snow from paved surfaces like driveways and sidewalks. Key features often include a powerful engine, a wide clearing path, and user-friendly controls, such as the Quick Stick control for easy chute adjustments. Its designation 'OE' typically signifies an 'Overhead' valve engine, a common and efficient engine design. Knowing your specific model and serial number is vital for accessing the correct manuals and parts. You can usually find this information on a decal located on the snow blower itself, often near the engine housing. Scanning the QR code on this decal with a smartphone can provide quick access to warranty, parts, and other product information.

The Auger Gearbox Oil Level Conundrum

A common point of confusion for Toro Power Max 824 OE owners revolves around checking the oil level in the auger gearbox. The operator's manual specifies checking the oil level to be "3/8 inch below the filler opening." This measurement can be tricky to ascertain through the small opening, leading many users to question the accuracy and practicality of this method. Many also refer to alternative instructions, perhaps from online videos or manuals for different Toro models, which suggest filling the oil until it is even with the bottom of the filler opening. This alternative method is generally easier to visually confirm.

Clarifying the Correct Oil Level

While the "3/8 inch below" instruction might seem obscure, it's important to understand its purpose. This measurement aims to ensure the gearbox is neither overfilled nor underfilled. Overfilling can lead to increased pressure within the gearbox, potentially causing seal damage or leaks, and can also lead to the oil aerating, reducing its lubricating properties. Underfilling, conversely, can result in insufficient lubrication for the gears, leading to premature wear and potential failure. The reason for this specific measurement, rather than filling to the brim, is often due to the internal design of the gearbox and the presence of baffles or gears that might interfere with a direct visual check if filled to the very top. It's possible that the design anticipates a certain air gap for proper lubrication and cooling.

Practical Steps for Checking and Filling

Given the difficulty in accurately measuring 3/8 inch below the opening, a more practical approach for many users is to fill the gearbox until oil just begins to seep out of the filler hole when the unit is level. This method generally approximates the correct level without overfilling. However, it's always best to consult the specific manual for your model year, as Toro may have updated recommendations. If you're unsure, a good compromise is to add oil slowly, checking the level frequently. A common mistake is to over-tilt the machine while checking or filling, which can give a false reading.

Important Considerations:

• Oil Type: Always use the type of oil recommended in your owner's manual. Using the wrong type of oil can damage the gearbox. Typically, a high-quality multi-viscosity gear oil (like SAE 90 or equivalent) is recommended for snow blower gearboxes.
• Level Surface: Ensure the snow blower is on a flat, level surface when checking or filling the oil.
• Cleanliness: Before opening the filler cap, clean the area around it to prevent dirt and debris from entering the gearbox.
• Tools: You may need a funnel and a wrench to open the filler plug. A small, flexible tube or even a turkey baster can sometimes be helpful for precise filling if you are concerned about overfilling.

Troubleshooting Common Issues

If your Toro Power Max 824 OE isn't performing as expected, several factors could be at play. Here are some common issues and potential solutions:

1. Snow Blower Not Engaging Auger/Impeller

Possible Causes:

• Sheared shear pins (designed to break and protect the gearbox if the auger hits an obstruction).
• Loose or broken auger drive belt.
• Problem with the auger engagement lever or cable.
• Internal gearbox issue.

Solutions:

• Inspect and replace any broken shear pins. These are typically small metal pins that deliberately break to prevent more severe damage.
• Check the auger drive belt for wear, tension, and proper alignment. Replace if necessary.
• Inspect the engagement cable and lever mechanism for proper function and adjustment.
• If the above are satisfactory, the issue may lie within the gearbox, requiring professional diagnosis.

2. Engine Not Starting or Running Rough

Possible Causes:

• Stale fuel or water in the fuel tank.
• Clogged fuel filter or fuel line.
• Dirty or fouled spark plug.
• Blocked carburetor.
• Issues with the ignition system.
• Incorrect oil level in the engine (separate from the gearbox oil).

Solutions:

• Drain and replace old fuel with fresh fuel. Consider using a fuel stabilizer, especially during storage.
• Clean or replace the fuel filter and check fuel lines for obstructions.
• Remove, clean, and gap the spark plug according to the manual's specifications, or replace it if it appears damaged.
• Clean the carburetor. This can be a complex task and may require professional help.
• Consult the engine manual for troubleshooting the ignition system.

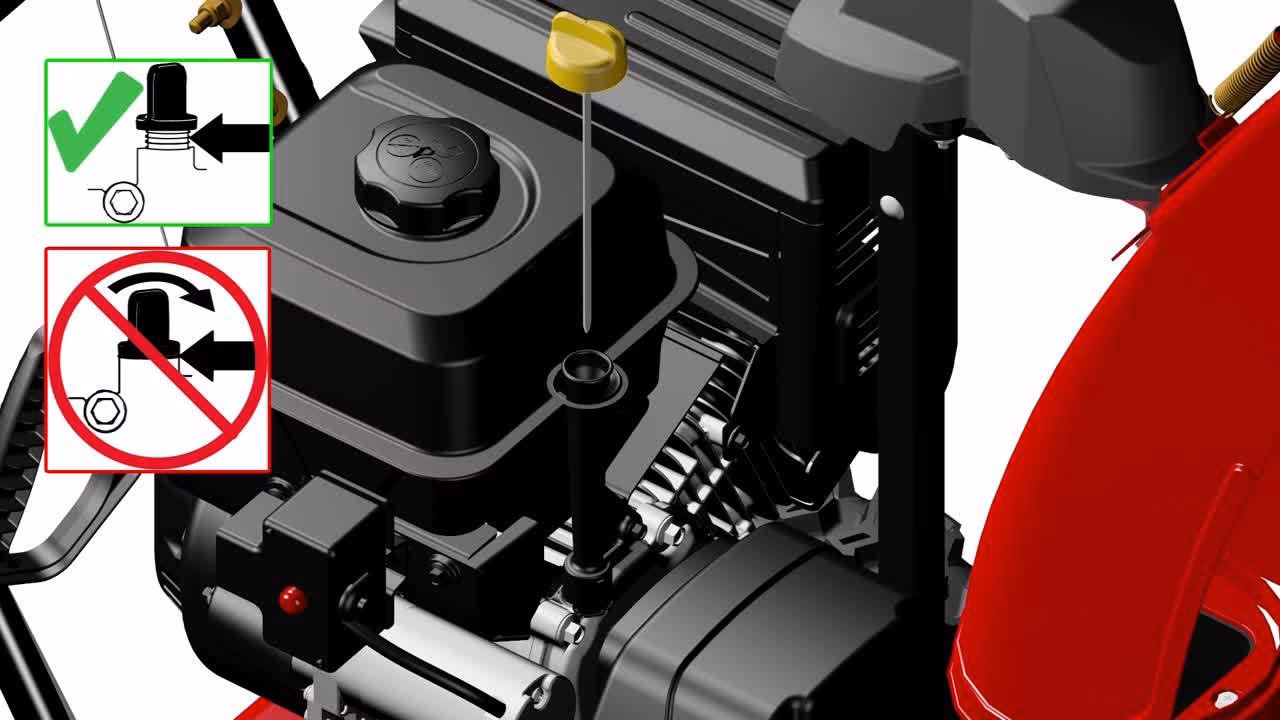

• Check the engine oil level using the engine's dipstick and add oil if necessary. Ensure you are using the correct type of engine oil.

3. Snow Not Being Thrown Effectively

Possible Causes:

• Auger or impeller is clogged with ice or snow.
• The chute is blocked.
• Worn or damaged auger or impeller paddles.
• Engine not running at the correct RPM.
• Sheared shear pins (even if the auger turns, it might not be powerful enough).

Solutions:

• Turn off the engine and clear any obstructions from the auger, impeller, and chute. Never use your hands to clear blockages; use a stick or appropriate tool.
• Inspect the auger and impeller for wear or damage and replace parts as needed.
• Ensure the engine is running smoothly and at the recommended speed.
• Check for and replace any sheared shear pins.

Preventative Maintenance Schedule

Regular preventative maintenance is key to extending the life of your Toro Power Max 824 OE and ensuring it's ready when you need it. Here’s a general schedule:

High Altitude Operation

An important consideration for operating any engine, including the one on your Toro Power Max 824 OE, is altitude. If you are operating your snow blower at altitudes above 1500 meters (approximately 5,000 feet) for extended periods, it is recommended to install a High Altitude Kit. Without this kit, the engine may run too rich, leading to performance issues such as spark plug fouling, hard starting, and increased emissions. The kit helps the engine meet emissions regulations at higher altitudes by adjusting the fuel-air mixture. If you install such a kit, remember to attach the provided high-altitude label near the serial number decal. Conversely, if your machine has been converted for high-altitude use and you intend to operate it at lower altitudes, it's crucial to remove the kit and restore the engine to its original factory configuration. Operating a high-altitude-converted engine at lower altitudes can lead to overheating and engine damage.

Frequently Asked Questions (FAQ)

Q1: How much oil does the Toro Power Max 824 OE gearbox take?

A1: The exact capacity is not always specified, but the key is to fill it to the level described in the manual (3/8 inch below the filler opening) or until it just starts to seep out of the filler hole when on a level surface.

Q2: Can I use regular motor oil in the auger gearbox?

A2: No, it is critical to use the specific type of gear oil recommended by Toro for the gearbox. Motor oil has different lubricating properties and may not be suitable, potentially causing damage.

Q3: What happens if I overfill the gearbox oil?

A3: Overfilling can increase internal pressure, potentially damaging seals and causing leaks. It can also lead to oil aeration, reducing its effectiveness as a lubricant.

Q4: My Toro Power Max 824 OE is leaving a trail of snow. What could be wrong?

A4: This could be due to worn auger or impeller paddles, or a clogged chute. Inspect these components for damage or obstructions and clear any blockages.

Q5: Where can I find the model and serial number for my Toro Power Max 824 OE?

A5: Typically, the model and serial number are located on a decal affixed to the main body or engine housing of the snow blower. Refer to your operator's manual for the exact location.

By understanding these maintenance procedures and troubleshooting tips, you can ensure your Toro Power Max 824 OE snow blower remains a reliable workhorse for many winters to come. Always refer to your specific operator's manual for the most accurate and up-to-date information regarding your model.
