What is an LS Engine Rebuild?
Embarking on an LS engine rebuild can seem like a daunting task, but understanding the process and having the right tools can make it a rewarding experience. An engine rebuild, or overhaul, is essentially the comprehensive process of replacing and refurbishing all worn, corroded, or contaminated internal engine components. Over time, due to the constant friction of moving parts, even with optimal lubrication, metal-on-metal contact inevitably leads to wear. Beyond this natural wear, factors like corrosion, carbon deposits, and sludge buildup within the oil and cooling systems can further degrade engine performance and longevity. While rigorous maintenance can prolong an engine's life, it cannot halt the inevitable effects of time. Sooner or later, every engine, including the robust LS family, will require a rebuild to restore its optimal performance and reliability.
Do You Really Need a Rebuild?
Determining if your LS engine is truly due for a rebuild requires careful consideration of its symptoms. While some engine issues can be resolved with minor repairs or routine maintenance, persistent and multiple problems often signal a more significant underlying wear that a full overhaul can address. Here are some common indicators that suggest your LS engine might be ready for a rebuild:
- High Odometer Mileage: While not a definitive indicator on its own, significant mileage often correlates with increased internal wear.
- Excess Metal in Engine Oil: Finding metallic particles in your oil is a clear sign of internal component wear.
- Excessive Oil Consumption: A noticeable increase in how much oil your engine consumes between changes can indicate worn piston rings or valve seals.
- Discoloured or Contaminated Oil: Oil that quickly discolours or contains foreign substances suggests internal issues or poor lubrication.
- Low Oil Pressure: Consistently low oil pressure, particularly below 10 psi per 1,000 rpm, is a critical sign of worn bearings or oil pump issues.
- Engine Overheating: Frequent overheating can be a symptom of internal problems, such as a blown head gasket or issues within the cooling system.
- Excessive Coolant Consumption or Discolouration: Similar to oil, significant coolant loss or discoloured coolant can point to internal leaks.
- Excessive Fluid Leaks: Persistent leaks of oil or coolant from various points can indicate failing seals or gaskets.
- Engine Misfire or Hesitation: While these can stem from ignition or fuel system problems, persistent misfires can also be linked to worn internal components like valves or piston rings.
- Difficulty Cranking or Starting: This can be a symptom of low compression, electrical issues, or fuel delivery problems, but severe internal wear can also contribute.
- Abnormal Engine Noises: Clunking, banging, or knocking sounds often indicate serious internal damage, such as rod bearing failure.
- Foul-Smelling Tailpipe Emissions: White, bluish, or black smoke from the exhaust, especially if accompanied by a strong odour, usually signifies burning oil or coolant.
- Poor Engine Compression: Low compression across multiple cylinders is a direct indicator of worn piston rings, cylinder walls, or valves.
- Poor Idle Quality: An unstable or rough idle can be caused by a variety of issues, including internal wear affecting combustion.
- Poor Fuel Mileage: A general decrease in fuel efficiency can be a cumulative effect of various engine wear issues.
- Engine Backfire: Backfiring, especially through the intake or exhaust, can indicate timing issues or problems with valve sealing.
- Reduced Engine Power: A noticeable loss of power is often a symptom of reduced compression or inefficient combustion due to wear.
- Malfunction Indicator Lamp (MIL) / Check Engine Light: While this light can indicate many issues, a proliferation of Diagnostic Trouble Codes (DTCs) related to engine performance often points to underlying mechanical problems.
It's important to note that not all these symptoms necessarily mandate a full rebuild. Some can be addressed with targeted repairs. However, when multiple symptoms are present and persistent, it strongly suggests that a comprehensive overhaul is the most effective solution for restoring your LS engine's health and performance.
Can You Rebuild an LS Engine Yourself?
Yes, with the right resources and a methodical approach, rebuilding an LS engine is a feasible project for a capable DIY mechanic. It requires a foundational understanding of automotive mechanics, a commitment to patience, and the ability to accurately use a range of hand tools. Supplementing this book with common sense and seeking advice from other reliable sources will significantly increase your chances of success. A critical external resource is an engine machine shop. These specialised facilities possess the necessary heavy-duty equipment and expertise for tasks like cleaning, machining, and resurfacing engine components – processes that are virtually impossible to perform correctly without them. For those who find certain aspects of the rebuild process beyond their time, patience, or skill level, machine shops can often provide assistance with specific labour, parts, or advice.
Another highly recommended, though not strictly mandatory, resource is the official GM service manual set for your specific vehicle. While this guide aims to be comprehensive, minor variations exist between different LS engine variants, even within the same model year. The GM manual will provide crucial technical details on these nuances, including precise specifications and part numbers, making it invaluable when ordering components. It also covers essential procedures like engine removal and installation, which are beyond the primary scope of an engine rebuild guide.
Essential Tools for an LS Engine Rebuild
A successful LS engine rebuild necessitates a comprehensive set of tools. While you likely already possess many general hand tools, several specialised items are indispensable. We can categorise these tools into three groups:
1. Required Tools (Must-Haves)
These are the fundamental tools you absolutely cannot do without for an LS engine rebuild:
| Tool | Description and Use |
|---|---|
| Piston Ring Squaring Tool | Essential for accurately measuring piston ring end gap during fitting. Crucial even for 'drop-in' rings to double-check the gap. |
| Socket Wrenches (Metric & Standard) | A comprehensive set of regular and deep sockets, both 12-point and hex, is required. LS engines primarily use metric fasteners, but standard sizes are useful for aftermarket parts. |
| Screwdrivers | While LS engines have few screws, a variety of screwdrivers, especially flatheads, will prove surprisingly useful for various tasks. |
| Feeler Gauge | Primarily used for precise measurement of piston ring end gaps, but also handy for checking engine cover alignment and other clearances. |
| Open- and Box-End Wrenches / Pliers | Metric wrenches are essential, with standard sizes also being beneficial. Adjustable wrenches and various types of pliers (regular, needle-nose) are also necessary. Ratcheting box-end wrenches can save significant time. |
| Magnets | Invaluable for retrieving dropped bolts and small parts, especially slippery or oily components like lifters, saving considerable time and frustration. |
| Piston Ring Compressor | A tapered, sleeve-style compressor is preferred to safely install pistons into the cylinder bores without damaging the rings. Ensure it's the correct size for your LS bores. |
| Hex Key Wrenches (Allen Wrenches) | Metric hex keys are needed for various fasteners, including oil gallery plugs. A set of TORX (star head) wrenches is also advisable as some LS engines utilise these. |
| Torque Wrenches | At least two are needed: one for inch-pounds and another for low-to-medium foot-pounds. A third for higher torque values (75 ft-lbs+) may be necessary for high-performance builds. Ensure they are calibrated and accurate. |
| Dial Caliper | Useful for precise measurements of various parts, including diameter, length, and depth. Electronic readouts offer enhanced accuracy. |

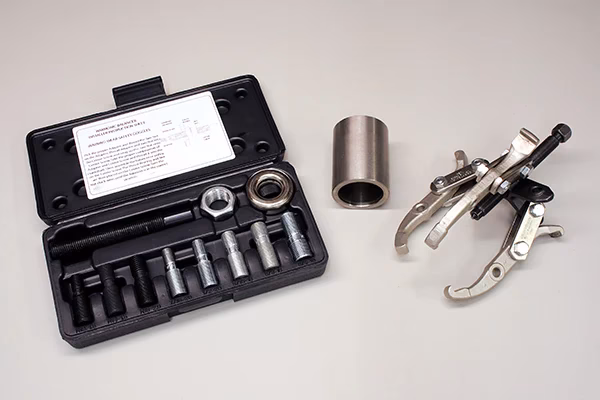

| Harmonic Damper and Gear Pullers/Installers | A harmonic balancer installation tool compatible with M16 x 2.0 threads and sufficient reach is crucial for installing the LS harmonic damper. A 3-jaw puller is useful for removing the damper and timing gears. A crank gear installing sleeve might also be needed. |
| Engine Stand and Hoist | An engine stand is essential for safely working on the engine, while a hoist is required for removal from and installation into the vehicle. |
| "Cheater" Bars / Pry Bars | Helpful for engine disassembly and some assembly steps. A 1/2-inch drive breaker bar is particularly useful. |
| Rubber Mallet | Used during both disassembly and assembly for gently persuading parts into place without causing damage. A metal hammer can also be useful for specific tasks. |
| Dial Bore Gauge | Accurately measures cylinder and bearing bore diameters, vital for verifying machine shop work and checking for ovality or taper. |
2. Recommended Tools (Highly Suggested)
Investing in these tools will significantly improve the efficiency and accuracy of your rebuild. Some are technically optional, but their use is strongly advised for a professional outcome, especially for high-performance builds:
| Tool | Description and Use |
|---|---|
| Valve Seal Puller | Specifically designed to easily remove valve seals from cylinder heads without damaging the guides. |
| Micrometers | A set accurate to 0.0005 inches is ideal for double-checking critical dimensions like journal and piston pin diameters. |
| Degree Wheel Kit | Primarily for high-performance applications, this allows precise camshaft timing verification and adjustment. A dial indicator and mounting system are usually required to complement it. |
| Gauging Plastic (Plastigage) | The most foolproof method for accurately measuring bearing clearances. While technically replaceable with precise measurement tools, it's highly recommended for ease of use and accuracy. |
| Piston Ring Filer | Used to precisely set the end gaps on piston rings to match cylinder bore dimensions. Electric versions offer greater accuracy and speed. |
| Pushrod Length Checker | Essential for most high-performance builds and helpful for stock rebuilds to ensure correct pushrod length for proper valvetrain geometry. It's best to have two. |
| Connecting Rod Vise | A specialised vise designed to securely hold connecting rods while loosening or tightening rod bolts, preventing damage to the rod. Aluminium versions are common and cost-effective. |
| Valve Spring Compressor | Necessary for safely compressing valve springs during cylinder head disassembly and assembly. A heavy-duty model capable of handling automotive valve springs is required. |
| Dial Indicator(s) and Fixture(s) | Indispensable for measuring precise movements of engine components, such as crankshaft endplay and runout. Deck bridge fixtures are useful for piston-to-deck measurements. A TDC stop is helpful for cam degreeing. |
| Rod Bolt Stretch Gauge | Required if your connecting rods specify tightening via bolt stretch rather than torque. |
| Valvetrain Checker Springs | Used in high-performance builds to verify piston-to-valve clearance during mock-up. These should be matched to your valve spring outer diameter. |
| Valvespring Height Gauge | Ensures correct installed height for valve springs, critical for achieving the specified seat pressure. Useful for both stock and performance builds. |
| Torque Angle Gauge | Necessary when fasteners require tightening to a specific torque plus an additional angle, a common practice in many GM specifications. |
3. Suggested Tools (Situational/Convenience)
These tools aren't strictly essential but can significantly simplify certain tasks, improve accuracy, or save time:
| Tool | Description and Use |
|---|---|
| Crankshaft Rear Oil Seal Installation Tool | Ensures precise and leak-free installation of the rear crankshaft oil seal. |
| Engine Cover Alignment Tools | Specialised tools (often GM "J" tools) that ensure precise alignment of the front and rear engine covers during installation, crucial for preventing leaks. Consider renting these if the cost is prohibitive. |
| Flywheel Holding Tool | Essential for holding the crankshaft stationary during certain procedures, such as checking rod bearing clearances or torquing flywheel bolts. |
| Inspection Stands (Head/Crank/Cam) | These stands keep components like cylinder heads, crankshafts, and camshafts elevated and stable for easier inspection, cleaning, and assembly. |
| Piston Ring Expander Pliers | Aids in safely installing piston rings onto pistons, reducing the risk of breakage or scratching. |
| Straight Edge | A machinist's straight edge is generally not needed as the machine shop will check deck flatness, but a good quality woodworking straight edge can be useful for checking engine cover alignment. |
| Crankshaft Turning Socket | A dedicated socket that fits the LS crank snout for easier turning of the engine during assembly and inspection. Some are designed to accept a degree wheel. |
Where to Perform Your LS Engine Rebuild
The ideal location for an engine rebuild is a clean, well-lit, and organised space. A spacious garage that can be kept free from contaminants like dust, dirt, and debris is perfectly suitable for most DIY rebuilders. It's crucial to ensure the work area is secure to prevent accidental disturbance of critical components. Avoid performing tasks that generate dust, such as woodworking, in the vicinity of your engine build. Furthermore, maintaining focus is paramount; distractions like alcohol or excessive socialising should be avoided during critical assembly stages. Cleanliness and meticulous attention to detail are paramount for a successful LS engine rebuild.
Conclusion
Understanding the scope of an LS engine rebuild, identifying the need for one, and gathering the necessary tools are the foundational steps towards a successful project. With the right preparation and approach, you can confidently undertake this rewarding mechanical endeavour.
