Essential Tools for Motorcycle Engine Rebuilds

Getting Started: The Foundation of a Motorcycle Engine Rebuild

Rebuilding a motorcycle engine can be a deeply rewarding experience, offering a chance to breathe new life into a beloved machine and gain an intimate understanding of its inner workings. However, success hinges on having the right tools for the job. While a basic set of spanners and screwdrivers are a given, a proper engine rebuild necessitates a range of specialised equipment designed for precision, force, and delicate manipulation. This guide will walk you through the essential tools you'll need, categorised for clarity, to ensure your engine overhaul is efficient and effective.

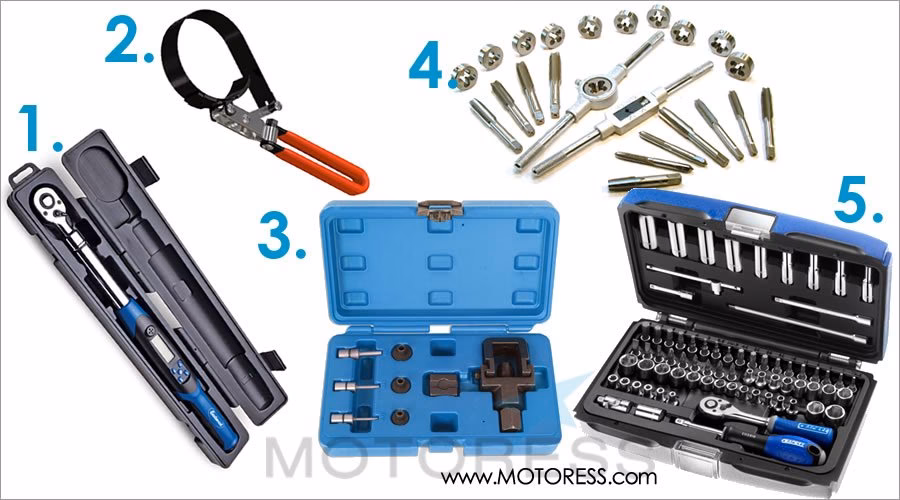

Essential Hand Tools and Measurement Devices

Before diving into the specialised items, it's crucial to have a solid foundation of general hand tools. These are the workhorses that will see you through most of the disassembly and reassembly process. Alongside these, accurate measurement tools are paramount for assessing wear and ensuring components are within tolerance.

Basic Toolkit: The Essentials

• Socket Set: A comprehensive set of sockets in various metric and imperial sizes is indispensable.
• Wrench Set: Combination wrenches (spanners) are vital for nuts and bolts.
• Screwdrivers: A good selection of Phillips and flathead screwdrivers in different sizes.
• Pliers: Various types, including needle-nose, standard, and vice grips.
• Allen Keys (Hex Keys): Essential for many motorcycle fasteners.
• Pry Bars: Useful for gently separating components without causing damage.

Measurement is Key: Precision Tools

One of the first and most critical steps in any engine rebuild is inspecting and measuring old and worn parts. This allows you to determine if components need replacing or machining. For a detailed look at these, consider exploring resources on measurement tools for engine builders.

• Vernier Calipers: For precise external and internal measurements.
• Micrometer: Essential for measuring the diameter of crankshaft journals, pistons, and cylinders to very fine tolerances.
• Feeler Gauges: Used to measure small gaps, such as valve clearances.
• Telescopic Gauges: For measuring the internal diameter of cylinders.

Specialised Tools for Piston and Ring Work

Working with pistons and their rings requires specific tools to prevent damage and ensure proper seating. Attempting to install rings by hand is a common mistake that can lead to sealing issues and premature wear.

Piston Pin Puller

If you work on a variety of engines, a versatile piston pin puller is a worthwhile investment. Tools like the Motion Pro Piston Pin Puller, with interchangeable adapters, can handle piston pins ranging from 12mm to 24mm and work with both full and short-skirted pistons. Look for models with non-marring adapters to protect your components.

Piston Ring Expander

Never attempt to install piston rings into their grooves by hand. The twisting action required can deform the rings, compromising their ability to seal against the cylinder wall. A piston ring expander is an inexpensive tool that safely spreads the ring, allowing it to be slipped into the piston groove without stress.

Piston Ring Compressor

When it's time to reinstall the pistons back into the cylinders, a piston ring compressor is a necessity. These tools compress the rings, allowing the piston to slide smoothly into the bore. Clamp-style compressors are the most basic and affordable, but investing in a good piston ring installer set, which often includes multiple sizes for various engine projects, can be more versatile.

Valve Train Tools: Precision for the Top End

The cylinder head and its components, particularly the valves and valve springs, require specific tools for safe and accurate removal and installation.

Valve Spring Compressor

This tool is essential for safely compressing valve springs, allowing you to remove and install valves, retainers, and seals. While some are designed for specific makes (like Harley-Davidson models), many are universal in their application. Look for a robust, well-made compressor that offers good leverage and stability.

Gear and Bearing Manipulation Tools

Gears and bearings often require specialised tools for removal and installation, particularly when they are press-fitted or tightly seated.

Gear Pullers

Removing gears from shafts or flywheels typically requires a gear puller. Three-jaw gear pullers are common and come in various sizes. Having a selection of gear pullers in your toolbox will provide the versatility needed for different applications. Ensure the puller's jaws have a good grip and that the central forcing screw is smooth and well-lubricated.

Slide Hammer Set

A slide hammer set is incredibly useful for removing bearings, seals, and other press-fit components. The percussive force generated by the slide hammer can effectively break the seal between parts without causing damage to the surrounding components.

Snap Ring Pliers

Whether you're working on the engine or the transmission, snap ring pliers are a must-have. These specialised pliers are designed to grip and manipulate internal and external snap rings (circlips). Convertible pliers that can handle both internal and external types, and often come with interchangeable tips, offer the most utility.

Cylinder Honing and Boring Tools

For engines requiring cylinder reconditioning, specific tools are needed to achieve the correct bore size and surface finish.

Cylinder Honing and Boring Tools

If you're restoring an older engine, you may need to bore the cylinders to restore their roundness and remove wear. While professional machine shops have large, dedicated boring machines, it's possible to achieve good results in a home garage with the right tools. A rack-style cylinder hone, when used with a slow-speed drill, can effectively hone cylinders. Tools like the Lisle 15000, which services a range of cylinder sizes, feature stones and wipers that expand against the cylinder walls. Proper honing creates the necessary cross-hatch pattern for oil retention and ring seal.

Fastener Management and Torque Control

Ensuring fasteners are tightened to the correct specification is crucial for engine longevity and performance. This is where torque wrenches and thread repair tools come into play.

Tap and Die Set

For older or neglected motorcycles, a tap and die set is a near necessity. These tools allow you to re-cut damaged threads on bolts, studs, and in threaded holes. With the correct technique and lubricant, they can work on various metals, including steel, aluminium, brass, and bronze, saving you from replacing otherwise good components.

Torque Wrench (Foot-Pounds and Inch-Pounds)

Torque wrenches are non-negotiable for engine building. They ensure that critical fasteners are tightened to the manufacturer's specified torque values, preventing both under-tightening (which can lead to component failure) and over-tightening (which can strip threads or warp components). You'll likely need both a 1/2" drive torque wrench for higher torque applications (up to around 150 ft-lbs) and a 1/4" or 3/8" drive wrench for smaller fasteners and those requiring lower torque specifications (inch-pounds).

Choosing the right torque wrench: Opt for a reliable "click-style" torque wrench. You set the desired torque value on the handle, and when that value is reached, the wrench will emit an audible and tactile "click." Avoid beam-style torque wrenches, as they are generally less accurate and harder to read during use.

Torquing procedure: Always tighten fasteners in stages. For example, if a bolt requires 60 ft-lbs, you might torque it to 20 ft-lbs, then 40 ft-lbs, and finally 60 ft-lbs. This ensures even pressure distribution.

Specialty Tools for Specific Applications

Depending on the make and model of your motorcycle, you may encounter unique fasteners or assembly procedures that require highly specialised tools.

Make and Model Specific Tools

Many manufacturers produce specific tools for their engines. For instance, the tool pictured for installing piston lock-rings on early Harley-Davidson 45 flatheads (part number 12052-32) is designed to slightly stretch the lock ring for easier installation into its groove. Similarly, a Harley Pinion Shaft Honing/Lapping Tool is crucial for ensuring precise alignment of flywheel shafts in certain Harley-Davidson models. Always research the specific tools recommended for your motorcycle's engine.

DIY and Fabrication: The Resourceful Approach

If budget is a concern or a specific tool is proving difficult to source, consider the possibility of fabricating some items yourself, especially if you have metalworking skills.

Fabricating Your Own Tools

If you have access to cutting, drilling, and welding equipment, many useful engine tools can be made at home. A flywheel truing stand, for example, is essential for balancing rebuilt V-twin flywheels. While commercial stands can be expensive, well-constructed homemade versions can perform just as effectively.

Documentation and Organisation: The Unsung Heroes

While not strictly tools in the mechanical sense, good documentation and organisation are vital for a successful engine rebuild.

The Power of Photography

A camera, whether a dedicated digital camera or a smartphone, is an invaluable tool. Take clear pictures before disassembly to document the original configuration of components, wiring, and hoses. During the rebuild, photograph tricky assembly steps or the orientation of specific parts. This visual record will be a lifesaver during reassembly, especially if the engine sits for an extended period.

Bagging and Labelling

As you disassemble the engine, use resealable bags and a permanent marker to keep components organised. Label each bag clearly with the part name and its location within the engine. This prevents parts from getting mixed up and ensures you know where everything goes during reassembly. Consider a separate box for parts that are not going to be reused; these can be invaluable for comparing dimensions with new parts or providing reference for suppliers.

A Note on Disassembly and Cleaning

When disassembling, be methodical. Use a rubber mallet for gentle persuasion if parts are seized, but never hammer on the end of the crankshaft – this is a surefire way to damage it. If your engine is a "unit type" where the gearbox is integrated, disassemble and document the gearbox components with the same care. For cleaning, consider methods like vapour blasting for delicate alloy components or an ultrasonic cleaner for small parts like springs and fasteners.

Conclusion: Equipping Yourself for Success

Rebuilding a motorcycle engine is a project that demands patience, precision, and the right equipment. By investing in or acquiring the essential hand tools, measurement devices, specialised components, and even considering DIY fabrication, you'll be well-equipped to tackle the task. Remember to document your progress, keep your parts organised, and always refer to your motorcycle's service manual for specific torque values and procedures. With the correct tools and a methodical approach, you can achieve a professional-quality rebuild and enjoy the fruits of your labour for miles to come.

Frequently Asked Questions

What is the most important tool for an engine rebuild?

While many tools are essential, a reliable torque wrench is arguably the most critical for ensuring fasteners are tightened to the correct specification, preventing component failure.

Can I rebuild an engine without a torque wrench?

It is strongly advised against rebuilding an engine without a torque wrench. Incorrectly torqued fasteners can lead to leaks, component damage, or catastrophic engine failure.

Are specialised tools always necessary?

Yes, for certain tasks like installing piston rings or compressing valve springs, specialised tools are necessary to prevent damage to the components. Some tasks can be done with general tools, but it's often less efficient and riskier.

Where can I find specifications for my motorcycle engine?

The best place to find specifications, including torque values and recommended procedures, is your motorcycle's official service manual.
