Replacing Your Rear Brake Calipers: A DIY Guide

When it comes to vehicle safety, few components are as critical as your braking system. Rear brake calipers, often overlooked in favour of their front counterparts, play a vital role in slowing your vehicle down and, crucially, engaging your handbrake. Over time, these components can wear out, seize, or suffer internal damage, leading to reduced braking performance, uneven stopping, or a completely ineffective handbrake. If you've noticed issues such as a soft brake pedal, grinding noises, or a handbrake that struggles to hold your car, it might be time to consider replacing your rear brake calipers.

This guide will walk you through the process of replacing your rear brake calipers, detailing the necessary steps, tools, and safety precautions. While some might suggest attempting to clean a compromised piston, especially if it appears corroded, it's often a temporary fix for a deeper problem. A piston showing significant wear, scoring, or corrosion, or an internal handbrake mechanism that isn't functioning correctly, typically warrants a full caliper replacement to ensure long-term reliability and safety. Let's get your brakes back in top condition.

Why Replace Your Rear Brake Calipers?

Understanding the signs of a failing rear brake caliper is the first step towards addressing the problem. Unlike a simple pad change, caliper issues can compromise your vehicle's overall safety. Here are the common indicators:

• Reduced Braking Performance: If your car takes longer to stop or pulls to one side when braking, a faulty caliper could be to blame.
• Grinding or Squealing Noises: These sounds often indicate worn brake pads, but they can also signal a seized caliper preventing the pads from releasing properly.
• Leaking Brake Fluid: A visible leak around the caliper is a clear sign of a damaged seal, requiring immediate attention.
• Sticky or Non-Engaging Handbrake: Rear calipers often integrate the handbrake mechanism. If the handbrake lever feels unusually light, hard to move, or fails to hold the car, the internal mechanism within the caliper is likely at fault. This is particularly true if the lever arm on the caliper itself is stiff or doesn't return properly. The piston's internal rod is designed to rotate freely in one direction and lock in the other; if it rotates both ways, your handbrake will be ineffective.
• Uneven Brake Pad Wear: One pad wearing significantly faster than the other on the same wheel can indicate a caliper that isn't clamping or releasing correctly.
• Burning Smell: A persistent burning smell, especially after driving, can suggest a caliper is seizing and causing constant friction.
• Visible Piston Corrosion: As mentioned, if the piston looks 'not very good at all' with visible corrosion or pitting, even if cleaned, its integrity may be compromised, leading to potential seal failure. While fine sandpaper (800 grit or finer) or a Scotch-Brite pad might remove surface rust, any scoring or deep pits that can be felt with a fingernail are definite signs that the piston's sealing surface is compromised, meaning a new caliper is the safest option.

Tools and Materials Required

Before you begin, ensure you have all the necessary tools and parts. This will make the job smoother and safer:

• New rear brake calipers (it's often advisable to replace them in pairs for balanced braking).
• New brake pads (always replace pads when changing calipers).
• Brake fluid (check your vehicle's manual for the correct type, e.g., DOT3, DOT4, DOT5.1).
• Socket set and spanners (metric sizes, typically 10mm, 12mm, 14mm, 17mm, 19mm).
• Torque wrench.
• Flat-blade screwdriver and/or pry bar.
• Wire brush.
• Brake cleaner.
• Copper grease or anti-seize compound.
• Brake line spanner (flared nut wrench, usually 10mm or 11mm) to prevent rounding.
• Bleed kit (one-person bleed kit or a friend to help).
• Drain pan for old brake fluid.
• Wheel chocks.
• Jack and axle stands (never work under a car supported only by a jack).
• Personal Protective Equipment (PPE): Safety glasses, gloves.
• Clean rags or shop towels.

Safety First: Prioritising Your Well-being

Working on brakes involves critical safety systems. Take these precautions seriously:

• Always work on a flat, level surface.
• Engage the handbrake and chock the wheels that will remain on the ground.
• Use sturdy axle stands to support the vehicle after lifting it with a jack. Never rely solely on the jack.
• Wear safety glasses to protect your eyes from brake fluid, dust, and debris.
• Wear gloves to protect your hands from brake dust and fluids. Brake fluid can also damage paintwork.
• Ensure good ventilation if working in an enclosed space.
• Keep a fire extinguisher nearby, as brake fluid is flammable.
• Dispose of old brake fluid and components responsibly.

Step-by-Step Guide to Rear Brake Caliper Replacement

Follow these steps carefully for a successful replacement:

1. Preparation and Wheel Removal

• Loosen the wheel nuts slightly while the vehicle is on the ground.
• Jack up the rear of the vehicle and place it securely on axle stands.
• Completely remove the wheel nuts and then remove the wheel.
• Place the wheel under the vehicle's sill as an extra safety measure.

2. Disconnecting the Brake Line

• Locate the brake hose connected to the caliper. Have your drain pan ready underneath.
• Using a brake line spanner, carefully loosen the brake line fitting from the caliper. Be gentle, as these can be seized and easily rounded.
• Once loose, quickly pull the brake line out and immediately plug it with a rubber cap, a dedicated brake line plug, or even a tight-fitting bolt to minimise fluid loss and air entry into the system.
• Allow any remaining fluid in the caliper to drain into your pan.

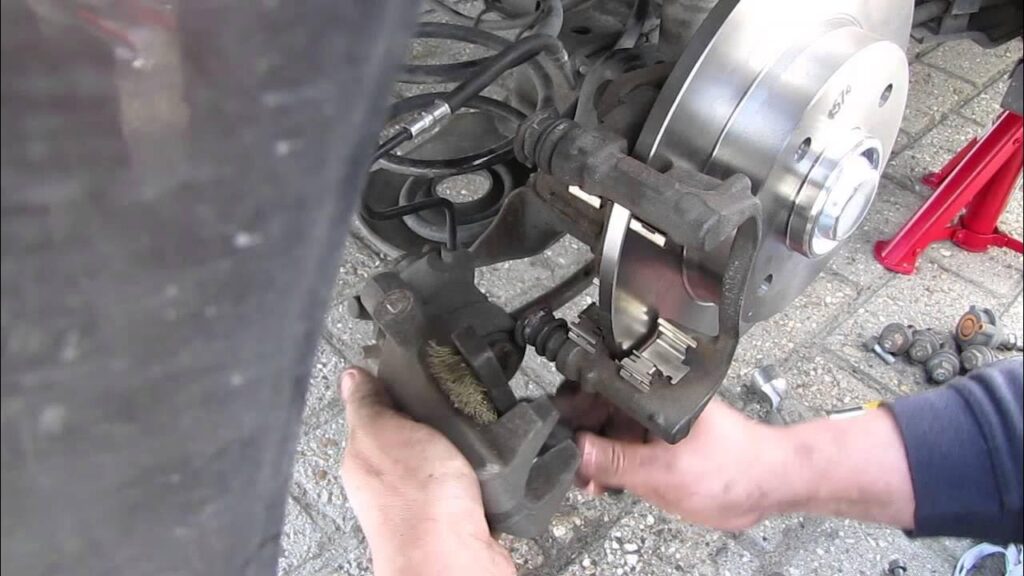

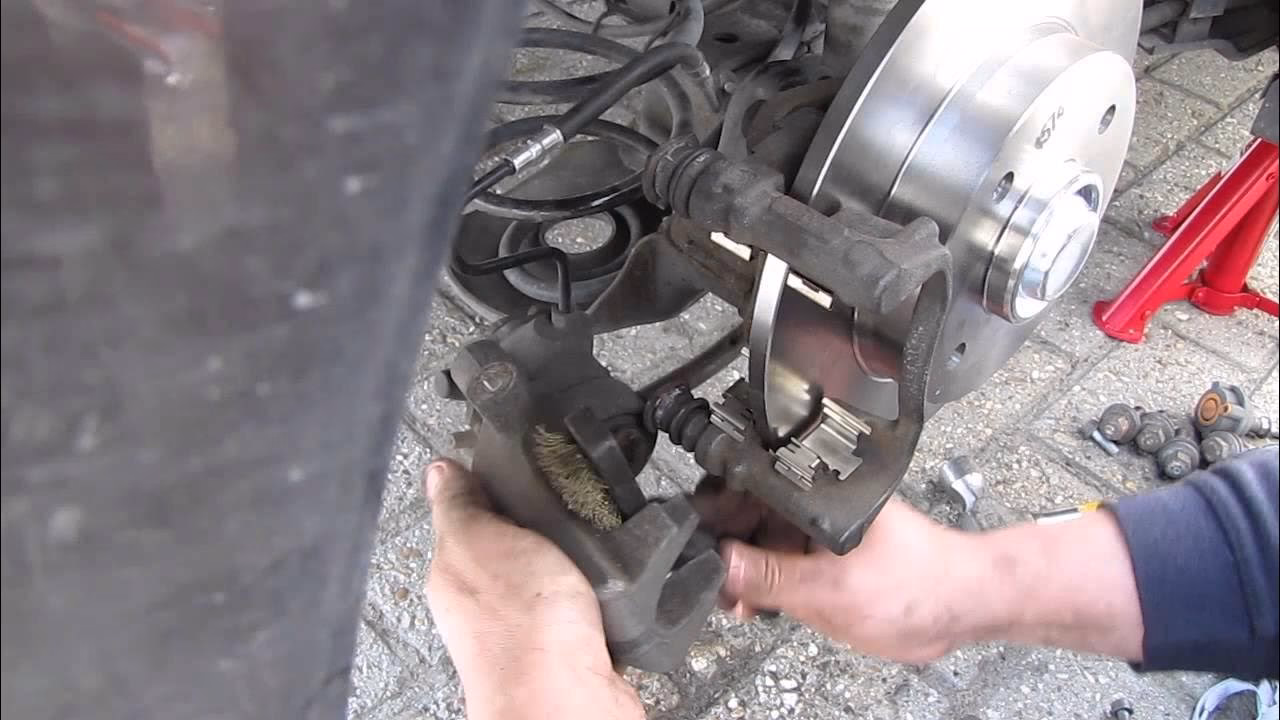

3. Removing the Old Caliper

• Locate the two caliper mounting bolts (often 14mm or 17mm) that secure the caliper to the caliper bracket or directly to the hub.
• Use your socket wrench to loosen and remove these bolts. They can be tight, so leverage might be needed.
• Once the bolts are out, the caliper should come free. You may need to gently pry it away from the brake disc if it's seized on.
• Remove the old brake pads from the caliper bracket if they haven't already fallen out.

4. Cleaning the Mounting Area

• With the old caliper removed, inspect the caliper bracket (if separate) and the hub area where the caliper mounts.
• Use a wire brush to clean off any rust, dirt, and old grease from the mounting points and the pad retaining clips on the bracket. This ensures the new caliper sits flush and the new pads can move freely.
• Apply a thin layer of copper grease or anti-seize compound to the clean mounting points.

5. Installing the New Caliper

• Ensure the new caliper's piston is fully retracted. Most rear calipers with integrated handbrake mechanisms require the piston to be rotated (clockwise, usually) as it's pressed in, rather than just pushed straight back. Use a brake caliper piston rewind tool for this.
• If your new caliper came with a separate bracket, install it onto the hub first, torquing the bolts to the manufacturer's specifications.
• Fit the new brake pads into the caliper bracket, ensuring they sit correctly and the anti-rattle clips (if present) are in place.
• Carefully slide the new caliper over the brake pads and onto the mounting points.
• Insert the new caliper mounting bolts and hand-tighten them.
• Torque these bolts to the vehicle manufacturer's specified torque settings. This is crucial for safety and proper caliper function.

6. Connecting the Brake Line

• Remove the plug from the brake line and quickly connect it to the new caliper.
• Hand-tighten the fitting, then use your brake line spanner to snug it up. Do not overtighten, as this can strip the threads or damage the line. Just tighten until snug, then a quarter turn more.

7. Bleeding the Brakes

This is a critical step to remove any air that entered the system during the caliper replacement. Air in the brake lines will result in a spongy pedal and severely reduced braking performance.

• Locate the bleed nipple on the new caliper (usually at the highest point).
• Attach a clear hose to the bleed nipple and place the other end into a container with some fresh brake fluid, ensuring the end of the hose is submerged.
• With the engine off, have a helper pump the brake pedal several times until it feels firm, then hold it down.
• While the pedal is held down, open the bleed nipple approximately a quarter to half a turn. You will see brake fluid and potentially air bubbles exit through the hose.
• Close the bleed nipple *before* your helper releases the brake pedal.
• Repeat this process (pump, hold, open nipple, close nipple, release pedal) until no more air bubbles appear in the fluid coming out of the hose.
• Keep a close eye on the brake fluid reservoir level under the bonnet and top it up as needed with fresh fluid. Do not let it run dry!
• Repeat the bleeding process for the other rear caliper if you replaced both. It's generally good practice to bleed the brake system thoroughly, starting from the caliper furthest from the master cylinder (usually the rear passenger side in UK cars), then the rear driver's side, then front passenger, then front driver.

8. Testing the Handbrake

After bleeding the system, test the handbrake engagement. The lever arm on the caliper should move freely and return completely when the handbrake is released. If it feels stiff or the handbrake still isn't effective, this points back to the internal mechanism of the caliper piston. As the user noted, the rod inside the piston should rotate freely in one direction and be 'stuck' in the other; if it rotates both ways, the handbrake won't work effectively. This is why a new caliper is often the best solution when the handbrake mechanism is compromised.

9. Final Checks

• Double-check all bolts are torqued correctly.
• Inspect all brake lines for leaks.
• Refit the wheel, hand-tighten the wheel nuts, lower the vehicle, and then torque the wheel nuts to the manufacturer's specification.
• Before driving, gently pump the brake pedal a few times to build pressure. The pedal should feel firm, not spongy.
• Take the vehicle for a slow test drive in a safe area, gently applying the brakes to bed in the new pads and ensure everything is functioning correctly. Avoid hard braking initially.

Piston Condition: Why Replacement is Often Better Than Cleaning

The user's original query highlighted a piston that 'looks not very good at all' and suggested cleaning it with fine sandpaper or Scotch-Brite. While superficial rust can sometimes be removed, this approach carries significant risks and is generally not recommended for a piston that is visibly compromised or suspected of internal issues.

• Compromised Sealing Surface: The piston's surface needs to be perfectly smooth to maintain a watertight seal with the caliper's internal rubber seals. Even microscopic imperfections, let alone 'scoring that can be felt by your fingernail,' can cause brake fluid to leak, leading to brake failure. Cleaning might temporarily improve the appearance, but it won't repair a compromised surface.
• Internal Handbrake Mechanism: Rear calipers often house the handbrake mechanism within the piston itself. If this mechanism is faulty (e.g., the rod rotates both ways instead of locking in one direction), cleaning the piston's exterior will do nothing to resolve the internal mechanical failure. This directly impacts your handbrake's effectiveness and is a common reason for replacement.
• Risk of Contamination: Attempting to clean the piston while it's still in the caliper risks introducing abrasive particles (from sandpaper or corrosion) into the brake fluid system. These particles can damage other components like the master cylinder or ABS pump, leading to far more expensive repairs.
• Hidden Damage: What looks like surface corrosion might be indicative of deeper pitting or internal corrosion within the caliper bore itself. Cleaning the piston won't address issues with the bore, which also needs to be perfectly smooth for the piston to glide and seal properly.

Given these factors, if a piston looks 'not very good at all,' especially if there's any scoring or if the handbrake mechanism is suspect, a full caliper replacement is the safest, most reliable, and ultimately most cost-effective solution in the long run. The slight saving from attempting a repair is rarely worth the risk to your safety.

Troubleshooting Common Issues After Caliper Replacement

Even with careful work, issues can arise. Here's how to address them:

• Spongy Brake Pedal: This is almost always due to air in the brake lines. Re-bleed the system thoroughly, ensuring no air bubbles are visible. Check all brake line connections for leaks.
• Brake Fluid Leak: Re-tighten the brake line fitting to the caliper. If it still leaks, the fitting might be damaged, or the caliper itself could be faulty (rare with new parts).
• Handbrake Still Not Working: If the handbrake lever on the caliper moves freely but the handbrake still doesn't hold, the internal mechanism within the new caliper might be faulty, or the handbrake cable itself might be stretched or seized. Ensure the handbrake cable is correctly attached to the caliper's lever arm.
• Brakes Dragging or Sticking: Ensure the caliper mounting bolts are not overtightened and that the brake pads are correctly seated and move freely within the bracket. Check that the caliper slides freely on its guide pins (if applicable) and that the guide pins are properly lubricated.

Comparative Table: Options for a Failing Caliper

Frequently Asked Questions (FAQs)

How long do brake calipers last?

Brake calipers can last a long time, often 100,000 miles or more, but their lifespan is highly dependent on driving conditions, climate (road salt), and maintenance. Corrosion is a primary culprit for their failure.

Do I need to replace both rear calipers?

While not strictly necessary if only one has failed, it's highly recommended to replace calipers in pairs (both rears) to ensure balanced braking force across the axle. Uneven braking can lead to instability and increased stopping distances.

Can I drive with a bad brake caliper?

It is extremely dangerous to drive with a bad brake caliper. A failing caliper can lead to reduced braking power, pulling to one side, or even complete brake failure, putting yourself and others at severe risk. Address the issue immediately.

What are the signs of a seized caliper?

Signs of a seized caliper include a burning smell from the affected wheel, the wheel being noticeably hotter than others after driving, the vehicle pulling to one side, reduced fuel economy, and a spongy or hard brake pedal.

Is it hard to replace a brake caliper?

Replacing a brake caliper is a moderately difficult DIY task. It requires specific tools (especially for bleeding and piston retraction), attention to detail, and a good understanding of safety procedures. If you're not confident, it's always best to consult a professional mechanic.

Conclusion

Replacing your rear brake calipers is a crucial maintenance task that directly impacts your vehicle's safety and performance. While the idea of cleaning a corroded piston might seem appealing for cost savings, it rarely offers a reliable long-term solution, especially if there's any scoring or if the integrated handbrake mechanism is compromised. Prioritising a full replacement ensures that your braking system is robust, reliable, and capable of performing its vital function under all conditions. Always remember to follow safety procedures, use the correct tools, and if in doubt, seek professional assistance. Your safety on the road depends on it.
