TD42 Rebuild: A Comprehensive Guide

The Nissan Patrol TD42, particularly the TD42T variant, is a legendary powerplant renowned for its durability and torque. Many owners, like the one who has meticulously upgraded their 2000 model over the years, cherish this engine for its robust nature. If you're contemplating a rebuild for your TD42, whether it's due to age, high mileage, or simply to unlock its full potential, you've come to the right place. This guide will delve into the intricacies of rebuilding a TD42, covering everything from common upgrades to essential components.

Understanding the TD42's Potential

The TD42 engine, especially the turbocharged TD42T, is a workhorse. Its indirect injection (IDI) design contributes to its longevity and ease of repair. While a standard TD42T might produce around 115-125 horsepower at the flywheel, the owner in the provided example demonstrates how, with a series of well-executed upgrades, this figure can be dramatically increased. From an initial 110 rwhp to a staggering 226 rwhp with 29psi of boost and 660Nm of torque, the TD42 is a prime candidate for performance enhancement through a rebuild.

Why Rebuild a TD42?

Several factors might prompt a TD42 rebuild:

• High Mileage: While incredibly robust, even the TD42 will eventually show signs of wear after hundreds of thousands of kilometres. Components like piston rings, bearings, and valve seals can degrade over time.
• Performance Upgrades: As seen in the example, significant performance increases often necessitate a rebuild to ensure the engine can reliably handle the added stress of higher boost pressures and increased fuel delivery.
• Mechanical Issues: Overheating, oil consumption, loss of power, or unusual noises can all indicate the need for a rebuild.
• Longevity: A properly rebuilt engine can significantly extend the life of your Patrol, ensuring it remains a reliable vehicle for many more years.

The Rebuild Process: Key Stages

A TD42 engine rebuild typically involves several critical stages:

1. Disassembly and Inspection

This is where the engine is carefully taken apart, with every component cleaned and meticulously inspected for wear or damage. Key areas to examine include:

• Cylinder Block: Check for cracks, warping, and bore integrity. The bores may need honing or overboring if significant wear is present.
• Crankshaft: Inspect for scoring, cracks, and bearing journal wear.
• Pistons and Connecting Rods: Examine for damage, wear on the ring lands, and bent rods.
• Cylinder Head: Look for cracks, warped surfaces, and valve seat wear. The valve guides and seals will almost certainly need replacing.
• Camshaft and Lifters: Check for wear on the lobes and journals.
• Turbocharger: Inspect for shaft play, damaged compressor or turbine wheels.

2. Machining and Cleaning

Based on the inspection, various machining processes might be required:

• Boring and Honing: If cylinder walls are worn or scored, they can be bored out to the next oversize and honed to ensure proper piston ring seal.
• Crankshaft Grinding: Worn crankshaft journals can be ground down to accept undersize bearings.
• Cylinder Head Resurfacing: To ensure a perfect seal with the block.
• Valve Seat Grinding: To ensure proper sealing of the valves.
• Thorough Cleaning: All parts must be meticulously cleaned to remove old gasket material, carbon deposits, and machining debris.

3. Component Replacement and Reassembly

This is where the new and refurbished parts come together. A comprehensive engine rebuild kit is essential here.

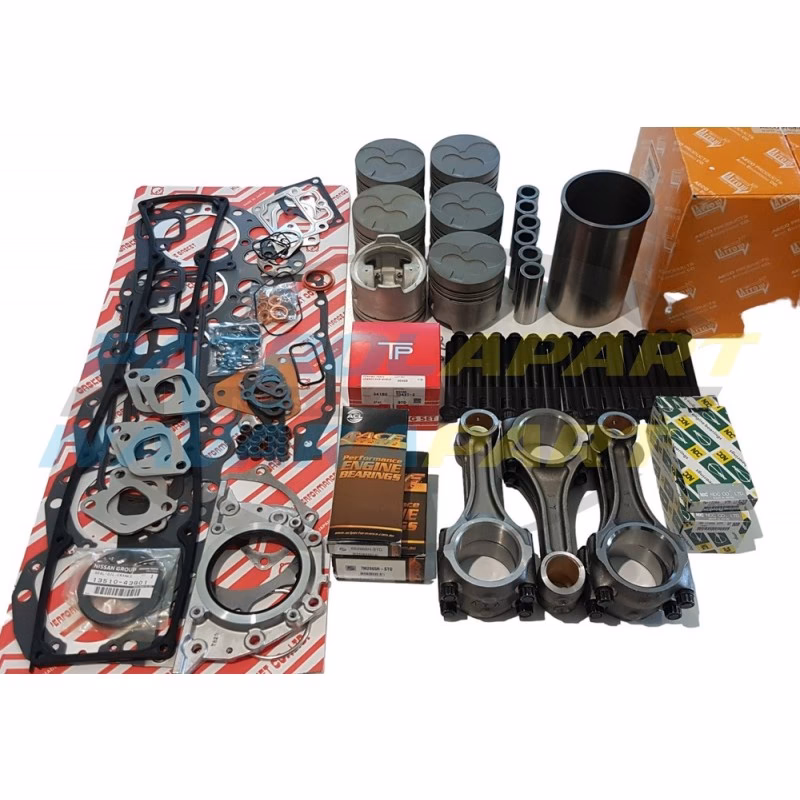

Essential TD42 Engine Rebuild Kit Components

A full engine rebuild kit for a Nissan Patrol TD42T typically includes:

4. Common TD42 Performance Upgrades During Rebuild

A rebuild is the perfect opportunity to incorporate performance enhancements. Based on the owner's experience, here are some popular upgrades:

• Upgraded Turbocharger: From a high-flowed stock unit to larger aftermarket turbos like the 18G or 20G mentioned, these significantly increase airflow and power. Ensure the turbo is matched to the engine's needs and other modifications.
• Performance Fuel Pump: Modifying the standard pump (like the DC3 or DC6) or upgrading to a completely different injection pump system can deliver more fuel, supporting higher power outputs. Proper tuning of the fuel pump is critical.
• Intercooler Upgrade: An upgrade to a larger Front Mount Intercooler (FMIC) or a high-quality Water-to-Air (WTA) intercooler, like the PWR unit, is essential to cool the intake air charge. Cooler air means denser air, leading to more power and reduced risk of detonation. The owner's switch to a Crosscountry intercooler highlights the importance of efficient cooling.
• Exhaust System: A 3-inch or larger exhaust system, including a performance dump pipe from the turbo, reduces backpressure and allows the turbo to spool more efficiently, contributing to power gains.
• Airbox and Snorkel: As seen with the Fatz 4-inch system, improved airflow into the turbocharger is vital. A less restrictive air intake system can make a noticeable difference.
• Cylinder Head Porting: Improving the flow of air and fuel into and out of the combustion chamber by porting and polishing the cylinder head can yield significant gains.
• Forged Internals: For builds pushing extreme power levels, consider forged pistons and stronger connecting rods to withstand the increased stress.

5. Reassembly and Tuning

With all components cleaned, inspected, machined, and new parts installed, the engine is carefully reassembled. This requires meticulous attention to torque specifications, clearances, and proper lubrication. Once the engine is back in the vehicle, professional tuning is absolutely paramount. This ensures the fuel delivery, boost pressure, and ignition timing (if applicable) are optimised for the new combination of parts, maximising performance while ensuring reliability. The owner's progression through different pump and turbo setups highlights the iterative nature of tuning.

Common Questions About TD42 Rebuilds

Q1: Can I do a TD42 rebuild myself?

A1: While possible for experienced DIY mechanics with the right tools and knowledge, a TD42 rebuild involves precise measurements and techniques. If you're unsure, it's highly recommended to entrust the job to a reputable engine builder or mechanic, especially if you're aiming for significant performance upgrades.

Q2: What are the signs my TD42 needs a rebuild?

A2: Common signs include excessive smoke (blue for oil, white for coolant), knocking noises, significant loss of power, high oil consumption, and coolant in the oil or vice versa.

Q3: How much does a TD42 rebuild cost?

A3: Costs vary significantly depending on the extent of the rebuild, the parts used, and whether you do the labour yourself. A basic rebuild with standard parts might cost a few thousand pounds, while a high-performance build with all the upgrades can easily run into much higher figures.

Q4: Will a rebuilt TD42 be reliable?

A4: Yes, a properly rebuilt TD42, using quality parts and assembled correctly, can be incredibly reliable and often outlast the original engine. Upgrades, when done correctly, can enhance both performance and durability.

Q5: What is the best turbo for a TD42 rebuild?

A5: The "best" turbo depends on your intended use. For general towing and touring, a slightly larger than stock turbo (like a 16G or 18G) offers a good balance of spool time and top-end power. For more extreme performance, larger turbos like the 20G or even custom setups are used, but these require significant supporting modifications and expert tuning.

Conclusion

Rebuilding a Nissan Patrol TD42 is a rewarding endeavour that can breathe new life into your vehicle. Whether you're aiming to restore it to its former glory or transform it into a high-performance machine, understanding the process, essential components, and potential upgrades is key. The journey of the owner who pushed their TD42 to over 220 rwhp is a testament to the engine's inherent strength and adaptability. With careful planning, quality parts, and meticulous execution, your TD42 rebuild can result in an engine that is not only powerful but also incredibly reliable for years to come.
