TD4 Engine: Common Issues & Oil Guide

The TD4 engine, a stalwart in many Land Rover and MG Rover vehicles, is generally considered a robust and capable unit. However, like all internal combustion engines, it's not entirely immune to issues. While the core engine block and its fundamental components are often reliable, owners frequently encounter problems with the surrounding systems, often referred to as ancillary failures. These can sometimes lead to rather significant repair bills if not addressed promptly or proactively. Understanding these potential weak points is crucial for any TD4 owner looking to maintain their vehicle's longevity and avoid unexpected expenses. This guide delves into the common woes associated with the TD4, focusing on the specific components that tend to falter, and importantly, addresses the critical question of the correct engine oil to keep your TD4 purring.

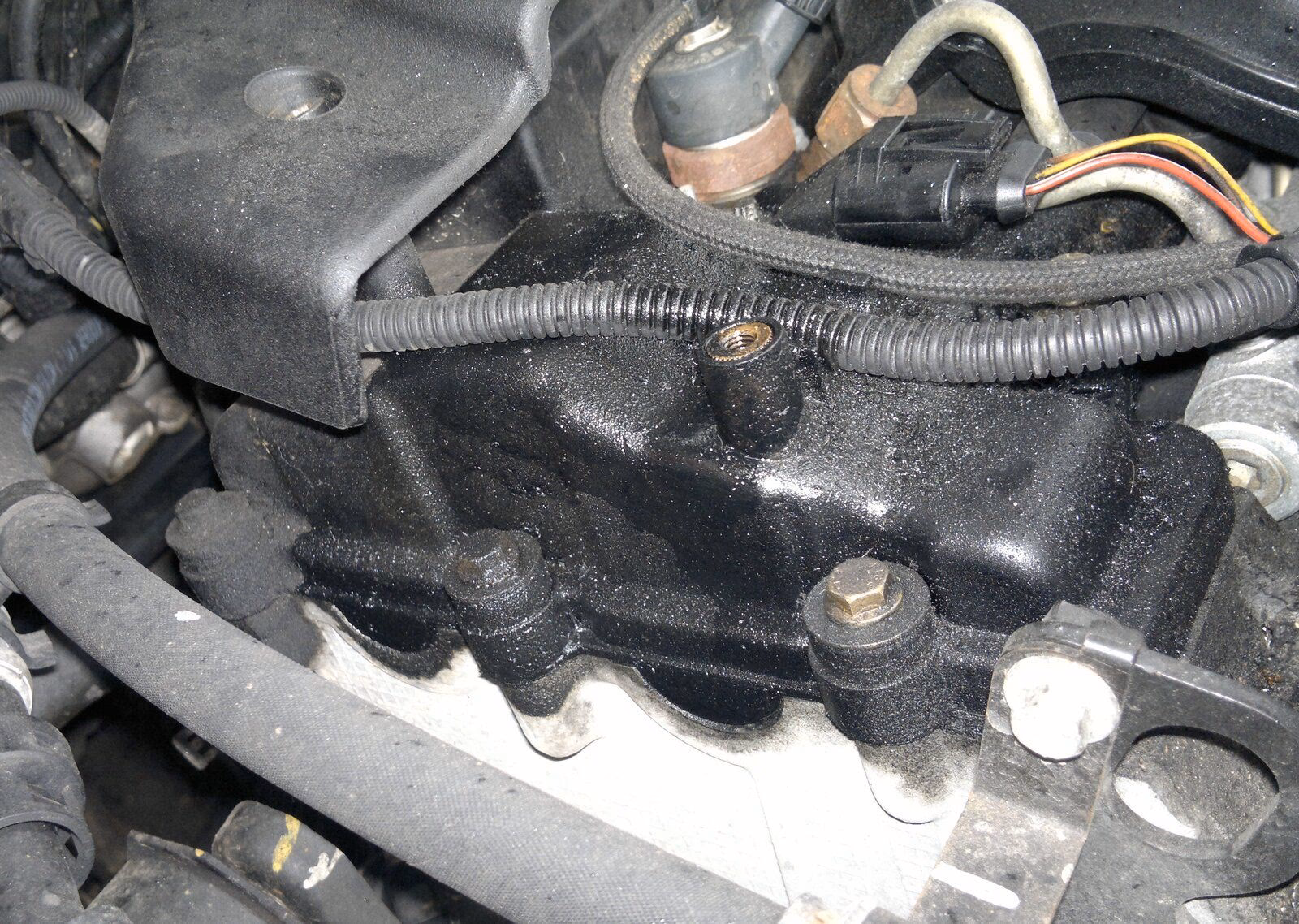

Common TD4 Engine Woes

When discussing the TD4, several components consistently emerge as common failure points. These aren't necessarily indicative of fundamental design flaws in the engine itself, but rather in the complex systems that support its operation. Proactive maintenance and awareness can significantly mitigate the impact of these issues.

Fuel System Failures

The fuel system is a prime area for concern with the TD4. Two key components are frequently cited:

• Electric Fuel Pumps: These pumps are responsible for delivering fuel from the tank to the engine. When they fail, the engine will typically exhibit symptoms ranging from poor performance and hesitation to a complete inability to start. The cost of replacing an electric fuel pump can be substantial, often involving dropping the fuel tank for access, which adds to the labour costs. Early detection of fuel delivery problems, such as a whining noise from the fuel tank area when the ignition is turned on, can sometimes signal an impending failure.
• Injectors: Modern diesel engines rely on precise fuel injection for optimal combustion and efficiency. The injectors in the TD4 can become clogged, worn, or electronically faulty. Symptoms of failing injectors include rough idling, loss of power, increased fuel consumption, and sometimes visible smoke from the exhaust. Diagnosing and replacing faulty injectors is a job best left to experienced mechanics, as incorrect installation or calibration can lead to further engine damage. The cost of replacement injectors can also be a significant factor in overall repair bills.

Mass Air Flow (MAF) Sensor Issues

The MAF sensor plays a vital role in the engine's management system by measuring the amount of air entering the engine. This data is used by the engine control unit (ECU) to calculate the correct amount of fuel to inject. A faulty MAF sensor can lead to a range of problems:

• Incorrect Air-Fuel Ratio: If the MAF sensor under-reads the air mass, the ECU will inject too little fuel, resulting in poor performance and potentially stalling. Conversely, if it over-reads, too much fuel will be injected, leading to increased emissions and a drop in fuel economy.
• Symptoms: Common indicators of a failing MAF sensor include a check engine light illumination, rough idling, hesitation during acceleration, and reduced power. Cleaning the MAF sensor is sometimes a temporary fix, but often replacement is necessary.

Variable Nozzle Turbocharger (VNT) Problems

The TD4 often features a Variable Nozzle Turbocharger (VNT). This type of turbocharger uses adjustable vanes to alter the flow of exhaust gases over the turbine, allowing for better boost control across a wider range of engine speeds. While beneficial for performance, the VNT mechanism can be susceptible to issues:

Common VNT Failures:

• Sticking Vanes: Carbon build-up and deposits can cause the variable vanes within the turbocharger to stick, preventing them from adjusting correctly. This can lead to over-boost or under-boost conditions, significantly impacting engine performance. Symptoms include a lack of power, especially at lower revs, or a sudden surge of power followed by a limp-home mode.
• Actuator Issues: The actuator that controls the movement of the variable vanes can also fail. This can be due to electrical faults or mechanical wear.
• Turbo Failure: In more severe cases, the turbocharger itself can fail due to lack of lubrication, foreign object damage, or simply reaching the end of its service life. Turbocharger replacement is one of the most expensive repairs an owner can face.

Regular servicing, ensuring the correct grade of oil is used, and allowing the engine to warm up properly before demanding full power can help prolong the life of the turbocharger.

What Oil Should You Use in a TD4?

Choosing the correct engine oil is paramount for the health and longevity of any engine, and the TD4 is no exception. The choice of oil can directly impact the performance of critical components like the turbocharger and fuel injectors, and also the effectiveness of the engine's internal cleaning and lubrication processes.

The question arises about using the same oil for both a Jaguar XJ diesel (which requires Ford M2C934-B specification) and a TD4. While it might seem convenient, it's essential to verify compatibility. Not all oils meeting one specification are suitable for another, even if the viscosity grade (e.g., 5w30) appears to be the same.

Understanding Oil Specifications

Engine oils are formulated to meet specific performance standards set by manufacturers and industry bodies. These specifications dictate properties such as viscosity, detergency, dispersancy, oxidation resistance, and additive packages. Using an oil that does not meet the manufacturer's recommended specification can lead to:

• Reduced Lubrication: Inadequate protection against wear, especially under high temperatures and pressures.
• Engine Deposits: Buildup of sludge and varnish, which can impede oil flow and clog critical passages.
• Component Damage: Particularly detrimental to sensitive components like turbochargers and diesel particulate filters (DPF), if fitted.
• Voided Warranty: In newer vehicles, using the incorrect oil can invalidate the manufacturer's warranty.

TD4 Oil Requirements

The specific oil requirement for a TD4 can vary slightly depending on the exact model year and derivative. However, generally, TD4 engines (especially those found in Land Rover Freelander models) often recommend a synthetic or semi-synthetic oil with a viscosity of 5W-30 or 5W-40. Crucially, the oil needs to meet certain ACEA specifications, often including ACEA A3/B4 or C1/C2/C3, depending on whether the vehicle is fitted with a Diesel Particulate Filter (DPF).

Checking Your Owner's Manual: The most reliable way to determine the correct oil specification for your specific TD4 is to consult your vehicle's owner's manual. It will clearly state the required viscosity grade and, most importantly, the necessary industry or manufacturer approvals (e.g., ACEA, API, or specific OEM approvals).

Can Millers XF Longlife C1 5w30 be used in a TD4?

The oil you use for your Jaguar, Millers XF Longlife C1 5w30, meets the Ford M2C934-B specification. This specification is often associated with vehicles requiring low SAPS (Sulphated Ash, Phosphorus, and Sulphur) oil, which is typically necessary for vehicles equipped with DPFs.

Compatibility Check:

• If your TD4 model is equipped with a DPF, and its manual specifies an oil meeting ACEA C1 or C2 standards, then using Millers XF Longlife C1 5w30 could be appropriate.
• However, if your TD4 does NOT have a DPF, or if its manual specifies a different standard (e.g., ACEA A3/B4 or a different C category), then using a C1 oil might not be ideal and could potentially cause issues or not offer optimal protection. Oils with a C1 specification have a lower HTHS (High Temperature High Shear) viscosity, which can sometimes be less robust in certain high-stress engine applications if not specifically designed for it.

Recommendation: It is strongly advised to cross-reference the Millers XF Longlife C1 5w30 specifications against your TD4's owner's manual requirements. Millers Oils typically provide excellent technical support, and their website usually has a product selector tool that can confirm compatibility based on your vehicle's make, model, and year.

The Importance of Oil Quality

Your positive experience with Millers Oils over twenty years speaks volumes about the quality of their products. Using high-quality, reputable oil brands like Millers is a sound investment in your vehicle's engine health. The benefits of using a premium oil include:

• Superior Protection: Enhanced resistance to thermal breakdown and oxidation, providing better lubrication under extreme conditions.
• Engine Cleanliness: Advanced additive packages help to keep the engine internally clean, preventing sludge and deposit formation.
• Fuel Efficiency: Modern synthetic oils can contribute to improved fuel economy by reducing internal friction.
• Extended Drain Intervals: Many premium oils are designed for longer service intervals, offering convenience and potentially cost savings over time, provided they meet the manufacturer's requirements.

Preventative Maintenance Tips for TD4 Owners

To keep your TD4 running smoothly and minimise the risk of encountering the common issues mentioned, consider these preventative maintenance tips:

• Regular Oil and Filter Changes: Adhere to the recommended service intervals for oil and filter changes, using the correct grade and specification of oil.
• Air Filter Maintenance: A clean air filter is essential for correct MAF sensor readings and overall engine breathing.
• Fuel System Cleaning: Consider periodic use of a quality fuel system cleaner to help prevent injector fouling.
• Turbocharger Care: Allow the engine to idle for a minute or two before switching off after a long drive to allow the turbocharger to cool down. Avoid hard acceleration from cold.
• Listen for Unusual Noises: Pay attention to any new or unusual sounds from the engine, particularly whining from the fuel pump area or whistling from the turbo.
• Address Warning Lights Promptly: Do not ignore the check engine light. Get it diagnosed by a qualified mechanic as soon as possible.

Frequently Asked Questions

Q1: What are the most common TD4 engine failures?
A1: The most frequent issues are with ancillary components, including electric fuel pumps, injectors, MAF sensors, and the variable nozzle turbocharger (VNT) system.

Q2: Can I use any 5W-30 oil in my TD4?
A2: No, it's crucial to use an oil that meets the specific ACEA or OEM (Original Equipment Manufacturer) specifications recommended in your vehicle's owner's manual. The viscosity (5W-30) is only one part of the equation; the additive package and approvals are critical.

Q3: My TD4 is smoking, what could it be?
A3: Smoking can indicate several problems, including faulty injectors, turbocharger issues (e.g., oil seals failing), or problems with the fuel-air mixture, potentially related to the MAF sensor or EGR system.

Q4: Is the TD4 engine expensive to repair?
A4: Repairs to the common failure points, particularly the turbocharger and fuel injectors, can be expensive due to the cost of parts and labour.

Q5: How can I prevent turbocharger failure in my TD4?
A5: Proper oil maintenance (using the correct grade and ensuring timely changes), allowing the engine to cool down after spirited driving, and avoiding excessive idling before switching off the engine are key preventative measures.

Conclusion

The TD4 engine, while generally dependable, presents owners with a distinct set of common failure points, primarily centred around its ancillary systems. By understanding these potential issues and adhering to a strict maintenance schedule, particularly concerning the correct engine oil and regular servicing, owners can significantly enhance the reliability and lifespan of their vehicles. Always consult your owner's manual for the definitive oil specification, and if in doubt, seek advice from a qualified mechanic or the oil manufacturer directly. Proactive care is the best defence against the costly repairs that can plague this otherwise capable engine.
