In the evolving landscape of automotive fuels, the quest for cleaner, more sustainable alternatives to traditional petrol and diesel is relentless. While electric vehicles capture much of the headlines, the potential of gaseous fuels like methane (natural gas or biomethane) in internal combustion engines remains a compelling area of development. One of the significant hurdles in adopting gaseous fuels has been efficient and precise injection into the combustion chamber, especially when aiming for direct injection (GDI) benefits. However, a surprising avenue lies in adapting existing technology: specifically, air-assisted outward-opening GDI injectors. This article delves into how these sophisticated components, originally designed for liquid gasoline, can be ingeniously repurposed for gaseous methane, opening new possibilities for greener transport in the UK and beyond.

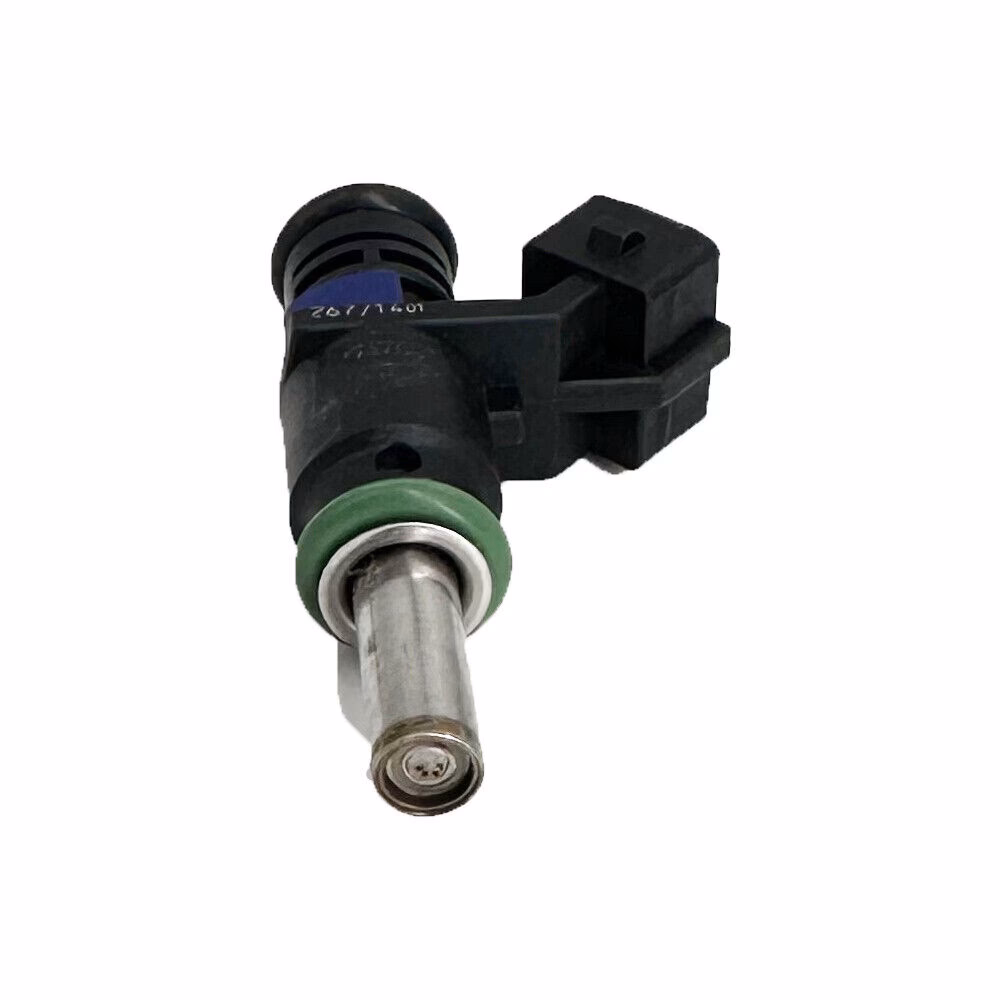

Traditional Gasoline Direct Injection (GDI) systems are lauded for their ability to deliver fuel with pinpoint accuracy directly into the combustion chamber, leading to improved fuel efficiency and reduced emissions compared to port fuel injection. Among the various GDI injector designs, the air-assisted outward-opening type stands out. These injectors, exemplified by commercial units like the Synerject Strata, are characterised by a design where fuel is sprayed outwards, often assisted by a precisely controlled air stream. This air assistance is primarily used to enhance atomisation of liquid fuel, ensuring a finer mist and better mixing with air for more complete combustion. The core mechanism involves a pintle that lifts to open an annular orifice, allowing fuel to flow outwards, with air often flowing concurrently to assist in the spray formation.
The challenge with gaseous fuels like methane is fundamentally different from liquids. Methane, being a gas at ambient temperatures, does not require atomisation in the same way petrol does. Injecting a gas efficiently into a high-pressure combustion chamber, ensuring homogeneous mixing and avoiding stratification, demands different characteristics from an injector. Standard GDI injectors, optimised for high-pressure liquid fuel delivery and fine atomisation, are typically not suited for direct injection of a gaseous fuel without significant modifications or complete redesigns. The small orifices and high pressures designed for liquids can create significant flow restrictions and potentially lead to poor distribution with gases.
This is where the ingenious adaptation of the air-assisted outward-opening GDI injector becomes highly relevant. The key insight lies in recognising that the components originally dedicated to handling and atomising gasoline can be removed. What remains, crucially, is the air unit – a part of the injector designed with inherently large efflux areas. These large efflux areas, which were once responsible for shaping the air assist for liquid fuel, are perfectly suited to admit gaseous fuel like methane. By repurposing this part of the injector, the design effectively transforms from a liquid fuel atomiser with air assist into a dedicated gaseous fuel injector with a wide, unrestricted flow path.
The benefits of utilising these large efflux areas for methane are manifold. Firstly, they allow for a significantly higher flow rate of gaseous fuel at lower injection pressures compared to what would be feasible with a standard liquid GDI injector's much smaller orifices. This reduces the energy required for injection and can simplify the fuel delivery system. Secondly, the outward-opening design facilitates a broader, more distributed spray pattern for the gas, promoting rapid and thorough mixing with the intake air within the cylinder. This is crucial for optimal combustion, preventing localised rich or lean zones that could lead to incomplete combustion, increased emissions, or reduced power output.
Technical Considerations for Methane Conversion
While the concept is elegant, practical implementation involves several technical considerations:
- Flow Dynamics and Pressure Management: Methane, typically stored as Compressed Natural Gas (CNG) at high pressures (e.g., 200 bar) or Liquefied Natural Gas (LNG) at cryogenic temperatures, needs precise pressure regulation before injection. The adapted injector must be able to handle the specific pressure and temperature profile of the gaseous methane as it enters the cylinder. The large efflux areas help mitigate pressure drop across the injector, ensuring sufficient mass flow.
- Material Compatibility: Although methane is less corrosive than petrol, ensuring all internal components of the adapted injector and the fuel lines are compatible with gaseous methane over the long term is vital. Most automotive-grade materials are generally robust, but specific elastomers or seals might need verification.
- Engine Control Unit (ECU) Reprogramming: This is perhaps the most critical aspect. The original Engine Control Unit is programmed for petrol injection characteristics – timing, duration, and quantity based on liquid fuel properties. For methane, the ECU needs a complete recalibration. This involves developing new fuel maps that account for methane's lower energy density by volume, different combustion speed, and gaseous state. Injection timing will need to be optimised for methane's flame propagation characteristics, and the air-fuel ratio (stoichiometric lambda) for methane is different from petrol. Sophisticated sensor feedback (e.g., wideband lambda sensors) will be essential for closed-loop control.
- Fuel System Integration: Beyond the injectors, the entire fuel delivery system needs to be redesigned for methane. This includes high-pressure methane tanks (CNG or LNG), pressure regulators, safety valves, and gas lines. Safety is paramount, given methane's flammability, requiring robust, leak-proof systems compliant with stringent safety standards.
Benefits of Methane as an Automotive Fuel
The drive towards methane conversion is underpinned by several compelling advantages:
- Environmental Superiority: Methane combustion produces significantly lower CO2 emissions per unit of energy compared to petrol or diesel. Furthermore, it generates virtually no particulate matter (PM), a major contributor to air pollution in urban areas. If the methane is sourced from renewable biomethane (from anaerobic digestion of organic waste), the carbon footprint can be near-zero, making it a truly cleaner fuel.
- Economic Viability: In many regions, natural gas is a cheaper fuel source than petrol or diesel, offering potential cost savings for fleet operators and individual drivers, especially for high-mileage applications.
- Energy Security: Utilising domestically produced natural gas or biomethane can reduce reliance on imported crude oil, enhancing a nation's energy security.
Challenges and Limitations
Despite its promise, methane conversion is not without its hurdles:
- Refuelling Infrastructure: The availability of public CNG or LNG refuelling stations in the UK is still limited compared to petrol stations, posing a significant challenge for widespread adoption.
- Storage: Methane tanks are bulkier and heavier than liquid fuel tanks due to the need to store the gas under high pressure (CNG) or at cryogenic temperatures (LNG), impacting vehicle packaging and payload.
- Performance Implications: While GDI improves methane combustion, the volumetric energy density of methane is lower than petrol, which can lead to a slight reduction in peak power for a given engine size unless specifically designed for gaseous fuel.
- Regulatory and Certification: Any vehicle modification involving fuel systems in the UK requires adherence to strict safety and emissions regulations, necessitating thorough testing and certification.
Comparative Analysis: Petrol GDI vs. Adapted Methane GDI
To highlight the differences and advantages of the adapted system, consider the following comparison:
| Feature | Traditional Petrol GDI (Air-Assisted) | Adapted Methane GDI (Air Unit Used for Gas) |
|---|---|---|
| Fuel State at Injection | Liquid | Gaseous |
| Primary Function | Atomisation of liquid fuel, precise metering | Precise metering of gaseous fuel, broad distribution |
| Efflux Area | Smaller, optimised for high-pressure liquid spray | Large efflux areas, repurposed for high gas flow |
| Injection Pressure | Very high (e.g., 50-200 bar for liquid) | Lower (e.g., 5-20 bar for gas, depending on system) |
| ECU Requirements | Petrol-specific fuel maps and control strategies | Methane-specific fuel maps, timing, and A/F ratio strategies |
| Emissions Profile | CO2, NOx, PM, HC (petrol-specific) | Lower CO2, very low PM, NOx, HC (methane-specific) |
| Fuel System Complexity | High-pressure liquid pump, lines | High-pressure gas tank, regulators, gas lines |
| Key Advantage | High power density, widespread infrastructure | Cleaner emissions, potentially lower running costs |
Practical Implementation and Future Outlook
Converting a vehicle to run on methane using adapted GDI injectors is not a trivial undertaking and is certainly not a DIY project. It requires specialist automotive engineering expertise, particularly in fuel system integration and ECU remapping. Companies specialising in alternative fuel conversions would be the primary candidates for such work. While OEM manufacturers are increasingly exploring dedicated gaseous fuel engines, the concept of adapting existing, readily available GDI components for aftermarket conversions or niche applications presents an efficient pathway to cleaner transport solutions.
Looking ahead, as the UK and other nations push for decarbonisation, the role of gaseous fuels, especially biomethane, is likely to grow. The ability to leverage existing, sophisticated injector technology through clever adaptation could accelerate this transition, offering a practical bridge to a future with lower emissions, without requiring a complete overhaul of internal combustion engine design principles.
Frequently Asked Questions (FAQs)
Q: Is this conversion something I can do myself?
A: Absolutely not. This is a highly complex engineering task involving high-pressure fuel systems, delicate electronics, and critical safety considerations. It requires specialist knowledge, tools, and regulatory compliance.
Q: What are the main benefits of converting to methane?
A: The primary benefits are significantly reduced tailpipe emissions (especially particulate matter and CO2, particularly with biomethane), and potentially lower running costs due to methane often being cheaper than petrol.
Q: Will this conversion affect my vehicle's performance?
A: Due to methane's lower volumetric energy density compared to petrol, there might be a slight reduction in peak power. However, with proper ECU tuning and injector adaptation, modern methane engines can offer comparable driveability for most everyday uses.
Q: What about the safety of methane as a fuel?
A: Methane is a safe fuel when handled in properly designed and maintained systems. It is lighter than air, so in the event of a leak, it dissipates quickly. However, like any fuel, it is flammable and requires stringent safety standards for storage and delivery, which are mandated by regulations.
Q: Where can I refuel a methane-powered vehicle in the UK?
A: The refuelling infrastructure for CNG and LNG in the UK is still developing and is not as widespread as petrol/diesel stations. It's primarily concentrated around commercial transport hubs. Drivers considering a conversion should research the availability of stations in their regular travel areas.
Q: Are there any specific vehicles that are better suited for this type of conversion?
A: Vehicles with existing GDI systems, particularly those with air-assisted outward-opening injectors, would be the most straightforward candidates for this specific type of adaptation. However, the feasibility and cost-effectiveness would need to be assessed on a case-by-case basis by an expert.
