The Suzuki M109R, known for its colossal engine and commanding presence on the road, demands a clutch system that can handle its immense power. However, owners of the earlier 2006-2009 models often encounter specific clutch-related frustrations that can detract from the riding experience. These issues, ranging from harsh gear engagement to premature clutch wear, have led many to seek out effective aftermarket solutions. Fortunately, there are indeed performance clutch kits available that can dramatically improve the M109R's clutch performance and overall rideability, turning a common weakness into a significant strength.
Understanding the M109R's Original Clutch System: The First-Generation Challenges
The initial clutch system fitted to the 2006-2009 Suzuki M109R (also known as the M1800R in some markets) featured a design that, while functional, presented several notable drawbacks for riders. This first-generation setup was characterised by having only five clutch plates. Compared to later designs, these plates were often heavier, and the accompanying clutch springs had a lower kg/m rating, meaning they exerted less pressure. This combination, unfortunately, led to a cascade of common problems that M109R owners grew all too familiar with.
One of the most frequently reported issues was a significant 'collision' or jolt when engaging first gear. This harsh engagement was not only uncomfortable but also put undue stress on the transmission components. Furthermore, the clutch lever itself often felt noticeably harder to pull, leading to rider fatigue, especially during stop-and-go traffic or longer journeys. Perhaps the most critical flaw, however, was the shorter lifespan of the clutch springs. These springs developed a reputation for rapidly losing their elasticity, which inevitably resulted in frequent and frustrating clutch slipping. Clutch slipping occurs when the friction plates fail to fully engage, causing a loss of power transfer from the engine to the rear wheel, particularly under acceleration. This not only diminishes performance but also accelerates the wear of the clutch plates themselves.
Suzuki did acknowledge these issues, and for the 2010-on versions of the M109R, they introduced a redesigned clutch system. While this revision aimed to address some of the shortcomings, the problems inherent in the older generation's design persisted for owners of the 2006-2009 models, leaving many searching for a reliable upgrade.
The REVO Suzuki Hyper Clutch Kit: A Comprehensive Solution

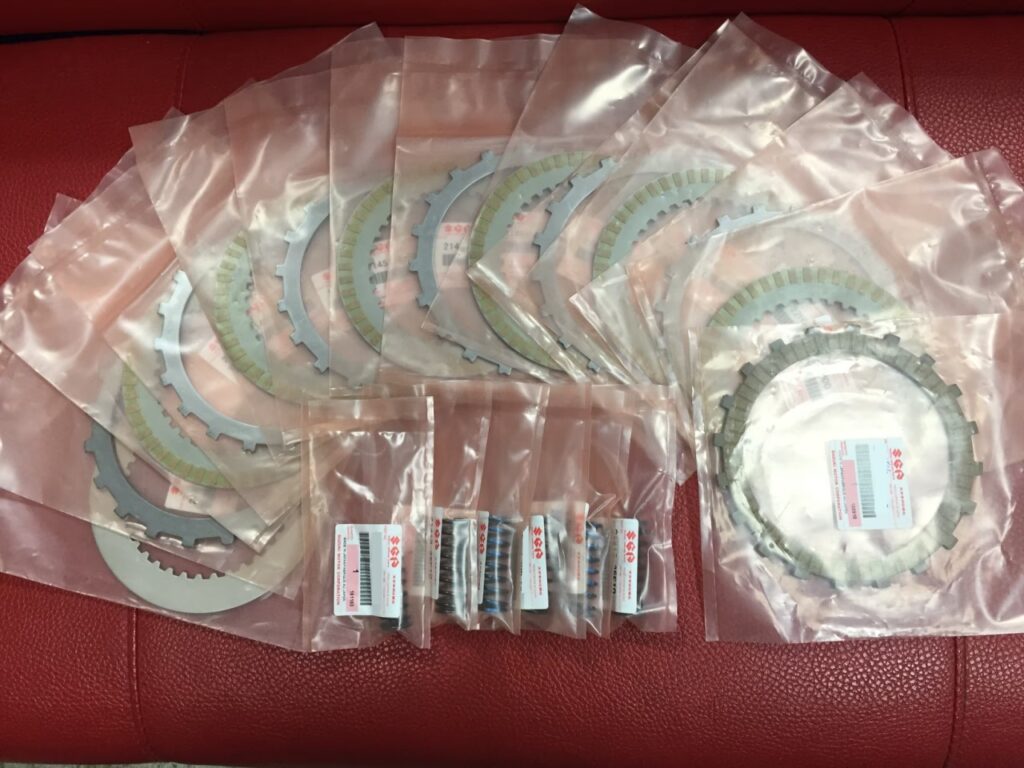

Recognising the widespread issues faced by owners of the earlier M109R models, REVO developed a targeted and highly effective solution: the REVO Suzuki Hyper Clutch Kit. This kit is specifically designed for 2006-2009 M109R/M1800R bikes and offers a complete upgrade, essentially transforming the first-generation clutch system into the more robust and refined 2010-on specification, utilising authentic Suzuki OEM high-quality parts.
At the heart of the REVO Hyper Clutch Kit's effectiveness is its ability to upgrade the clutch system from five clutch plates to six. This seemingly small change has a profound impact, as it significantly increases the total friction surface area between the plates. More friction means better power transfer and a much-reduced likelihood of slipping, even under the M109R's substantial torque. Beyond the additional plate, the kit also includes upgraded clutch springs with a higher kg/m rating. These stronger springs maintain consistent pressure on the clutch plates, ensuring firm engagement and extending the lifespan of the springs themselves, thus eradicating the chances of clutch slipping that plagued the original setup.
The beauty of the REVO kit lies in its thoughtful design. The clutch pressure disk on the outside remains the same as the original, meaning the upgrade primarily involves replacing the internal components: the clutch plates, the clutch driven plate, and the springs. This makes for a direct and effective conversion that brings the older models up to modern performance standards.
Key Benefits of Upgrading to the REVO Hyper Clutch Kit
The installation of a REVO Suzuki Hyper Clutch Kit offers a multitude of tangible benefits that dramatically enhance the M109R riding experience:
- Softer Feel to Clutch Lever: One of the most immediate and noticeable improvements is a significantly softer feel at the clutch lever. The upgraded springs and design reduce the effort required to disengage the clutch, making for a much more comfortable ride, particularly during prolonged periods of shifting or in heavy traffic.
- Less Clutch Collision When Entering 1st Gear: The notorious harsh engagement into first gear, a hallmark of the original system, is largely eliminated. The REVO kit allows for a smoother, more controlled engagement, reducing the jolt and improving the overall refinement of the bike.
- Longer Lifespan for Clutch Springs: With stronger, more durable springs designed for the demands of the M109R, riders can expect a substantially longer lifespan from their clutch springs. This means fewer instances of fading elasticity and a more consistent clutch performance over time, reducing the need for premature replacements.
- Eradication of Clutch Slipping: The increased number of friction plates combined with stronger springs ensures a much firmer and more consistent grip. This effectively eradicates the frustrating and power-robbing clutch slipping, allowing the M109R to put all its power to the ground efficiently, even under hard acceleration.
- Enhanced Performance and GRIP!: As one satisfied customer, MDHICKMAN, noted, after installing a performance clutch kit along with Barnett performance clutch springs, the difference was astounding. The bike "launched hard and didn't flash while shifting even under power. Best performance frictions I've ever installed!" This sentiment highlights the significant performance boost and improved power delivery that comes with a properly upgraded clutch system.
Professional Installation: A Crucial Consideration
While the benefits of the REVO Hyper Clutch Kit are clear, it is paramount to stress the importance of professional installation. Replacing a motorcycle clutch is a task that requires specific tools, technical knowledge, and a meticulous approach to ensure correct assembly and optimal performance. Attempting this upgrade without the necessary expertise could lead to incorrect installation, potential damage to components, and an unsafe riding condition. Both REVO and experienced mechanics strongly recommend that this Hyper Clutch kit replacement be carried out by a qualified and professional mechanic.
Clutch System Comparison: Old vs. New
To illustrate the stark differences and the advantages offered by the REVO Hyper Clutch Kit, let's compare the key features of the first-generation M109R clutch with the upgraded 2010-on (or REVO-equipped) system:
| Feature | 06-09 M109R Clutch (First Gen) | 10-on M109R Clutch (Redesigned / REVO Kit) |
|---|---|---|
| Number of Clutch Plates | Five | Six |
| Plate Weight | Heavier | Standard (lighter than first gen) |
| Clutch Springs | Lower kg/m (weaker), shorter lifespan | Bigger kg/m (stronger), longer lifespan |
| Lever Feel | Harder | Softer |
| 1st Gear Engagement | Huge collision / Jolt | Less collision / Smoother |
| Clutch Slipping Risk | High (due to fading springs) | Significantly reduced / Eradicated |
| Overall Performance | Prone to issues, less refined | Enhanced, more reliable power transfer |
Why Invest in a Clutch Upgrade for Your M109R?
Beyond merely fixing existing problems, upgrading your M109R's clutch system is an investment in the bike's overall performance, reliability, and your riding enjoyment. The M109R is a powerful machine, and a well-functioning clutch is fundamental to harnessing that power effectively and safely. A worn or underperforming clutch can lead to a host of issues that compromise both performance and rider confidence. By ensuring optimal power transfer, smooth gear changes, and consistent lever feel, an upgraded clutch contributes significantly to the bike's longevity and responsiveness. It allows you to fully appreciate the M109R's capabilities, whether you're cruising on the open road or navigating urban environments.
Frequently Asked Questions (FAQs)

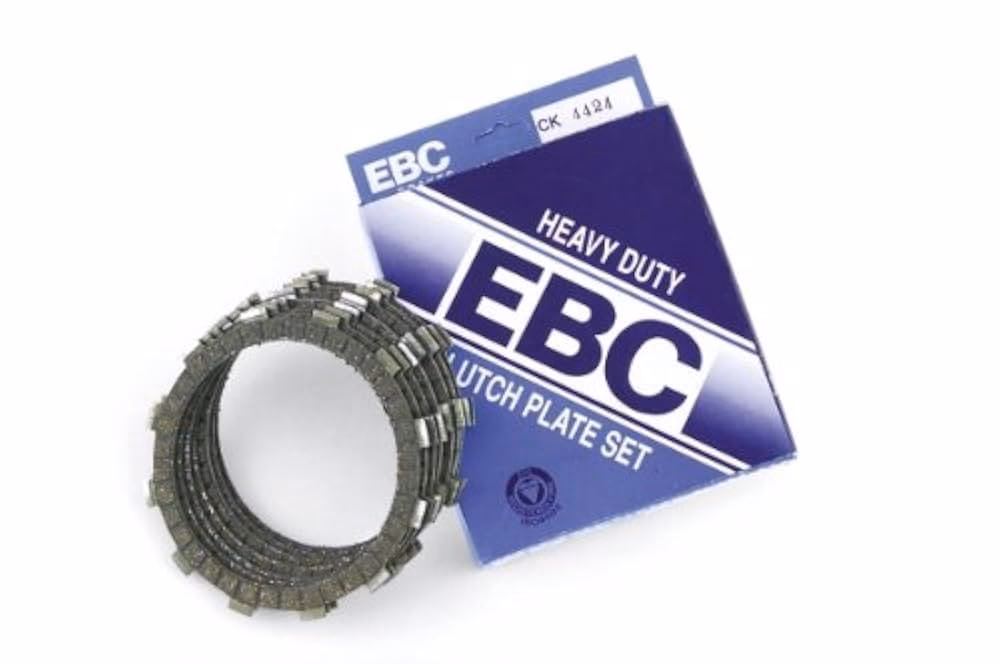

Q: Is there a specific clutch kit available for the Suzuki M109R?
A: Yes, there are performance clutch kits specifically designed for the M109R. The REVO Suzuki Hyper Clutch Kit is a prominent example, designed to upgrade 2006-2009 models to the superior 2010-on clutch specification.
Q: How many clutch plates does a Suzuki M109R have?
A: The number of clutch plates varies by model year. The original 2006-2009 M109R models came with five clutch plates. The redesigned 2010-on models, and the REVO Suzuki Hyper Clutch Kit upgrade for older models, feature six clutch plates.

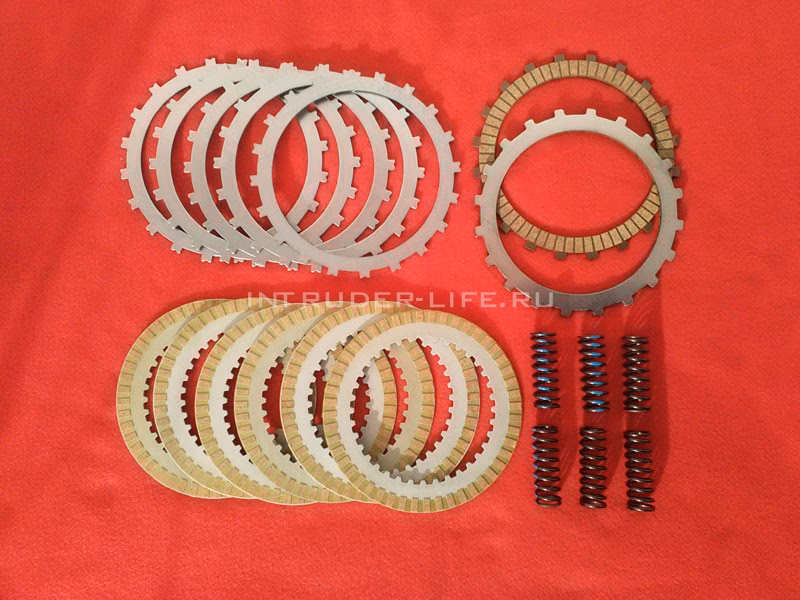

Q: What is the REVO Suzuki Hyper Clutch Kit?
A: The REVO Suzuki Hyper Clutch Kit is an aftermarket upgrade solution for 2006-2009 M109R/M1800R motorcycles. It replaces the original five-plate clutch system with a six-plate design and stronger springs, using authentic Suzuki OEM high-quality parts. This upgrade aims to resolve common issues like harsh first gear engagement, hard clutch lever pull, short spring lifespan, and clutch slipping, by mimicking the improved 2010-on clutch system.
Q: What are the main benefits of installing the REVO Hyper Clutch Kit?
A: The primary benefits include a softer feel at the clutch lever, significantly less collision or jolt when engaging 1st gear, a longer lifespan for the clutch springs, and the effective eradication of clutch slipping, leading to better power transfer and a more enjoyable ride.
Q: Can I install the REVO Hyper Clutch Kit myself?
A: It is strongly recommended that the REVO Hyper Clutch Kit be installed by a professional mechanic. Clutch replacement requires specialised knowledge, tools, and experience to ensure proper and safe operation, preventing potential damage or an unsafe riding condition.
Q: Will this kit improve the performance of my M109R?
A: Absolutely. By providing a stronger, more consistent grip and eliminating slipping, the REVO Hyper Clutch Kit ensures that more of your M109R's power is efficiently transferred to the rear wheel, resulting in harder launches and smoother, more confident shifts, even under heavy load.
Conclusion
For owners of the 2006-2009 Suzuki M109R, the common clutch issues are not an insurmountable obstacle to enjoying their powerful cruiser to its fullest. The REVO Suzuki Hyper Clutch Kit presents a well-engineered and highly effective solution, transforming the problematic first-generation clutch into a robust and reliable system that mirrors the improved 2010-on design. By upgrading to six plates and stronger springs, riders can experience a dramatically smoother, more comfortable, and ultimately more exhilarating ride, free from the frustrations of hard engagement, heavy lever pull, and clutch slipping. Investing in such a critical component not only enhances your riding pleasure but also contributes to the longevity and optimal performance of your magnificent M109R.
