Replacing an oil pump is a significant undertaking in automotive maintenance, crucial for the longevity and health of your engine. The oil pump is, quite literally, the heart of your lubrication system, circulating oil to all vital components. A failing pump can lead to catastrophic engine damage, making its replacement a critical repair. While daunting, having the right tools at your disposal can make all the difference between a frustrating ordeal and a successful repair. This guide will walk you through the essential tools, from the common to the highly specialised, that you’ll need to complete this complex job efficiently and correctly.
- The Foundation: Basic Hand Tools
- The Specialists: Essential Advanced Tools
- The Indispensable Guide: A Service Manual
- Consumables and Supplementary Items
- Frequently Asked Questions (FAQs)
- Q: Can I replace an oil pump without an engine hoist?
- Q: Is a torque wrench truly necessary, or can I just tighten bolts by feel?
- Q: What if I don't have a service manual for my car?
- Q: How long does an oil pump replacement typically take?
- Q: What are the common signs of a failing oil pump that would indicate a replacement is needed?
- Conclusion
The Foundation: Basic Hand Tools
Before diving into the more specific equipment, ensure you have a comprehensive set of fundamental hand tools. These are the workhorses of any garage and will be indispensable for nearly every step of the oil pump replacement process.
Socket Sets and Wrenches
A good quality socket set, comprising various sizes (metric and imperial, depending on your vehicle), is paramount. You'll need ratchets of different drive sizes (1/4", 3/8", 1/2"), along with extensions and universal joints to reach fasteners in awkward locations. Combination wrenches (open-end and box-end) will also be necessary for bolts and nuts where sockets might not fit. Flare nut wrenches might be useful if you encounter oil lines or other hydraulic connections.
Screwdrivers and Pliers
A selection of screwdrivers, including Phillips, flat-head, and potentially Torx or Allen (hex) drivers, will be required for various clamps, covers, and accessory fastenings. Pliers, such as combination pliers, needle-nose pliers, and locking pliers (Mole grips), are useful for gripping, holding, and manipulating components or stubborn fasteners.
Oil Drain Pan and Fluid Management
Given that you'll be working with the engine's lubrication system, an oil drain pan is absolutely essential for collecting the old engine oil when you drain the sump. Ensure it's large enough to hold the full capacity of your engine's oil. You might also find a fluid transfer pump or a large syringe helpful for removing any residual oil from hard-to-reach areas or for precise fluid additions.
Gasket Scraper and Cleaning Supplies
Removing the old oil pump and oil pan will inevitably leave behind remnants of old gaskets and sealant. A sturdy gasket scraper or a razor blade tool is crucial for meticulously cleaning mating surfaces. This step cannot be overlooked; failure to achieve clean surfaces will almost certainly lead to leaks. Complement this with shop rags or clean cloths and a good quality degreaser or brake cleaner to ensure all surfaces are free from oil residue before installing new gaskets and the new pump.
Personal Protective Equipment (PPE)
Safety should always be your top priority. Always wear safety glasses to protect your eyes from debris, oil splashes, and falling objects. Durable work gloves will protect your hands from cuts, scrapes, and harsh chemicals. Consider a creeper for comfortable work under the vehicle.
The Specialists: Essential Advanced Tools
While the basic tools get you started, oil pump replacement often requires equipment that goes beyond the typical DIY toolkit. These specialised tools ensure precision, prevent damage, and facilitate access to the pump.
Torque Wrench: The Precision Tool
This is arguably one of the most critical tools for an oil pump replacement. Engine components, especially those related to lubrication and internal engine parts, have very specific torque specifications. Overtightening can strip threads, crack castings, or distort components, while undertightening can lead to leaks or parts coming loose. A quality torque wrench (preferably a click-type or digital one for accuracy) is non-negotiable. You'll likely need one that covers a range of foot-pounds (ft-lbs) or Newton-metres (Nm) suitable for engine components.
Let's compare common types of torque wrenches:
| Torque Wrench Type | Description | Pros | Cons | Ideal Use for Oil Pump |
|---|---|---|---|---|
| Click-Type Torque Wrench | Emits an audible 'click' and a slight feel when the set torque is reached. | Easy to use, relatively accurate, good for repetitive tasks. | Requires periodic calibration, can be less accurate at very low or high ends of its range. | Most common and recommended for engine assembly bolts (oil pan, pump mounting). |
| Beam-Type Torque Wrench | Features a visual scale and a pointer that moves as torque is applied. | No calibration needed, highly accurate, relatively inexpensive. | Requires direct line of sight to read, slower to use, less convenient in tight spaces. | Good for checking torque, or if precision at low values is paramount and visibility allows. |
| Digital Torque Wrench | Provides a digital readout of torque, often with audible alerts and vibration. | Highly accurate, easy to read, can store readings, often has angle measurement. | Most expensive, requires batteries, can be sensitive to drops. | Excellent for critical fasteners requiring extreme precision, or when angle tightening is specified. |
Engine Hoist or Engine Support Bar
Depending on your vehicle's configuration, accessing the oil pump often requires either removing the engine or lifting it significantly. If the oil pump is located inside the oil pan (a common design), you'll need to remove the oil pan, which may necessitate lifting the engine slightly to clear the subframe or other components. An engine hoist (engine crane) or an engine support bar (cross-beam support) will be indispensable for safely supporting or lifting the engine. Never attempt to lift an engine without proper equipment.
Harmonic Balancer Puller
On many engines, the oil pump is located behind the timing cover, and to access the timing cover, the harmonic balancer (crankshaft pulley) must be removed. A specialised harmonic balancer puller is essential for this task, as attempting to pry or force it off can cause damage to the balancer or the crankshaft. Ensure you have the correct type for your vehicle's balancer.
Seal Pullers and Installers
When replacing an oil pump, especially if it's part of the timing cover assembly or involves the crankshaft, you might need to replace the front crankshaft seal. Dedicated seal pullers make removing old, stubborn seals much easier without damaging the crankshaft or sealing surfaces. Similarly, seal installers help to press new seals in squarely and to the correct depth, preventing premature leaks.
Inspection Mirror and Borescope
Working in the cramped confines of an engine bay can make visual inspection challenging. An extendable inspection mirror is excellent for seeing around corners and behind components. For even tighter spots or to inspect cylinder walls/bearings if the oil pan is off, a small borescope (inspection camera) can be incredibly useful, connecting to your smartphone or having its own screen.
The Indispensable Guide: A Service Manual
While not a physical tool you hold, a comprehensive service manual for your specific vehicle is arguably the most important 'tool' you can have. It provides detailed, step-by-step instructions, exploded diagrams, and, crucially, all the specific torque specifications for every fastener. It will also outline any special procedures or tools required unique to your vehicle model. Attempting an oil pump replacement without one is a recipe for disaster.
Consumables and Supplementary Items
Beyond the tools, you'll need a few new parts and consumables to complete the job:

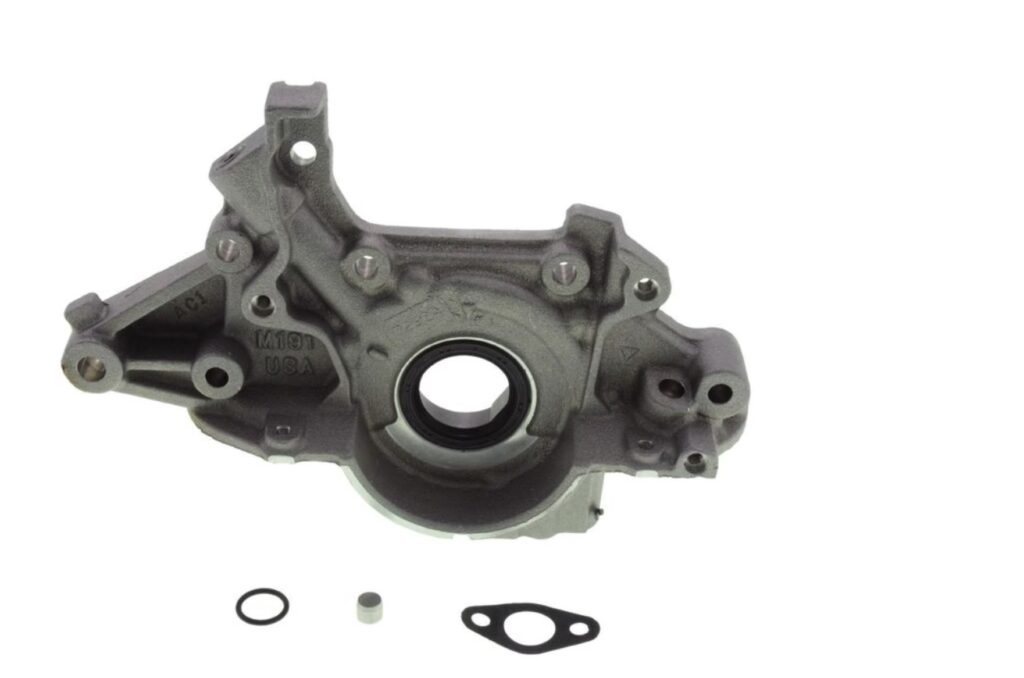

- New Oil Pump: Obtain the correct OEM or high-quality aftermarket pump for your vehicle.
- Gaskets and Seals: This will almost certainly include a new oil pan gasket, oil pump gasket, and possibly a new front crankshaft seal and timing cover gasket. Always use new gaskets.
- Engine Oil: Fresh engine oil to refill the system after the replacement.
- Oil Filter: It's good practice to replace the oil filter whenever you drain and refill the oil.
- RTV Silicone Sealant: Some applications require a bead of RTV (Room Temperature Vulcanising) silicone sealant in addition to or instead of gaskets, particularly at corners or transitions.
- Threadlocker: For certain bolts, the service manual might specify the use of threadlocker to prevent loosening from vibration.
Frequently Asked Questions (FAQs)
Q: Can I replace an oil pump without an engine hoist?
A: It depends heavily on the vehicle's design. If the oil pump is accessible without removing the oil pan, or if the oil pan can be removed without lifting the engine, then an engine hoist might not be strictly necessary. However, for many modern vehicles, the subframe or other components obstruct the oil pan's removal, making an engine lift or support bar essential for gaining clearance. Always consult your service manual to determine the required access.
Q: Is a torque wrench truly necessary, or can I just tighten bolts by feel?
A: A torque wrench is absolutely necessary. Engine components are designed to operate under precise stress loads. Over-tightening can strip threads, crack housings, or cause warpage (e.g., oil pan flanges), leading to leaks or component failure. Under-tightening can result in leaks, vibrations causing bolts to loosen, or parts separating. Relying on 'feel' for critical engine fasteners is a significant risk that can lead to costly damage.
Q: What if I don't have a service manual for my car?
A: Attempting an oil pump replacement without a service manual is highly ill-advised. The manual provides crucial information such as specific disassembly/assembly sequences, torque specifications, special tool requirements, and diagnostic procedures. Without it, you risk incorrect assembly, missed steps, or improper torque, all of which can lead to severe engine damage. Invest in a digital or physical copy; it's an indispensable investment for any serious repair.
Q: How long does an oil pump replacement typically take?
A: The time required varies greatly depending on the vehicle's make and model, the oil pump's location (e.g., inside the oil pan, behind the timing cover), and your mechanical experience level. For some vehicles, it might be a 4-6 hour job for an experienced mechanic, while for others, it could easily be 10-15 hours or more, especially if the engine needs to be partially removed. For a DIYer, expect to take significantly longer, often spread over several days.
Q: What are the common signs of a failing oil pump that would indicate a replacement is needed?
A: The most common signs include a low oil pressure warning light on your dashboard, a ticking or clattering noise from the engine (especially at idle, indicating lack of lubrication), or a sudden loss of oil pressure. In some cases, you might also notice a burning oil smell if oil is leaking due to a related seal failure. Do not ignore these signs; address them promptly to prevent catastrophic engine damage.
Conclusion
Replacing an oil pump is a demanding but manageable task for the competent DIY mechanic, provided you approach it with the right preparation and equipment. As we've seen, it's not just about having a wrench; it's about having the specific tools that allow for precision, safe access, and correct reassembly. Always consult your vehicle's service manual for the exact procedures and torque specifications. By gathering all the necessary basic hand tools, investing in the crucial specialised equipment like a torque wrench and potentially an engine hoist, and having the right consumables on hand, you'll be well-equipped to tackle this vital repair, ensuring your engine continues to receive the lifeblood it needs for many miles to come.
