Unravelling the Stuart Turner No. 1 Engine

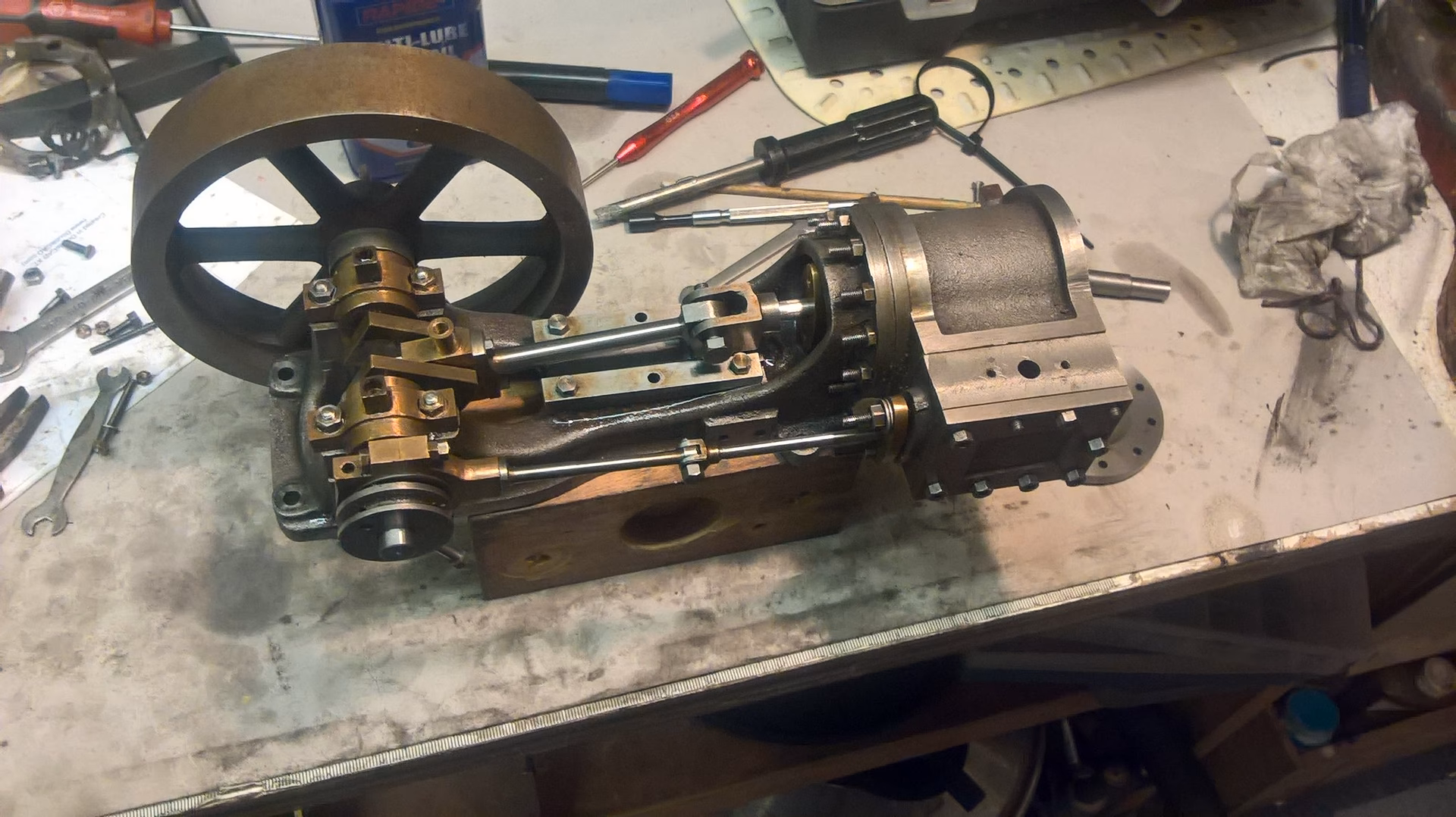

The Stuart Turner No. 1, a quintessential model steam engine, holds a special place in the hearts of model engineers and enthusiasts alike. Its robust design, elegant simplicity, and educational value make it an excellent subject for understanding the fundamental principles of steam power. While its overall operation might seem straightforward, a detailed appreciation of its individual components is crucial for assembly, maintenance, and troubleshooting. This article aims to meticulously describe the key parts of the Stuart Turner No. 1, explaining their functions, common materials, and how they contribute to the engine's operation, ensuring you grasp the intricate dance of its internal mechanics.

Understanding the terminology and the interplay between components is paramount. Though often referred to by specific names, some parts may also be known by alternative designations, a common occurrence in engineering. We'll explore these variations where relevant, providing a comprehensive overview that will serve as an invaluable reference for your journey into the world of model steam engines.

The Bedplate: The Engine's Foundation

The bedplate, sometimes referred to as the baseplate or soleplate, forms the fundamental structural foundation of the Stuart Turner No. 1 engine. Typically cast from robust materials like iron or brass, its primary function is to provide a rigid, stable platform upon which all other engine components are securely mounted and precisely aligned. Without a perfectly flat and rigid bedplate, the intricate tolerances required for smooth operation – such as the alignment of the cylinder with the crankshaft bearings – would be impossible to maintain. This component is usually machined with precision mounting points for the cylinder, crankshaft bearing pedestals, and often the valve gear standard. Its weight also contributes to the engine's stability during operation, helping to absorb vibrations and ensure smooth running. Proper securing of the bedplate to its mounting surface is vital for preventing unwanted movement and maintaining the integrity of the engine's alignment.

The Cylinder: The Heart of Steam Power

At the very core of any steam engine, including the Stuart Turner No. 1, lies the cylinder. This precisely machined cylindrical bore is where the magic of steam expansion takes place, converting thermal energy into mechanical work. Usually crafted from high-quality cast iron or sometimes brass, the cylinder must withstand significant steam pressures and temperatures. It features inlet and exhaust ports, often located at the top (for vertical engines) or sides, which control the flow of live steam into the cylinder and spent steam out of it. The internal bore is honed to an extremely fine finish to minimise friction and ensure an excellent seal with the piston. The cylinder is typically bolted securely to the bedplate, often with a packing or gasket material in between to ensure a steam-tight seal. Variations in design might include steam jackets for improved thermal efficiency, though simpler models like the No. 1 often rely on direct steam admission.

The Piston: Translating Steam Pressure

Residing within the cylinder, the piston is a cylindrical component designed to move reciprocally (back and forth) under the influence of steam pressure. Typically made from cast iron, brass, or sometimes aluminium, the piston is fitted with one or more piston rings. These rings, usually made of cast iron or bronze, are crucial for creating a tight seal against the cylinder walls, preventing steam from bypassing the piston and ensuring maximum efficiency. The piston's top surface is exposed to live steam, which pushes it down (or up, depending on the engine's orientation and cycle). This linear motion is then transferred via the piston rod to the connecting rod. The fit between the piston and cylinder is critical; too tight and it causes excessive friction, too loose and steam leaks, reducing power. Proper lubrication is essential for the longevity and smooth operation of both the piston and cylinder.

The Piston Rod: The Link to Motion

The piston rod is a rigid, precisely machined shaft that connects the piston to the connecting rod. It transmits the linear force generated by the expanding steam acting on the piston to the rotary motion mechanism of the crankshaft. Crafted from robust materials like steel, it must be strong enough to withstand significant compressive and tensile forces without buckling or deforming. One end of the piston rod is securely attached to the piston, while the other end passes through a steam-tight seal, known as the gland or stuffing box, in the cylinder cover. The external end of the piston rod is then typically connected to the small end of the connecting rod via a crosshead arrangement or directly, depending on the engine's design. Maintaining a straight and true piston rod is vital for efficient power transmission and to prevent uneven wear on the cylinder bore.

The Gland (Stuffing Box): Sealing the Steam

The gland, often referred to as a stuffing box, is a critical sealing mechanism found where the piston rod (and sometimes the valve rod) exits the steam-pressurised environment of the cylinder or steam chest. Its purpose is to prevent steam from escaping while allowing the rod to move freely. It typically consists of a housing filled with packing material, such as graphite-impregnated flax, PTFE, or sometimes O-rings, which is compressed by a gland nut or follower. This compression creates a seal around the rod. Proper adjustment of the gland is essential: too tight, and it causes excessive friction and wear on the rod; too loose, and steam leakage occurs, reducing efficiency and creating a mess. Regular inspection and replacement of packing material are part of routine maintenance.

The Connecting Rod: Converting Linear to Rotary

The connecting rod, also known as the con-rod, is a fundamental component that translates the reciprocating (back-and-forth) motion of the piston into the rotary motion of the crankshaft. It is usually a sturdy, I-beam or rectangular section component made from steel or bronze. It has two ends: the small end, which connects to the piston rod (or crosshead), and the big end, which connects to the crankpin on the crankshaft. Both ends feature bearings (bushings or shells) to allow smooth, low-friction articulation. The small end typically uses a plain bearing, while the big end, experiencing greater forces, often has a split bearing with shims for adjustment. The length and design of the connecting rod significantly influence the engine's kinematics and performance. Proper lubrication of both big and small end bearings is paramount to prevent wear and ensure smooth operation.

The Crankshaft: The Engine's Backbone

The crankshaft is the central rotating component of the engine, converting the linear motion of the piston via the connecting rod into continuous rotary motion. For a simple single-cylinder engine like the Stuart Turner No. 1, it typically consists of one or more main journals (which run in the main bearings on the bedplate), a crank web (the arm connecting the main journal to the crankpin), and a crankpin (the offset journal to which the big end of the connecting rod attaches). Often made from high-strength steel, the crankshaft must be precisely balanced to minimise vibrations and ensure smooth running at speed. The crankshaft is subjected to significant bending and torsional stresses, making material strength and manufacturing precision vital. Some designs may incorporate an eccentric directly on the crankshaft to drive the valve gear, while others use a separate eccentric disc.

The Main Bearings (Bearing Pedestals): Supporting Rotation

The main bearings, often housed within bearing pedestals or standards, provide support for the crankshaft, allowing it to rotate freely with minimal friction. These bearings are typically plain bearings, consisting of a bronze or brass bush, or sometimes white metal, pressed into a cast iron or brass housing. They are precision-machined to match the diameter of the crankshaft's main journals. Proper lubrication of the main bearings is critical for the engine's longevity and efficiency; inadequate lubrication leads to excessive friction, heat, and rapid wear. The bearing pedestals themselves are securely bolted to the bedplate, ensuring precise alignment of the crankshaft relative to the cylinder. Some designs may feature adjustable caps to compensate for wear over time.

The Flywheel: Smoothing the Ride

The flywheel is a heavy wheel, typically made of cast iron or brass, mounted on the crankshaft. Its primary function is to store rotational energy during the power stroke and release it during the non-power strokes (exhaust, intake, compression) to smooth out the engine's operation and maintain a relatively constant rotational speed. Without a flywheel, a single-cylinder engine would experience significant fluctuations in speed and could even stall at certain points in its cycle. The inertia of the flywheel helps to overcome the dead centres (points where the piston is at the top or bottom of its stroke and the connecting rod exerts no turning force on the crankshaft). The flywheel also provides a convenient means to manually turn the engine over for starting or maintenance. Its mass and diameter are carefully calculated to suit the engine's power output and desired running characteristics.

The Eccentric and Eccentric Rod: Driving the Valve

The eccentric is a circular disc mounted eccentrically (off-centre) on the crankshaft, sometimes integral with the crankshaft itself or a separate component secured to it. Its purpose is to convert the rotary motion of the crankshaft into a reciprocating motion to drive the valve gear. An eccentric strap, or eccentric rod, surrounds the eccentric disc and is connected to the valve rod. As the crankshaft rotates, the eccentric's off-centre rotation causes the eccentric strap to move back and forth, transferring this motion to the valve. The throw (offset) of the eccentric determines the travel of the valve, which is crucial for correct steam timing. The eccentric rod transmits this motion to the valve spindle or valve rod, which in turn moves the valve.

The Valve and Steam Chest: Regulating Steam Flow

The valve, typically a slide valve in simpler engines like the Stuart Turner No. 1, is responsible for precisely controlling the admission of live steam into the cylinder and the exhaust of spent steam out of it. It slides back and forth over a valve face, which contains the steam inlet port and exhaust port(s) for the cylinder. The valve is housed within the steam chest, a sealed chamber bolted to the side or top of the cylinder, into which live steam from the boiler is fed. As the valve moves, it alternately connects the cylinder's working volume to the live steam supply and then to the exhaust port, orchestrating the engine's power cycle. The precise timing of the valve's movement, known as valve timing, is critical for engine efficiency and direction of rotation. The valve rod (or spindle) connects the valve to the eccentric rod.

Drain Cocks: Clearing Condensate

Drain cocks are small valves, usually located at the lowest points of the cylinder (and sometimes the steam chest), designed to drain condensate (water) from the engine. When a steam engine starts from cold, steam condenses rapidly within the cylinder and steam chest, forming water. If this water is not drained, it can lead to 'water hammer', a phenomenon where the piston tries to compress an incompressible fluid, potentially causing severe damage to the engine. Opening the drain cocks allows this condensate to be purged before and during startup, ensuring only dry steam enters the cylinder. Once the engine is warm and running efficiently, the drain cocks are closed. They are typically simple quarter-turn ball or plug valves.

Other Important Considerations: Fasteners and Lubrication

While not individual moving parts in the same vein, the various fasteners (bolts, nuts, screws) holding the engine together are absolutely critical. Their correct torque, material, and type ensure the structural integrity and steam-tightness of the engine. Similarly, lubrication is paramount. All moving parts, especially bearings, piston, and valve, require regular and appropriate lubrication (e.g., steam oil for internal parts, machine oil for external bearings) to minimise friction, reduce wear, prevent corrosion, and ensure smooth, efficient operation. A well-lubricated engine will run quietly, powerfully, and last for many years, while one starved of oil will quickly seize or suffer catastrophic wear.

Comparative Table: Key Components & Their Roles

Frequently Asked Questions About the Stuart Turner No. 1

What is the Stuart Turner No. 1 typically used for?

The Stuart Turner No. 1 is primarily a model steam engine, often used for educational purposes, as a display piece, or as a power source for small model boats, workshops, or other miniature machinery. It's popular for demonstrating the principles of steam power and for hobbyist construction from castings.

What kind of fuel does a Stuart Turner No. 1 use?

The engine itself doesn't use fuel directly; it runs on steam. The steam is generated by a separate boiler, which would typically be fired by gas (propane/butane), solid fuel (coal, wood, Esbit tablets), or electricity, depending on the boiler's design.

Are Stuart Turner No. 1 engines still manufactured?

Yes, Stuart Models (the original manufacturer) continues to produce castings, drawings, and complete engines, including the No. 1. This allows enthusiasts to build them from scratch or purchase ready-made versions.

What are the most common wear parts on a Stuart Turner No. 1?

Common wear parts include the piston rings (if fitted), valve faces, and bearings (main bearings, connecting rod big and small end bearings). Proper lubrication is key to minimising wear. Gland packing also needs periodic replacement.

How do I reverse the direction of rotation?

For a simple slide valve engine like the No. 1, reversing the direction typically involves adjusting the valve timing relative to the crankshaft. This is usually achieved by shifting the position of the eccentric on the crankshaft relative to the crankpin, or by using a dedicated reversing gear mechanism such as Stephenson's or Walschaerts valve gear, though the basic No. 1 often doesn't have such complex integrated reversing gear and relies on manual adjustment or a dedicated reversing valve on the steam supply.

Is it difficult to build a Stuart Turner No. 1 from castings?

Building a Stuart Turner No. 1 from castings requires considerable machining skill, patience, and access to appropriate workshop equipment (lathe, milling machine, drills). It's a rewarding project for experienced model engineers and a significant learning curve for beginners, often serving as an excellent introduction to precision engineering.

The Stuart Turner No. 1 is more than just a collection of metal parts; it's a testament to ingenious engineering and a gateway into the fascinating world of steam power. By thoroughly understanding each component, its purpose, and its interaction with others, you gain not only a deeper appreciation for this miniature marvel but also the practical knowledge essential for its care, maintenance, and operation. Whether you're assembling one from a kit, restoring an old engine, or simply admiring its mechanical elegance, this detailed breakdown should serve as your definitive guide, illuminating the intricate workings that bring this classic engine to life. Every turn of its flywheel, every puff of steam, is a direct result of these meticulously designed and interconnected components working in perfect harmony.
