Understanding Your SRAM Dropbar Brake Contact Point
It's a common frustration for cyclists: the brake lever on your dropbar road bike feels too close to the handlebars, leading to a spongy feel or even accidental engagement. This "contact point," the moment the brake pads begin to bite, is crucial for confident and precise braking. If you've already followed the standard bleeding procedures for your SRAM hydraulic dropbar brakes and are still experiencing this issue, don't despair. Several factors can contribute to this, and thankfully, there are adjustments you can make to restore that crisp, responsive feel.
Why is the Contact Point Important?
The contact point of your brake lever is more than just a minor inconvenience; it's directly linked to your safety and control on the bike. A lever that travels too far before engaging can mean:
- Reduced braking power: You have less leverage and less control over the modulation.
- Accidental engagement: Especially in bumpy terrain or when wearing thicker gloves, you might unintentionally apply the brakes.
- Uncomfortable ergonomics: The lever might feel awkward to operate, impacting your hand comfort on longer rides.
- Inconsistent feel: Different levers might engage at different points, leading to confusion.
Achieving a firm, predictable contact point is essential for confident cornering, quick stops, and overall enjoyment of your ride.
Common Causes for a Lever Too Close to the Bar
Before diving into solutions, it's helpful to understand what might be causing the issue. Even after a proper bleed, several culprits can lead to a lever that's too close:
1. Pad Wear
This is arguably the most frequent reason. As your brake pads wear down, they become thinner. To compensate for this reduced pad thickness, the pistons in the caliper need to extend further out of the caliper body to make contact with the rotor. This increased piston travel means the lever needs to be pulled further back before it reaches the point of engagement. Over time, this gradual wear can lead to a lever that feels like it's almost touching the bar.
2. Air in the System (Revisited)
While you've mentioned bleeding, it's worth a quick double-check. Even a small amount of trapped air can significantly affect lever feel. Air is compressible, unlike hydraulic fluid. If there's even a tiny bubble lurking in the lines, it will compress before the fluid does, resulting in that spongy or overly-close contact point. Ensure your bleed was thorough and that no air was introduced during the process.
3. Contaminated Fluid
Over time, brake fluid can become contaminated with small particles of debris or moisture. While less common as a direct cause for a lever being *too close*, highly contaminated fluid can sometimes impede piston movement, leading to less efficient braking and potentially a less crisp engagement. A fluid flush and re-bleed might be necessary if the fluid looks discoloured.
4. Caliper Piston Sticking
The pistons within the brake caliper need to move freely. If they become sticky due to dirt, grime, or corrosion, they might not retract fully or extend smoothly. This can affect the initial engagement of the brake pads. Sometimes, a gentle cleaning and lubrication of the exposed piston faces can resolve this.
5. Incorrect Pad Setting or Rotor Clearance
While less common with modern SRAM systems, in some instances, the initial setup of the pads or the spacing of the caliper might not be perfectly optimised, leading to a need for excessive lever throw.
Solutions to Adjust Your SRAM Dropbar Brake Contact Point
Now that we've explored the potential causes, let's look at what you can do to rectify the situation. The primary adjustment available on most SRAM hydraulic dropbar brake systems is the Reach Adjust.
1. Adjusting the Reach (Contact Point) Dial
Most SRAM hydraulic levers (like those found in the Rival, Force, and Red groupsets) feature a small dial or screw, usually located on the inside of the brake lever body, accessible without removing the lever from the handlebars. This is your Reach Adjust or Contact Point Adjuster.
How to Adjust:
- Locate the Dial: Find the small, often knurled or slotted, dial on the lever.
- Identify the Direction: Turning the dial one way will move the lever closer to the bar, and turning it the other way will move it further away. Generally, turning the dial clockwise (or in the direction that tightens a screw) will move the lever *further away* from the bar, effectively bringing the contact point *closer* to the initial pull. Conversely, turning it counter-clockwise will move the lever *closer* to the bar, making the contact point *later* in the lever's throw.
- Make Small Adjustments: Turn the dial in small increments (e.g., a quarter turn at a time).
- Test: Squeeze the lever gently and check the contact point. Does it feel firmer and engage earlier?
- Repeat: Continue making small adjustments and testing until you achieve your desired feel.
Important Note: This adjustment primarily affects the *position* of the lever in its throw, not the overall hydraulic pressure or the point at which the pads actually touch the rotor. It's a mechanical adjustment of the lever's pivot point relative to the master cylinder piston.
2. Bedding-In Your Brake Pads
If pad wear is the culprit, and your pads are significantly worn, the only real solution is to replace them. However, even with new pads, a proper bedding-in process is crucial for optimal performance. This process ensures that the pad material is evenly transferred to the rotor surface, creating a consistent and powerful braking surface.
Bedding-in Procedure:
- Find a safe, open area with no traffic.
- Accelerate to a moderate speed (e.g., 15-20 mph).
- Apply the brakes firmly (but don't lock up the wheels) to slow down to a walking pace.
- Release the brakes and accelerate back to your starting speed.
- Repeat this process 15-20 times for each brake.
- Allow the brakes to cool down completely between sets.
Proper bedding-in ensures your new pads work effectively and can sometimes help restore a more responsive feel, even if the primary issue is pad wear.

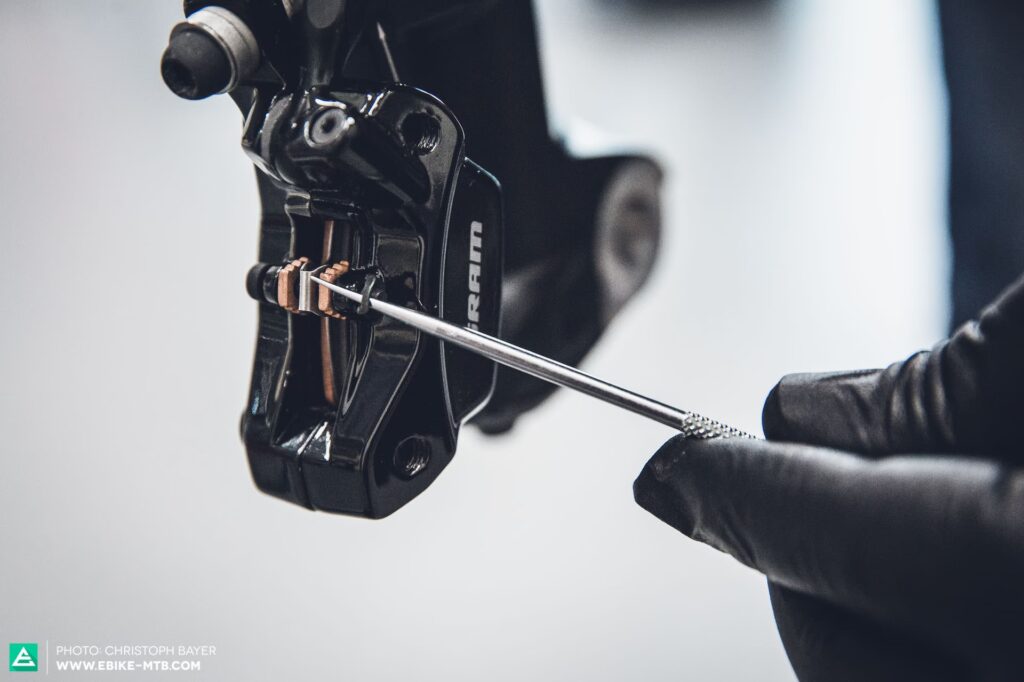

3. Checking and Cleaning Caliper Pistons
If you suspect sticky pistons, a bit of maintenance can help:
- Remove the wheel.
- Remove the brake pads.
- Gently push the pistons back into the caliper using a clean, flat tool (like a plastic tyre lever or a dedicated pad spreader). Do this slowly and evenly. If they are stiff, this is a sign of a potential issue.
- Clean the exposed piston faces with isopropyl alcohol and a lint-free cloth.
- Apply a tiny amount of specialized brake lubricant (e.g., Shimano Brake Booster or a similar product, *not* grease or oil that can contaminate the pads) to the exposed piston faces.
- Gently push the pistons back in again to distribute the lubricant.
- Reinstall the pads and wheel.
- Pump the brake lever several times to re-extend the pistons until the lever feels firm.
- Check the contact point and readjust the reach if necessary.
Caution: Avoid getting any lubricant on the brake pads or rotor surface, as this will severely compromise braking performance.
4. Re-Bleeding the System
If none of the above work, or if you suspect persistent air in the system, a thorough re-bleed is the next step. Ensure you are using the correct SRAM bleed kit and fluid. Follow the instructions in your SRAM manual precisely. Sometimes, bleeding with the levers in different positions can help dislodge stubborn air bubbles.
Key Steps for a Proper Re-Bleed:
- Use fresh, SRAM-approved brake fluid.
- Ensure all connections are secure and leak-free.
- Follow the specific SRAM bleeding procedure for your lever model.
- Pump the lever multiple times during the bleed to help move air.
- Expel all air bubbles from the system.
When to Seek Professional Help
While many of these adjustments can be done at home, if you're uncomfortable with any of these procedures, or if the problem persists after trying these solutions, it's always best to take your bike to a qualified bicycle mechanic. They have the tools, experience, and knowledge to diagnose and fix more complex issues, ensuring your brakes are functioning safely and effectively.
Frequently Asked Questions (FAQ)
- Q: Can I adjust the point at which my SRAM brake pads contact the rotor?
- A: The primary adjustment on SRAM levers is the reach adjust, which changes the lever's starting position. While it affects when the lever *feels* like it engages, it doesn't directly alter the physical clearance between the pad and rotor. This clearance is mainly determined by pad wear and piston position.
- Q: My SRAM brake lever feels mushy, not just too close. What's wrong?
- A: A mushy lever feel is almost always indicative of air in the hydraulic system. A thorough bleed is required. Ensure you're using the correct procedure and fluid.
- Q: How often should I bleed my SRAM hydraulic brakes?
- A: It's recommended to bleed hydraulic brakes at least once a year, or more frequently if you notice a change in lever feel, or after any maintenance that involves opening the hydraulic system.
- Q: What SRAM brake fluid should I use?
- A: SRAM hydraulic disc brakes use DOT 5.1 brake fluid. Never use mineral oil, as it will damage the seals in your system.
- Q: Is it normal for my brake pads to be very close to the rotor when the lever is released?
- A: Yes, modern hydraulic disc brakes are designed to have minimal clearance between the pads and rotor when the lever is not applied. This ensures a responsive feel and reduces drag. However, the pads should not be constantly rubbing.
Conclusion
A brake lever that's too close to the bar on your SRAM dropbar road bike doesn't have to be a permanent problem. By understanding the potential causes, from simple pad wear to the need for a more thorough bleed, and by utilising the reach adjust dial, you can often restore that crisp, reliable brake feel. Regular maintenance and attention to your braking system are key to both performance and safety on every ride.
