SRAM Maven & Motive Brakes: A UK Rider's Deep Dive

SRAM has made a bold move in the mountain bike brake market, shifting entirely to mineral oil and streamlining its lineup. Gone are the days of DOT fluid across the board, with the new Maven and Motive series taking centre stage. But how do these new stoppers perform in the real world, especially for us riders in the UK? We've put both the powerful Maven and the versatile Motive through their paces to give you the definitive answer.

SRAM Maven Brakes: Raw Power, But At What Cost?

The SRAM Maven brakes are undeniably built for gravity. Designed for downhill bikes, full-power eMTBs, and intense backcountry epics, their sheer stopping power is a revelation. We've tested all three models – Ultimate, Silver, and Bronze – on everything from lightweight SL eMTBs to burly downhill rigs at Whistler Bike Park, and the consensus is clear: these brakes are incredibly strong. In fact, they’re amongst the most powerful brakes we've ever ridden, allowing for significantly shorter stopping distances – we're talking 3-5 feet shorter in critical situations.

Unrivalled Power & Heat Management

The power delivery of the Mavens is immediate and immense. They excel at bringing a bike to a complete stop even on the steepest descents. This incredible stopping force is complemented by impressive heat management. Even under extended, heavy braking where temperatures soar, the performance remains remarkably consistent. This is a crucial factor for long, demanding descents, ensuring you maintain control and confidence throughout your ride. SRAM has clearly put effort into making these brakes perform reliably even when pushed to their thermal limits.

The Catch: Inconsistency & Maintenance Demands

While the power is certainly a highlight, our extensive testing revealed some significant drawbacks that give us pause when recommending the Mavens without reservation. The most prevalent issue was an inconsistent feel at the lever. We frequently experienced the bite point migrating outwards during descents. You'd set your desired lever reach, start a descent, and the brake would initially engage precisely where you expected. However, after hitting a few braking bumps or chunky sections, the lever would suddenly grab at the full extension of your finger. This unexpected shift in bite point, combined with the Maven's immense power, led to some genuinely scary moments where too much brake was applied too quickly.

Another common problem was the need to 'pump up' the levers multiple times after dropping into a descent, suggesting air in the system. This led us down a rabbit hole of bleeding, which highlighted another point of frustration: the specific bleed kit requirement. SRAM Maven brakes require a dedicated mineral oil bleed kit, different from the DB8 kit. Many shops, and even our own crew, initially made the mistake of using the wrong kit. This isn't just an inconvenience; it can lead to improper bleeds and continued issues. The bleeding process itself isn't overly complex, but it demands meticulous attention to detail to purge the many tiny air bubbles that can hide within the system.

Furthermore, we encountered at least two sets of brand-new Mavens – on bikes costing between £7,500 and £10,000 – that required 'piston massages' after just a couple of rides. In our opinion, expecting a rider to disassemble brand-new, top-tier brakes to manually free up pistons is unacceptable. If it were an isolated incident, it might be forgivable, but with a large majority of our six test sets exhibiting issues, it points to a broader reliability concern.

Lever Feel & Rider Fatigue

Beyond reliability, the initial lever pull of the Mavens presents another significant performance factor. SRAM claims an 'ease of lever pull', but our experience was quite the opposite. While the overall energy to achieve full stop might theoretically be lower, the initial pull feels notably stiffer. Even new riders commented on the increased force required. This stiffness translates directly into increased arm pump and hand fatigue, especially on long or aggressive descents. This side effect is apparently due to the very tight seals necessary to contain the mineral oil within the system, although we did also experience one brake developing a leak around the piston.

For riders with exceptionally strong forearms and a willingness to perform frequent maintenance – including bleeding and 'piston massages' – the SRAM Maven brakes offer unparalleled power. However, for the average rider seeking consistent, low-maintenance performance, the reliability issues and the stiff lever feel are significant drawbacks that might make you consider other options.

SRAM Motive Brakes: The New Mid-Range Contender

Following the Maven, SRAM introduced the Motive, aiming to fill the gap for XC through heavy-duty trail riding, effectively replacing the Level, G2, and Code lines. This move signifies SRAM's commitment to mineral oil across its entire performance range. The Motive is touted as the lightest heavy-duty brake SRAM has ever made, significantly lighter than the Mavens and even shedding around 50g compared to the old Code Stealth Ultimates.

Design & Specifications

The Motive range, like the Maven, includes Ultimate, Silver, and Bronze models, all featuring four-piston calipers. This means no more dual-piston brakes in SRAM's lineup. The Ultimate version, which we primarily tested, boasts a carbon fibre lever blade and weight-saving titanium bolts, while Silver uses stainless steel and Bronze uses plain old steel. The lever body adopts the low-profile 'Stealth' design, sitting close to the bars for a clean cockpit. Crucially, the Motive Ultimate is now the only carbon-bladed lever SRAM offers.

A key design change is the new 'Direct Link' lever action. Unlike the older 'Swing Link' which used a rocker cam for progressive power, Direct Link offers a more linear and consistent pull throughout the stroke. This aims for a predictable feel, though it means there's no contact point adjust, which some riders might miss. SRAM's new seal design, combined with the hydrophobic nature of mineral oil, promises greater consistency and reduced bleeding frequency compared to DOT fluid systems. SRAM even uses its own proprietary mineral oil, developed with Maxima Racing Oils, for optimal performance.

The Motive is typically supplied with 180mm or 160mm HS2 rotors. While advertised for aggressive trail riding and claiming 'World Cup DH' power, the standard rotor sizes hint at a slightly different power ceiling than the Mavens. We opted for a 200mm front and 180mm rear HS2 setup for testing, understanding that a 20mm jump in rotor size adds 14% more stopping power. This raises a point about SRAM's new lineup: there might be a noticeable power gap for aggressive trail riders who find Mavens overkill but need more than the standard Motive setup provides.

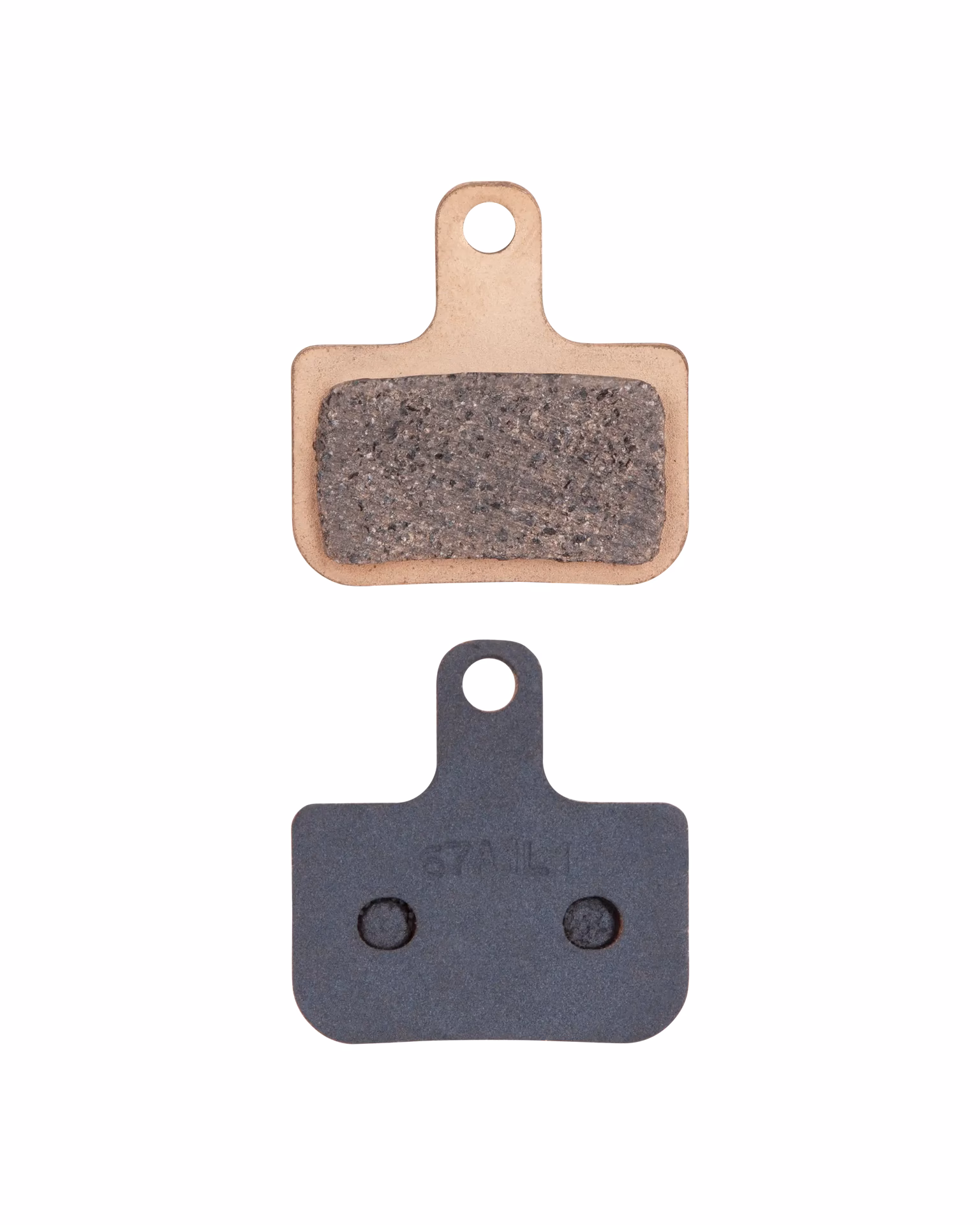

Performance: Pad Choice is Key

Our initial rides with the Motive using the stock organic pads left us questioning SRAM's claims of 'Code-like' power. The brakes felt consistent, but consistently lacked the outright stopping force we desired, even with a 200mm front rotor on a 120mm trail bike. The sensation was akin to the pads scuffing over the rotor, without truly locking on. This changed dramatically after swapping to sintered pads. With sintered pads, the Motives delivered a much more positive feel, stronger bite, and improved hold at the rotor, even in wet and muddy conditions.

Once properly bedded in with sintered pads, the Motive's power is totally adequate for XC and most trail riding. There's a very consistent, solid feel at the lever, allowing for precise modulation. The bite point remains stable, which is a significant improvement over the Maven's inconsistency. However, compared to the old SRAM Codes, the Motives offer less outright scrubbing power. They simply cannot emulate the immense stopping force of the Mavens, which can be actuated with the lightest touch.

Ergonomically, the Motive lever is excellent. It sits cleanly on the bar, integrates seamlessly with other SRAM controls, and pivots very close to the bar, providing a natural arc of pull. The one minor criticism is that the lever return feels slightly less snappy and positive compared to the bearing-equipped old Code levers. While the Motive is a significant step up from the old Levels, and comparable in power to the DB8 (with better ergonomics and a lighter action), it doesn't quite fill the aggressive trail/light enduro power void left by the discontinued Codes.

SRAM Maven vs. Motive: A Quick Comparison

Frequently Asked Questions

Why did SRAM switch to mineral oil for their new brakes?

SRAM switched to mineral oil primarily because it is hydrophobic, meaning it doesn't absorb moisture from the air over time, unlike DOT fluid. This characteristic helps maintain consistent brake feel and reduces the frequency of required bleeding. It also generally simplifies maintenance for home mechanics.

Can I use my old DOT bleed kit with Maven/Motive brakes?

Absolutely not. SRAM Maven and Motive brakes use mineral oil, which is incompatible with DOT fluid systems. You need a specific SRAM mineral oil bleed kit for these new brakes. Using the wrong kit can contaminate your system and cause damage.

What's the difference between Maven Ultimate, Silver, and Bronze?

The differences primarily lie in materials and minor features affecting weight and durability. The Maven Ultimate features a carbon lever blade and titanium hardware for the lightest weight. Silver models typically use stainless steel hardware, and Bronze models use standard steel, making them slightly heavier and more budget-friendly. All models share the same powerful caliper and lever design.

What's the difference between Motive Ultimate, Silver, and Bronze?

Similar to Maven, the Motive Ultimate is the lightest, featuring a carbon fibre lever and titanium bolts. It's also the only carbon-bladed lever in SRAM's current lineup. The Silver version uses stainless steel bolts and a sealed lever bearing, while the Bronze version uses plain steel bolts and a bushing in the lever, making it the heaviest and most affordable option.

Which brake is right for me: Maven or Motive?

If you primarily ride downhill, aggressive enduro, or a heavy e-bike and prioritise absolute stopping power above all else, and you're prepared for potential maintenance demands and a stiffer lever feel, the Maven might be for you. If you ride XC, light trail, or general aggressive trail and value consistency, lighter weight, and good ergonomics, the Motive is likely a better fit, especially when paired with sintered pads and appropriate rotor sizes.

Do SRAM Motive brakes replace Code brakes?

Yes, the SRAM Motive brakes effectively replace the Code line, as well as Level and G2 brakes. SRAM has streamlined its range to two primary mineral oil brake platforms: Maven for gravity/heavy-duty and Motive for XC/trail. While Motive aims to cover some of the Code's territory, our testing suggests it doesn't quite match the raw power of the old Codes, potentially leaving a slight gap for riders who loved that specific performance.

The Verdict

SRAM's pivot to mineral oil and a simplified brake lineup is a significant shift. The Maven brakes are undoubtedly the most powerful stoppers we've tested, capable of incredible feats of deceleration. However, their reliability concerns, including inconsistent bite points and a demanding maintenance schedule, coupled with a stiff lever feel leading to hand fatigue, make them a niche choice. They're best suited for riders with Popeye-like forearms who crave maximum power and don't mind getting their hands dirty.

The Motive brakes, on the other hand, offer a highly consistent and well-modulated braking experience, particularly when paired with sintered pads. They're lightweight, ergonomically sound, and a solid choice for XC and most trail riding. However, they don't quite deliver the raw, aggressive power that many riders previously found in the discontinued Code brakes, leaving a potential gap for those in the aggressive trail/light enduro segment who want more grunt without the Maven's bulk or issues.

Ultimately, SRAM has delivered two distinct brake platforms. Your choice will depend heavily on your riding style, the demands of your terrain, and your willingness to compromise on either absolute power, weight, or maintenance. For us, while the Mavens impress with their stopping force, the Motives offer a more balanced and consistent performance for the majority of riders, provided you choose the right pads.
