Holley Sniper EFI: Your Classic's Modern Upgrade

Have you been scrolling through car forums recently? One topic that consistently sparks debate is the upgrade to electronic fuel injection (EFI) for classic, carburetted vehicles. For years, the idea of adding EFI felt like a task reserved for rocket scientists, demanding intricate knowledge and a laptop full of complex tuning software. However, the landscape has dramatically shifted. Manufacturers are now pouring resources into developing user-friendly EFI systems that promise a straightforward, bolt-on solution, often without the need for a degree in computer science.

Among these innovative entries, Holley's new Sniper EFI has garnered significant attention. Touted as a 'bolt-it-on-and-go' solution for an effortless EFI upgrade, it promises modern performance for vintage rides. As someone who's always been a 'carburettor guy' at heart, my initial scepticism was high. Yet, with so many enthusiasts asking for my opinion on these kits, I decided it was time to put one to the test and see if it truly lives up to the hype.

Understanding the Holley Sniper EFI Cost

The question on everyone's lips is often, 'How much does a Holley Sniper EFI cost?' The retail price for the basic kit is typically just under £1,000, depending on the specific options chosen. However, it's crucial to understand what that price includes – and, more importantly, what it doesn't.

My personal experience involved the Holley PN 550-511K Sniper EFI Master Kit. This comprehensive package, which I purchased, came with absolutely everything required to convert a carburetted vehicle to EFI. This includes the throttle body itself, an ECU mounted directly on the throttle body, a complete fuel system (comprising fuel hose, an in-line fuel pump, filters, all necessary hardware, and bulkhead fittings for fuel return into the tank), a touchscreen controller for easy setup, and an oxygen sensor complete with a clamp-on mount.

This Master Kit, as I found, retailed for approximately £1,250. It’s important to note that the frequently advertised £999 price tag typically refers to the basic Sniper EFI throttle body unit only, and does not encompass the entire fuel system needed for a full conversion. For a complete, ready-to-install solution, the Master Kit offers significant value, bundling all the essential components to get your classic running on EFI without needing to source additional parts.

Cost Comparison: EFI vs. Carburettor Rebuild

Before committing to the Sniper EFI, I weighed the options. My existing carburettor, a Q-jet on my C10, was long overdue for attention. It had a sticking choke, poor fuel economy, and upon removal, I discovered missing parts and significant wear in the throttle-shaft bores. A professional rebuild for a reputably done unit can easily cost upwards of £250, and that's before considering potential machine shop work for issues like worn throttle-shaft bores, which would add further expense. Buying another complete carburettor just for a few small parts also seemed inefficient.

While a £250+ investment might seem less substantial than the £1,250 for a Sniper Master Kit, the long-term benefits of EFI began to stack up. Improved drivability, better fuel economy, and consistent performance across varying conditions are compelling reasons to consider the upgrade, making the initial investment in the Sniper EFI a more attractive proposition in the long run.

Why Make the Switch to EFI?

Many of you might be asking, 'Why remove a perfectly good carburettor?' In my case, the carburettor I planned to replace was far from perfect. As far as I knew, the fuel miser on my Cheyenne had never been rebuilt. More recently, its choke was consistently sticking, preventing the fast-idle from disengaging, and fuel mileage was far from optimal. In essence, it desperately needed a rebuild.

Beyond my specific issues, the inherent advantages of EFI over carburetion are significant:

• Improved Cold Starts: EFI systems offer precise fuel delivery from the moment of ignition, eliminating the need for pumping the pedal or dealing with finicky chokes.
• Enhanced Fuel Economy: Modern EFI, especially self-learning systems like the Sniper, constantly optimise the air/fuel mixture for efficiency, leading to noticeable gains in miles per gallon.
• Consistent Performance: Unlike carburettors, which can be sensitive to altitude and temperature changes, EFI systems automatically adjust, providing consistent performance regardless of environmental conditions.
• Smoother Drivability: EFI eliminates flat spots, stumbles, and hesitation often associated with carburettors, resulting in a much smoother and more enjoyable driving experience.
• Reduced Emissions: More precise fuel control generally leads to cleaner exhaust emissions.

Unboxing the Holley Sniper EFI Master Kit

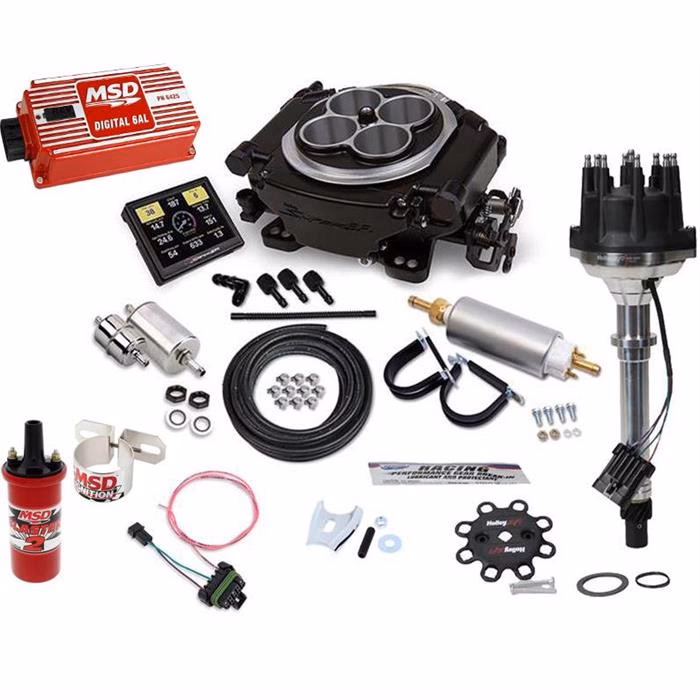

When you opt for the Holley PN 550-511K Sniper EFI Master Kit, you're getting a comprehensive package designed for a full conversion. Here’s a breakdown of what’s included:

• Sniper EFI Throttle Body: This is the heart of the system, designed to bolt directly onto your intake manifold.
• Throttle Body-Mounted ECU: The electronic control unit is integrated into the throttle body itself, simplifying wiring and installation.
• Complete Fuel System: Everything needed for fuel delivery, including high-quality fuel hose, a robust in-line fuel pump, and both pre- and post-pump fuel filters.
• Fuel Return Hardware: Bulkhead fittings and necessary components to create a fuel return line to your tank, essential for EFI systems.
• Touchscreen Controller: A compact, intuitive screen for initial setup, monitoring, and making adjustments.
• Oxygen (O2) Sensor: Crucial for the self-learning functionality, allowing the system to monitor exhaust gases and adjust fuel delivery.
• Clamp-on O2 Sensor Bung: A clever solution that eliminates the need for welding, simplifying O2 sensor installation into your exhaust.
• Wiring Harnesses: Pre-made harnesses for power, ignition, and additional accessories, ensuring a clean and straightforward electrical connection.

Installation: Simpler Than You Think

My biggest concern, as someone with limited EFI tuning experience, was the complexity of the installation. I was pleasantly surprised. Holley has genuinely designed this system for the DIY enthusiast. The claim that it doesn't require a laptop or extensive computer programming knowledge holds true.

Throttle Body Fitment

The Sniper EFI throttle body is a direct bolt-on replacement for square-flange carburettors. My C10, however, had a Q-jet, which is a spreadbore style. Holley confirms the Sniper does feature a dual bolt-pattern, accommodating both square and spreadbore configurations. As Keith Jessee from Holley Performance explained, "The Sniper does have a dual bolt-pattern for use on square or spreadbore configurations. You just need to check and make sure the throttle blades don’t hit the intake manifold. If they do, you might get away with using a thick gasket or a thin spacer. Using an adapter or spacer really shouldn’t give you any issues."

I opted for a squarebore to spreadbore adapter/spacer from Summit Racing. This allowed the throttle body to bolt seamlessly to my intake. Keith reassured me that adding such a spacer would have negligible adverse effects on a factory-style intake, stating, "Considering you’re using a factory-style intake, the added plenum volume would only amount to a roundabout hill of beans. That’s just because the factory spreadbore intake probably isn’t going to respond to a change like that hardly at all."

Wiring and Sensor Installation

Wiring is often a daunting aspect of any automotive upgrade, but with the Sniper, 'easy' is the operative word. You only need to connect four main wires to your vehicle's electrical system: battery positive, ground, tach signal, and a switched 12-volt source.

The 12-volt source wire (often pink) is the most critical and frequently causes issues if not correctly connected. It must be 'hot' when the key is turned on, during engine cranking, and while the engine is running – this is known as a true ignition source. Connecting it to a 'switched-only' source, which loses voltage during cranking, will lead to problems.

Sensor installation is equally straightforward. The temperature sensor can be installed in the intake manifold or cylinder head, provided there's sufficient coolant flow. I used the intake port. For the O2 sensor, Holley provides a ingenious clamp-on bung. This means no welding is required; simply drill a 3/4-inch hole in your exhaust, and secure the bung with the supplied stainless-steel clamps. It genuinely was a breeze.

Fuel System Plumbing

While the Master Kit includes rubber fuel line, I chose to run metal lines for my specific application. This part of the installation, which involves lowering the fuel tank and plumbing new lines for both supply and return, is the most time-consuming aspect. Although some claim to install the kit in a couple of hours, I find that highly improbable unless they already had a dedicated EFI fuel system in place. Expect to dedicate a full day, or even longer if you're meticulously documenting the process or encountering unforeseen challenges.

Initial Setup and Self-Learning Capabilities

Once everything was plumbed and wired, the initial setup via the touchscreen controller was surprisingly simple. The setup wizard guides you through entering basic engine parameters: cubic-inch size, cam type (stock, street/strip, or race), ignition type (coil, CD, etc.), and your target idle RPM. That's it.

With the information uploaded, I turned the key to prime the fuel system. Upon hitting the starter, my bone-stock 350 fired up immediately! The only initial surprise was the Inlet Air Control (IAC) settings, which had the engine revving to 1,700 RPM for about four seconds before slowly settling to my preset idle. This is easily adjustable, but I decided to let the system 'learn' for a while before tweaking it. Remember, the Holley Sniper is a self-learning system, designed to optimise itself over time. As Keith explained, "The unit operates in 'open loop' when under 160 degrees, which means it isn’t modifying the learn table. It will still modify the fueling of the engine to achieve the target AFR, though." This means it adjusts as it learns your engine's specific needs, leading to increasingly refined performance.

Optimising Your Drive: Air/Fuel Ratios (AFR)

One of the standout features of the Sniper is its ability to allow you to precisely set your desired air/fuel ratio (AFR). A Stoichiometric air-fuel ratio, typically 14.7:1, is considered ideal for achieving the lowest emissions. However, it's not always the best for peak performance or fuel economy in all driving conditions. Historically, tuners aimed for around 12.5:1 AFR at wide-open throttle (WOT) for maximum horsepower. With advancements in combustion chamber design and ignition systems, an ideal ratio for power is now often considered to be between 12.8:1 and 13.2:1.

The beauty of the Sniper is its flexibility. I set my desired AFRs as follows: 13.1:1 at idle, 14.2:1 at cruise, and 12.9:1 at WOT. These values can be easily tweaked later via the touchscreen as the system continues to learn and I gather more experience. The lower the AFR, the richer the mixture; the higher the AFR, the leaner. An engine operating under normal conditions will have a constantly changing AFR, leaning out for efficiency during light loads and enriching for power under demand.

Recommended Baseline AFR Values for Naturally Aspirated Engines:

These values serve as a good starting point, but your engine's specific characteristics may prefer slight variations.

Real-World Performance and Benefits

After more than a week of driving my C10 with the Sniper EFI, the improvements in drivability are genuinely astounding. The truck runs significantly smoother than it has since I first acquired it. Cold starts are effortless, with no need to feather the throttle, unlike with the old Quadrajet. The engine settles into a steady idle almost immediately, a stark contrast to the constant input previously required.

Beyond the enhanced driving experience, I've also observed a tangible improvement in fuel economy. I'm seeing roughly 1.5 to 2 miles per gallon better. While this might not seem like a massive leap, it's important to remember that the system is still actively learning and adapting. I anticipate further improvements as it continues to 'dial in' the optimal parameters. For a daily driver like my Cheyenne, these seemingly small gains can accumulate into substantial savings over a year.

Potential Challenges and Solutions

One minor issue I've identified after some driving is related to fuel slosh. Without baffling in the fuel tank, if the fuel level drops just below a quarter tank, the fuel can slosh away from the pickup during various driving conditions, causing the engine to momentarily 'hiccup' as the supply temporarily cuts out. The simplest immediate solution is to ensure the tank never drops below a quarter. Long-term, I might explore adding baffles to the tank or investigating alternative fuel pickup solutions.

Long-Term Outlook and Conclusion

Despite the minor fuel slosh issue, my overall satisfaction with the Holley Sniper EFI is incredibly high. The improved drivability and increased fuel mileage have transformed my classic truck. The system's self-learning capability is impressive, and I'm confident that its performance will only continue to refine over time. I even plan to delve deeper into the system's parameters myself, making small tweaks to optimise it further once it has fully settled. The ease of adjusting settings via the touchscreen means experimenting is low-risk – if a change doesn't help, it's simple to revert.

For anyone contemplating an EFI conversion for their classic vehicle, the Holley Sniper EFI is undoubtedly a strong contender. Its straightforward installation, user-friendly interface, and significant performance benefits make it a highly recommendable upgrade. My journey with the Sniper EFI is ongoing, and I plan to provide future updates as the system continues to prove its long-term advantages. After several weeks and some simple tuning via the handheld controller, the results have consistently been positive, reinforcing my initial favourable impression.

Frequently Asked Questions (FAQs)

Q: Do I need a laptop or extensive tuning knowledge to install and set up the Holley Sniper EFI?

A: No, that's one of its key selling points! The Holley Sniper EFI is designed for simplicity. It features a self-learning ECU and a touchscreen controller that guides you through the initial setup. You simply input basic engine parameters, and the system learns and optimises as you drive. No laptop or complex programming is required.

Q: What kind of horsepower does the Holley Sniper EFI support?

A: The standard Holley Sniper EFI kit, like the one I used, is rated for engines producing up to 650 horsepower. Holley also has an eight-injector system in development designed to support engines up to 1,200 horsepower and handle blow-through superchargers or turbos, though a release date for that hasn't been announced.

Q: Can the Holley Sniper EFI fit both square-flange and spreadbore intake manifolds?

A: Yes, the Sniper EFI throttle body features a dual bolt-pattern, making it compatible with both square-flange and spreadbore configurations. For spreadbore manifolds, you might need a thick gasket or a thin adapter/spacer to ensure the throttle blades don't interfere with the manifold. Holley confirms that using an adapter shouldn't cause any performance issues, especially with factory-style intakes.

Q: How long does a typical Holley Sniper EFI Master Kit installation take?

A: While some claim to complete it in a few hours, a realistic timeframe for installing the full Master Kit (which includes the fuel system) is a full day, or potentially longer. This accounts for removing the fuel tank, plumbing new fuel lines, and meticulously connecting all wires and sensors. If you have access to a vehicle lift, it might speed up the process.

Q: What are the main benefits of upgrading to Holley Sniper EFI over a carburettor?

A: Key benefits include vastly improved cold starts, more consistent engine performance across varying conditions (temperature, altitude), better fuel economy due to precise fuel control, smoother drivability with eliminated flat spots and hesitations, and generally reduced emissions. It brings modern reliability and efficiency to classic vehicles.

Q: What is AFR, and how does the Sniper EFI handle it?

A: AFR stands for Air/Fuel Ratio. It's the ratio of air to fuel in the engine's combustion mixture. The Holley Sniper EFI allows you to set target AFRs for different driving conditions (idle, cruise, wide-open throttle). The system then constantly monitors the exhaust gases via the O2 sensor and adjusts fuel delivery in real-time to maintain your desired AFRs, optimising for either fuel economy or performance based on your settings and driving demands.
