Can a Smoke Machine Diagnose Air Leaks?

Is your check engine light illuminated? Do you notice unusual fumes after refuelling your vehicle? While you might attribute these symptoms to an aging car, they could very well indicate a problem with your evaporative emissions (EVAP) system. Repairing the EVAP system can be a significant expense, making it crucial to confirm that a vapour leak is indeed the issue. This is precisely where automotive smoke machines come into play. These invaluable tools are designed to help you diagnose faulty check engine codes and any gas leaks, particularly those stemming from a damaged EVAP system. Before you consider purchasing one, take a moment to read on and make an informed decision.

Why a High-Quality Automotive Smoke Machine is Essential

The internet is awash with DIY tutorials claiming you can build your own automotive smoke machine. While tempting, it's important to be wary. For delicate diagnostic tasks like these, relying on properly manufactured equipment is paramount. Inferior tools can exacerbate your concerns rather than resolve them. Given that investing in a dedicated automotive smoke machine is the most reliable approach, why not opt for the best the market has to offer? This guide will explore some of the top automotive smoke machines available, helping you select the one that best suits your needs.

Understanding Engine Vacuum Leaks

Every internal combustion engine relies on a precise mixture of air and fuel to operate efficiently. When this balance is disrupted, often due to vacuum leaks, the engine's performance suffers. A vacuum leak occurs when unmetered air enters the engine, upsetting the ideal air-fuel ratio. Common indicators of a vacuum leak include:

• Rough Idle RPM: High or low idle speeds can signify a significant vacuum leak.
• Rough Acceleration: Inefficient combustion leads to sluggish or jerky acceleration.
• Hissing Sounds: Air being drawn into the engine through a leak can create a noticeable hissing noise.
• Check Engine Light: This is often illuminated when a vacuum leak is present.
• Poor Fuel Economy: An inefficient engine due to leaks consumes more fuel.
• Hard Starting: Insufficient air for proper combustion can make starting difficult.

Identifying these symptoms early can prevent misdiagnoses and unnecessary part replacements. If you observe any of these issues, a vacuum leak check should be your first step.

How to Detect Engine Vacuum Leaks Using Smoke

While visual inspection and methods like using soapy water can help identify some leaks, advanced or internal leaks often require a smoke machine. A smoke machine generates a controlled flow of smoke, which, when introduced into a sealed system, will visibly escape from any leaks. Here's a general five-step process:

1. Seal the System: Plug all open ports in the intake manifold. Refer to your engine's vacuum hose diagram if needed.
2. Connect the Smoke Machine: Attach the smoke machine's nozzle securely to the intake manifold.
3. Seal the Inlet: Use a circular rubber duct or a suitable adapter to seal the main inlet.
4. Generate Smoke: Turn on the smoke machine and allow it to produce smoke for a few minutes, letting it fill the system.
5. Inspect for Leaks: Use a flashlight to carefully examine hoses, gaskets, and the intake manifold for escaping smoke. Mark any identified leak areas with chalk.

This method is highly effective for pinpointing leaks in various systems, including intake manifolds, turbo pipes, intercoolers, exhaust systems, and EVAP systems.

Key Features to Consider in an Automotive Smoke Machine

When selecting an automotive smoke machine, several factors are crucial:

Top Automotive Smoke Machines on the Market

Here's a look at some highly-regarded automotive smoke machines:

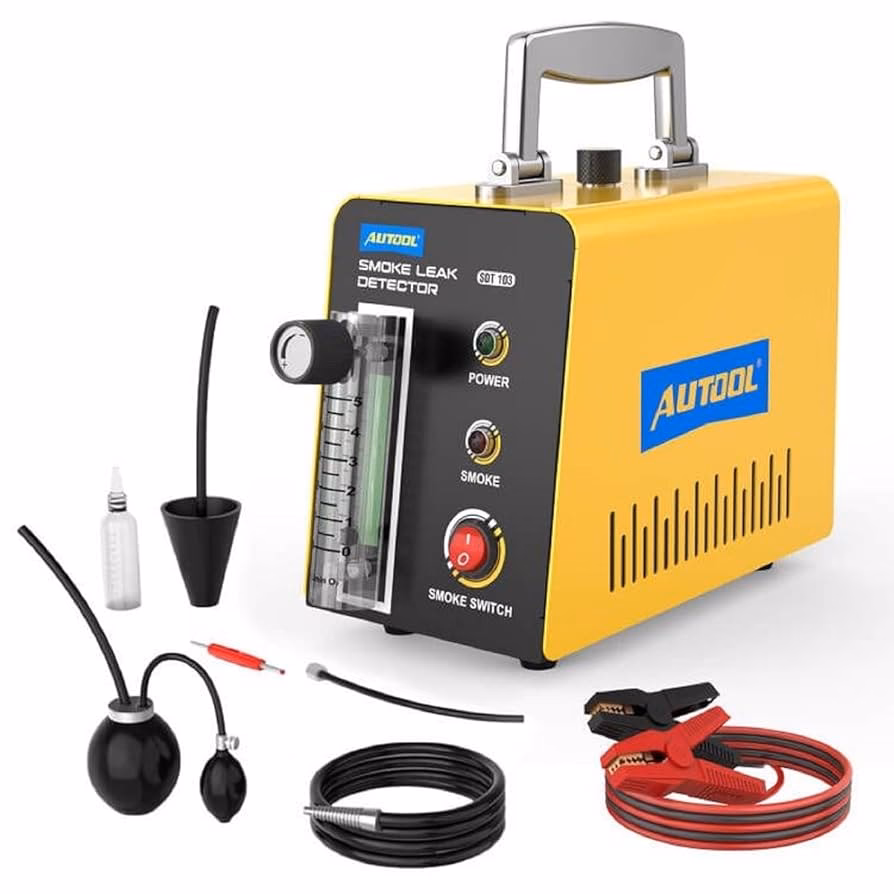

1. Autool Car Fuel Leak Detector (SDT206)

This unit boasts a built-in air compressor, saving you the cost of an additional purchase. Its instant smoke generation feature means no warm-up time is required. The self-protective system prevents overloading, making diagnostics smoother. However, the piping diameter might be smaller than advertised, and smoke fluid is not included.

2. Stinger Smoke Leak Detector Pro 2

A personal favourite, this machine offers an impressive 18-foot hose reach and a wider diameter than many competitors. A significant advantage is its ability to run on mineral oil, eliminating the need for expensive smoke fluid. The main drawbacks are the permanently attached power cord and a mild, unpleasant odour from the heating element.

3. Mrcartool Automotive Fuel Leak Detector

This detector also runs on baby oil, making it a cost-effective option. It features multiple modes (air and smoke) for earlier detection of EVAP system faults. A design flaw involves the output hose connection, which can sometimes pinch the smoke flow. It also lacks an oil level indicator.

4. Autoline Pro Smoke Detection System

The Autoline Pro arrives in a professionally packaged kit for compact storage. It includes effective smoke fluid for over 100 tests. Its simple, user-friendly design is a major plus. The inclusion of a safe 1psi air regulator prevents system damage. However, the quick air fitting doesn't support hand pump usage, and an EVAP port adapter is not included.

5. Smoke-Tek Smoke Machine for Automotive Leaks

Marketed as a DIY solution, the Smoke-TEK is more affordable. It effectively traces minor or major leakages but requires manual assistance to blow smoke through. It also doesn't come with the necessary hoses. The smoke thickness isn't its strongest suit, and it's recommended to operate it for only three minutes at a time.

6. AUTOOL 1 Automotive Fuel Leakage Detector (SDT206-NEW)

This updated version of the Autool SDT206 features dual modes (air and smoke) for enhanced diagnosis and includes a content gauge. It can run continuously for up to 15 minutes. The primary concerns remain the pipe length and the product's appearance differing slightly from advertisements.

7. REDLINE EASY INTAKE LEAK DETECTOR

This is an accessory designed to boost the performance of your existing smoke machine. It's an inflatable bladder that helps inject smoke into the engine for easier leak detection. While valuable, there's a slight risk of a pinhole developing over time.

8. LISLE COMBUSTION LEAK DETECTOR

For a DIY approach, this detector uses a fluid that changes colour to indicate leaks in the radiator. It's a cost-effective method for diagnosing head gasket issues or cracked blocks. Proper sealing of the radiator is crucial during testing to prevent fluid spillage.

9. AUTOOL AUTOMOTIVE FUEL LEAK DETECTOR (SDT-202)

An earlier model from Autool, the SDT-202 is more basic but includes EVAP adapters and a compact design. It lacks features like a flow meter or content gauge found in newer models, but could be a good deal if found at a reduced price.

10. TESTO REFRIGERANT LEAK DETECTOR

While not strictly a smoke machine, this handheld detector is included for its ability to detect various refrigerant leaks with high sensitivity. It's a useful tool for technicians, featuring an audible alarm for instant leak identification. Its primary limitation is that it's only for refrigerant detection.

Frequently Asked Questions

1. What does an automotive smoke machine do?

It detects and pinpoints leaks in vehicle systems by introducing smoke, which escapes from faulty areas.

2. What causes an evaporation system failure?

Failures can stem from damaged components like radiators or fuel tanks, or simply from the age of the vehicle.

3. What oil do you use in a smoke machine?

This varies by machine. Many use mineral or baby oil, while some manufacturers recommend specific smoke fluids.

4. Should I make a smoke machine at home?

No, it's not recommended. Opt for a professionally manufactured automotive smoke machine for accurate and safe diagnostics.

5. How do I diagnose a damaged evaporation system?

Start with the check engine light and use a fault code scanner to identify trouble codes. A smoke machine can then pinpoint the exact leak.

6. What other systems can the smoke machine detect leaks in?

Smoke machines can diagnose leaks in any air-containing systems, such as carburetors, vacuum systems, and injector seals.

7. Can I replace the tester’s solution with basic mineral oil?

While it might work temporarily, using the wrong fluid can damage the machine and the test results in the long run.

8. Why is nitrogen gas recommended for testing EVAP systems?

Nitrogen is non-combustible and safer to use in workshops due to its low oxygen content, preventing ignition risks.

9. What kind of leaks does an automotive smoke machine diagnose?

It diagnoses leaks in any system where air passes, including disconnected vacuum lines, leaking gaskets, and cracked fittings.

10. Can I use a smoke machine to find AC leaks?

No, AC leaks are typically too small for smoke detection and are better diagnosed with trace dyes or gas analyzers.

Conclusion

Automotive smoke machines are indispensable tools for accurately diagnosing air and vapour leaks in your vehicle. By understanding the common causes and symptoms of leaks, and by choosing the right machine based on your needs and budget, you can effectively identify and resolve issues, saving both time and money on potentially unnecessary repairs. Always consult your vehicle's manual and the smoke machine's instructions for the best results.
