Demystifying Fuel Injection Kits for Your Ride

For decades, the carburettor was the undisputed king of fuel delivery in internal combustion engines. A mechanical marvel, it mixed air and fuel before sending the concoction into the engine's cylinders. However, as automotive technology advanced, and with increasing demands for fuel efficiency, lower emissions, and improved performance, a new challenger emerged: fuel injection. This sophisticated system precisely atomises fuel and delivers it directly into the engine, revolutionising how vehicles run. For enthusiasts and those looking to modernise their classic cars, or simply understand their contemporary vehicles better, understanding the different types of fuel injection kits is absolutely crucial.

Fuel injection kits represent a significant leap forward, offering unparalleled control over the air-fuel mixture, leading to more consistent power, better cold starts, and a noticeable improvement in fuel economy. Whether you're considering converting an older engine or simply curious about the technology powering modern vehicles, delving into the specifics of these kits will illuminate the intricate world beneath your bonnet. They are not merely components; they are complete systems designed to optimise your engine's breathing and feeding, ensuring it performs at its peak.

What Exactly is a Fuel Injection Kit?

At its core, a fuel injection kit is a comprehensive package designed to replace or upgrade an existing fuel delivery system, typically a carburettor, or to enhance an existing fuel injection setup. These kits are far more than just a set of injectors; they encompass a variety of components that work in harmony to precisely meter and deliver fuel into the engine's combustion chambers. The goal is to achieve the optimal air-fuel ratio for various engine loads and speeds, something a carburettor struggles to do with the same precision.

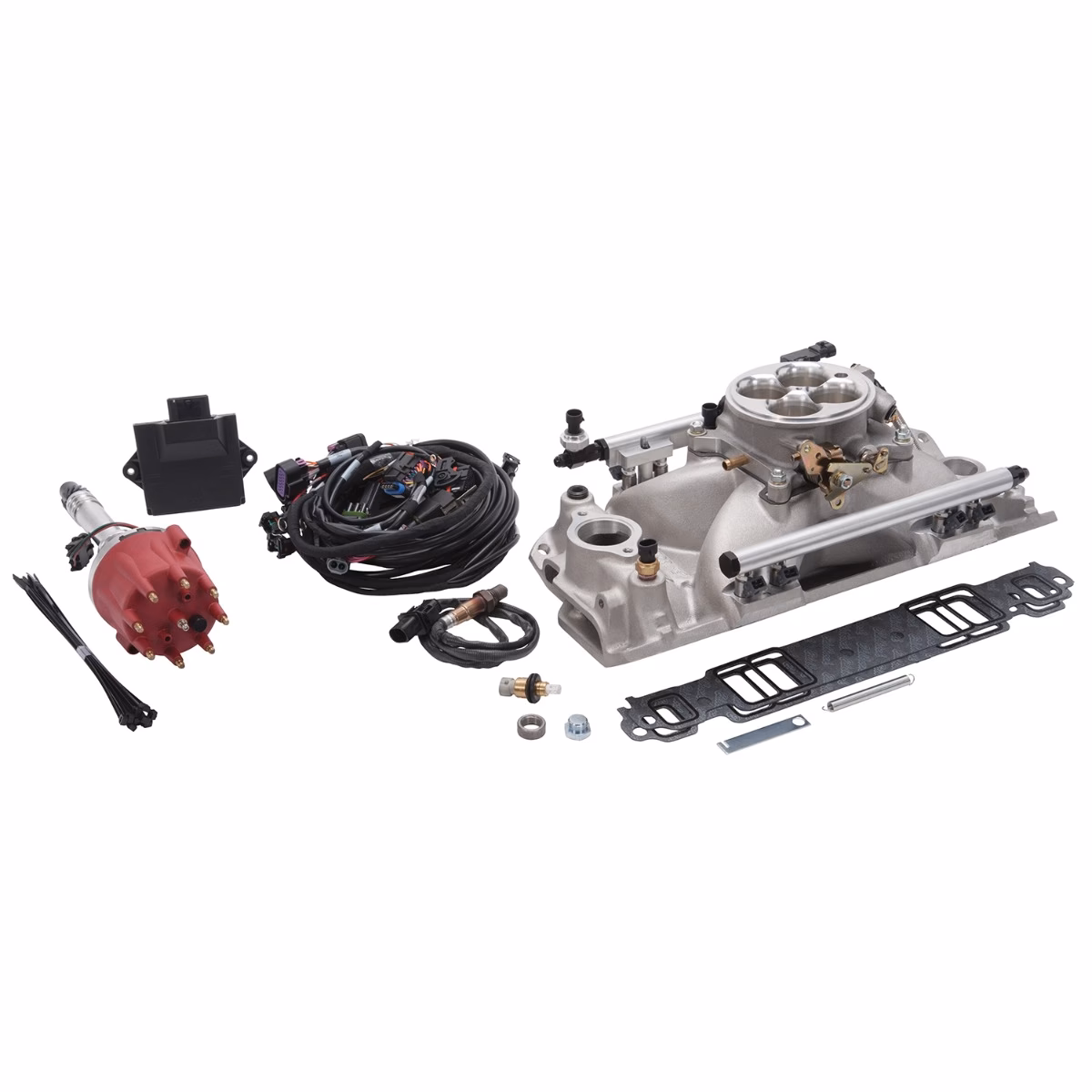

A basic fuel injection kit will typically include the fuel injectors themselves, a fuel pump (often a high-pressure electric pump), a fuel pressure regulator, a control unit (Electronic Control Unit or ECU), and all the necessary wiring, sensors, and fuel lines. The ECU is the 'brain' of the operation, receiving data from various sensors around the engine – such as oxygen sensors, throttle position sensors, and manifold absolute pressure sensors – to calculate the exact amount of fuel required at any given moment. This level of dynamic control is what sets fuel injection apart and makes these kits so transformative for vehicle performance and efficiency.

Types of Fuel Injection Systems and Corresponding Kits

Fuel injection technology has evolved significantly over the years, leading to several distinct types, each with its own characteristics, advantages, and ideal applications. Understanding these differences is key to choosing the right kit for your specific needs, whether you're building a custom project or maintaining a modern daily driver.

1. Throttle Body Injection (TBI)

Throttle Body Injection, often referred to as 'single point injection', was one of the earliest forms of electronic fuel injection to gain widespread adoption, particularly in the 1980s and early 1990s. It served as a bridge between carburettors and more advanced multi-port systems. In a TBI system, one or two fuel injectors are mounted directly onto the throttle body, which sits on top of the intake manifold, much like a carburettor.

The injectors spray fuel into the throttle body, and this fuel then mixes with air before being drawn through the intake manifold runners to each cylinder. While offering better control and efficiency than a carburettor, TBI is less precise than systems that inject fuel directly into individual runners or cylinders. TBI kits are popular for converting older carburetted engines, offering a relatively simple and cost-effective upgrade to electronic fuel control without requiring extensive modifications to the intake manifold.

• Pros: Relatively simple installation, more affordable than multi-port systems, better cold starts and emissions than carburettors, good for carburettor conversions.
• Cons: Less precise fuel delivery compared to multi-port or direct injection, potential for fuel 'puddling' in the intake manifold, not ideal for high-performance applications.

2. Multi-Port Fuel Injection (MPFI / PFI)

Multi-Port Fuel Injection, also known as Port Fuel Injection (PFI), was the next major step in fuel injection evolution and became the standard for many years. Unlike TBI, MPFI systems feature a dedicated fuel injector for each cylinder, mounted in the intake manifold runner, just upstream of the intake valve. This design allows for much more precise fuel delivery, as the fuel is sprayed directly into the air stream heading into that specific cylinder.

Because fuel is injected closer to the intake valve, there's less opportunity for fuel to condense or 'puddle' in the manifold, leading to better atomisation and more consistent air-fuel ratios across all cylinders. This translates to improved fuel efficiency, greater power output, and significantly reduced emissions compared to TBI or carburettors. MPFI systems can be found in a vast majority of vehicles produced from the mid-1990s through the 2000s.

• Pros: Excellent fuel atomisation, precise cylinder-to-cylinder fuel delivery, improved fuel economy and power output, lower emissions, widely understood technology.
• Cons: More complex than TBI, requires individual injector bungs in the manifold, can be more expensive to install or convert.

3. Sequential Multi-Port Fuel Injection (SFI)

Sequential Multi-Port Fuel Injection is an evolution of the basic MPFI system. While MPFI systems often fire all injectors simultaneously or in banks, SFI takes precision a step further. In an SFI system, each injector is fired individually and precisely timed to coincide with the opening of its corresponding intake valve. This means fuel is delivered just as the air is being drawn into the cylinder, maximising efficiency and minimising unburnt fuel.

The timing of the fuel delivery is controlled by the ECU, which uses sensor inputs (like crankshaft position and camshaft position) to determine the exact moment each intake valve opens. This level of precise timing results in even better fuel efficiency, lower emissions, and smoother engine operation, particularly at idle and low RPMs. Most modern vehicles that utilise port injection employ sequential firing.

• Pros: Highly precise fuel delivery, excellent fuel economy and emissions control, smoother engine operation, optimal air-fuel mixture.
• Cons: Requires more sophisticated ECU and sensor inputs, more complex wiring harness.

4. Direct Injection (DI / GDI)

Direct Injection, particularly Gasoline Direct Injection (GDI) for petrol engines and Common Rail Direct Injection (CRDI) for diesel engines, represents the cutting edge of fuel delivery technology. In a direct injection system, the fuel injectors are mounted directly in the cylinder head, spraying fuel under extremely high pressure directly into the combustion chamber, rather than into the intake manifold.

This method offers several significant advantages. Injecting fuel directly into the cylinder allows for greater control over the atomisation and distribution of fuel within the combustion chamber. It enables engineers to design engines with higher compression ratios without fear of pre-ignition (knocking), leading to more power and better thermal efficiency. Furthermore, direct injection can facilitate 'stratified charge' operation at light loads, where a lean air-fuel mixture is created around the spark plug for ignition, while the rest of the chamber contains more air, further boosting fuel economy.

• Pros: Maximises fuel efficiency and power output, allows for higher compression ratios, precise control over fuel atomisation, reduced emissions.
• Cons: Requires very high-pressure fuel pumps and injectors, susceptible to carbon build-up on intake valves (as fuel no longer washes them), more expensive to produce and maintain, often requires specific engine designs.

5. Common Rail Direct Injection (CRDI)

While often grouped under direct injection, it's worth specifically mentioning Common Rail Direct Injection (CRDI) for diesel engines. This system is the standard for modern diesel engines and operates on the direct injection principle. A single 'common rail' acts as an accumulator for highly pressurised fuel, which is then fed to electronically controlled injectors. These injectors deliver fuel directly into the combustion chamber, often performing multiple small injections per combustion cycle (pilot, main, and post-injections) to optimise combustion, reduce noise, and lower emissions. CRDI systems are crucial for the impressive efficiency and power of modern diesel vehicles.

Key Components of a Fuel Injection Kit

Regardless of the specific type, most fuel injection kits share a core set of components that are essential for their operation:

• Fuel Injectors: The most critical part, responsible for atomising and spraying fuel. Their flow rate and spray pattern are vital.
• Fuel Pump: Provides the necessary pressure to deliver fuel to the injectors. Direct injection systems require extremely high-pressure pumps.
• Fuel Pressure Regulator: Maintains a consistent fuel pressure within the system, ensuring accurate fuel delivery regardless of engine load.
• Fuel Lines and Rail: Connect the pump to the injectors and distribute the fuel evenly. The fuel rail holds the injectors and acts as a reservoir.
• Electronic Control Unit (ECU): The 'brain' of the system. It processes data from sensors and calculates the precise amount of fuel to inject. Aftermarket or standalone ECUs offer greater tuning flexibility.
• Sensors: A network of sensors provides the ECU with critical data. Common sensors include:
  • Oxygen (O2) Sensor: Measures oxygen levels in the exhaust to determine combustion efficiency.
  • Manifold Absolute Pressure (MAP) Sensor: Measures manifold pressure to calculate air density.
  • Mass Air Flow (MAF) Sensor: Measures the mass of air entering the engine.
  • Throttle Position Sensor (TPS): Detects the position of the throttle pedal.
  • Coolant Temperature Sensor: Informs the ECU about engine temperature for cold start enrichment.
• Wiring Harness: Connects all the electrical components to the ECU.

Why Upgrade or Install a Fuel Injection Kit?

The decision to install a fuel injection kit, especially for a carburetted vehicle, comes with a multitude of benefits that extend beyond mere performance gains.

• Improved Fuel Efficiency: Precision fuel delivery means less waste, leading to more miles per gallon. The ECU constantly adjusts to optimise the air-fuel ratio.
• Increased Horsepower and Torque: A more precise and consistent air-fuel mixture allows the engine to produce more power efficiently across its RPM range.
• Better Cold Starts and Drivability: No more fiddling with chokes or long cranking times. Fuel injection provides immediate, smooth starts and consistent performance in all weather conditions.
• Reduced Emissions: Tighter control over combustion significantly lowers harmful exhaust emissions, making vehicles more environmentally friendly and often compliant with modern regulations.
• Enhanced Reliability: Electronic systems are generally more consistent and less prone to mechanical wear and tear than carburettors, reducing breakdowns and maintenance frequency.
• Adaptability: Modern fuel injection systems can automatically compensate for altitude changes and variations in fuel quality, something carburettors struggle with.

Choosing the Right Fuel Injection Kit

Selecting the appropriate fuel injection kit requires careful consideration of several factors to ensure compatibility and meet your specific objectives.

• Vehicle Type and Engine Compatibility: Not all kits fit all engines. Research specific kits designed for your vehicle's make, model, and engine configuration.
• Performance Goals: Are you looking for a simple carburettor replacement for better drivability, or a high-performance system for racing? Your goals will dictate the complexity and cost of the kit.
• Budget: Prices vary significantly, from a few hundred pounds for basic TBI conversion kits to several thousands for standalone direct injection systems.
• Installation Complexity: Some kits are designed for relatively easy DIY installation, while others require professional expertise, custom fabrication, and extensive tuning.
• Emissions Regulations: Be aware of local emissions laws. Some kits may not be street legal in certain regions or might require specific modifications to pass inspections.

Installation and Maintenance Considerations

Installing a fuel injection kit, particularly for carburettor conversions, can range from a moderately challenging DIY project to a task best left to experienced mechanics. It often involves routing new fuel lines, installing a high-pressure pump, wiring sensors, and most critically, tuning the ECU. Professional tuning is often required to optimise the engine's performance and ensure correct operation after installation.

Once installed, fuel injection systems generally require less frequent maintenance than carburettors. However, regular maintenance is still important. This includes periodic fuel filter replacement to protect the injectors from contaminants, and occasionally, professional fuel injector cleaning to prevent deposits from building up and affecting spray patterns. For direct injection engines, particularly those without port injection as a secondary system, monitoring and cleaning intake valve carbon deposits is a crucial maintenance consideration.

Comparative Overview of Fuel Injection Types

Frequently Asked Questions

Can I convert my carburetted engine to fuel injection?

Yes, absolutely! Many aftermarket companies offer complete fuel injection conversion kits, particularly for TBI or MPFI systems, specifically designed to replace carburettors on classic cars and hot rods. These kits provide significant improvements in drivability, fuel economy, and reliability.

Is direct injection always better than port injection?

While direct injection offers superior fuel efficiency and power potential in many scenarios, it's not always 'better' in every context. Direct injection engines can be more complex, expensive to produce, and prone to carbon build-up on intake valves (as fuel doesn't wash over them). Many modern engines now use a combination of both port and direct injection to get the best of both worlds, mitigating the carbon issue while retaining the benefits of DI.

How often do fuel injectors need cleaning?

The need for fuel injector cleaning varies. With modern fuels and good quality fuel filters, many injectors may never need cleaning for the life of the vehicle. However, if you notice symptoms like rough idle, misfires, reduced fuel economy, or a lack of power, it might be an indication of clogged injectors. Professional ultrasonic cleaning is the most effective method.

What's the difference between a standalone ECU and a stock ECU?

A stock ECU is the original computer that came with your car, programmed for a specific engine and vehicle configuration. A standalone ECU is an aftermarket programmable computer that allows for much more extensive tuning and control over engine parameters. Standalone ECUs are popular for custom builds, engine swaps, and high-performance applications where the stock ECU's capabilities are insufficient.

Are fuel injection kits street legal?

This depends entirely on your local and national regulations. In the UK, modifying your vehicle's engine and emissions system can have implications for MOT tests and road legality. It's crucial to check with the DVLA or a qualified vehicle inspection centre to ensure any modifications comply with current emissions standards and vehicle construction and use regulations. Many reputable aftermarket kits are designed to be emissions-compliant, but always verify before purchase and installation.

In conclusion, fuel injection kits are a testament to the continuous innovation in automotive engineering. From the foundational simplicity of throttle body injection to the cutting-edge precision of direct injection, each system offers unique advantages. Understanding these types empowers you to make informed decisions, whether you're seeking to breathe new life into a classic vehicle or simply appreciate the sophisticated technology under the bonnet of your daily driver. The move from carburettors to fuel injection has undeniably shaped the modern automotive landscape, delivering more powerful, efficient, and environmentally conscious vehicles.
