Suzuki Fuel Injection Explained

Suzuki, a name synonymous with innovation and performance across its automotive and motorcycle divisions, employs sophisticated fuel injection systems designed to maximise both power output and fuel efficiency. At the heart of this technology lies a complex interplay of sensors, electronic control units (ECUs), and precision-engineered fuel delivery components. This article delves into the intricacies of how Suzuki's fuel injection systems work, highlighting key features such as their advanced 3-D ignition maps and the crucial role of cooling systems like SACS.

The Core Principles of Fuel Injection

Traditional carburettor systems, while once the standard, often struggled to provide the precise fuel-air mixture required for optimal combustion under all operating conditions. Fuel injection, on the other hand, sprays atomised fuel directly into the engine's intake manifold or combustion chamber, allowing for much finer control. This leads to several significant advantages:

• Improved Fuel Economy: By delivering only the necessary amount of fuel, wastage is minimised, resulting in better mileage.
• Enhanced Power and Torque: A precisely metered fuel-air mixture allows the engine to produce more power and torque across its rev range.
• Reduced Emissions: Cleaner and more efficient combustion significantly lowers harmful exhaust emissions.
• Better Cold Starting and Drivability: Fuel injection systems adapt to temperature changes, ensuring smooth operation from a cold start.

Suzuki's Advanced Fuel Injection Technology

Suzuki vehicles and motorcycles are renowned for their spirited performance, and their fuel injection systems are a major contributor to this reputation. A key element of Suzuki's approach is the use of 3-D ignition maps. These maps are sophisticated algorithms stored within the ECU that dictate the optimal ignition timing for a vast array of engine operating conditions. Unlike simpler 2-D maps that might only consider engine speed and load, 3-D maps factor in additional variables such as engine temperature, atmospheric pressure, and even throttle position to fine-tune ignition timing.

How 3-D Ignition Maps Work

Imagine a three-dimensional grid. The engine's current operating state (defined by parameters like RPM, manifold absolute pressure (MAP), and throttle position) is plotted onto this grid. The ECU then reads the corresponding value from the ignition map, which tells it exactly when to fire the spark plug. This precise timing is critical:

• Too early (advanced timing): Can lead to engine knocking or detonation, causing damage.
• Too late (retarded timing): Results in a loss of power and efficiency.

Suzuki's 3-D maps are continuously updated by sensor data in real-time. This allows the system to adapt instantly to changes in driving style, altitude, and temperature, ensuring the engine always operates at its peak efficiency and performance potential. This adaptive capability is what provides that characteristic Suzuki responsiveness.

The Role of Sensors in Fuel Injection

The intelligence of a fuel injection system relies heavily on the data it receives from various sensors. Suzuki systems utilise a comprehensive suite of sensors to monitor engine conditions:

The Electronic Control Unit (ECU)

The ECU acts as the brain of the system. It receives data from all these sensors, processes it according to the pre-programmed maps (including the crucial 3-D ignition maps), and then sends signals to the fuel injectors and ignition coils. The injectors are electronically controlled valves that open for precise durations to deliver the correct amount of fuel. The timing and duration of their opening are meticulously calculated by the ECU.

Suzuki Advanced Cooling System (SACS)

While not directly part of the fuel injection process itself, the engine's operating temperature plays a vital role in its performance and the effectiveness of the fuel injection system. Suzuki's Suzuki Advanced Cooling System (SACS) is designed to maintain optimal engine temperature, especially under demanding conditions. This system typically includes:

• Factory-Installed Oil Cooler: This is a crucial component that helps dissipate heat from the engine oil, which lubricates and cools internal engine parts. By keeping the oil temperature within a specific range, it prevents oil breakdown and ensures consistent lubrication.
• Thermostat-Controlled Cooling Fan: This fan activates automatically when the engine reaches a certain temperature, drawing air through the radiator (or oil cooler in some air/oil-cooled designs) to increase cooling efficiency. This is particularly important during slow-speed riding, heavy traffic, or when the engine is under sustained high load, situations where natural airflow might be insufficient.

Maintaining a stable and optimal engine temperature is essential for the fuel injection system. The ECT sensor provides the ECU with this vital information. If the engine is too cold, the ECU will enrich the fuel mixture slightly for smoother running. If it's too hot, it might adjust ignition timing or fuel delivery to prevent overheating. SACS ensures that the engine operates within the ideal temperature window, allowing the fuel injection and ignition systems to perform at their best.

Common Components of a Suzuki Fuel Injection System

Beyond the ECU and sensors, several other components are integral to the system's operation:

• Fuel Pump: Delivers fuel from the tank to the injectors at the required pressure.
• Fuel Filter: Prevents contaminants from reaching the injectors, ensuring their longevity and proper function.
• Fuel Pressure Regulator: Maintains a constant fuel pressure to the injectors, ensuring consistent fuel delivery.
• Fuel Injectors: Electronically controlled valves that spray atomised fuel into the intake ports or combustion chamber.

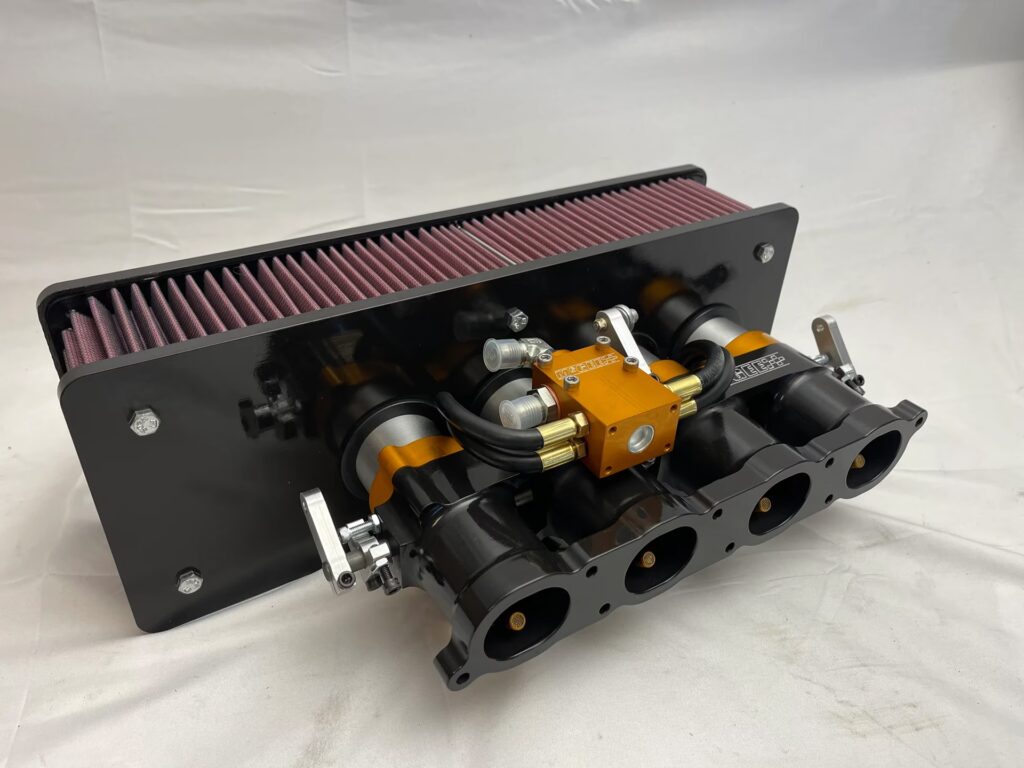

• Throttle Body: Houses the throttle plate, which controls the amount of air entering the engine, and often incorporates the TPS.

Benefits of Suzuki's Fuel Injection System

The sophisticated nature of Suzuki's fuel injection systems, particularly with their 3-D ignition maps and effective cooling, translates into tangible benefits for the rider or driver:

• Responsive Throttle: The precise fuel delivery and ignition timing result in an immediate and predictable throttle response.
• Consistent Performance: Power delivery remains smooth and consistent across varying engine speeds and loads.
• Fuel Efficiency: Optimised combustion leads to reduced fuel consumption, saving money and reducing environmental impact.
• Lower Emissions: Meets stringent modern emissions regulations thanks to efficient burning.
• Reliability: Well-designed and maintained fuel injection systems are highly reliable.

Maintenance and Troubleshooting

While fuel injection systems are generally reliable, proper maintenance is key. Regular checks of the air filter, fuel filter, and spark plugs are important. Issues can sometimes arise from clogged injectors, faulty sensors, or fuel pump problems. Signs of trouble might include rough idling, hesitation during acceleration, poor fuel economy, or the illumination of a check engine light (or FI indicator light on motorcycles).

Frequently Asked Questions (FAQs)

Q1: What is the main advantage of 3-D ignition maps over older systems?
A1: 3-D ignition maps allow for much more precise and adaptive ignition timing by considering multiple engine variables simultaneously, leading to better performance, efficiency, and emissions compared to simpler 2-D maps.

Q2: How does the SACS help my Suzuki's engine?
A2: The SACS, with its oil cooler and fan, efficiently manages engine temperature, preventing overheating under heavy use. This ensures consistent lubrication and allows the engine management system, including fuel injection, to operate optimally.

Q3: Can I modify my Suzuki's fuel injection system?
A3: Yes, aftermarket tuning and ECU remapping are possible, but they should be carried out by experienced professionals to avoid engine damage or performance degradation.

Q4: What should I do if my Suzuki's FI light comes on?
A4: The FI light indicates a fault within the fuel injection or ignition system. It's best to have the vehicle diagnosed by a qualified Suzuki technician using diagnostic equipment.

Conclusion

Suzuki's commitment to engineering excellence is clearly demonstrated in its advanced fuel injection systems. By integrating sophisticated technologies like 3-D ignition maps and robust cooling solutions such as SACS, Suzuki ensures its engines deliver exceptional performance, exhilarating responsiveness, and commendable environmental efficiency. Understanding these systems not only demystifies the technology but also highlights the importance of proper maintenance for sustained reliability and enjoyment.
