The Essential Guide to Performing a K-Swap

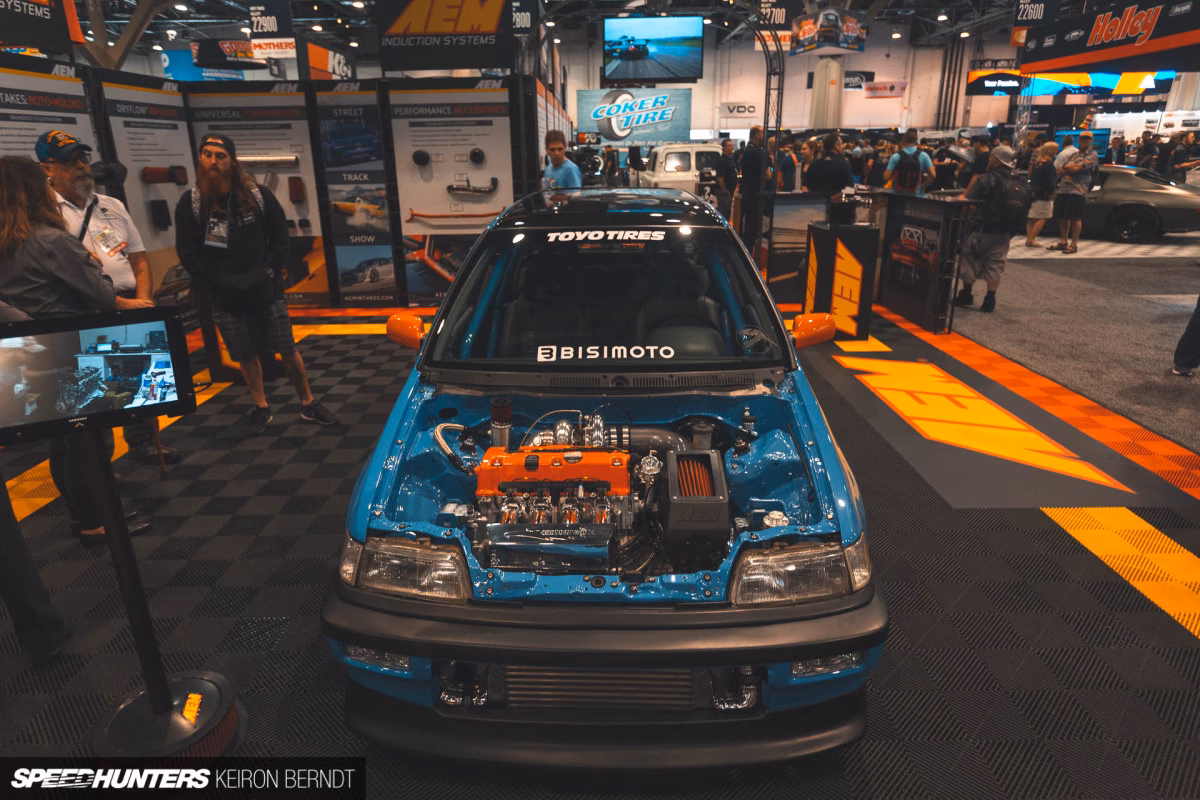

The Honda K-series engine swap, affectionately known as a 'K-Swap,' has become a cornerstone of automotive enthusiasm for many. It's a potent upgrade, transforming a wide range of vehicles, particularly those from Honda's own lineage like the Civic EG and EK, and the Integra DC2, into potent machines with enhanced performance and a thrilling driving experience. While the allure of a K-series engine – renowned for its impressive power-to-weight ratio, immense tuning potential, and readily available aftermarket support – is undeniable, the process is far from a simple bolt-in affair. A successful K-Swap requires meticulous planning, a solid understanding of the mechanical and electrical intricacies involved, and crucially, a well-defined budget. This comprehensive guide will walk you through the essential components you'll need to consider for your K-Swap project, ensuring you're equipped to tackle this exciting modification correctly from the outset.

Understanding the K-Swap: Why It's So Popular

Before diving into the parts list, it's worth understanding why the K-series swap is so highly sought after. K-series engines, such as the K20A, K20A2, and K24 variants, offer a significant leap in horsepower and torque over many older, naturally aspirated engines. Their inherent design lends itself well to forced induction and extensive modification, allowing enthusiasts to push performance boundaries further. Furthermore, the aftermarket support for K-series engines is vast, meaning parts are generally more accessible and often more affordable than for some other engine families. This combination of power, potential, and parts availability makes the K-Swap a compelling option for those looking to inject new life into an older chassis or simply seeking a significant performance upgrade.

Core Components: The Heart of Your K-Swap

At the absolute core of any K-Swap is the engine itself. However, simply acquiring a K-series engine isn't enough. You'll need a complete package to ensure a smooth integration:

1. The K-Series Engine, Transmission, and ECU Package

This is your starting point. Ideally, source a complete K-series engine package that includes:

• The K-Series Engine: The specific variant (e.g., K20A2 from an RSX Type-S, K24A from an Accord) will depend on your power goals and budget.
• Transmission: Paired with the engine to handle its power output.
• ECU (Engine Control Unit): The brain of the engine. It's crucial to have the correct ECU that matches your engine and transmission, and importantly, can be tuned for your specific application.
• Engine Harness: This wiring loom connects the engine's sensors and actuators to the ECU.
• Charge Harness (Starter Sub-wire): Essential for the charging system and starter motor.
• Starter Motor: The component that initiates the engine's rotation.
• Alternator: To generate electrical power for the vehicle.
• Shifter Cables and Shifter Box: For engaging gears.
• Primary O2 Sensor: Crucial for emissions and fuel management.

Tip: Buying a complete package from a reputable source can save time and prevent compatibility issues down the line.

2. K-Swap Engine Mounts

These are perhaps the most critical fabrication components. Engine mounts are specifically designed to position the K-series engine and transmission correctly within your chosen chassis. Without the proper mounts, the engine will not sit correctly, leading to issues with driveshaft alignment, header clearance, shifter linkage, and overall vehicle dynamics. There are various manufacturers offering K-Swap mount kits, often tailored to specific chassis like the Honda Civic EG/EK or Integra DC2.

3. K-Swap Conversion Wiring Harness

This is where the technical complexity often lies. The K-series engine harness is designed for the K-series ECU, but your car's factory wiring is designed for its original engine. A conversion harness acts as an adapter, seamlessly integrating the K-series engine harness and ECU with your vehicle's existing dashboard, ignition, and other vital electrical systems. This ensures your gauges, lights, and accessories function correctly post-swap. Some kits are plug-and-play, while others may require more intricate wiring on your part.

Drivetrain and Clutch Components

Transferring the power from the K-series engine to the wheels requires specific drivetrain components:

4. K-Swap Axles

The K-series transmission output shafts are different from those of many older Honda transmissions. Therefore, you'll need K-Swap specific axles that are designed to mate the K-series transmission to your vehicle's wheel hubs. These axles need to be robust enough to handle the increased power of the K-series engine.

5. K-Swap Clutch Line

If your K-series engine and transmission utilize a hydraulic clutch system, you'll need a clutch line to connect the master cylinder to the slave cylinder. Many K-Swap kits include a braided stainless steel and Teflon-coated line, which offers improved durability and consistent pedal feel compared to standard rubber lines.

6. K-Swap Bolt-In Shift Box and Shifter Cables

While some K-series engines come with shifter components, you'll often need a specific shift box and cables designed to integrate with your chassis. A bolt-in shift box simplifies the installation process, replacing the stock shifter box and often the Karcepts shifter mounting kit. K-series shifter cables are generally more robust than those found in older Hondas, providing crisper shift feel and greater reliability.

Cooling System Essentials

Proper engine cooling is paramount, especially with a more powerful engine. The K-series cooling system often requires specific adaptations:

7. K-Swap Radiator

While some enthusiasts might attempt to use a stock radiator from the donor vehicle, a K-Swap specific radiator is highly recommended. These are typically all-bolt-in aluminium radiators designed with custom inlet and outlet ports to simplify the K-series conversion. They often incorporate provisions for the RSX coolant temperature and fan switch control sensor, which are vital for proper fan operation and gauge readings. Brands like Hybrid Racing offer popular K-Swap radiator solutions.

8. K-Swap Radiator Hoses

Standard radiator hoses will not fit a K-Swap. You'll need specific hoses designed to connect the K-series engine's water ports to your chosen radiator. These kits ensure proper coolant flow and prevent leaks.

9. Radiator Relocation Bracket (if using stock radiator)

If you opt to use the stock radiator from your donor vehicle (e.g., an EP3 Civic Si radiator), you may need a radiator relocation bracket to shift it from the passenger side to the driver's side of the engine bay to accommodate the K-series engine.

10. Slim Fans

With the K-series engine often occupying more space than the original unit, slim radiator fans are frequently required to maintain adequate clearance between the radiator and the engine or other components.

11. Coolant Temp Sensor and Fan Switch

These sensors are critical for monitoring engine temperature and controlling the radiator fan. The coolant temp sensor feeds information to your dashboard's temperature gauge, while the fan switch activates the radiator fan at a specific temperature to prevent overheating. If you're not using a K-Swap specific radiator that already incorporates these, you'll need them.

12. Radiator Hose Insert for Temp Sensor and Fan Switch

If your chosen radiator doesn't have dedicated ports for the coolant temperature sensor and fan switch, you'll need a radiator hose insert. This fitting allows you to splice these essential sensors into your cooling system's upper radiator hose.

Fuel System Adaptations

Ensuring your fuel system can deliver the correct amount of fuel to the K-series injectors is crucial:

13. K-Series Fuel Rail

The K-series fuel rail is designed to distribute fuel to the injectors. You'll likely need a K-Swap fuel rail kit to adapt the fuel system of your chosen chassis (or a universal setup) to the K-series engine's fuel injectors.

14. Universal Fuel Pressure Regulator

A fuel pressure regulator maintains a constant and optimal pressure within the fuel rail, ensuring consistent fuel delivery. This is often necessary to adapt the K-series fuel system to your car's existing fuel pump and lines.

15. K-Swap Fuel Line Kit

High-quality fuel lines with appropriate fittings (-AN fittings are common) are essential for safely delivering fuel from the tank to the engine. K-Swap fuel line kits are designed as bolt-in solutions for this purpose.

Exhaust and Intake Considerations

Optimising airflow in and out of the engine is key to performance:

16. K-Swap Air Intake

A cold air intake system or a custom intake piping setup is required to direct airflow from outside the engine bay into the K-series engine's throttle body. Proper intake design can significantly impact performance.

17. K-Swap Header

The K-series engine's exhaust manifold (header) is designed for its specific engine block. You'll need a K-Swap header that is designed to clear your chassis's firewall and subframe, and mate correctly with your chosen exhaust system.

18. K-Series Test Pipe

A test pipe is often used to adapt the K-Swap header to your existing exhaust system. It effectively bridges the gap between the header's outlet and your car's downpipe or cat-back exhaust.

19. OEM Throttle Cable

If your K-series engine uses a cable-actuated throttle body (some later models are drive-by-wire), you'll need a throttle cable to connect the gas pedal to the throttle body. Often, a cable from a donor K-series vehicle or a specific K-Swap cable will be required.

Ancillary Systems: Comfort and Convenience

Depending on your priorities, you might want to retain or remove certain factory systems:

20. K-Series AC/PS Removal Kit

For those prioritising weight reduction and engine bay simplicity, an AC/PS removal kit is available. This kit typically includes components to remove the air conditioning compressor and power steering pump, and often relocates the alternator for a cleaner look and reduced parasitic drag.

21. K-Swap Air Conditioning Kit

Conversely, if you wish to retain air conditioning in your K-Swapped vehicle, a dedicated AC kit is necessary. These kits provide the necessary brackets, lines, and components to integrate the K-series engine with your car's AC system.

22. K-Swap Power Steering Kit

Similarly, if you want to keep power steering, a specific kit will be required to adapt the K-series power steering pump (or an aftermarket solution) to your vehicle's steering rack.

The Immobiliser Conundrum

A significant hurdle often encountered during K-Swaps, especially in later model vehicles, is the immobiliser system. This anti-theft feature links the car's key to the ECU. When you swap to a K-series ECU, the car's original key code won't match, preventing the engine from starting (it will crank but not fire). Here are common solutions:

• Immobiliser Bypass Unit: A small electronic device that intercepts the immobiliser signal, allowing the engine to start with the original key. A common side effect is a constantly blinking immobiliser light on the dashboard.
• Ignition Lock Swap: If you have a donor car, you can swap its ignition lock assembly and matching keys to the K-series ECU. This ensures the key code matches the ECU. However, this can be complex and may mean carrying multiple keys.
• ECU Reflash (Hondata KPro): For certain chassis and with specific tuning solutions like Hondata KPro, the immobiliser can be disabled or reprogrammed to work with your vehicle. This is often considered the cleanest solution but can be costly.

Cost Considerations

The cost of a K-Swap can vary dramatically. A basic K-Swap on an older chassis might start from around £3,000-£5,000 if you are sourcing used parts and doing a lot of the labour yourself. However, for a more refined build with new parts, professional installation, and a higher-spec engine, costs can easily escalate to £7,000-£10,000 or more. The price of the K-series engine itself is a significant factor, with prices fluctuating based on rarity and condition.

Frequently Asked Questions

Q1: Can I K-Swap any car?

A1: While K-Swaps are most common in Honda Civics and Integras, with the right fabrication skills and parts, it's possible to swap a K-series engine into virtually any chassis. However, the complexity and cost increase significantly for non-Honda platforms.

Q2: How long does a K-Swap take?

A2: For an experienced mechanic, a K-Swap can take anywhere from a few days to a couple of weeks. For a DIY enthusiast with limited experience, it could take several weeks or even months, depending on the complexity and the amount of custom fabrication required.

Q3: Do I need to upgrade my brakes and suspension after a K-Swap?

A3: Absolutely. The significant increase in power from a K-series engine necessitates upgrades to your braking system to ensure you can safely stop the vehicle. Upgraded suspension components will also help manage the increased power and weight distribution, improving handling.

Q4: What is the most common K-Swap?

A4: The most popular K-Swaps involve fitting K-series engines into Honda Civic EG, EK, and Integra DC2 models due to their shared platform heritage and the relative ease of integration.

Q5: Is a K-Swap worth the cost?

A5: For many enthusiasts, the performance gains, the unique driving experience, and the satisfaction of completing such a significant modification make a K-Swap absolutely worth the investment. It's a project that transforms a car's character.

Embarking on a K-Swap is a rewarding but challenging endeavour. By carefully sourcing the correct parts and understanding the complexities involved, you can ensure your project is a success, delivering the exhilarating performance and reliability that the K-series engine is renowned for.
