Multistorey Car Parks: Beyond Civil Engineering

The Evolving Role of Multistorey Car Parks

Multistorey car parks, often perceived as purely functional structures, are increasingly becoming sophisticated elements within the broader urban landscape. While undeniably rooted in civil engineering principles, their design and integration with adjacent spaces, the buildings they serve, and the incorporation of other creative uses elevate them beyond a singular engineering discipline. The cost model for a typical six-storey car park, for instance, often forms an integral part of a high-end multi-use development, highlighting their complex role in modern construction.

Understanding the Cost of Building a Car Park

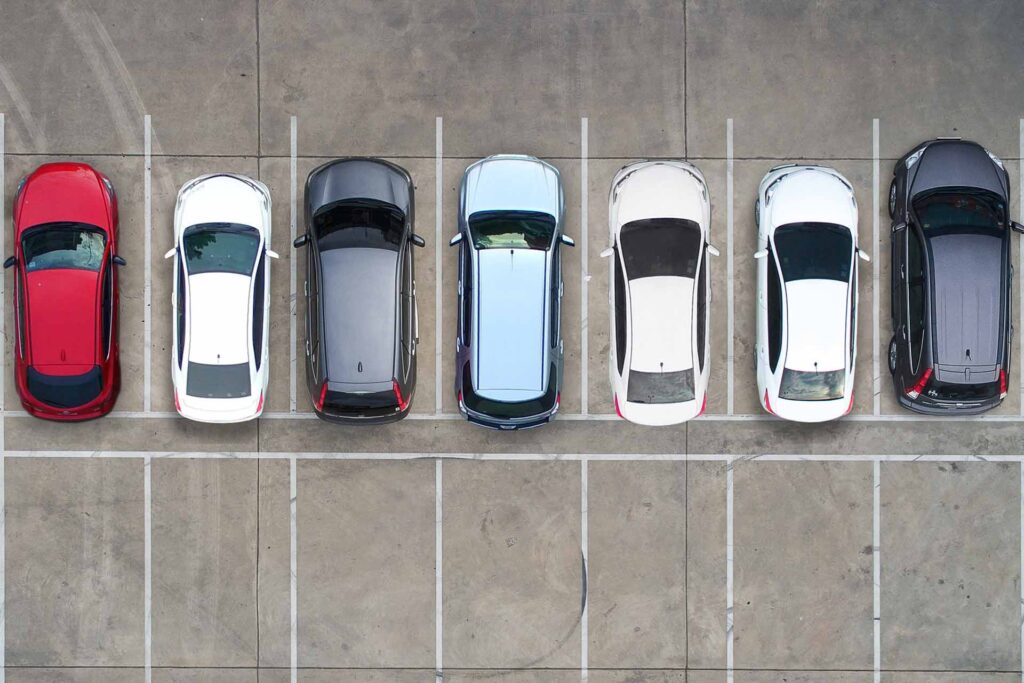

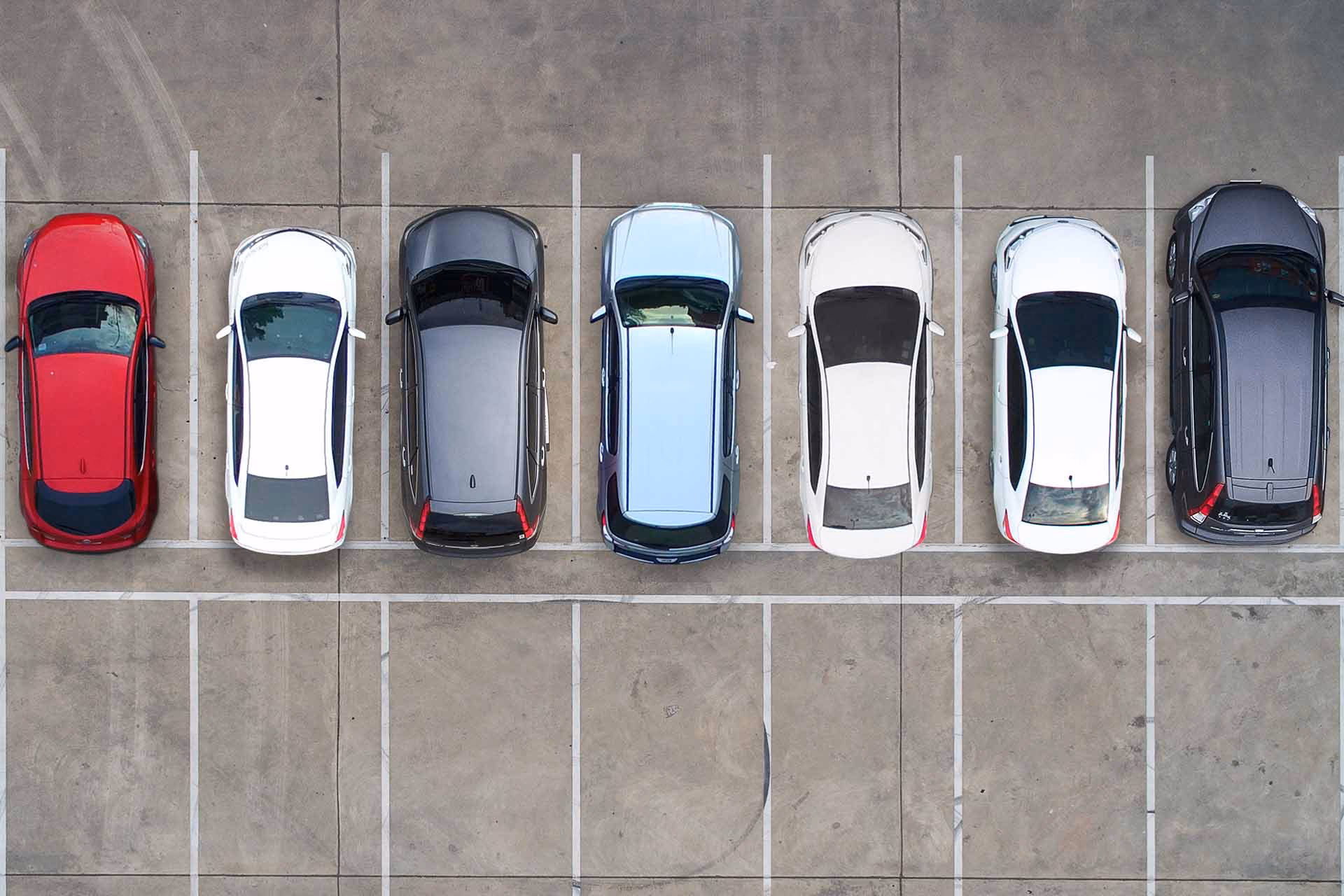

The financial outlay for constructing a car park can vary significantly based on numerous factors, including size, materials, location, and the complexity of the design. For a basic surface car park, costs per square meter in the UK can range from approximately £40 to £60. Opting for block paving might see prices starting upwards of £3,000, while a concrete car park's cost can span between £800 and £8,000, heavily dependent on the quality of concrete and the overall dimensions.

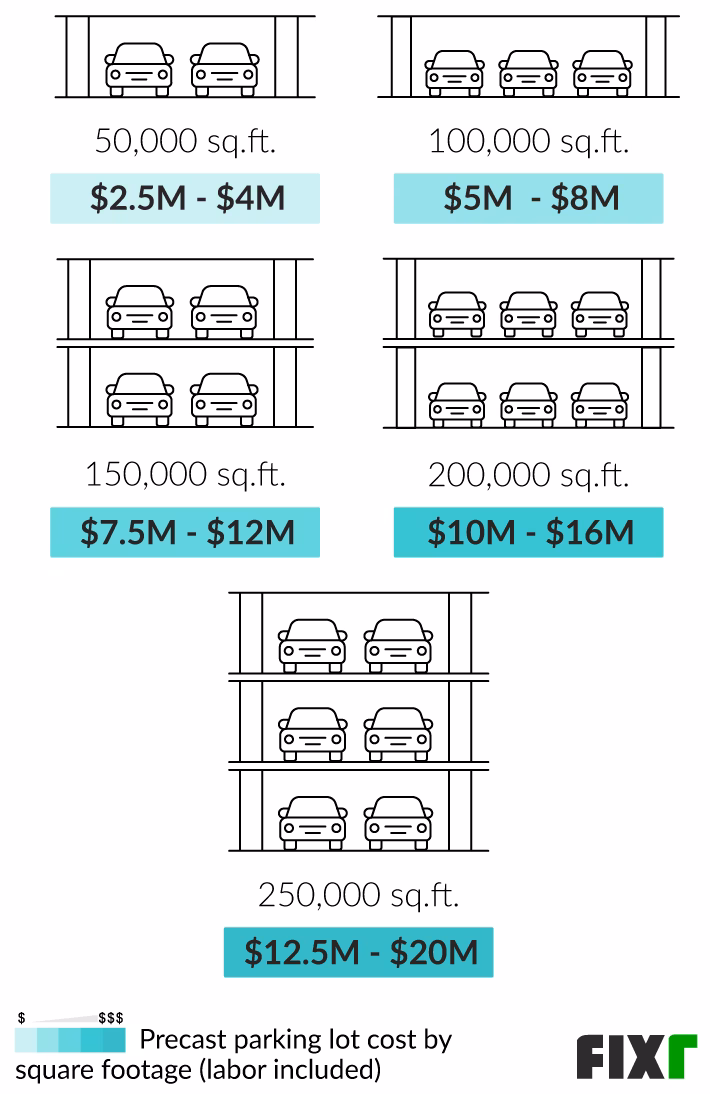

When considering multistorey structures, the cost per space is a more relevant metric. In 2019, the median construction cost for a new parking structure in the US was around $21,500 per space, with an average of $64.77 per square foot. These figures represent a notable increase over previous years, reflecting rising material and labour costs.

Construction Timelines: How Long Does It Take?

The duration required to build a car park is heavily influenced by the chosen construction methodology. For a smaller car park, perhaps accommodating between 70-80 spaces, a 'fast-track' solution utilising a steel frame and composite steel decking can see completion in approximately 16 weeks.

For larger, multistorey structures, the timeline extends. A typical 4-storey garage with 1,000 stalls built using precast concrete typically takes between 6 to 8 months. Cast-in-place concrete, while offering greater design flexibility, generally requires a longer construction schedule, averaging 10 to 12 months.

Designing for Efficiency and Functionality

The design process for a car park is a meticulous undertaking that requires careful consideration of several key elements:

1. Purpose Identification: Clearly defining the primary function of the car park, whether it's for retail, residential, or mixed-use development, is the crucial first step.
2. Sizing and Spacing: Determining the optimal size and spacing of parking bays is paramount. Standard dimensions vary globally, but generally, compact parking spaces require a minimum width of 2.44m (8ft) and a length of 4.88m (16ft). US standard parking spaces are typically 8'6" wide and 18ft long, with larger standard spaces measuring 9ft wide and 20ft long. Some sources suggest minimum lengths and widths of 4.5m and 1.8m respectively, up to a maximum of 6.6m and 2.7m.
3. Layout and Flow: Designing an efficient layout is critical for smooth traffic flow and ease of access. Ninety-degree parking is generally the most efficient, accommodating more vehicles and requiring less area per vehicle compared to angled parking (e.g., 30, 45, or 60 degrees). Angled parking can offer safety benefits by enforcing a one-way traffic flow and potentially making it easier to enter and exit bays, but it is typically less space-efficient.
4. Safety and Security: Incorporating provisions for parking lot security, such as adequate lighting and visibility, is essential for user safety.
5. Additional Design Elements: Considering elements like covered sections, charging stations for electric vehicles, and designated spaces for different vehicle sizes can significantly enhance the user experience and future-proof the facility.
6. Long-Term Maintenance: Planning for ongoing maintenance, particularly for the surfacing material, ensures the longevity and aesthetic appeal of the car park. Asphalt, known for its durability and weather resistance, is a popular choice due to its low maintenance requirements.

Parking Bay Dimensions: A Closer Look

The size of a parking bay is a critical design parameter. While average parking spaces tend to be around 7.5 to 9 feet in width and 10 to 20 feet in length, regulatory requirements and the intended users of the car park can influence these dimensions. For instance, the historical context of minimum parking requirements, as seen in Los Angeles from the mid-1930s, has shaped the size and prevalence of parking spaces in many urban areas.

Materials and Construction Methods

The choice of construction materials significantly impacts the cost, durability, and aesthetic of a car park. Common materials include:

• Asphalt: Valued for its long lifespan, durability, sleek finish, and resistance to weathering and weeds, making it a low-maintenance option.
• Concrete: A robust material that can withstand significant wear and tear with minimal damage, making it a strong contender for high-traffic areas.
• Steel Frame and Composite Steel Decking: These materials are often used in fast-track construction methods, offering quicker assembly times.

Ramp Design Considerations

The ramps within a multistorey car park require careful design to ensure safe and comfortable vehicle movement. The preferred slope for a parking ramp is 5% or less, though slopes up to 7% may be tolerated in very dense urban environments. Critically, parking ramp slopes should not exceed the 6.67% maximum permitted by the International Building Code (IBC). Ramp widths are also important, typically ranging from a minimum of 3.5m for single ramps to 7m for double ramps, often aligned with stall widths to ensure smooth traffic flow.

Underground vs. Surface Parking

The decision between underground and surface parking involves a trade-off between cost and land utilisation. Underground parking, while more expensive to construct (potentially seven to tenfold the cost of grade parking per car, depending on the number of underground levels), offers a significant advantage by economising on valuable land space, particularly in densely populated urban areas.

The Profitability and Investment Potential of Car Parks

The parking industry is a substantial economic sector, generating billions of dollars annually. Car parks can represent excellent investment opportunities due to their typically low repair and maintenance requirements, stable revenue streams, and minimal income disruption. Furthermore, under-utilised parking spaces can be a source of significant profit, enhancing property value and customer service.

Future Trends and Efficiency Improvements

The future of urban mobility may see a reduction in car ownership and usage, impacting the demand for traditional parking facilities. However, the need for efficient and well-designed parking solutions remains. Strategies to improve parking lot efficiency include:

• Designating specific visitor and employee spaces.
• Implementing management software for better utilisation.
• Incorporating electric vehicle charging stations.
• Exploring innovative solutions like car stackers and mechanical garages.
• Providing real-time parking information to users.
• Encouraging the use of more efficient parking layouts, such as 90-degree parking.

Common Parking Challenges and Driver Perceptions

Despite advancements in design, parking can still present challenges. Parallel parking, for instance, is widely considered the most difficult parking technique, with a significant percentage of drivers admitting to minor collisions while attempting it. The stress associated with finding a parking space is also a recognised issue for many drivers.

Frequently Asked Questions

Q1: Can a multistorey car park be considered a civil engineering project?
Yes, a multistorey car park is fundamentally a civil engineering project due to the structural design, site analysis, and infrastructure requirements. However, its integration with other uses and creative design elements can elevate it beyond a purely engineering-focused endeavour.

Q2: How much does it cost to build a car park in the UK?
Costs vary, but surface car parks can range from £40-£60 per m². Multistorey structures will have a significantly higher per-space cost, influenced by materials and height.

Q3: What is the most efficient parking layout?
Ninety-degree (perpendicular) parking is generally the most efficient in terms of space utilisation compared to angled parking.

Q4: Is underground parking more expensive than surface parking?
Yes, underground parking construction is typically more expensive than surface parking but offers land-saving benefits.

Q5: What is the average size of a UK parking space?
While exact regulations can vary, typical dimensions are around 2.4m wide and 4.8m long, with variations for different vehicle types and accessibility needs.
