Mastering Air Suspension Care for Longevity

Air suspension systems offer a superior ride experience, providing exceptional comfort, load levelling capabilities, and improved handling compared to traditional spring setups. However, like any sophisticated automotive component, they require diligent care and regular maintenance to perform at their best and ensure a long, trouble-free service life. Neglecting your air suspension can lead to premature wear, costly repairs, and a significant degradation in your vehicle's performance and safety. Understanding the nuances of its upkeep isn't just about preventing breakdowns; it's about preserving the very essence of what makes air suspension so desirable.

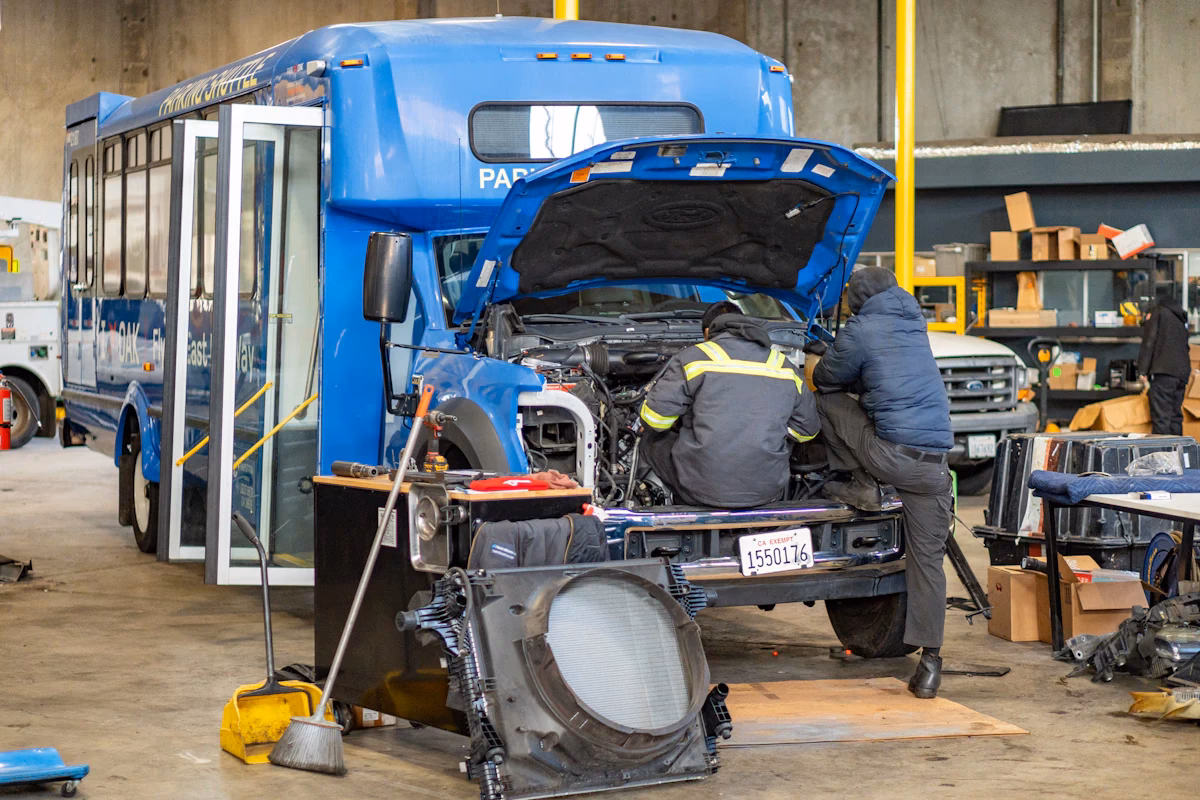

The Indispensable Benefits of Diligent Air Suspension Maintenance

Regular and thorough maintenance of your air suspension system yields a multitude of benefits that directly impact your vehicle's operational efficiency, safety, and your bottom line. It's an investment that pays dividends through enhanced reliability and reduced long-term expenses.

• Enhanced Safety: A well-maintained air suspension ensures proper vehicle stability, optimal braking performance, and consistent handling, especially crucial when carrying varying loads. Malfunctioning suspension can compromise control, making your vehicle unpredictable and dangerous on the road.
• Superior Ride Comfort and Quality: The primary appeal of air suspension is its ability to deliver a smooth, cushioned ride. Routine checks and adjustments ensure that the system continues to absorb road imperfections effectively, maintaining that luxurious feel and reducing driver fatigue over long journeys.
• Extended Component Lifespan: Proactive maintenance, including cleaning, inspecting for wear, and addressing minor issues promptly, significantly extends the life of expensive components such as airbags, shock absorbers, and air compressors. This prevents small problems from escalating into major, system-wide failures.
• Reduced Operating Costs: While maintenance has an initial outlay, it is far more economical than reactive repairs. Preventing major failures through routine inspection and timely replacement of worn parts saves substantial money on emergency repairs, towing, and unexpected downtime. Furthermore, a properly functioning suspension can contribute to better tyre wear and even marginal fuel efficiency by maintaining optimal vehicle aerodynamics.
• Optimal Vehicle Performance: The system is designed to maintain a specific ride height and level the vehicle under different loads. Maintenance ensures this critical function operates correctly, preserving the vehicle's intended handling characteristics and load-carrying capacity.
• Compliance and Reliability: For commercial vehicles and fleets, consistent maintenance ensures compliance with safety regulations and guarantees the vehicle's reliability, minimising unscheduled stops and maximising uptime.

Routine Checks: Your First Line of Defence

Some of the most critical aspects of air suspension maintenance involve simple, yet highly effective, routine checks. These inspections are your early warning system, allowing you to identify potential issues before they escalate into serious problems.

Pre-Departure Daily Inspections

Before your vehicle even leaves the yard, a quick visual inspection of the air suspension system can save you a world of trouble. These checks are straightforward and require no special tools, making them an essential part of your daily routine:

• Airbag Inflation and Balance: Visually confirm that the airbags appear sufficiently inflated and that the vehicle sits level. Imbalanced inflation can indicate a leak on one side or a malfunctioning levelling sensor, leading to uneven tyre wear and compromised handling.
• Suspension Height and Leakage: This is a crucial check for system integrity. A simple method involves establishing a baseline: when the vehicle is new and in perfect condition, park it on a level surface. Measure the distance from the centre of each of the four wheels to a fixed point on the chassis directly above it. Record these four measurements. Moving forward, during your daily checks, simply park the vehicle on a flat surface and re-measure. If these four values remain largely consistent, it indicates that your suspension height is normal and there are no significant air leaks. Any noticeable deviation warrants further investigation. If the inspection reveals an issue, the root cause must be identified and rectified immediately. This might involve minor adjustments or necessitate a more in-depth maintenance procedure.

Scheduled Maintenance: Deeper Dives for Longevity

Beyond daily checks, your air suspension system requires periodic, more detailed inspections and maintenance procedures. These are typically aligned with your vehicle's overall service schedule and are crucial for long-term health.

First-Level Maintenance (2,000 - 3,000 km)

This level of maintenance can often be integrated with your vehicle's general service intervals, typically every 2,000 to 3,000 kilometres, or as dictated by your fleet's safety inspection schedule. For these inspections, it's paramount to park the vehicle on a clean, level surface, ideally over an inspection pit, and engage the parking brake, blocking the wheels for safety. The key inspection points include:

• Fastener Integrity: Meticulously check all fasteners throughout the suspension system for any signs of looseness. Look for loose dirt, rust, or metal wear around bolt heads and nuts, and ensure washers are not displaced. A particular focus should be placed on re-tightening suspension bolts after the running-in period of a new vehicle, as initial settling can cause them to loosen.
• Airbag Condition: Verify that airbag inflation is normal under a supply pressure exceeding 6.1 bar (610 kPa). The firmness of the airbags on both sides of the same axle should be consistent. Inspect the airbags for any signs of wear, damage, or inappropriate bulging. Ensure there is a crucial 10-15mm clearance around them to prevent chafing against other components. Any dirt accumulation on the airbag piston should be promptly cleaned to prevent abrasive wear.
• Shock Absorber Inspection: Check for any signs of oil leakage or physical damage. A simple way to ascertain if a shock absorber is functioning correctly is to feel if it's warm after a period of driving. A warm shock absorber indicates it is actively damping vibrations and converting kinetic energy into heat. Conversely, a cold shock absorber after use may suggest it's not working effectively.
• Structural Integrity: Conduct a thorough visual inspection of all suspension parts and welds for any cracks or deformities. Cracks, no matter how small, can compromise structural integrity and lead to catastrophic failure.

Second-Level Maintenance (6,000 - 8,000 km)

This more comprehensive service should be performed after approximately 6,000 to 8,000 kilometres or concurrently with your vehicle's second-level maintenance schedule. Secondary maintenance is often categorised into monthly, quarterly, semi-annual, or annual checks, depending on vehicle usage and fleet policy. The content includes, but is not limited to:

• Fastener Torque Verification: Check the tightening torque of all air suspension and installation fasteners against the manufacturer's specified torque table in the instruction manual. Replace any failed nuts or washers as necessary, as incorrect torque can lead to component failure or loosening.
• Detailed Airbag Inspection: Beyond surface checks, if the airbag surface shows significant damage with the ply layer exposed, it must be replaced immediately. Minor cracks that do not result in air leakage may be acceptable for continued use, but monitoring is crucial.
• In-depth Shock Absorber Assessment: Most shock absorber oil leaks stem from external damage, weld failures, or oil seal deterioration. A clear, wet oil film on the cylinder surface or visible oil leaking from the seal indicates a genuine leak requiring replacement. However, note that partial oil marks on the cylinder, without a distinct wet film, are often due to the volatilisation of grease in the oil seal under high temperatures and do not necessarily signify an oil leak.
• Thrust Rod and Bushing Inspection: Inspect the rubber of the thrust rod's ball head for damage. Check if the sleeve and ball head are loose at their riveting points. For adjustable thrust rods, confirm the clamp is secure and the tightening bolt torque meets specifications. These components are vital for maintaining axle alignment and preventing unwanted movement.
• Stabilizer Ball Hinge and Boom: Examine the rubber bushing of the stabilizer ball hinge and its boom for any damage or displacement. The stabilizer bar is crucial for controlling body roll and maintaining vehicle stability during turns.
• General Suspension Component Check: A comprehensive check for any other suspension system parts that may be loose, worn, cracked, or damaged. Any identified issues should be repaired or replaced without delay.
• Suspension Height Re-calibration: Verify that the suspension height meets the original design requirements (refer to vehicle drawings or instruction manuals). The allowable error should not exceed 5mm. If necessary, adjust the suspension height using the height valve to bring it back within specifications.
• Gas Storage Tank Drainage: Crucially, release any accumulated water vapour from the gas storage tank. Water in the air system can lead to corrosion, freezing in cold climates, and damage to pneumatic components such as valves and air dryers. This simple task is often overlooked but is vital for system longevity.

Understanding Key Components and Their Care

A deeper understanding of the individual components within your air suspension system empowers you to conduct more effective inspections and appreciate the 'why' behind each maintenance task.

The Airbags: Your Ride's Cushions

Airbags, also known as air springs, are flexible bellows made of reinforced rubber. They are the core component that supports the vehicle's weight and provides the cushioning effect. Their integrity is paramount. Inspecting for cracks, bulges, or chafing is critical. Small cracks might not immediately cause a leak, but they indicate material degradation and potential future failure. Any exposure of the internal ply layers signifies structural compromise and necessitates immediate replacement. Keeping them clean, especially around the piston area, prevents abrasive wear that can shorten their life.

Shock Absorbers: Taming the Bumps

While airbags support the load, shock absorbers dampen the oscillations. They convert the kinetic energy of suspension movement into heat, preventing the vehicle from bouncing uncontrollably. A warm shock absorber after a drive is a sign it's doing its job. Oil leaks, particularly a wet film, indicate internal seal failure, reducing damping effectiveness and leading to a bouncy, uncontrolled ride. Differentiating between a true leak and minor oil marks from high-temperature volatilisation is key to avoiding unnecessary replacements.

Fasteners and Structural Integrity

The entire air suspension system relies on a network of bolts, nuts, and welds to hold it together. Loose fasteners can lead to excessive vibration, accelerated wear on bushings, and even structural failure. Regular torque checks, especially after the initial running-in period of a new vehicle, are vital. Similarly, any cracks in the metal components or welds compromise the structural integrity of the entire system and must be addressed immediately to prevent catastrophic failure.

Thrust Rods and Stabilizers: Keeping Things Aligned

Thrust rods control the fore-aft movement of the axle and maintain its alignment, while stabilizer bars (anti-roll bars) minimise body roll during cornering. The rubber bushings and ball joints within these components are subject to significant stress and wear. Damage or looseness in these areas can lead to poor handling, uneven tyre wear, and reduced stability. Regular inspection of their condition and the security of their mounting points is crucial for maintaining vehicle dynamics.

The Air System: Don't Forget the Water!

The air system, comprising the compressor, air dryer, valves, and air lines, is just as important as the mechanical components. Air contains moisture, which can condense into liquid water within the system, especially in the air storage tank. This water can corrode internal components, freeze in cold weather and block air lines or damage valves, and generally reduce the efficiency and lifespan of the entire pneumatic system. Regularly draining the gas storage tank is a simple yet profoundly important maintenance task that prevents these issues.

Maintenance Schedule at a Glance

Here's a simplified overview of the different maintenance levels and their key actions:

Frequently Asked Questions (FAQs)

Why is air suspension maintenance different from traditional suspension?

Air suspension systems are more complex than traditional coil or leaf spring setups. They involve pneumatic components (airbags, compressor, air lines, valves, sensors) in addition to mechanical parts (shock absorbers, linkages). This complexity means there are more potential points of failure related to air leaks, electrical sensor issues, and compressor wear, necessitating specialised checks beyond what a conventional suspension requires.

Can I perform these checks myself?

Many of the visual pre-departure and first-level checks can be performed by a diligent owner or operator. The baseline height measurement, visual airbag inspection, and checking for obvious leaks or loose fasteners are straightforward. However, for second-level maintenance involving torque wrenches, detailed component assessment, and system adjustments, it is highly recommended to seek professional assistance from a qualified technician.

What are the common signs of a failing air suspension?

Key indicators include the vehicle sagging or leaning to one side, an excessively bouncy or harsh ride, unusual noises (hissing from air leaks, clunking from worn components, a constantly running or noisy compressor), persistent warning lights on the dashboard, or the vehicle failing to maintain its proper ride height.

How often should I drain the air tank?

The frequency depends on humidity levels and usage, but as a general rule, it should be done during every second-level maintenance interval (6,000-8,000 km) or at least quarterly. In very humid climates or for vehicles with high air consumption, more frequent drainage might be necessary to prevent water accumulation.

Is air suspension more expensive to maintain?

While the initial repair costs for major air suspension components (like a compressor or airbag) can be higher than for traditional suspension parts, diligent preventive maintenance can significantly reduce the overall lifetime cost. By addressing minor issues early and extending component lifespan, you avoid costly emergency repairs and minimise vehicle downtime, making it a cost-effective choice in the long run.

Conclusion

The correct use, consistent inspection, and timely maintenance of your air suspension system are not merely recommendations; they are fundamental practices that directly contribute to the longevity, reliability, and safe operation of your vehicle. By adhering to a structured maintenance schedule and understanding the critical role each component plays, you can significantly reduce the likelihood of costly failures, extend the service life of expensive parts, and ensure that your vehicle consistently delivers the comfortable, stable, and efficient performance it was designed for. Prioritising air suspension care is a smart investment in your vehicle's future.
