Mastering Brake Pad Maintenance: The Right Grit

Brakes are arguably the most critical safety system in any vehicle, from your daily commuter car to your high-performance mountain bike. When they're not performing optimally, it's not just an inconvenience; it's a significant safety concern. One common issue that can degrade braking efficiency is when brake pads and rotors become 'glazed' or contaminated. But what exactly does this mean, and how can you fix it? This comprehensive guide will delve into the nuances of brake pad maintenance, focusing on the often-misunderstood art of sanding and proper cleaning techniques to restore your stopping power.

Understanding Brake Pad Glazing and Contamination

Over time, brake pads and rotors can develop a smooth, hardened, and often shiny surface, a phenomenon known as glazing. This occurs due to excessive heat build-up during braking, which can cause the friction material on the pads to crystallise. When you run your finger over a glazed pad, it will feel noticeably smooth, lacking the slightly rough texture needed for effective friction. A shiny or crystallised look to the brake pad is a clear indication that it has glazed over, leading to reduced braking performance and often accompanied by unwelcome noise.

Beyond glazing, brake components can also suffer from contamination. This happens when foreign substances like oil, grease, or brake fluid come into contact with the porous friction material of the pads or the surface of the rotors. While brake pad contamination is usually invisible to the naked eye, its effects are immediately apparent: a significant reduction in braking power, inconsistent feel, and often, persistent squealing or grinding noises. If you've ridden through oil or had a fluid leak near your brakes, chances are your pads are contaminated.

The Science of Sandpaper Grit

Before we dive into the 'how-to' of sanding, it's crucial to understand what sandpaper grit numbers signify. The grit of sandpaper refers to the size of the abrasive particles embedded on its surface. It's a numerical rating: the higher the grit number, the finer the abrasive material, resulting in a smoother finish. Conversely, lower grit numbers indicate coarser abrasives that scrape off material much quicker. For instance, a #40-grit sandpaper is very coarse, designed for heavy material removal, whereas a #1,000-grit paper is extremely fine, used for delicate finishing work. Choosing the correct grit is paramount for effective and safe brake maintenance.

Sanding Brake Pads: The Right Grit and Technique

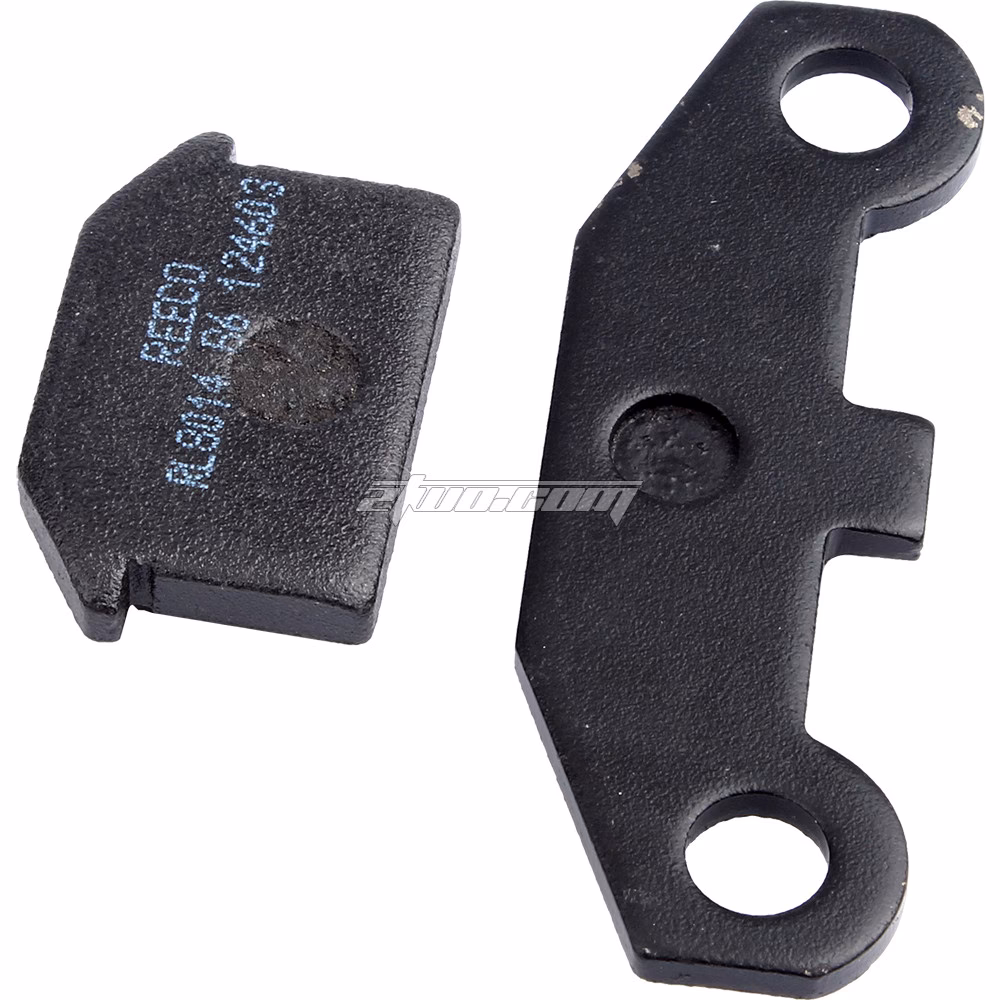

When brake pads are lightly glazed, a quick fix can often be achieved by carefully sanding them. This process aims to remove the glazed layer, exposing fresh, un-crystallised friction material beneath. However, precision and the right grit are key to avoiding damage and ensuring optimal performance.

Recommended Grit for Pads

For brake pads, you don't want too fine a grit. A grit of 120 or below will do the job well. This provides enough abrasive power to cut through the glazed layer without being so coarse that it excessively wears down the pad or creates an overly rough surface. The goal is to restore the original, slightly textured surface, not to re-shape the pad.

Technique for Sanding Pads

• Removal: First, safely remove the brake pads from the caliper.
• Preparation: Find a clean, flat surface. Lay a piece of your chosen sandpaper (120 grit or below) flat.
• Sanding: Lightly rub the friction surface of the brake pad across the sandpaper. Use gentle, even pressure. The aim is to remove only the glazed, shiny layer. You'll likely see a small amount of dust, which indicates the glazed material is coming off.
• Duration: This process typically takes very little time, perhaps only 20 seconds per pad. The key is not to over-sand, as this will prematurely wear out your pads.
• Cleaning: After sanding, blow off any sanding residue. An air hose works well for this.

It's important to note that sanding is suitable for lightly glazed pads. If the pads have been severely overheated, are deeply contaminated, or show signs of significant crystallisation that light sanding won't remove, they should be replaced. You should never sand or modify brake pads in an attempt to fix severe damage, as this can compromise their structural integrity and braking effectiveness.

Addressing Your Rotors: To Sand or Not to Sand?

Just like pads, brake rotors can accumulate material build-up from the pads, affecting braking performance. While you cannot hand-sand a rotor to 'resurface' it with the precision of a machine, you can clean its surface to remove old material build-up and light glazing.

Recommended Grit for Rotors

A rotor surface may need to be cleaned with 120 grit sandpaper to remove old material build-up. This grit is effective for getting the surface clean and free of excess material. Some enthusiasts have also found success using finer grits like 320 for a very thorough clean, especially before a new bedding-in procedure. The principle remains the same: remove surface contaminants and build-up, not to re-machine the rotor's thickness or flatness.

Technique for Sanding Rotors

• Removal: For best results, remove the rotor from the wheel.
• Flatness: Use a sanding block, ideally a hardwood sanding block, to keep the sandpaper flat against the rotor surface. This helps ensure even material removal across the rotor's face.
• Even Sanding: Sand both sides of the rotor evenly. If the rotor is still mounted on the wheel, rotate the wheel slowly as you sand to ensure uniform coverage.
• Cleaning: After sanding, thoroughly clean the rotor to remove any sanding dust and debris.

Remember, hand sanding is not a substitute for professional rotor resurfacing (machining) if your rotors are warped, deeply scored, or severely worn. It's a maintenance step for cleaning the friction surface.

Cleaning Contaminated Brake Components: Beyond Sanding

Sanding addresses glazing and material build-up, but for genuine contamination, a cleaning agent is often necessary. Regular cleaning of your entire brake system is vital for longevity and performance.

Recommended Cleaners

• Isopropyl Alcohol: Also known as rubbing alcohol, this is an excellent choice for cleaning brake pads and rotors. It evaporates quickly and leaves no residue, effectively dissolving oils and contaminants.
• Disc Brake Cleaner: Specially formulated brake cleaners are highly effective at dissolving grease, oil, and other contaminants from brake linings, shoes, drums, rotors, caliper units, and pads. They are designed to be safe for brake components.

Cleaning Technique

Whether dealing with bike brakes or car brakes, the process is similar:

• Dab First: If there's visible oil or grease, first dab the surface of the pads with an absorbent paper towel to soak up as much as possible.
• Spray/Wipe: Spray the chosen cleaner directly onto the components (pads, rotors, calipers) or apply it to a clean rag/paper towel and wipe the surfaces thoroughly.
• Repeat: Repeat the cleaning process until no more residue comes off on the rag.
• Protect Surroundings: When using spray cleaners, it's a good idea to cover areas of the car that could be exposed to the cleaner before you apply it.

What to AVOID

• WD-40: Absolutely DO NOT use WD-40 on your brake components. It is an oil-based lubricant and will contaminate your brake pads, rendering them useless. If you've sprayed WD-40 on your pads, they are likely ruined and will need to be replaced.
• White Spirit: While white spirit might not cause immediate harm like WD-40, it's not ideal. Brake cleaner or isopropyl alcohol are far superior for removing contaminants without leaving residues that could affect braking. Factory brake discs often have a thin oil coating for rust prevention that needs to be removed; dedicated brake cleaner is best for this.
• Brake Fluid: If brake fluid leaks onto your pads, they are completely ruined. Brake fluid is highly corrosive and will impregnate the porous friction material, making the pads unsafe. They must be replaced immediately.

Even when replacing brake pads, it's crucial to clean the rotor, the brake caliper, springs, and spindle to maintain even wear and proper friction. Preventative maintenance will help prolong your brakes' life.

The Critical Bedding-In Procedure

Whether you've just installed new brake pads, sanded your old ones, or cleaned your rotors, the bedding-in procedure is arguably the most crucial step to ensure optimal braking performance and longevity. This process allows the brake pads to transfer a thin, even layer of friction material onto the rotor surface, creating a perfect interface for maximum stopping power and quiet operation.

Why Bedding-In is Essential

New or freshly prepared pads and rotors are not immediately ready to offer 100 percent of their potential braking efficiency. The bedding-in process cures the pad material and mates it precisely with the rotor, preventing issues like noise, vibration, and reduced stopping power down the line. It transitions the brakes from perhaps 25% effectiveness to full power within a short period.

The Bedding-In Process (Based on Expert Recommendations)

A highly effective bedding-in procedure involves a series of controlled stops:

1. Initial Gentle Stops: Start with several gentle stops from a moderate speed (e.g., 20-25 mph) to almost a complete halt, but without actually coming to a full stop. This allows the brakes to warm up gradually.
2. Progressive Harder Stops: Gradually increase your speed and the intensity of your braking. Perform approximately 10-20 firm stops from a higher speed (e.g., 30-40 mph) down to about 5 mph. Crucially, do not come to a complete stop during these passes. Keep moving to prevent the pad material from being deposited unevenly on the rotor, which can lead to vibrations.
3. Cool Down: After these passes, ride for a few minutes without using the brakes much to allow them to cool down. This helps to set the transferred material.
4. Observe: You might notice some squeaking at first, which should gradually diminish as the pads bed in. By the end of the process, your brakes should be quiet and offer full, consistent power.

The entire process might take around 5-10 minutes. The key is to avoid skidding or coming to a complete halt during the progressive stops, as this can unevenly deposit pad material and lead to judder.

When to Sand vs. When to Replace: A Quick Guide

Knowing when to attempt a repair versus when to simply replace components is crucial for both safety and cost-effectiveness.

Frequently Asked Questions (FAQs)

What does a glazed brake pad look like?

A glazed brake pad will appear smooth, shiny, or even crystallised on its friction surface. If you run your finger over it, it will feel slick rather than slightly rough.

Can I use WD-40 on my brakes?

Absolutely NOT. WD-40 is a lubricant and will contaminate your brake pads, rendering them useless and dangerous. If you've used it on your brakes, the pads must be replaced.

Does brake fluid ruin brake pads?

Yes, absolutely. Brake fluid is highly corrosive and will impregnate the porous material of your brake pads, destroying their friction capabilities. Pads contaminated with brake fluid must be replaced immediately.

Should brake pads be smooth?

No. While they should feel even, the friction surface of brake pads should have a slightly rough, textured feel for optimal grip. A smooth, shiny surface indicates glazing.

Do brake pads need cleaning even if I don't sand them?

Yes. Even if you're not sanding for glazing, cleaning the brake pads, rotors, caliper, springs, and spindle every time you replace the pads is crucial for maintaining even wear, proper function, and prolonging the life of your entire brake system.

Conclusion

Maintaining your vehicle's braking system doesn't always necessitate a trip to the mechanic or expensive replacements. Understanding the common issues of glazing and contamination, and knowing how to address them with the right tools and techniques, can significantly prolong the life and enhance the performance of your brakes. By using the appropriate sandpaper grit – typically 120 grit or below for pads and for cleaning rotor build-up – and employing effective cleaning agents like isopropyl alcohol or dedicated brake cleaner, you can often restore your braking power. Remember the critical importance of a proper bedding-in procedure after any maintenance involving pads or rotors. With a little care and attention, you can ensure your brakes remain responsive, quiet, and most importantly, safe, providing you with reliable stopping power on every journey.
