Mechanical Injection Idle Tuning

For enthusiasts of classic performance vehicles and hot rods, particularly those running mechanical fuel injection systems, achieving a smooth and consistent idle can sometimes feel like a dark art. While the raw power and visceral connection offered by these systems are undeniable, the fine-tuning process requires a methodical approach. A key tool in this process is the leakdown tester, often used in conjunction with a barrel valve to precisely set the idle mixture and butterfly valve gaps. This guide will demystify the process, explaining what RPM a fuel injection leakdown tester should use and how to effectively employ it for optimal results.

Understanding the Role of a Leakdown Tester

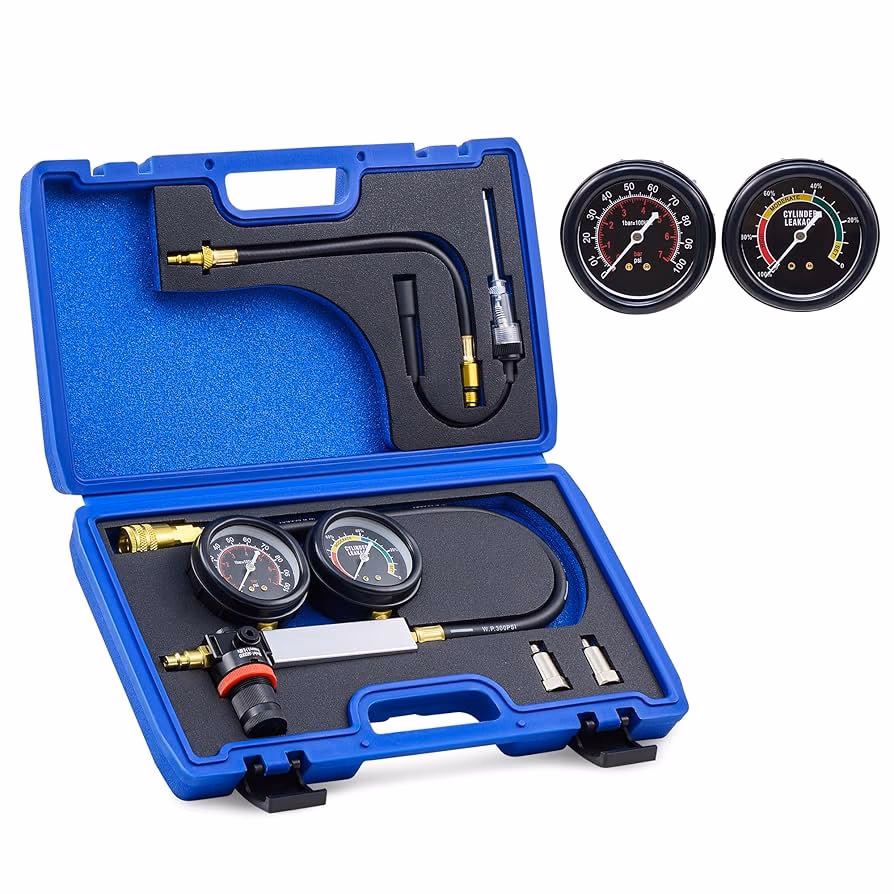

A fuel injection leakdown tester, when used for setting idle mixture in mechanical injection systems, operates on a simple principle. It introduces compressed air into the system and measures how much air escapes over a set period, indicating a percentage of 'leakdown'. This leakdown percentage is directly related to the richness or leanness of the fuel mixture at idle. A higher leakdown percentage generally indicates a leaner mixture, while a lower percentage suggests a richer mixture. The tester typically features two gauges: one to maintain a constant input pressure (usually 100 psi) and another to display the calculated leakdown percentage.

The Crucial RPM for Idle Mixture Setting

When setting the idle mixture using a leakdown tester, the engine needs to be running to achieve a stable baseline. The generally accepted target RPM for this procedure is around 1700-1800 RPM in park or neutral. This elevated RPM ensures that the engine is operating smoothly and consistently, allowing for accurate adjustments. It's important to note that once the engine is in gear, a vehicle equipped with a torque converter will typically see an RPM drop of 300-500 RPM. Therefore, aiming for that 1700-1800 RPM range in neutral is crucial for achieving a desirable in-gear idle, often falling between 1,000-1,100 RPM, with many users finding 1,300-1,400 RPM to be the sweet spot for best overall results.

Step-by-Step Idle Mixture Adjustment with a Leakdown Tester

Here’s a breakdown of the process, drawing from common practices for systems like those from Ron's Fuel Injection and Enderle:

Preparation is Key

1. Isolate the System: Begin by removing the return hose from the barrel valve outlet and capping off this fitting. Simultaneously, cap any other bypasses, such as those for high-speed or idle bypass circuits. This ensures that the air pressure from the leakdown tester is directed only where you intend it to be.
2. Set Throttle Body Blade Gaps: The initial throttle body blade gap is critical. For single throttle body applications, a good starting point is .012-.015 inches for a 'Flying Toilet' system and .008-.010 inches for a 'Terminator' system. If you have a dual throttle body setup, these gaps should be smaller: .006-.008 inches for 'Flying Toilets' and .004-.005 inches for 'Terminators'. Use a feeler gauge for precision.
3. Position Fuel Shutoff: Ensure the fuel shutoff lever is in the fully OFF position.

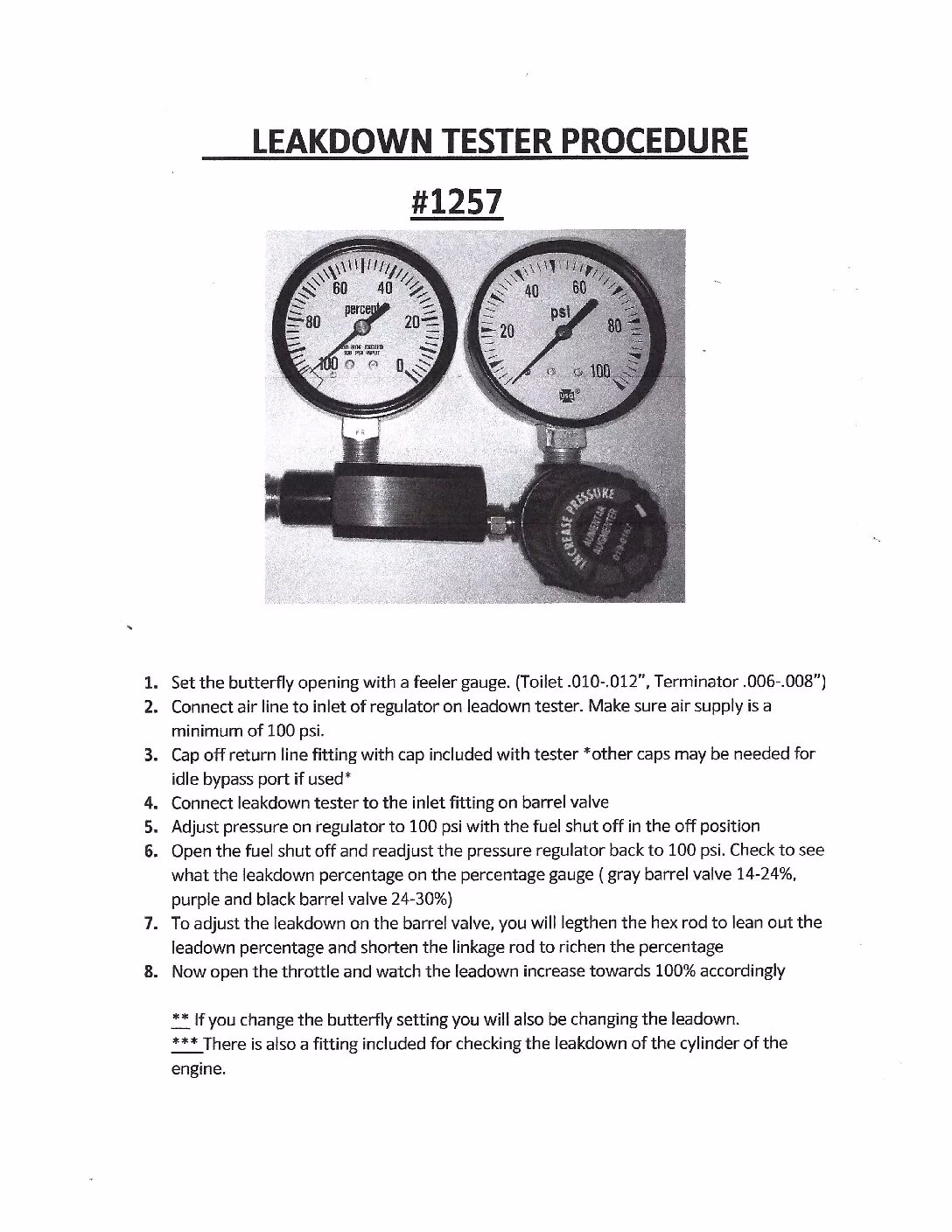

Connecting and Using the Leakdown Tester

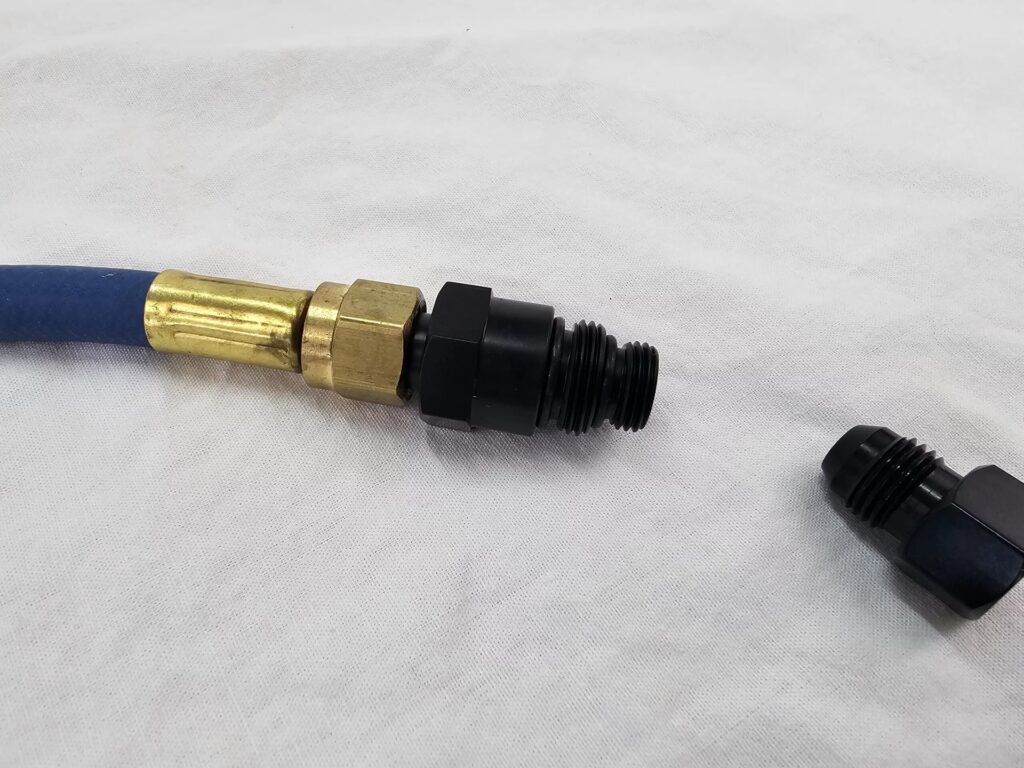

1. Connect the Tester: Remove the inlet hose from the fuel injection system and attach the hose from your leakdown tester to this inlet fitting.
2. Initial Air Supply Setup: Turn the regulator adjusting knob on the leakdown tester counter-clockwise until it stops. Then, connect your compressed air supply.
3. Establish Input Pressure: Open the fuel shutoff lever to the fully ON position. Now, carefully turn the regulator adjusting knob clockwise until the gauge on the left (the input pressure gauge) reads exactly 100 psi. This pressure must remain constant throughout the test.
4. Read the Leakdown Percentage: The gauge on the right will indicate the 'leakdown percentage'. For most systems, a starting point of 25% is recommended. This value signifies the air passage, and thus the mixture's richness.

Making Adjustments

1. Initial Engine Start: Remove the leakdown tester hose from the inlet fitting and reconnect all system hoses and caps. Start the engine. It should now idle and run cleanly without hesitation.
2. Fine-Tuning Blade Gaps: If the idle RPM is slightly low upon starting, open the throttle body blade gap very slightly. If the idle is too fast, close the blade gap marginally. These are minor adjustments, typically in the thousandths of an inch range.
3. Adjusting the Barrel Valve: If more significant adjustments to the blade gap are needed, or if the idle RPM is still not quite right, you may need to alter the leakdown percentage by adjusting the barrel valve. Lengthening the barrel valve turnbuckle (often referred to as screwing it out) will lean the mixture, which tends to raise the idle RPM. Shortening the turnbuckle (screwing it in) will richen the mixture and lower the idle RPM. Remember, only small changes are usually necessary.
4. Re-test and Record: Once you've made adjustments, it's good practice to repeat the leakdown procedure. Note the final blade gap settings and the barrel valve leakdown percentage for your records. This information is invaluable for future tuning and troubleshooting.

Important Considerations and Troubleshooting

Which RPM Should a Fuel Injection Leak Down Tester Use?

As detailed above, the crucial RPM to aim for when the engine is running and you are making adjustments with the leakdown tester is approximately 1700-1800 RPM in neutral or park. This provides a stable operating point for accurate tuning.

How Do You Test a Leakdown Valve?

To test a specific valve's opening pressure (cracking point), you can adapt the leakdown tester. Connect a hose to the tester that would normally go to the barrel valve, and then screw the valve you wish to test onto the end of that hose. Slowly increase pressure using the left gauge on the tester until the valve just begins to hiss or open. This pressure reading is the valve's cracking point. This is useful for ensuring your bypass and high-speed lean-out valves are functioning correctly.

How Do You Check If a Barrel Valve Is Leaking?

A barrel valve itself is not typically tested for 'leaking' in the same way a cylinder leakdown test is performed. Instead, its internal passages control the flow of fuel based on the position of its rotating spool. The leakdown tester is used to set the *idle mixture* controlled by the barrel valve's interaction with the throttle butterflies and internal bypasses. If you suspect a mechanical issue with the barrel valve itself (e.g., a sticking spool or damaged seals), a visual inspection and cleaning might be necessary. However, the leakdown tester's primary function here is calibration, not diagnosing internal barrel valve leaks.

What Pressure Should a Leakdown Tester Use?

For setting up mechanical fuel injection systems, the standard input pressure for the leakdown tester is 100 psi. This is critical because the leakdown percentage is calculated based on this constant input pressure. The left gauge on the tester is used to maintain this 100 psi throughout the adjustment process.

Quality Matters: Choosing the Right Tester

It's worth noting that not all leakdown testers are created equal. Some budget testers, particularly those not specifically designed for mechanical fuel injection tuning, may not provide accurate readings or maintain the necessary constant pressure. As mentioned in some user guides, testers not designed for this specific application (like those from Harbor Freight, which might only last a few uses) can lead to incorrect settings and costly mistakes. Investing in a quality tester from reputable manufacturers like Ron's Fuel Injection or Enderle (often sold through specialty suppliers like Alkydigger) is highly recommended for accurate and repeatable results.

Summary Table of Settings

Note: These are starting points. Final adjustments will depend on your specific engine combination, camshaft, and operating conditions.

Conclusion

Tuning a mechanical fuel injection system can be incredibly rewarding, providing a direct and powerful connection to your engine. By understanding the function of a leakdown tester and adhering to the recommended procedures, particularly the target RPM of 1700-1800 in neutral, you can achieve a precise and stable idle. Remember to make small, incremental adjustments to both the butterfly blade gaps and the barrel valve, re-checking your leakdown percentage and RPM after each change. Patience and a methodical approach are your best allies in mastering the art of mechanical fuel injection tuning.
