Guzzi Brembo Brakes: Reviving Your Stopping Power

For many a Guzzi owner, the arrival of spring often signals that it's 'dead brake time'. Since the 1970s, Moto Guzzis have been graced with truly exceptional braking systems, largely courtesy of Brembo. However, even the most robust components will eventually 'croak' from old age and a lack of proper care. If your brakes have become crusted up, this detailed guide aims to provide a helping hand. While this isn't the sole method for tackling brake maintenance, it outlines practices that have proven effective time and again.

What Exactly Is a Hydraulic Braking System?

At its core, a hydraulic braking system is remarkably straightforward. It begins with a piston, equipped with rubber rings, located within the master cylinder. When you apply the brake lever or pedal, this piston compresses brake fluid. This compressed fluid then travels through the brake lines, pushing out pistons, also running in rubber rings, within the slave cylinder located in the caliper. These caliper pistons, in turn, press the brake pad's friction material firmly against the rotor. Upon releasing pressure on the master cylinder's lever, the pistons retract, allowing the rotor to spin freely once more. Simple, isn't it?

Before You Begin: Preparation is Key

Cleanliness, as the saying goes, is next to Guzziness. It is absolutely paramount to establish a clean work area before commencing any brake work. Remember, every single component within the braking system must operate flawlessly for safety and performance. It's also highly advisable to gather all necessary replacement parts beforehand to avoid frustrating delays. Take a moment to inspect the entire system thoroughly before you delve into any disassembly.

Overhauling The Master Cylinder

Master cylinders often require rebuilding due to the ingress of dirt, contamination from old brake fluid, or simply a prolonged lack of use. Fortunately, this task is typically a 'piece of cake' for the competent DIY mechanic.

To begin, carefully remove the master cylinder from the motorcycle. Drain any remaining brake fluid. Next, detach the lever and inspect the piston assembly; some models feature a circlip that retains the piston, while others do not. If present, remove the circlip. Then, insert a slender drift – an old motorcycle spoke of the correct diameter often suffices, though Brembo offers a specialised tool – into the fluid's exit orifice (where the brake line connects). With a gentle but firm tap, 'smack' the piston out.

Donning a pair of rubber gloves, as brake cleaner is quite unpleasant, thoroughly flush out the master cylinder. Carefully examine the cylinder's bore for any scoring or pitting. If the bore appears smooth and undamaged, which is usually the case, allow it to dry completely. While some mechanics advocate for using a hone on the cylinder bore, many, including the author, have successfully rebuilt hundreds without one, suggesting it's not always necessary. Manuals often advise against using compressed air for drying, but many experienced mechanics use it with a drying chamber to eliminate moisture, so opinions vary.

When reassembling, lubricate the new piston seals generously with the supplied grease. Using your Brembo drift, or a suitable alternative like a deep socket (though this method is less common), gently tap the new piston into place. Most models utilise a brass collar to secure the piston, though some may also use a circlip. Reattach the lever, paying close attention to the lever adjustment.

Every master cylinder features a mechanism for adjusting the lever's free play. This might be an eccentric Allen bolt secured by a 6mm nylock nut, an Allen or flat-head screw integrated into the lever itself, or it could be controlled by one of those 'dippy' spring-loaded stoplight switches. Consult your owner's manual for the precise clearance required; for instance, a 1000SP specifies 0.05-0.15mm. This clearance is absolutely critical: insufficient space between the piston and lever will prevent the piston from drawing in a fresh supply of fluid. The consequence? No brakes, especially as the system heats up. This scenario could prove to be incredibly 'exciting' – and dangerous!

Once reassembled, pour in fresh brake fluid. Place your finger over the fluid exit orifice and pump the lever three times. The system should build pressure and squirt fluid like a garden hose. If so, you're off to a good start. Before moving on, inspect the condition of the bellows on the cap, the sealing integrity of the reservoir, and, if applicable, the 900 nipple. For remote reservoirs, check the condition of the connecting brake line. Replace any component that isn't absolutely perfect now; there's nothing more frustrating than having to retrace your steps later.

For the rear master cylinder, pay particular attention to the lever's return spring. This spring can fatigue over time and begin to act as a parking brake, a perplexing issue for those encountering it for the first time.

Interestingly, the older round-reservoir master cylinders often outperform later models, such as the 12mm trapezoid unit fitted to the front of the Le Mans IV, which is widely considered an especially forgettable design. However, it must be admitted that the round master cylinders aren't quite as stylish!

Stoplight Switches: Small but Significant

While Brembo employs a variety of stoplight switch designs, only the older hydraulic ones are generally considered worthwhile. They come in two primary lengths: 'Short,' which screws directly into a junction block, and 'Long,' featuring a shank lengthy enough to attach a brake line.

Should you need to replace one, place a wet rag beneath the faulty switch to catch any drips. Apply a little pressure to the brake lever, then carefully unscrew the old switch. Quickly screw the new switch, complete with new crush washers, most of the way in. Pull the lever in fully to push out any fluid, then fully tighten the new switch. Finally, pump the lever three or four times, using the stoplight switch as a temporary bleeder nipple. With a bit of luck, you'll avoid introducing air into the system. If not, refer to the 'Bleeding Dry Lines' section at the end of this article and start the bleeding process from the master cylinder, working your way downwards. Having a 'nubile assistant' for this task can certainly make it easier!

Proportioning Valves: More Than Meets The Eye

According to Greg Field's 'Guzzi Big Twins', valves that lack bleeder nipples aren't true proportioning valves; instead, they function merely as junction blocks with orifices of varying diameters. While there isn't widely available information on the internal workings of actual proportioning valves, the logical assumption is that they contain a ball and spring arrangement to regulate fluid pressure.

Given that brake fluid is hygroscopic – meaning it readily absorbs water from the air – severely neglected proportioning valves are prime candidates for replacement due to internal corrosion and rust. Such internal degradation can significantly impair their function.

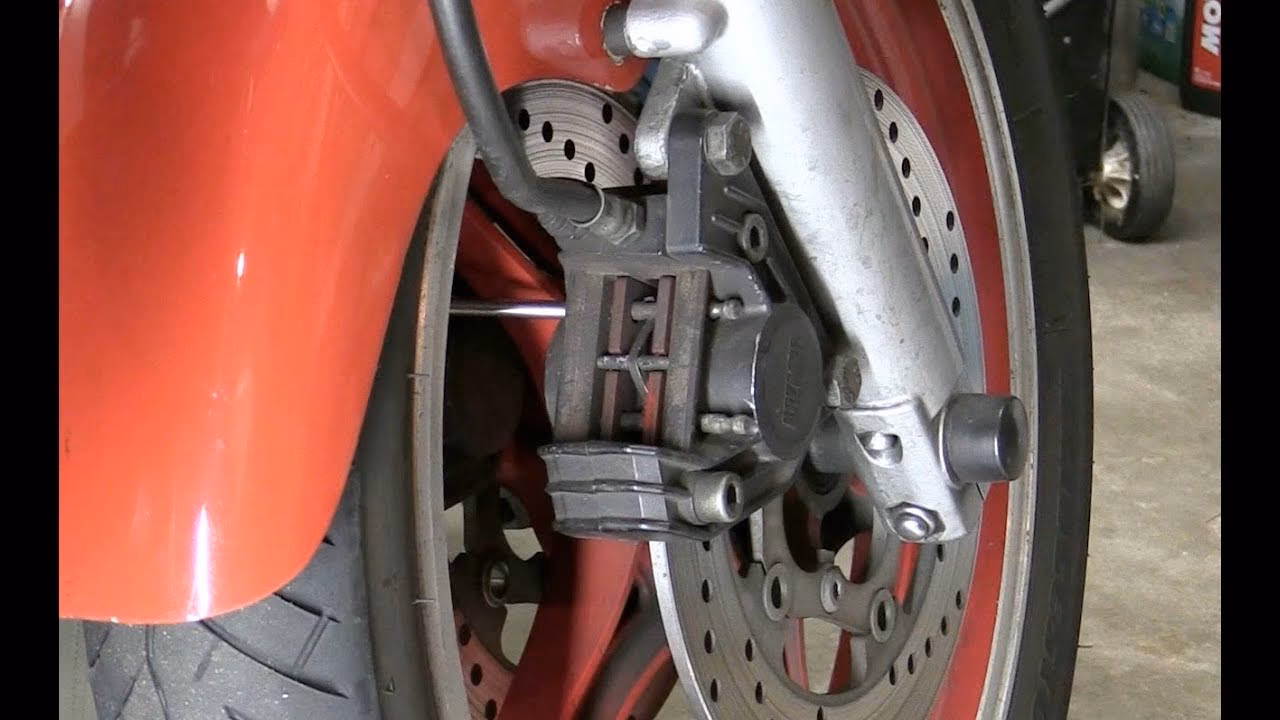

The Calipers: Ensuring Smooth Operation

It's not uncommon to discover peculiar inhabitants, such as mud wasps or old spider webs, nestled within calipers! One of the most crucial checks you should always perform is assessing the free and equal action of the caliper pistons. If they aren't both pushing out and retracting smoothly and simultaneously, they absolutely need to be disassembled and rebuilt. A sluggish piston will only cause endless frustration as your project nears completion.

Years ago, a gentleman wisely suggested removing the calipers from the forks annually and then pumping them until the pads closed up. This action helps to lubricate the pistons with a fresh supply of brake fluid. This sounds like an excellent preventative measure to incorporate into your regular maintenance routine.

To rebuild calipers, first loosen the two caliper half Allens while the calipers are still mounted on the forks. Use a 10mm Allen socket on a breaker bar for adequate leverage. Once loosened, remove the calipers from the forks, take out the brake pads, and drain the old fluid.

Early models of Guzzi calipers featured two bleeder nipples per caliper. Before attempting to loosen these, douse them liberally with WD40 or a similar penetrating oil. Place a brass drift on them and give them a good 'smack'. Carefully try to loosen them; if they resist, give the heads another firm smack. In the worst-case scenario, you might need to apply heat with a propane torch to encourage them to loosen.

Should you unfortunately shear one off, you'll need to mount the caliper in a drill press. Gradually increase the drill bit size until you can twist the remaining stub out with a screwdriver. If you happen to own a set of E-Z outs, now is the opportune moment to discard them, as their tensile strength is often compared to that of a carrot – a line stolen from the insightful Carrol Smith. Once the old nipples are finally out, install new ones, ensuring you apply antiseize compound.

With the bleeder nipple(s) securely in place and the pads removed, try blowing compressed air through the banjo bolt hole at around 35 PSI. With a bit of luck, the pistons will 'pop out' – though this is often wishful thinking.

If your calipers are pre-Le Mans III models, they are equipped with chrome-plated pistons. These are notoriously difficult to budge due to crusting onto the internal rubber seals within the piston bore. When faced with this stubbornness, separate the caliper halves, drain any remaining brake fluid, and remove both the rubber piston gaiters (the protective rubber seals) and the caliper half sealing O-ring. Then, place the caliper halves in an oven at 2500 degrees until they begin to smoke. The intent here is to soften the piston seals. Once softened, carefully use a pair of Vice Grips to grab hold of the piston's lip and twist them out. Remove the seals from the bore and allow the calipers to cool to room temperature.

Thoroughly clean the caliper halves with brake cleaner, gently removing all grease and crud deposits. Liberally apply assembly grease to the new seals and pistons before inserting them into their bores. Apply a small amount of grease to the O-ring that seals the two caliper halves to help keep it in place. Apply antiseize to the new Allen bolts and tighten them up. While Brembo typically 'goes berserk' when mechanics suggest this, a torque of 25 foot/pounds is a common, cautious approach.

Here's a crucial piece of information: some of the Allen bolts supplied with rebuild kits may not have sufficient thread on the shank. If, towards the end of your brake bleeding process, you notice a thin line of wetness where the caliper halves join at the front of the caliper when pressure is applied to the lever, you need to address this. Remove the bolts one at a time and either replace them with longer ones or add an extra thread or two using a die. Regardless of how tightly these bolts are fastened, if they lack sufficient thread, they won't fully pull the halves together. Without the halves being completely tightened, you will never be able to fully expel all the air from the system.

Brake Pads: The Friction You Need

Historically, Brembo brake pads had a regrettable habit of falling apart, with the friction material detaching from the backing plate and sticking to the disc. For reliable performance, Ferodo pads are widely considered the superior choice. When brake pad manufacturers ceased using asbestos and transitioned to sintered metal compounds, pads from other manufacturers were sometimes found to be overly effective, leading to rotor failure in severe applications, such as racing. While this issue has undoubtedly been rectified by now, many still prefer to stick with what they know works reliably.

If the brake pad pins show any signs of wear or questionable integrity, replace them without hesitation. A new set of pins could literally save your life.

Rotors: The Foundation of Stopping Power

Rotors come in several varieties: fixed, semi-floating, and full-floating; drilled and undrilled; and one-piece and two-piece designs. Guzzis have been fitted with all types, and the Brembo items have consistently been made from cast iron, as opposed to stainless steel. Cast iron is favoured for its superior braking power, although its tendency to rust can be unsightly and may contribute to a shortened lifespan for the calipers.

It's important to note that simply having Brembo calipers on your Guzzi does not automatically mean the rotors are also Brembo components. However, it's generally believed that all full-floating rotors fitted to Guzzis are indeed Brembo items.

Returning to cast iron for a moment, it's anticipated that Brembo will eventually transition away from it for production models, moving towards steel, which is already in use in their racing department.

Regardless of the manufacturer or rotor compound, always thoroughly check both the rotor thickness and its integrity (looking for any cracking) whenever you change brake pads. A broken rotor would undoubtedly lead to a truly nasty crash, likely occurring at the most inopportune moment. When installing rotors, always use a torque wrench, new 10.9 Grade bolts, Belleville or hardened washers, and a single drop of Loctite for security.

Crush Washers: The Small Sealers

Two main types of crush washers are commonly used: aluminium and copper. Many believe that copper washers provide a superior seal compared to aluminium, plus copper is generally inexpensive. If you find yourself short of new copper washers, you can reuse them by annealing them. This simple process involves heating them until they turn red, then allowing them to cool naturally. While using a new washer is always preferable, an annealed one will certainly suffice in a pinch.

Brake Fluid: The Elixir of Life

Brake fluid is truly the 'elixir of life' for your braking system. It not only serves to transmit hydraulic pressure, pushing the pistons out, but it also lubricates the pistons and seals. It feels rather nasty to the touch, too.

The cap on your master cylinder may specify 'USE ONLY DOT 3', '3-4', '4', or '5', depending on your motorcycle model. Be aware that a cap stating 'DOT 5' for Europe's DOT 5 is not the same as the synthetic DOT 5 commonly found in the US. In the US, the European DOT 5 would translate to DOT 5.1, which is typically a non-synthetic fluid available for around £20 per pint.

A critical warning from Brembo states that synthetic brake fluids can cause seals to swell. Furthermore, renowned motorcycle expert Kevin Cameron notes that silicone, often found in synthetic fluids, is not a very effective lubricant. If your pistons fail to retract properly due to swollen seals or poor lubrication, you risk either having no brakes at all or, conversely, locked brakes – either scenario invariably leads to a crash. This is one instance where it would be foolhardy to assume the manufacturer is mistaken.

DOT 3, 3-4, 4, and 5.1 are all non-synthetic brake fluids that are hygroscopic, meaning they readily absorb water from the air. Therefore, choose a day with relatively low humidity for brake fluid changes, otherwise you risk introducing pre-contaminated fluid into your system. This is precisely why you are always instructed to keep the cap securely on a fresh container of brake fluid.

Here's a quick comparison of brake fluid types:

Brake Lines: An Upgrade Worth Considering

If you're undertaking a 100% original restoration, you'll naturally want to retain the rubber brake lines. However, for everyone else, it's highly recommended to discard them and upgrade to steel braided lines. Over time, rubber lines will harden, deteriorate, and noticeably swell when pressure is applied to the lever. When yours start to go 'Wheeep-Wowww!', it’s time to chuck 'em. Some might quip, 'Who cares, they only slow me down, har, har,' but the improvement in brake feel and safety with steel lines is significant.

Banjo Bolts and Rigid Line Fittings

There are two primary styles of banjo bolts: the 'Short' one, used for connecting a single line, and the 'Long' one, designed for connecting two lines to a junction block. For both banjo bolts and rigid line fittings, applying a light coating of Loctite PST is always a good practice. This helps to prevent leaks and also protects the threads from corrosion. As with all Loctite products, use only a minimal amount – one full, light turn on the threads is sufficient. Applying too much risks blocking a fluid orifice, which would be counterproductive.

Brake Bleeding From Scratch: The 'Fun' Part!

This is often the part where you'd prefer someone else to do the job! Failing that, you'll need to tackle it yourself. There are numerous methods for bleeding brakes, including pressurised master cylinder caps, pumps that draw air through the bleeder nipples, and syringes that push fluid up through the nipples. For what it's worth, the slow and somewhat messy manual method often proves most effective.

Before you begin, ensure your master cylinder(s) and caliper(s) have been thoroughly checked and are functioning correctly. Confirm that all brake lines are in good condition. Arm yourself with a gallon of cheap 'sacrificial' fluid and a few pints of the 'real' fluid you intend to use. Remove any bodywork that obstructs access. Position the calipers as high as possible, with the pads in place and the bleeder nipples pointing upwards. Have a supply of wet rags ready, lines hooked up to the bleeder nipples with box wrenches attached, and a container with a little fluid in it to collect the expelled fluid. Now, it's time to start.

Bleeding The Front, Dry Lines

The trick here is to begin at the master cylinder and systematically use every junction point as a temporary bleeder nipple. Place a wet rag underneath the master cylinder's junction bolt. Pump the brake lever slowly a few times to build some initial pressure. Then, apply firm pressure to the lever, open the junction bolt slightly with a 14mm box end wrench, and press the lever through its full stroke. While keeping the lever held in, tighten the connection back up. Repeat this process four or five times until only pure fluid, free of air bubbles, emerges from the junction. Once clear, move on to the next brake line junction, repeating the process until you've reached the caliper.

Once you've used the caliper junction as a bleeder nipple and confirmed it's clear, you can then use the dedicated bleeder nipples on the caliper itself. If all components are in good order and your technique is correct, you'll quickly be pumping nothing but fluid through the system. If your Guzzi has two front discs operating off the same master cylinder, once one caliper is bled, go back up to the junction block and bleed any remaining air from that connection. Then, bleed the other caliper. When both calipers are clear, return to the first caliper's bleeder nipples and bleed them again. If only fluid comes out, proceed to the other caliper's nipples and bleed them once more. At this point, the pads should be closed up, and the lever feel should be firm. If not, return to the master cylinder and start the entire process over. If the lever feels firm, you can then move on to the rear master cylinder.

Bleeding the Rear, Dry Lines (Integrated Brakes)

For integrated braking systems, you can fashion a suitable tool to bleed the brakes by yourself. A long 'monster' box end wrench can work, or even a sufficiently long forked stick. The bleeding method for integrated brakes is the same as the front: treat every connection as a bleeder nipple. However, for integrated systems, your priority is to get the air out of the rear caliper first. Once the rear caliper is free of air, work your way up to the front caliper. After the front is clear, go back to re-bleed the rear at its bleeder nipples, then re-bleed the front at its bleeder nipples. You're almost done! Yay!

Now, break out the good quality fluid (many mechanics recommend Castrol LMA4) and pump out all the cheap 'junk' fluid you used for the initial bleed. Dispose of it properly; do not even consider reusing brake fluid, as it becomes oxygenated from being squirted through all those tiny orifices. If you reuse it, you'll be wondering, 'Gee, I don't understand why they feel so spongy...' Plan on using approximately two pints of the good stuff for all three calipers.

Finally, you can take the calipers down and gently pry the pads apart using a clean screwdriver or similar tool. This action, of course, will push fluid back into the reservoir, so be prepared for a small mess. This can also help to expel any last stubborn pockets of air that have been driving you mad. Reinstall the calipers, pump the levers a few times, check the fluid levels, and you're done until the next maintenance interval.

'WHADDAYAMEAN!?' – Troubleshooting a Spongy Lever

So, you've followed every step correctly, yet the lever still doesn't feel firm. This common frustration can stem from several issues: something might have been missed during the rebuilding process, air could be trapped somewhere in the system, a loose connection might be allowing air to re-enter, or the culprit could even be the lever itself.

Sometimes, an elusive air pocket gets trapped. In such cases, take a rubber mallet and gently 'bonk' everything a few times – the master cylinder, the junction block, the calipers, and even yourself! This gentle percussion can often help dislodge the stubborn air. A short spin on the bike can also achieve the same effect, as the vibrations and movement help to move air bubbles.

If your bike features a remote reservoir, try holding it below the master cylinder and then bleeding the system at the master cylinder. The air, being lighter, will rise into the master cylinder, allowing you to pump it out effectively.

Often, the lever itself can be the unexpected culprit. For example, the author once owned a Le Mans IV where the contact patch on the front brake lever had worn down so significantly that it simply couldn't push the piston far enough into the master cylinder. Once the lever's contact area was built up slightly, the brake feel became perfect. While you certainly want sufficient clearance between the piston and lever, more is definitely not better. Always use a feeler gauge to ensure the precise clearance specified in your manual.

Brake work can be incredibly aggravating at times. If things aren't going right, the best advice is to clean up your mess, clean yourself up, and return to the task the following day. Your bike isn't going anywhere, and you'll approach the problem with a clearer, more positive frame of mind.

Regular Maintenance: Your Brakes' Best Friend

Ideally, you should aim to bleed your brakes twice a year. Annually is generally considered adequate, but 18 months should be the absolute maximum period you allow this vital maintenance to slide. Extend this period further, and you'll likely find yourself metaphorically 'swimming in a sea of brake fluid' with it running up your nose – or, more literally, dealing with a severely compromised and dangerous braking system. By pumping fresh fluid through the bleeder nipples every spring and again before you put the bike away for the winter, precisely as your owner's manual suggests, your Brembo brakes will provide years of reliable, powerful service.

Frequently Asked Questions (FAQs)

Q: Why do my Guzzi's brakes feel spongy even after bleeding?
A: A spongy feel often indicates trapped air in the system, a loose connection allowing air ingress, a worn brake lever not fully engaging the master cylinder piston, or an issue within the master cylinder or caliper rebuild. Try tapping components gently with a rubber mallet, checking all connections, or inspecting the lever for wear.

Q: Can I reuse old brake fluid?
A: Absolutely not. Brake fluid becomes oxygenated and potentially contaminated once it's been circulated through the system and exposed to air. Always use fresh, sealed brake fluid for refills and bleeding.

Q: How often should I bleed my Guzzi's brakes?
A: Ideally, twice a year. Annually is acceptable, but never exceed 18 months. Regular bleeding ensures fresh fluid and removes absorbed moisture, maintaining optimal performance and longevity.

Q: My caliper pistons are stuck. How can I free them?
A: For stubborn pistons, particularly chrome-plated ones found in pre-Le Mans III calipers, you may need to separate the caliper halves, remove seals, and gently heat the caliper in an oven (as described in the article, at 2500 degrees) to soften the seals before attempting to twist the pistons out with Vice Grips. Always clean thoroughly afterwards.

Q: Is it important to use a torque wrench when reinstalling brake components?
A: Yes, it is critically important. Using a torque wrench ensures proper tightening of bolts, preventing both over-tightening (which can damage components) and under-tightening (which can lead to leaks or component failure). Always use new bolts and washers as specified.
