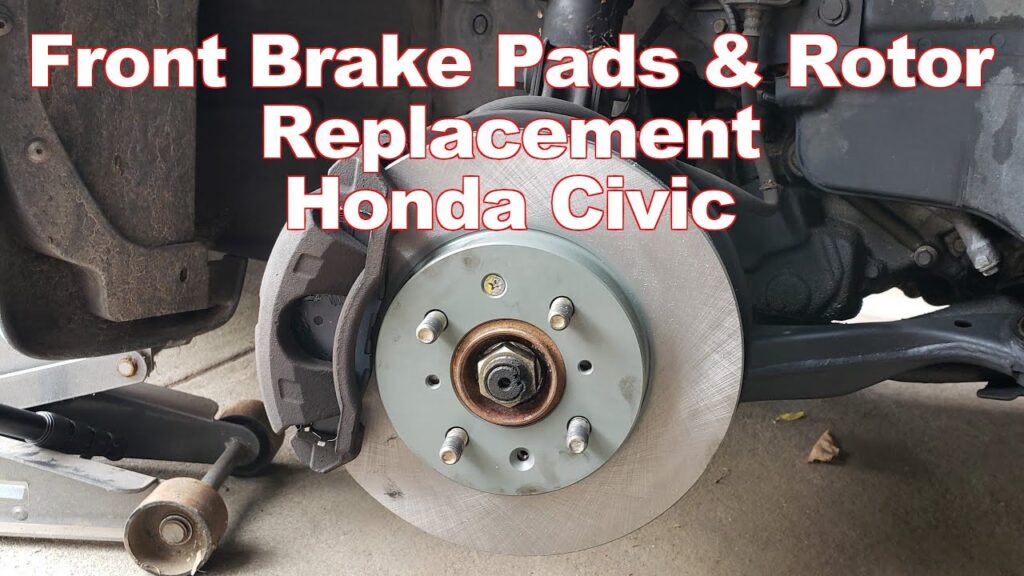

Honda Civic Brake Pad Replacement Guide

While the question of whether Honda Civics possess brake pads might seem elementary, it touches upon a crucial aspect of vehicle safety and performance. The straightforward answer is a resounding yes. Every Honda Civic, like virtually all modern passenger vehicles, is equipped with brake pads. These vital components are the friction material that, when pressed against the brake discs (rotors), generate the force needed to slow down and stop your car. Without them, effective braking would be impossible.

This article delves into the intricacies of a common maintenance task: the replacement of front brake pads and discs on a Honda Civic. Drawing from a user's experience, we'll outline the process, highlight important considerations, and offer advice to ensure a successful outcome. Whether you're a seasoned DIY mechanic or a curious owner wanting to understand the process, this guide aims to provide clarity and confidence.

Understanding Your Braking System

Before we dive into the replacement procedure, it's beneficial to understand the basic function of your Civic's braking system. When you press the brake pedal, hydraulic fluid is pushed through the brake lines to the brake caliper. The caliper houses one or more pistons, which are forced outwards, clamping down on the brake pads. These pads, in turn, press against the brake disc (rotor) that rotates with the wheel. The resulting friction converts the kinetic energy of the moving vehicle into heat, slowing the car down. Over time, the friction material on the brake pads wears away, necessitating their replacement. Similarly, the brake discs can also wear down or become damaged, requiring replacement as well.

When to Replace Brake Pads and Discs

Several indicators suggest it's time to consider replacing your Honda Civic's brake pads and discs:

• Squealing or Grinding Noises: Many brake pads have a small metal indicator that makes a high-pitched squeal when the pads are worn down to a certain point. A grinding noise usually indicates the pads have worn down completely, and the metal backing plate is grinding against the disc, which is a more serious issue and requires immediate attention to prevent further damage.
• Reduced Braking Performance: If you notice that your car takes longer to stop, or the brake pedal feels softer or goes lower towards the floor, it could be a sign of worn brake pads or a problem with the hydraulic system.
• Vibration or Pulsation: If you feel a vibration or pulsation in the brake pedal or steering wheel when you apply the brakes, it often indicates that the brake discs are warped or unevenly worn.
• Visual Inspection: You can often visually inspect the brake pads through the spokes of your wheels. Look for the thickness of the friction material. If it's less than about 3mm (1/8 inch), it's generally time for replacement. You can also inspect the discs for deep grooves, scoring, or a noticeable lip on the outer edge, which indicates wear.

Tools and Materials You'll Need

The provided guide suggests the following:

• New Front Discs (Rotors): ATD drilled and vented sport discs are mentioned, but standard replacements are also suitable.
• New Front Brake Pads: EBC Greenstuff Brake Pads are specified, but again, standard replacements work.
• Jack and Jack Stands: For safely lifting and supporting the vehicle.
• Lug Wrench: To remove and install the wheel nuts.
• Socket Set and Wrenches: Various sizes will be needed for caliper bolts, bracket bolts, and disc screws.
• Torque Wrench: Essential for tightening bolts to the correct specifications, crucial for safety.
• Brake Caliper Piston Compressor Tool: To push the caliper piston back into its housing.
• Wire Brush: For cleaning hubs and caliper components.
• Copper Grease (Anti-Seize Compound): For lubricating contact points and preventing seizing.
• Gloves and Safety Glasses: For personal protection.
• Rope or Wire: To hang the caliper out of the way.
• Hammer: For gently persuading stubborn discs.
• Brake Cleaner: To clean components.

Step-by-Step Replacement Process

Let's break down the process based on the provided instructions:

1. Preparation:

• Ensure the vehicle is parked on a level surface and the parking brake is engaged (unless you are working on the rear brakes, in which case it's often best to disengage it for easier manipulation, but for front brakes, it's generally fine to leave it on).
• Loosen the lug nuts on the front wheels before jacking up the car.
• Safely lift the front of the vehicle using a jack and support it securely on jack stands.
• Remove both front wheels.

2. Removing the Old Disc and Pads:

• Disc Screws: Locate and remove the two screws securing the brake disc to the hub. These can sometimes be tight and may require a firm tap on the screwdriver to loosen.
• Caliper Removal: You'll need to remove the brake caliper to access the pads and disc. First, remove the two caliper pin bolts. A wrench is needed to hold the caliper pin itself to prevent it from spinning while you undo the bolt. Be cautious not to damage the rubber boot covering the pin.
• Hose Mounting Bolt: Remove the brake hose mounting bolt. This secures the brake line to the caliper bracket.
• Piston Compression: With the caliper now loose and hanging, you'll need to retract the piston. Use a brake caliper piston compressor tool to carefully and slowly push the piston back into the caliper housing. This creates space for the new, thicker brake pads. Hang the caliper out of the way using rope or wire, ensuring it doesn't hang solely by the brake hose, as this can damage the line.
• Caliper Bracket Removal: The caliper bracket, which holds the caliper in place, needs to be removed next. Locate and remove the bracket mounting bolts. These are typically larger and tighter than the caliper pin bolts.
• Disc Removal: With the caliper and bracket removed, the old brake disc can be taken off. If it's stuck, a few gentle taps with a hammer around the edge might be necessary to break the corrosion bond.

3. Cleaning and Installation:

• Hub Cleaning: Thoroughly clean the front hub where the disc mounts. Use a wire brush to remove any rust, dirt, or old grease. Apply a thin layer of copper grease to the hub surface. This prevents corrosion and makes future disc removal easier.
• New Disc Installation: Fit the new brake disc onto the hub, ensuring it sits flush. Re-insert and tighten the two disc screws.
• Caliper Bracket Installation: Re-install the caliper bracket. Tighten the bracket mounting bolts to the specified torque. The guide mentions a maximum of 108 Nm, which is a crucial figure to adhere to for safety. Always consult your Civic's service manual for the exact torque specification.
• Brake Pad Preparation: Take the new brake pads. Apply a thin coat of copper grease to the edges of the pads where they will slide within the caliper bracket and to the flat side of the outer pad where it contacts the caliper piston. Also, clean the piston shim (if applicable) and apply a thin coat of copper grease to it before placing it in the caliper body. This lubrication helps prevent squeaks and ensures smooth operation.
• Caliper Re-installation: Carefully slide the caliper back over the new brake pads and disc. Ensure the pads are seated correctly. Insert and tighten the caliper bolts to the specified torque. The guide suggests a maximum of 35 Nm.
• Hose Mounting Bolt: Re-install the brake hose mounting bolt and tighten it to the specified torque, again around 35 Nm.

4. Final Steps:

• Wheel Re-installation: Re-install the wheels and hand-tighten the lug nuts.
• Lower the Vehicle: Carefully lower the vehicle back to the ground.
• Tighten Lug Nuts: Fully tighten the lug nuts in a star pattern to ensure even pressure.
• Bedding In the Brakes: This is a critical step. Start the engine and pump the brake pedal several times until it feels firm. This ensures the brake fluid has pressurized the system and the caliper pistons are pushed fully against the new pads. Take the car for a short drive, applying the brakes gently a few times to allow the new pads and discs to settle. Crucially, avoid harsh braking for the first 125 miles (approximately 200 km) to allow the pads and discs to bed in properly. This process ensures optimal braking performance and longevity.

Important Considerations and Potential Pitfalls

• Torque Specifications: As highlighted, using a torque wrench and adhering to the manufacturer's specified torque values for all bolts (caliper bolts, bracket bolts, hose mounting bolts) is paramount for safety. Overtightening can strip threads or damage components, while undertightening can lead to parts loosening during operation.
• Caliper Piston Boot: Be extremely careful not to damage the rubber boot that seals the caliper piston. If this boot is torn, dirt and moisture can enter the caliper, leading to premature wear and potential failure.
• Brake Hose: Never let the caliper hang by the brake hose. Always use a rope or wire to support it. A damaged brake hose can lead to a complete loss of braking power.
• Component Compatibility: Ensure that the new discs and pads you purchase are specifically designed for your Honda Civic model and year.
• Brake Fluid: While not explicitly mentioned in the provided guide, it's good practice to check your brake fluid level and condition. If the fluid is old or low, consider flushing and replacing it.
• Left vs. Right: Brake pads and discs are often specific to the side of the car (driver's side vs. passenger's side). Ensure you have the correct parts for each side.
• ABS Sensors: Be mindful of any ABS sensors or wiring when working around the brake assembly. Avoid pulling or damaging them.

Frequently Asked Questions

Q1: How long should new brake pads and discs last?
A1: The lifespan of brake pads and discs can vary significantly depending on driving habits, road conditions, and the quality of the parts used. Typically, brake pads can last anywhere from 25,000 to 70,000 miles, while discs might last longer, often 50,000 to 100,000 miles, though they are usually replaced in pairs with the pads.

Q2: Can I just replace the brake pads and not the discs?
A2: You can, if the discs are still in good condition (not excessively worn, warped, or grooved). However, it's generally recommended to replace both pads and discs at the same time, especially if the discs show any signs of wear or damage. New pads on worn discs can lead to reduced braking performance and premature wear of the new pads.

Q3: What does "bedding in" the brakes mean?
A3: Bedding in is a process to properly mate the new brake pads to the brake discs. It involves a series of moderate to firm stops from moderate speeds, followed by a period of cooling. This transfers a thin, even layer of pad material onto the disc surface, ensuring optimal friction and preventing noise and premature wear. The guide's advice to avoid hard braking for the initial mileage is a simplified form of bedding in.

Q4: My new brakes are making a noise, what's wrong?
A4: Some noise, especially a slight squeal or light grinding during the bedding-in period, can be normal. However, persistent or loud noises could indicate improperly installed pads, insufficient lubrication on contact points, or a problem with the caliper or discs. Ensure all components were cleaned and lubricated correctly, and that all bolts are torqued to specification.

Q5: Do I need to bleed the brakes after replacing pads and discs?
A5: Typically, you do not need to bleed the brakes when simply replacing pads and discs, as long as the brake lines remain connected and no air is introduced into the system. However, if you had to disconnect a brake line or if the brake fluid level dropped significantly, bleeding the system might be necessary to ensure proper brake function.

Replacing your Honda Civic's front brake pads and discs is a manageable task for those with some mechanical aptitude and the right tools. By following these steps carefully and paying attention to critical details like torque specifications and component lubrication, you can ensure your Civic stops safely and effectively. Remember, if you're ever unsure about any part of the process, it's always best to consult a qualified mechanic.
