Shimano J05A Brake Pads Explained

Understanding Shimano J05A Resin Brake Pads

For cyclists who rely on their disc brakes for consistent and dependable stopping power, understanding the nuances of brake pads is crucial. Shimano, a titan in the cycling component industry, offers a wide array of brake pads, each designed for specific riding conditions and preferences. Among their popular offerings are the J05A resin brake pads. This article aims to demystify what makes these pads stand out, exploring their construction, advantages, and when they are the optimal choice for your bicycle.

What are Resin Brake Pads?

Before we dive into the specifics of the J05A, it's important to grasp the fundamental difference between resin and metallic (or sintered) brake pads. Resin pads, often referred to as organic pads, are constructed from a composite material that includes a blend of acrylic fibres, rubber, and a filler material, all bound together with a resin compound. This composition results in several key characteristics:

• Quieter Operation: Resin pads are generally much quieter than their metallic counterparts, producing less high-pitched squeal, especially in dry conditions.
• Better Modulation: They tend to offer a softer initial bite and a more progressive feel, allowing for finer control over braking power (modulation). This can be particularly beneficial for riders who prefer a more nuanced braking experience.
• Faster Bedding-In: Resin pads typically require a shorter bedding-in period, meaning they reach optimal performance more quickly after installation.
• Less Rotor Wear: The softer compound of resin pads is generally gentler on brake rotors, leading to less wear over time.
• Performance in Dry Conditions: They excel in dry and mild conditions, providing excellent stopping power.

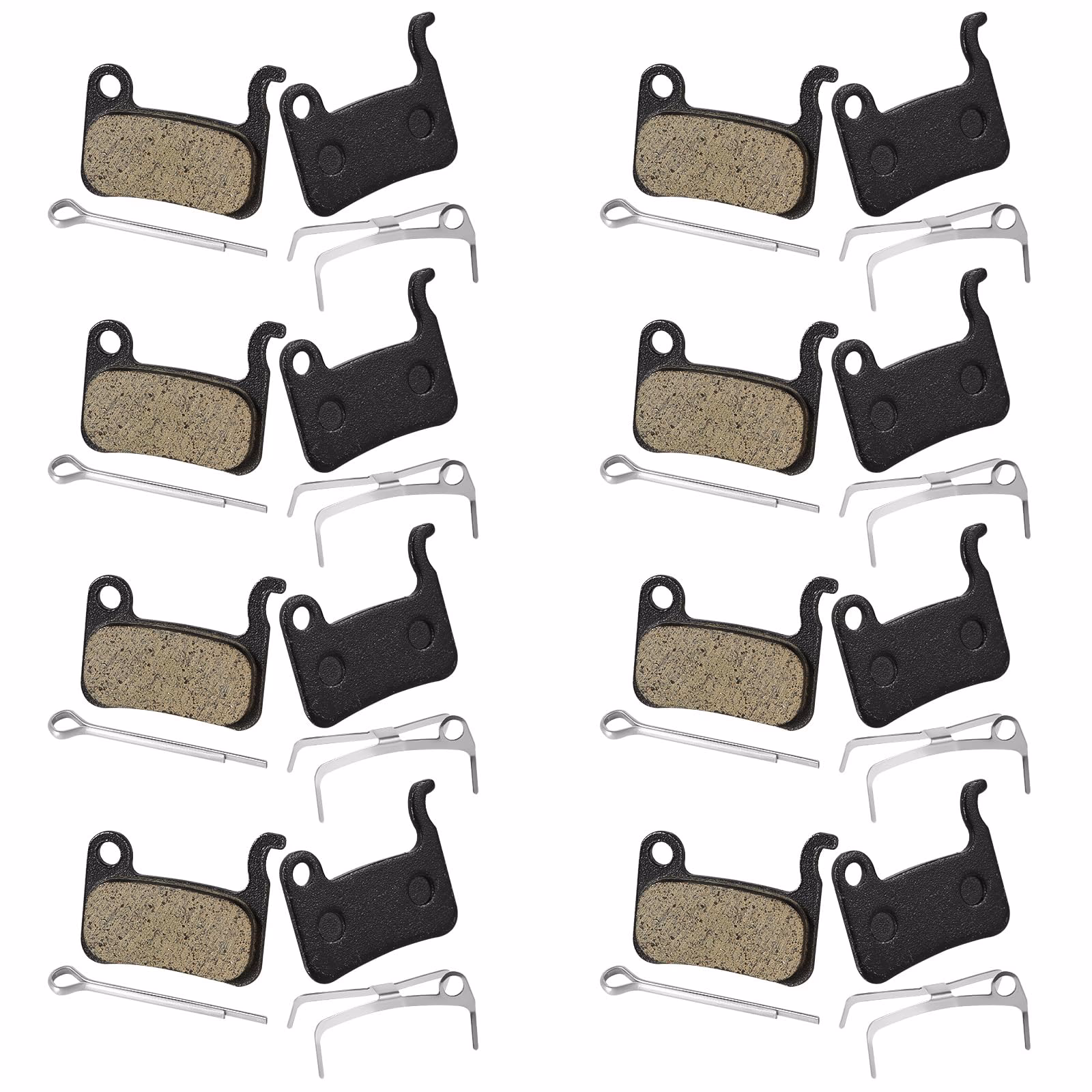

Introducing the Shimano J05A

The Shimano J05A brake pads are a specific iteration of Shimano's resin pad technology. They are designed as a direct replacement for a variety of Shimano hydraulic disc brake calipers, particularly those in their popular Deore, SLX, and even some XT and Ultegra groupsets. The "J" in the designation typically refers to Shimano's proprietary fitting system, meaning they are designed for specific Shimano brake calipers.

The J05A is an evolution of previous Shimano resin pad designs, such as the older J04C (which was a metallic pad) or the J03A (another resin compound). Shimano continuously refines its compounds to improve performance, durability, and user experience. The J05A is a testament to this ongoing development.

Key Features and Benefits of Shimano J05A Pads

The popularity of the Shimano J05A resin brake pads stems from a combination of factors that contribute to a superior braking experience:

• Optimised Resin Compound: Shimano has engineered a specific resin compound for the J05A that balances wear resistance with consistent stopping power. This compound is designed to provide reliable performance across a range of temperatures and conditions.
• Excellent Heat Dissipation: While resin pads generally manage heat less effectively than metallic pads, Shimano has incorporated features to mitigate this. The J05A pads are often paired with Shimano's Ice Technologies, which include cooling fins on the backing plate. These fins help to dissipate heat more effectively, reducing the risk of brake fade during long descents or demanding braking situations.
• Consistent Stopping Power: Despite being a resin pad, the J05A offers a surprisingly strong and predictable initial bite. This means you don't have to pull excessively hard on the brake lever to achieve significant stopping force.
• Reduced Noise: As with most resin pads, the J05A are exceptionally quiet. This is a significant advantage for riders who value a silent ride, especially in built-up areas or on scenic trails where the sound of your bike is part of the experience.
• Longer Pad Life (Compared to older resin types): While resin pads generally wear faster than metallic pads, Shimano has improved the durability of their resin compounds. The J05A offers a good balance, providing a respectable lifespan for many riders, especially when used in appropriate conditions.
• Compatibility: The J05A is compatible with a wide range of Shimano hydraulic disc brake calipers. It's always best to check your specific caliper model, but common fitments include:
  • BR-M9100
  • BR-M8100
  • BR-M7100
  • BR-M6100
  • BR-M9000
  • BR-M9020
  • BR-M8000
  • BR-M7000
  • BR-M6000
  • BR-RS785
  • BR-RS685
  • BR-R9170
  • BR-R8070
  • BR-R7070
  • BR-4770
  • BR-UR700
  • BR-M820
  • BR-M640

When to Choose Shimano J05A Resin Pads

Shimano J05A pads are an excellent choice for a variety of cycling disciplines and rider preferences:

• Everyday Riding and Commuting: For cyclists who use their bikes for commuting or general recreational riding, the quiet operation and excellent modulation of the J05A offer a comfortable and reliable braking experience.
• Trail Riding in Dry Conditions: On dry trails, the J05A provides ample stopping power and excellent control, making it ideal for cross-country and light trail riding.
• Road Cycling: For road cyclists who prefer the feel and quietness of resin pads, the J05A is a superb option, offering consistent performance in good weather.
• Riders Sensitive to Noise: If brake squeal is a major annoyance for you, the J05A pads are a definite step up from many other pad types.
• When Replacing Older Resin Pads: If you currently have older Shimano resin pads or generic resin pads and are looking for an upgrade in terms of performance and heat management, the J05A is a strong contender.

When Might You Consider Other Options?

While the J05A pads are excellent, there are situations where other types of brake pads might be more suitable:

• Extreme Wet or Muddy Conditions: In consistently wet or very muddy environments, metallic brake pads often offer more consistent performance and are less prone to contamination that can reduce braking effectiveness.
• Long, Steep Descents in Hot Climates: For prolonged downhill braking in very hot conditions, metallic pads, especially those with advanced cooling technologies like Shimano's own metallic options (e.g., N03A, N04A, N05A), tend to resist heat fade better.
• Maximum Durability: If your priority is the absolute longest pad life, and you ride in conditions that favour them, metallic pads generally last longer than resin pads.

Pad Comparison: Resin vs. Metallic

To further illustrate the differences, here's a simplified comparison:

Installation and Bedding-In

Installing new brake pads is a fundamental maintenance task. For the Shimano J05A, the process is generally straightforward, assuming you have basic bicycle maintenance tools:

1. Remove the Wheel: First, detach the wheel that houses the brake caliper.
2. Remove the Old Pads: Depending on your caliper model, you might need to remove a retaining pin or clip. Once free, the old pads should slide out.
3. Clean the Caliper: It's a good idea to clean any debris or old pad material from inside the caliper.
4. Install New Pads: Insert the new J05A pads, ensuring they are oriented correctly. Secure them with the retaining pin or clip.
5. Bed-In the Pads: This is a crucial step for optimal performance. Find a safe, open area. Spin the wheel and apply the brake firmly, but not to the point of locking up the wheel. Repeat this process 10-20 times. Then, do a few harder, faster stops from a moderate speed, again without locking the wheel. This process transfers a thin layer of pad material to the rotor, ensuring consistent and powerful braking.

Frequently Asked Questions

Q1: Are Shimano J05A pads compatible with all Shimano disc brakes?
No, while they fit many popular Shimano calipers, it's essential to check your specific caliper model. The "J" designation indicates a specific fitting. If your current pads are "J" type, the J05A is likely compatible.

Q2: How long do Shimano J05A pads typically last?
Lifespan varies greatly depending on riding style, terrain, weather conditions, and rotor condition. However, for average use in dry to mixed conditions, you can expect a reasonable lifespan, often outperforming older generations of resin pads.

Q3: Can I mix resin and metallic pads?
It's not recommended to mix pad types within the same caliper or even on the same bike, as it can lead to inconsistent braking and unpredictable performance.

Q4: Do J05A pads come with cooling fins?
Many J05A pads are supplied with or are compatible with Shimano's Ice Technologies cooling fins, which are often integrated into the backing plate or are a separate component you can add if your caliper supports it.

Q5: What's the difference between J05A and J04A?
The J04A was a metallic (sintered) pad. The J05A is a resin (organic) pad, offering a different feel, noise profile, and performance characteristics, particularly in terms of modulation and quietness.

Conclusion

The Shimano J05A resin brake pads represent a refined and highly effective braking solution for a wide range of cyclists. Their quiet operation, excellent modulation, and reliable stopping power in dry and mixed conditions make them a popular choice. By understanding their composition and benefits, and by comparing them to other options, you can make an informed decision about whether the J05A pads are the right fit for your riding needs. Remember to always check compatibility with your existing brake system and to properly bed-in your new pads for optimal performance and safety on every ride.
