Skoda Yeti Rear Disc Removal Guide

Changing Your Skoda Yeti's Rear Brake Discs: A Comprehensive Guide

The task of replacing worn-out rear brake discs on a Skoda Yeti, while achievable for the home mechanic, can present a few unique challenges. Unlike many vehicles where disc removal is a straightforward affair, the Yeti, particularly models from certain eras, can make accessing and removing the discs a bit more involved. This guide aims to demystify the process, drawing on practical advice and user experiences to help you navigate the job with confidence. We'll cover the potential hurdles, the tools you might need, and a common-sense approach to getting the job done, potentially saving you a trip to the garage.

Understanding the Rear Brake Assembly

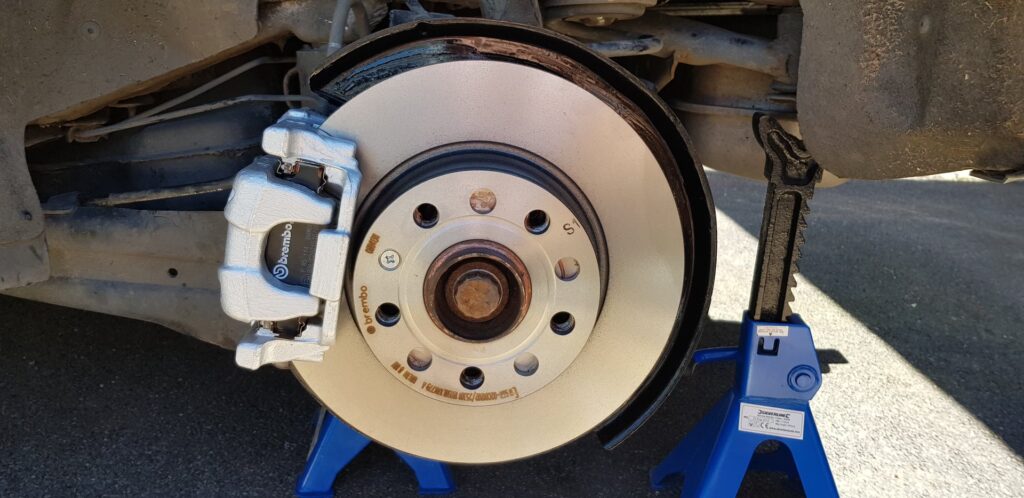

Before diving in, it's crucial to understand the components you'll be working with. The rear brake system on a Skoda Yeti typically consists of the brake caliper, the caliper bracket (also known as the pad carrier), the brake pads, and the brake disc itself, which is mounted to the hub. The caliper houses the piston that pushes the pads against the disc to slow the vehicle. The caliper bracket, a more substantial piece of metal, holds the caliper in place and often has a significant torque setting on its mounting bolts. Access to these components can be hindered by the suspension, driveshafts, and other surrounding parts, making the job more complex than it initially appears.

The Dreaded Caliper Bracket Bolts

One of the primary obstacles often encountered when changing rear discs on a Yeti are the caliper bracket or pad carrier mounting bolts. These are not your average bolts. Reports suggest that on some Yeti models, these bolts are torqued to a substantial 120-140 ft-lbs (or 90Nm plus an additional 90 degrees). This is a considerable amount of force, often exceeding the capacity of standard torque wrenches found in a typical home toolkit.

Furthermore, the specific bolt head requires a specialised tool: an M14, 12-spline, 1/2” drive socket. This isn't a common size, so you'll likely need to acquire one specifically for the job. Access to these bolts is another significant hurdle. The close proximity of suspension components, dampers, and driveshafts makes it incredibly difficult to get a standard socket and ratchet onto the bolt head. You'll likely need a long extension bar and potentially a universal joint. Be warned, however, that using a universal joint in such a high-torque application can put significant stress on the joint, and there's a risk of it failing.

A Simpler Approach: Avoiding Bracket Bolt Removal

Fortunately, not all hope is lost! For many Yeti owners, there's a potential workaround that can save a considerable amount of time, effort, and the need for specialised, high-torque tools. This method, popularised by forum users like "The Plumber," involves a clever manipulation of the disc removal process that bypasses the need to unbolt the caliper bracket entirely. This is particularly relevant for older 2WD Yeti models, which, according to some reports, share the same rear suspension setup as 4WD versions of the same era. (Note: Younger 2WD models may feature different, lighter rear suspension components, potentially altering this method's applicability).

The "In-Situ" Disc Removal Method

The core of this method relies on having enough clearance to slide the brake disc off the hub at an angle, rather than pulling it off squarely. Here's a breakdown of the steps:

1. Remove the Brake Pads: With the caliper bracket still attached, the first step is to remove the brake pads.
2. Suspend the Caliper: Once the pads are out, you'll need to remove the caliper itself. This is typically achieved by undoing the caliper guide bolts. These are usually much more manageable, often torqued to a modest 35Nm, and can be easily handled with a standard ratchet. Once removed, suspend the caliper out of the way. A simple "meat hook" or sturdy wire is often used, hanging it from the top of the rear spring.
3. Loosen the Disc: With the caliper out of the way, you can now address the disc. If it's seized onto the hub, a bit of gentle persuasion might be needed. A 4lb lump hammer can be effective here, used with care to tap the disc loose from the hub face.
4. Angle and Slide: This is the crucial step. Once the disc is free, you should find there's enough clearance between the hub and the caliper bracket (which remains bolted in place) to angle the disc. By tilting the disc, you can slide it off forwards, over the hub, rather than trying to pull it straight off horizontally. This angled removal is key to avoiding the need to unbolt the bracket.

The same principle applies when fitting the new discs. Rather than trying to slide them on squarely, you'll need to angle them into the caliper bracket first, then align and secure them to the hub face. While the terminology might seem a bit counter-intuitive when discussing circular objects, the meaning is clear: manoeuvre the disc into position at an angle to clear the bracket, then straighten it up for mounting.

Caliper Guide Bolts and Pad Sets

It's worth noting that when purchasing new brake pads, especially from reputable brands, they often come supplied with new caliper guide bolts. This is a good practice, as these bolts can sometimes be prone to corrosion or damage, and replacing them ensures a secure and reliable caliper mounting. Always check the contents of your new brake pad kit.

Identifying Your Caliper Type

The methods described above, particularly the "in-situ" disc removal, are generally applicable to vehicles fitted with Bosch BIRIII rear caliper sets. You can usually identify these by looking for the "Bosch BIRIII" stamp or casting on the outer face of the calipers themselves. If your vehicle has a different caliper type, the procedure might vary, and it would be advisable to consult a vehicle-specific manual or a qualified mechanic.

Tools You'll Likely Need (Summary)

To successfully complete this job, consider gathering the following tools:

Frequently Asked Questions (FAQs)

Q1: Do I really need to remove the caliper bracket bolts?

A: Not necessarily. For many Skoda Yeti models with Bosch BIRIII calipers, it's possible to remove and refit the rear discs by angling them off the hub, thus avoiding the need to undo the high-torque caliper bracket bolts.

Q2: What's the torque setting for the caliper bracket bolts?

A: Reports suggest these can be as high as 120-140 ft-lbs (or 90Nm + 90 degrees). This requires significant force and specialised tools.

Q3: What special tool do I need for the caliper bracket bolts?

A: You will likely need an M14, 12-spline, 1/2” drive socket. This is not a common size.

Q4: What is the torque setting for the caliper guide bolts?

A: These are typically much lower, around 35Nm, and are generally easier to access and remove.

Q5: Can I use a universal joint with a breaker bar for the bracket bolts?

A: You can try, but be aware that the high torque required can put considerable strain on the U/J, potentially causing it to fail.

Q6: How do I know if my Yeti has Bosch BIRIII calipers?

A: Look for a "Bosch BIRIII" stamp or casting on the outer face of the rear calipers.

Q7: My new discs are a bit stiff to get on. What should I do?

A: Ensure the hub face is clean and free of rust. You may need to gently tap the disc into place with a rubber mallet or a block of wood and a hammer, ensuring it seats evenly.

Concluding Thoughts

While the Skoda Yeti's rear brake disc replacement might seem daunting due to the potentially high torque on the caliper bracket bolts and the difficult access, the "in-situ" method offers a practical and less tool-intensive solution for many owners. By carefully following the steps, ensuring you have the right basic tools, and prioritising safety, you can successfully tackle this common maintenance task and keep your Yeti performing optimally. Always remember to clean components thoroughly and torque fasteners to the correct specifications, whether you're removing the bracket bolts or utilising the clever angled disc removal technique.
