Exhaust Holes: Causes, Fixes & Prevention Guide

A hole in your vehicle's exhaust system is more than just an irritating noise; it's a sign of a problem that can impact your car's performance, fuel efficiency, and even your health. From the low rumble of a compromised muffler to the subtle hiss of a pipe leak, these issues demand attention. Understanding the root causes and knowing the appropriate solutions can save you time, money, and potential headaches down the road. This comprehensive guide will delve into why exhaust holes appear and provide a thorough overview of how to address them, whether through a quick temporary fix or a more permanent professional repair.

Why Do Vehicle Exhaust Systems Develop Holes?

The exhaust system is constantly exposed to harsh conditions, both from within and outside the vehicle. This makes it particularly susceptible to wear and tear, leading to the formation of holes or cracks. Several factors contribute to this degradation:

Corrosion: The Silent Killer of Exhaust Pipes

Corrosion is arguably the most common culprit behind holes in an exhaust system. The exhaust is a metal component that comes into contact with various corrosive elements. Internally, the exhaust gases themselves contain moisture and acidic compounds (by-products of combustion) that condense as the system cools, especially during short journeys. This acidic condensate slowly eats away at the metal from the inside out.

Externally, environmental factors play a significant role. In regions experiencing harsh winters, roads are often treated with rock salt or other de-icing chemicals. When you drive on these salted, wet roads, the corrosive brine is sprayed onto the underside of your vehicle, including the exhaust components. This accelerates rusting and can quickly lead to perforations. Over time, this pervasive corrosion weakens the metal, making it brittle and prone to developing holes. This is also a primary cause of holes in the exhaust manifold.

Road Hazards and Physical Impact

Your car's exhaust system typically runs along the underside of the vehicle, making it vulnerable to physical damage. Potholes, road debris, speed bumps, and uneven terrain can all cause the exhaust pipes or muffler to strike the ground or an object. Even a seemingly minor impact can cause dents, cracks, or outright holes, especially if the system is already weakened by age or rust. Such damage often manifests as distinct hissing or popping sounds from exhaust leaks.

Failing Gaskets and Seals

Throughout the exhaust system, gaskets are strategically placed between various components (e.g., between the manifold and the exhaust pipe, or between sections of piping) to create a gas-tight seal. These gaskets, like any other car part, are subject to wear and tear due to constant exposure to high temperatures and vibrations. When a gasket fails or becomes damaged, it can no longer prevent the escape of gases, effectively creating a 'leak' that functions much like a hole, allowing exhaust fumes and noise to escape prematurely.

High Temperatures and Thermal Stress

While exhaust systems are designed to withstand extreme heat, there's a limit. Prolonged exposure to very high temperatures can degrade the materials, especially at weak points or where welds exist. Repeated heating and cooling cycles, known as thermal stress, can cause the metal to expand and contract, leading to fatigue and eventually cracks or holes. This can sometimes lead to reduced fuel economy as a symptom of the underlying exhaust damage.

Engine Misfires: A Hidden Culprit

Engine misfires occur when one or more cylinders fail to ignite the fuel-air mixture properly. This can cause unburned fuel to enter the exhaust system. When this unburned fuel reaches the catalytic converter, it can ignite, leading to extremely high temperatures that can damage the converter's internal structure or even melt it. Such events significantly increase exhaust gas temperature, accelerating wear in exhaust pipes, manifolds, and other components, and can also produce abnormal engine noises.

Wear and Tear Over Time

Like all vehicle components, exhaust parts have a finite lifespan. Over years of use, the constant vibration, exposure to heat, and environmental factors simply cause the materials to wear out. The lifespan can vary significantly depending on the quality of the material; for instance, stainless steel exhaust pipes are known to last much longer, often over ten years, compared to more common aluminised steel pipes which are more prone to rust faster. Eventually, even the best-maintained systems will succumb to age-related fatigue.

Poor Maintenance and Repair Work

Improper installation or a shoddy repair job can inadvertently introduce weak points or even immediate leaks into the exhaust system. For example, if a weld is not performed correctly, it can crack under stress. Similarly, neglecting regular vehicle maintenance can allow minor issues to escalate into significant damage. The various components of the exhaust system each play a crucial role:

Holes or cracks in any of these components can severely reduce their capability to perform their intended functions.

Recognising the Symptoms of an Exhaust Hole

Identifying an exhaust hole early can prevent more significant issues. Here are the common symptoms to look out for:

• Loud Rumbling, Hissing, or Popping Noises: This is often the most obvious sign. A hole in the muffler typically causes a loud, deep rumbling sound, while a leak in a pipe might produce a hissing or whistling noise, especially when accelerating.
• Increased Exhaust Smell: If you notice a stronger-than-usual exhaust smell inside or outside your car, it could indicate fumes escaping before they reach the tailpipe. This is particularly concerning due to the risk of carbon monoxide exposure.
• Illuminated 'Check Engine' Light: In some modern vehicle designs, an exhaust leak, especially near oxygen sensors or the catalytic converter, can trigger the 'check engine' light on your dashboard as it affects emission readings.
• Reduced Fuel Economy: While not always directly symptomatic of a hole, damage to the exhaust system, particularly components like the catalytic converter, can negatively impact your engine's efficiency, leading to higher fuel consumption.
• Abnormal Engine Noises: Beyond the exhaust sound, engine misfires caused by or contributing to exhaust damage can lead to irregular engine sounds.

How to Locate and Fix an Exhaust Hole

Once you suspect an exhaust hole, the next step is to locate it precisely and then decide on the appropriate fix. Always ensure your vehicle is cool before attempting any inspection or repair.

Identifying the Leak

Finding the exact spot of the leak is crucial for an effective repair. Here are several methods:

• Visual Inspection: Park your car safely, ideally on a lift or jack stands, and visually inspect the entire exhaust system for obvious holes, cracks, or significant rust.
• Sound Test: With the engine running (when cool), listen carefully along the exhaust system for hissing, whistling, or puffing sounds.
• Rag Method: Carefully block the tailpipe with a thick rag (wear gloves and be cautious of heat). This will create back pressure, forcing exhaust gases out of any leaks with greater force, making them easier to hear or feel.
• Soapy Water Test: Spray a mixture of soapy water onto suspected areas of the exhaust system with the engine running. Air escaping from leaks will create bubbles or foam.
• Smoke Machine: For a more professional approach, a smoke machine can be used to inject smoke into the exhaust system through the tailpipe. Smoke will visibly escape from any leaks.

Preparing the Area for Repair

Once the hole is located, proper preparation is key for any repair to adhere effectively:

1. Clean Thoroughly: Use a metal wire brush to remove any loose rust, dirt, or debris from around the affected area.
2. Sand Smooth: Follow up with sandpaper to smooth the surface and remove any remaining rust or flaking material, creating a clean, rough surface for adhesion.
3. Degrease: Finally, wipe the area down with acetone or isopropyl alcohol to remove any grease, oil, or residue. Allow it to dry completely.

Temporary Fixes for Exhaust Leaks

These methods are generally for small holes or cracks and are designed to provide a temporary seal until a more permanent repair or replacement can be carried out.

Using Muffler Tape to Seal the Hole

Muffler tape, also known as exhaust repair tape, is a quick and relatively easy temporary solution. Ensure the exhaust is cool before application. Read the manufacturer's instructions, as application methods can vary. Typically, you wrap the tape tightly around the leak, ensuring at least an inch of overlap on either side of the hole. Apply at least two layers for better sealing. Remember, this is not a long-term solution but can get you by for a while.

Applying Exhaust Epoxy to Fix the Hole

Exhaust epoxy is a heat-resistant, metal-filled compound that can effectively seal small holes. Park your vehicle in a well-ventilated area and wear protective gloves. After cleaning the area, apply the epoxy generously over and around the hole, ensuring complete coverage. Smooth the application and allow it to dry according to the manufacturer's instructions (often around 30 minutes for initial set, longer for full cure). For added reinforcement, you can place a piece of muffler tape over the sealed area once the epoxy has begun to set. Once fully cured, start the car and check for any remaining leaks.

Using Muffler Putty to Seal the Hole

Muffler putty is a heat-resistant resin compound designed to seal cracks and small holes. Its application is similar to epoxy. After cleaning the area, apply the putty evenly over the damaged spot. It's often recommended to allow it to cure for at least 24 hours for optimal results. This is also a temporary measure, providing a stop-gap solution until a proper repair can be made.

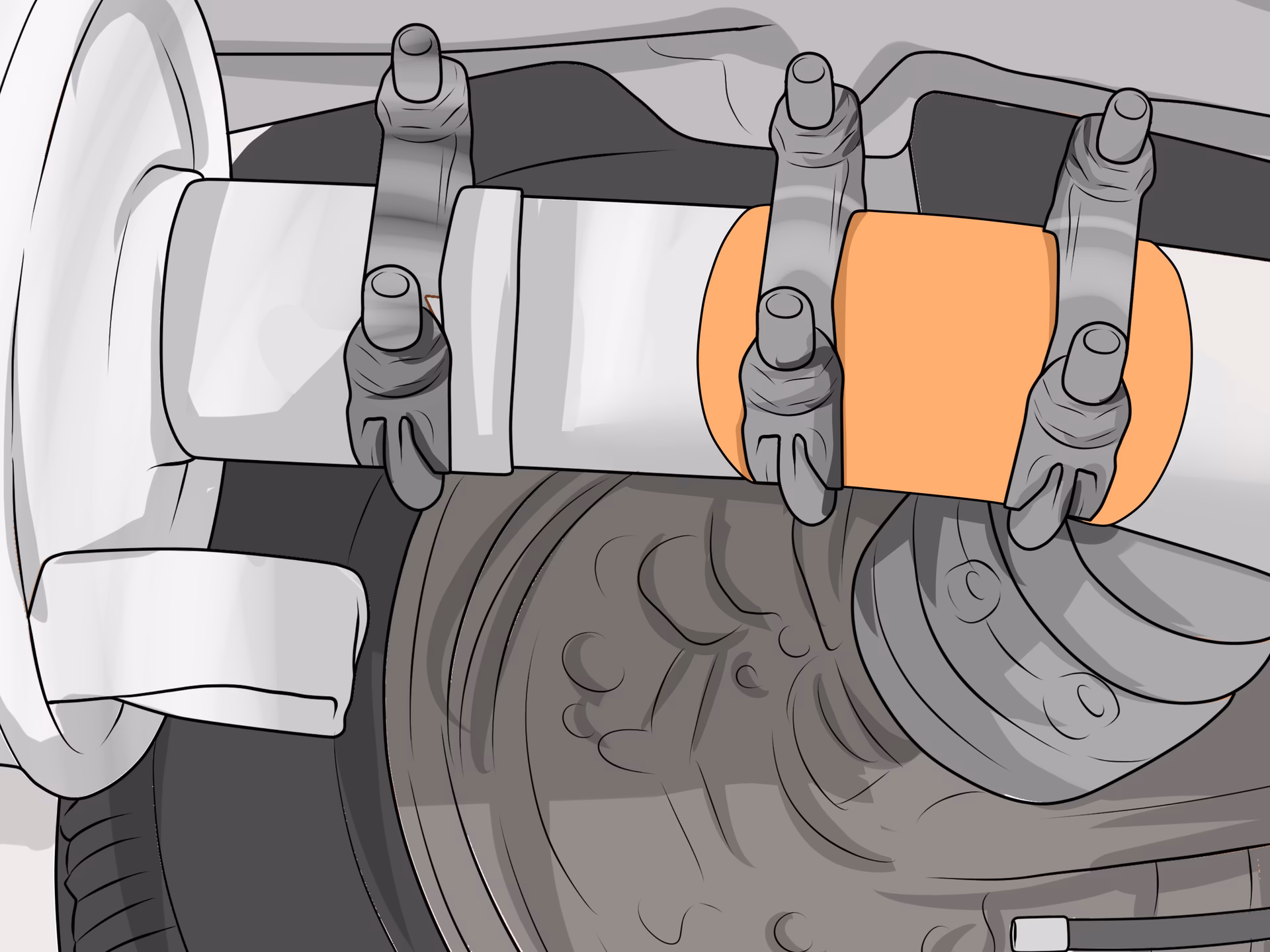

Utilising an Exhaust Clamp to Seal the Hole

For holes that are small enough to be covered by a standard exhaust clamp, this can be a straightforward solution. Simply position the clamp around the hole, ensuring the bolt mechanism is on the opposite side of the hole for maximum coverage. Tighten the bolts firmly until the clamp compresses around the pipe, effectively sealing the leak. This works best for holes on straight sections of pipe.

Applying an Aluminum Patch as a Seal

For larger holes, an aluminium patch can provide a more robust temporary fix. Cut a piece of aluminium sheet (or even an old tin can) slightly larger than the hole. Apply a generous amount of heat-resistant epoxy around the hole, which will act as an adhesive. Press the aluminium patch firmly over the epoxy and hold it in place with clamps until the epoxy dries. You can also spread a thin layer of epoxy around the edges of the patch for an even tighter seal. This method is more involved but offers better durability for larger perforations.

When to Call a Professional Mechanic

While DIY fixes can be handy, they are rarely permanent. In cases of extensive damage, multiple holes, or if you lack the necessary tools or confidence, consulting a professional mechanic is highly recommended. A mechanic can properly assess the full extent of the damage, which might include internal muffler baffles or catalytic converter issues not visible from the outside. They have the equipment for welding, precise part replacement, and can ensure the entire exhaust system is functioning optimally and safely. Ignoring extensive damage can lead to more costly repairs down the line, or worse, put your health at risk.

Understanding Exhaust Repair Costs

The cost of fixing a hole in your exhaust system varies significantly depending on the make and model of your vehicle, the specific component that is damaged, and the extent of the damage. A minor hole repair using a temporary patch might cost very little in materials if you do it yourself. However, for professional repairs:

• Muffler and Exhaust Pipe Replacement: These can range from approximately £80 to £500 or more, depending on the vehicle and whether it's an OEM (Original Equipment Manufacturer) part or an aftermarket alternative.
• Gasket Replacement: This is generally less expensive, typically costing between £40 and £150, depending on the gasket's type and location within the system.
• Catalytic Converter Replacement: This is often the most expensive component to replace, potentially costing several hundred to over a thousand pounds, as it contains precious metals.
• Exhaust Manifold Replacement: Can also be costly due to its proximity to the engine and the labour involved, often in the range of £200 to £600+.

It's always advisable to get a quote from a reputable garage for an accurate estimate.

Maintaining Your Exhaust System for Longevity

After any repair, or even proactively, proper maintenance can extend the life of your exhaust system and prevent future holes:

• Regular Inspections: Periodically check your exhaust system for signs of rust, dents, or loose components. Pay attention to any new sounds like hissing or rumbling.
• Address Issues Promptly: Don't ignore minor issues. A small crack can quickly become a large hole, leading to more expensive repairs.
• Wash Your Undercarriage: If you live in an area where roads are salted, regularly wash the underside of your car, especially after driving on treated roads, to remove corrosive chemicals.
• Emissions Tests: Participate in regular emissions tests where required, as they can highlight exhaust system inefficiencies or leaks that might not be immediately obvious.

Frequently Asked Questions About Exhaust Holes

How long can you drive with a hole in your exhaust?

While not immediately catastrophic, driving with a hole in your exhaust for an extended period is not advisable. It's not a direct safety hazard in terms of vehicle control, but it poses significant risks to your health and the environment.

Is a hole in the exhaust dangerous?

Yes, it can be dangerous. The primary concern is the potential for toxic gases, particularly carbon monoxide, to leak into the passenger cabin. Carbon monoxide is colourless and odourless, and inhaling it can cause dizziness, nausea, headaches, and in severe cases, unconsciousness or even death. Additionally, exhaust leaks contribute to air pollution. If a foreign object caused the hole, there's a slight risk it could enter the exhaust system and potentially damage other vehicle components, though this is less common.

Can I fix an exhaust hole myself?

For small holes and cracks, temporary DIY fixes using muffler tape, epoxy, or clamps are possible and can provide a short-term solution. However, for extensive damage, larger holes, or if you lack confidence in your repair skills, it is always best to consult a professional mechanic for a permanent and safe repair.

What are the signs of a failing exhaust system?

Beyond holes, a failing exhaust system can exhibit several signs, including persistent loud noises (rumbling, rattling, hissing), a strong exhaust smell, reduced fuel efficiency, a vibrating floorboard or steering wheel, and the illumination of the 'check engine' light. Any of these symptoms warrant a professional inspection.
