Koleos 2 EPB Brake Pad Replacement

The Renault Koleos 2, a popular SUV, features an Electronic Parking Brake (EPB) system that integrates directly into the rear brake calipers. Unlike older systems that relied on cables, the Koleos 2's EPB uses a small electric motor and gearbox attached to each caliper. This motor actuates a screw mechanism that pushes the brake piston, engaging the parking brake. While this design offers a cleaner and more integrated solution, it presents a unique challenge when it comes to replacing the rear brake pads. Simply forcing the piston back, as you might with a conventional caliper, can cause significant damage to the EPB mechanism.

This guide will delve into the intricacies of performing a rear brake pad change on a Koleos 2, specifically addressing the EPB system. We will explore various methods, from the manufacturer-recommended procedure using diagnostic tools to more accessible DIY techniques, helping you understand the process and choose the best approach for your situation.

Understanding the Electronic Parking Brake (EPB)

The EPB system in the Koleos 2 is a sophisticated piece of technology designed for convenience and safety. It eliminates the need for a traditional handbrake lever and associated cables. Instead, a button on the dashboard activates a small electric motor housed within the rear caliper assembly. This motor precisely controls the movement of the brake piston, applying and releasing the parking brake. This integration means that the standard brake pads are used for both service braking and parking.

However, this clever integration means that the caliper piston cannot simply be wound back with a standard tool. The EPB mechanism needs to be retracted correctly to avoid damage. Without the proper procedure, you risk damaging the motor, gears, or the screw shaft within the caliper, leading to costly repairs.

Methods for Retracting the EPB Caliper Piston

When it comes to changing the rear brake pads on a Koleos 2, the key challenge is retracting the caliper piston safely. Here are the commonly discussed methods, ranging from the most recommended to those that carry higher risks:

1. Using a Diagnostic Scan Tool (Recommended)

This is the manufacturer-approved and safest method. A compatible scan tool connects to your vehicle's OBD-II port and communicates with the EPB control module. The process typically involves:

• Connecting the scan tool.
• Navigating to the service or maintenance menu.
• Selecting the EPB or Brake Pad Replacement function.
• Following the on-screen prompts, which will usually instruct you to deactivate the EPB and then allow the system to retract the pistons.
• You will typically hear the EPB motors whirring as they retract the pistons.
• Once retracted, you can proceed with changing the brake pads and reassembling the caliper.
• After replacing the pads, the scan tool will guide you through reactivating the EPB, allowing the motors to reset and apply the brake correctly.

Advantages: Safest, ensures correct retraction, minimal risk of damage, often provides clear instructions.

Disadvantages: Requires a compatible scan tool, which can be expensive.

2. Manual Retraction via EPB Motor Disassembly (Complex)

This method involves a more hands-on approach but requires specific tools and a good understanding of the mechanism.

• Release the parking brake using the dashboard switch.
• Carefully remove the EPB motor unit from the back of the caliper. This usually involves undoing two retaining screws (often Torx head).
• Once the motor is removed, you'll expose the end of the screw shaft that pushes the piston. This shaft typically has a splined recess.
• Using a matching spline key and a ratchet, carefully wind the shaft inwards until the piston is fully retracted.
• After replacing the brake pads, reinstall the EPB motor unit.
• When the ignition is turned on and the EPB is activated via the dashboard switch, the motor should automatically wind the shaft back out to its correct position.

Advantages: Can be done without a scan tool.

Disadvantages: Requires specific tools (spline key), more complex, higher risk of misalignment or damage if not done carefully.

3. Manual Retraction via Electrical Connection (DIY Friendly)

This is a viable DIY method if you don't have a scan tool but are comfortable with basic electrical work.

• Release the parking brake using the dashboard switch.
• Disconnect the electrical connector from the EPB motor unit on the caliper. This usually reveals a two-pin connector.
• Using a 12V power source (like a car battery or a dedicated power supply) and appropriate wiring (e.g., jumper wires with alligator clips), you can manually control the EPB motor.
• Experiment with the polarity of the 12V supply. One way will cause the motor to wind the shaft out (apply the brake), and the other way will wind it in (retract the piston). You can usually hear the motor operating.
• Once the piston is fully retracted, proceed with changing the brake pads.
• After reassembling the caliper and refitting the pads, reconnect the electrical connector.
• Turn the ignition on and use the EPB switch a few times to allow the system to recalibrate and set the parking brake correctly.

Advantages: Accessible for DIYers, avoids complex disassembly.

Disadvantages: Requires careful handling of electrical connections, risk of incorrect polarity application if not careful.

4. The "Do Not Do" Method (High Risk)

Some older guides or videos might suggest simply releasing the EPB and using a standard caliper winding tool to force the piston back. This method is highly discouraged for the Koleos 2's EPB system. The integrated motor and screw mechanism can be easily damaged by forcing it against its intended retraction path. This could lead to costly repairs and compromise the EPB's functionality.

Step-by-Step Guide (Using Method 3 as an Example)

Let's outline the steps for changing rear brake pads using the electrical connection method:

Tools and Parts Required:

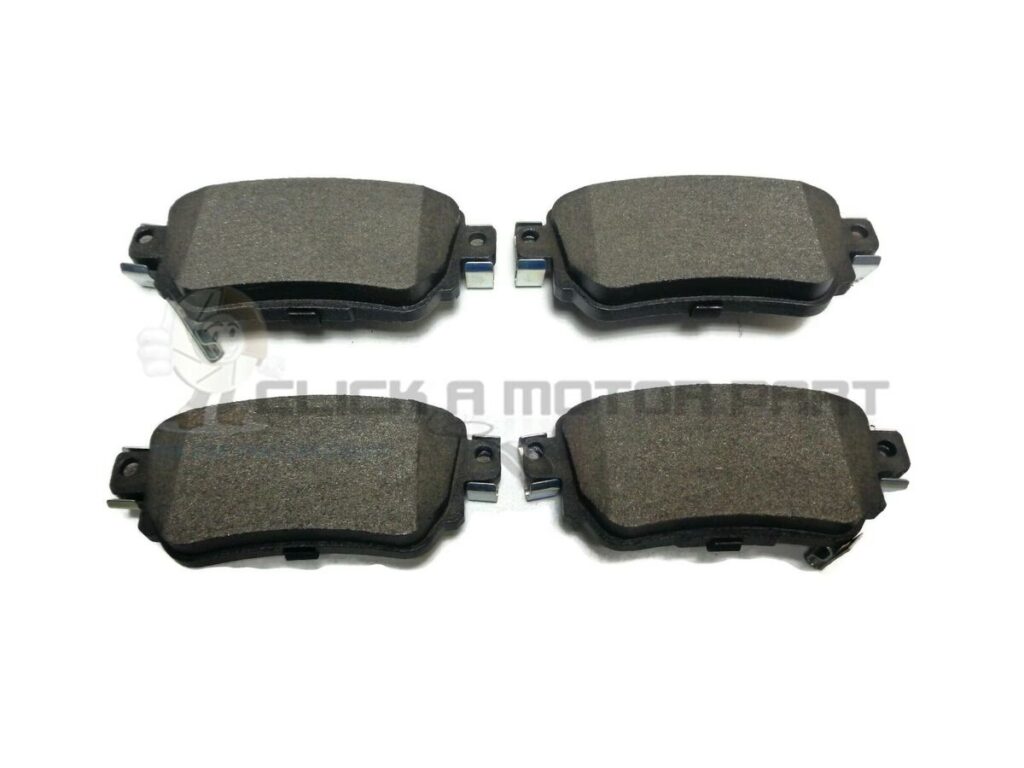

• New rear brake pads
• Brake cleaner
• Wire brush
• Torque wrench
• Jack and jack stands
• Socket set and wrenches (including correct size for caliper bolts and EPB motor retaining screws)
• C-clamp or piston compressor
• 12V power source with jumper wires and alligator clips (or probes)
• Gloves and safety glasses
• Optional: Brake grease

Procedure:

1. Prepare the Vehicle: Park on a level surface, engage the parking brake (if safe to do so), and loosen the lug nuts on the rear wheel.
2. Jack Up and Secure: Safely jack up the rear of the vehicle and support it with jack stands. Remove the rear wheel.
3. Locate the Caliper: Identify the rear brake caliper assembly.
4. Release EPB: Turn the ignition on and press the EPB release button on the dashboard. Ensure the EPB warning light on the dash goes out.
5. Disconnect EPB Motor Connector: Carefully locate and disconnect the electrical connector from the EPB motor unit on the caliper.
6. Access Piston Retraction Mechanism: You may need to remove a small cover or simply access the exposed electrical pins on the motor.
7. Retract the Piston: Connect your 12V power source to the EPB motor's pins. Experiment with polarity to find the correct connection that retracts the piston. You should hear the motor whirring as it retracts. Continue until the piston is fully retracted, allowing clearance for the new, thicker brake pads.
8. Remove Caliper Bolts: Loosen and remove the caliper slide pin bolts. These usually allow the caliper to pivot upwards.
9. Swing Caliper Up: Carefully swing the caliper assembly upwards on its upper hinge, exposing the old brake pads.
10. Remove Old Pads: Remove the old brake pads from the caliper bracket.
11. Clean and Inspect: Clean the caliper bracket and the caliper carrier where the pads sit using a wire brush and brake cleaner. Inspect the brake disc for wear or damage.
12. Install New Pads: Apply a small amount of brake grease to the back of the new pads where they contact the caliper piston and the bracket. Insert the new brake pads into the caliper bracket.
13. Swing Caliper Down: Carefully swing the caliper assembly back down over the new pads.
14. Reinstall Caliper Bolts: Reinstall and tighten the caliper slide pin bolts to the manufacturer's specified torque.
15. Reconnect EPB Motor: Reconnect the electrical connector to the EPB motor.
16. Calibrate EPB: Turn the ignition on. Use the EPB switch to apply and then release the parking brake a few times. You should hear the EPB motors working.
17. Reinstall Wheel: Reinstall the rear wheel and tighten the lug nuts.
18. Lower Vehicle: Lower the vehicle and torque the lug nuts to the manufacturer's specification.
19. Test Brakes: Before driving, pump the brake pedal several times to ensure the brake pedal feels firm. Test the brakes at low speed in a safe area.

When to Seek Professional Help

While the DIY methods described can be effective, it's crucial to acknowledge your comfort level and mechanical aptitude. If you are unsure about any step, lack the necessary tools, or are hesitant about working with the EPB system, it is always best to consult a qualified mechanic. They have the specialized tools and expertise to perform the job safely and correctly, ensuring the optimal performance and safety of your Koleos 2's braking system.

Finding Spare Parts for Your Renault Koleos

When it comes to sourcing replacement parts for your Renault Koleos, including brake pads, discs, or even EPB components, there are several options available:

• Main Dealerships: Offer genuine Renault parts, guaranteeing quality and compatibility, but can be the most expensive option.
• Independent Garages: Many independent specialists can source quality aftermarket or OEM (Original Equipment Manufacturer) parts at competitive prices.
• Online Retailers: A vast array of online auto parts stores offer a wide selection of parts for the Renault Koleos. Look for reputable suppliers that provide detailed product descriptions and customer reviews.
• Breaker Yards/Scrapyards: For used parts, breaker yards can be a cost-effective solution. Websites and online platforms can help you locate yards that stock parts for your specific Koleos model. Reputable yards often offer a warranty on used parts.

When purchasing parts, always ensure they are compatible with your specific Renault Koleos model year and engine specification. Using the correct parts is crucial for the safety and longevity of your vehicle.

Frequently Asked Questions

Q1: Can I just push the piston back on a Koleos 2 rear caliper without retracting the EPB?

A1: No, this is strongly discouraged. Forcing the piston back can damage the integrated EPB motor and screw mechanism, leading to costly repairs.

Q2: Do I need a special tool to change the rear brake pads on a Koleos 2?

A2: While not strictly a "special" tool in the sense of a unique caliper design, you need a method to retract the EPB piston. This can be achieved with a diagnostic scan tool, a spline key (for some methods), or a 12V power source for manual control.

Q3: How do I know if my scan tool is compatible with the EPB function?

A3: Check the scan tool's specifications or manufacturer's website. Look for support for Renault vehicles and specifically for EPB or parking brake service functions.

Q4: What is the torque setting for the caliper bolts?

A4: Torque specifications vary, so it's essential to consult your vehicle's service manual or a reliable online resource for the exact torque values for your specific Koleos model.

Q5: How do I reset the EPB after changing the pads?

A5: If using a scan tool, follow the on-screen prompts for completion. If using the manual electrical method, cycle the EPB switch a few times with the ignition on to allow the system to recalibrate.

Changing the rear brake pads on a Renault Koleos 2 requires a careful approach due to the Electronic Parking Brake system. By understanding the EPB's function and employing the correct retraction methods, you can successfully perform this maintenance task, ensuring the safety and reliability of your vehicle's braking system.
