Gearbox Oil: Capacity & Filling Guide

Understanding the correct amount of gearbox oil for your vehicle is crucial for its smooth operation and longevity. Overfilling or underfilling can lead to a host of problems, from poor shifting to premature wear of vital internal components. While specific capacities vary significantly between makes and models, and even engine types within the same manufacturer, there are general principles and methods you can employ to ensure you get it right. This guide aims to demystify the process of checking and refilling your gearbox oil, drawing on common experiences and best practices.

Why Gearbox Oil Matters

Gearbox oil, often referred to as transmission fluid, serves several critical functions within your vehicle's gearbox. It acts as a lubricant, reducing friction between moving parts like gears, bearings, and shafts. This lubrication minimises wear and tear, preventing damage and extending the lifespan of the gearbox. Furthermore, it helps to dissipate heat generated during operation, keeping the gearbox within optimal temperature ranges. In manual transmissions, the oil also aids in the smooth engagement and disengagement of gears. In automatic transmissions, the fluid is even more complex, performing hydraulic functions to shift gears and cool the transmission.

Common Misconceptions and Challenges

One of the most common frustrations for DIY mechanics is the lack of a readily accessible dipstick or sight glass on many modern gearboxes, particularly manual ones. Unlike engine oil, which often has a clear dipstick, gearbox oil levels are frequently checked via a fill plug. This makes it a more involved process, requiring you to get under the vehicle. The information provided in forums and online can also be contradictory, as highlighted by the user experience shared, where a recommended 3.4 litres for a Kangoo 1.5dci resulted in an overflow after only adding 2.8 litres. This underscores the importance of verifying specific capacities for your exact vehicle model.

How to Check Your Gearbox Oil Level

The most reliable method for checking your gearbox oil level is to locate the fill plug. This is typically found on the side of the gearbox casing. You'll usually need to get your vehicle safely onto axle stands or a lift to access it. Once you've located the fill plug, you'll need a suitable wrench to remove it. Before removing the plug, ensure the vehicle is on a level surface. With the fill plug removed, the oil level should be up to the bottom of the fill plug hole. If oil starts to trickle out as you remove the plug, it's likely at the correct level. If the oil level is below this point, you will need to add oil.

What You'll Need:

• Axle stands or a reliable jack
• Wheel chocks for safety
• A suitable wrench for the fill plug
• A funnel with a flexible tube
• The correct type and quantity of gearbox oil (check your owner's manual!)
• A container to catch any spilled oil
• Rags or paper towels

Step-by-Step Process:

1. Safety First: Park the vehicle on a level surface and engage the handbrake. Place wheel chocks behind the rear wheels if working on the front, or vice versa. Safely raise the vehicle using a jack and support it securely on axle stands. Never work under a vehicle supported only by a jack.

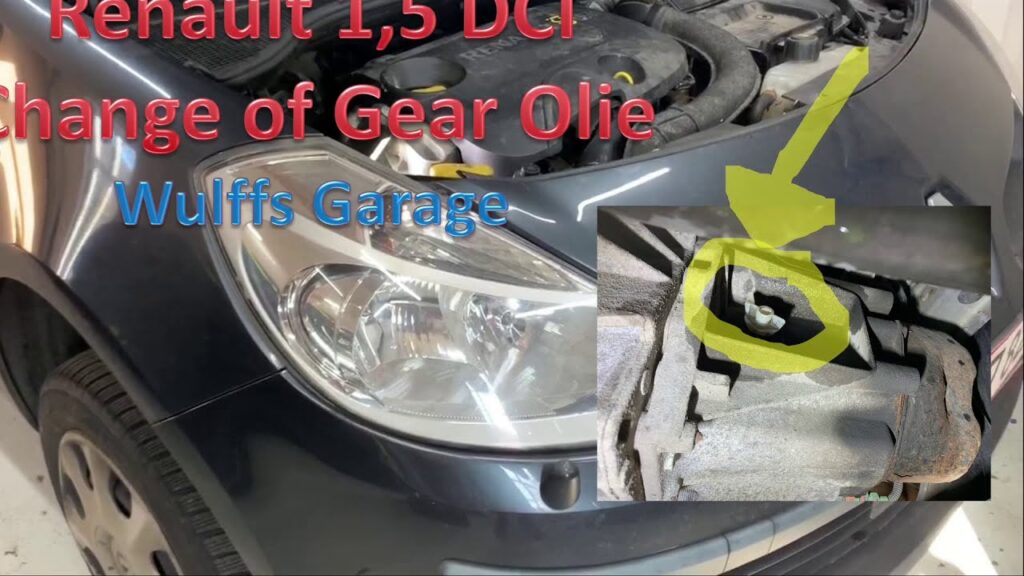

2. Locate the Fill Plug: Inspect the gearbox casing for a plug, often a hexagonal bolt, typically located on the side. Sometimes there's also a drain plug at the bottom of the gearbox to empty it completely.
3. Check the Level: With the vehicle level, carefully attempt to remove the fill plug. If oil immediately flows out, the level is likely correct. If not, proceed to add oil.
4. Adding Oil: Insert the flexible tube of your funnel into the fill plug hole. Slowly add the recommended gearbox oil. It's advisable to start with a slightly lower amount than the estimated capacity and then gradually top up.
5. The 'Add and Check' Method: As the user experience suggests, a cautious approach is best. Add approximately 2.5 to 3 litres (depending on your vehicle's estimated capacity). Replace the fill plug temporarily. Lower the vehicle slightly if needed to get a more accurate reading of the internal level, or re-check by removing the plug again. Add small increments of oil (e.g., 0.25 litres at a time), re-checking the level after each addition. The goal is for the oil to just start trickling out of the fill plug hole when the vehicle is level.
6. Final Check and Tightening: Once the oil level is correct, ensure the fill plug is clean and then securely tighten it to the manufacturer's specified torque.
7. Clean Up: Clean away any spilled oil from the gearbox casing and surrounding areas. Lower the vehicle completely.

Understanding Gearbox Oil Capacities

As the initial user comment illustrates, pinpointing the exact gearbox oil capacity can be challenging. Vehicle manufacturers often provide this information in the owner's manual. If your manual is lost, reputable online forums dedicated to your specific car model, or even contacting a dealership with your VIN (Vehicle Identification Number), can provide the correct data. For instance, a common range for manual gearboxes in smaller to medium-sized cars might be between 1.5 to 3.5 litres. Larger vehicles or those with more complex transmissions could require significantly more.

Estimating vs. Exact Figures

While the user's estimate of 3-3.2 litres for a Kangoo 1.5dci is a reasonable starting point, it's clear that even slight variations in gearbox design or previous service history can affect the actual amount needed. The advice to 'try 3 litres first, then add and check' is sound. It's always better to underfill slightly and top up cautiously than to overfill and risk the issues associated with it. Overfilling can lead to increased pressure within the gearbox, potentially forcing seals out and causing leaks, as well as causing the gears to churn the excess oil, leading to overheating and foaming, which reduces its lubricating properties.

Common Gearbox Oil Types

Gearbox oils are not interchangeable with engine oils. They have different viscosity ratings and additive packages designed for the specific stresses and operating conditions within a gearbox. Common specifications include GL-4 and GL-5 ratings, which denote the type and amount of extreme pressure (EP) additives. GL-5 is generally considered more robust and suitable for hypoid gears, which are common in rear-wheel-drive differentials, but can sometimes be too aggressive for older manual gearboxes designed for GL-4, potentially damaging the yellow metal components (like brass synchros). Always consult your owner's manual for the precise specification required. Using the wrong type of oil can cause significant damage.

Troubleshooting Common Issues

Symptom: Difficult Gear Changes
Possible Cause: Low or incorrect gearbox oil level, worn-out oil, or internal gearbox wear.

Symptom: Whining or Humming Noise from Gearbox
Possible Cause: Low oil level, incorrect oil viscosity, or worn bearings.

Symptom: Leaking Oil
Possible Cause: Overfilled gearbox, damaged seals, or loose fill/drain plugs.

Symptom: Gearbox Overheating
Possible Cause: Low oil level, incorrect oil type, or excessive friction due to wear.

Frequently Asked Questions (FAQs)

Q1: How often should I check my gearbox oil?
A1: It's good practice to check your gearbox oil level whenever you check your engine oil, or at least every 6 months. Many manufacturers also specify a gearbox oil change interval, which should be adhered to.

Q2: Can I use engine oil in my gearbox?
A2: No, absolutely not. Engine oil and gearbox oil have different properties and specifications. Using engine oil can cause severe damage to your gearbox.

Q3: What happens if I overfill the gearbox?
A3: Overfilling can cause excessive pressure, leading to seal leaks, overheating, and foaming of the oil, which reduces its lubricating effectiveness. It can also lead to increased drag and potentially damage internal components.

Q4: My gearbox feels rough when changing gears. What could it be?
A4: This could be due to low gearbox oil, the oil being old and degraded, or it could indicate wear within the gearbox itself. Checking the oil level and condition is the first step.

Q5: Do all gearboxes have a fill plug?
A5: Most manual gearboxes do. Automatic transmissions often have a sealed system, and the fluid is checked and topped up through a different procedure, often via a dipstick tube or a dedicated port, and sometimes requires specialist equipment.

Conclusion

Maintaining the correct gearbox oil level is a fundamental aspect of vehicle care. While the exact capacity can sometimes be elusive, employing the 'fill and check' method with the correct oil specification is the safest approach. Always prioritise safety when working underneath your vehicle and consult your owner's manual or a qualified mechanic if you are in any doubt. A little diligence in this area can prevent costly repairs and ensure your gearbox performs optimally for years to come.
