Disc Brake Bolt Mishaps: What to Do

It's a situation many of us have unfortunately encountered at some point in our DIY or mechanical endeavours: a stripped screw, a rounded bolt head, a fastener that simply refuses to budge. This frustrating scenario is all too common, whether you're dealing with a simple drywall screw or a critical component like a disc brake bolt. The reasons are often twofold: using the incorrect tool, or employing the right tool in the wrong way. And, as if by some cruel twist of fate, it invariably happens at the most inconvenient moment possible.

Recently, I found myself in precisely this predicament. I was attempting to remove a disc brake rotor from a wheel, only to discover that the bolts securing it were Torx head, not the more common Allen (hex) head bolts I was prepared for. My trusty set of Allen keys were rendered useless. In a moment of haste, and lacking the correct Torx drivers (my first oversight), I decided to try my luck with a flat-head screwdriver. This, as you might have guessed, was my second, and far more significant, mistake of the evening.

The Perils of Using the Wrong Tool

Disc brake bolts are designed to withstand significant forces. They are typically secured with a thread-locking compound, often a blue variety, to prevent them from vibrating loose during operation. Even with the correct tool and appropriate leverage, breaking this bond requires a fair amount of torque. When you introduce the wrong tool into the equation, the outcome is almost always detrimental. You risk damaging the bolt head beyond recognition, compromising the tool, or, most commonly, both. This is precisely what transpired in my case.

The Torx head, designed with precise internal star-shaped recesses, was no match for the flat edge of a screwdriver. Instead of engaging the bolt's drive, the screwdriver's tip dug into the metal, rounding off the edges and creating a mangled mess. The bolt was now not only stuck fast due to the thread-locker but also virtually impossible to grip with any conventional tool.

When Disaster Strikes: The Stripped Bolt Scenario

A stripped disc brake bolt presents a significant problem. These bolts are critical for the safe and effective operation of your braking system. They ensure that the rotor is securely attached to the hub. If a bolt fails or becomes loose, it can lead to a host of issues, including:

• Reduced braking performance: A loose rotor can cause uneven contact with the brake pads, leading to spongy or inconsistent braking.
• Brake noise: Rattling or clunking sounds can occur as the rotor shifts slightly.
• Damage to other components: In severe cases, a loose rotor can damage the brake caliper, wheel hub, or even the suspension components.
• Complete brake failure: In the most extreme and dangerous scenarios, a completely detached rotor can lead to an immediate loss of braking ability.

Therefore, addressing a stripped disc brake bolt promptly and correctly is paramount for safety.

The Rescue Mission: Innovative Solutions

Faced with this seemingly insurmountable challenge, I reached for a tool that has saved me on numerous occasions: my Dremel-style rotary tool. While not a cheap tool, a good rotary tool is an invaluable asset for any DIY enthusiast or mechanic. The solution I employed involved a cutting wheel attachment.

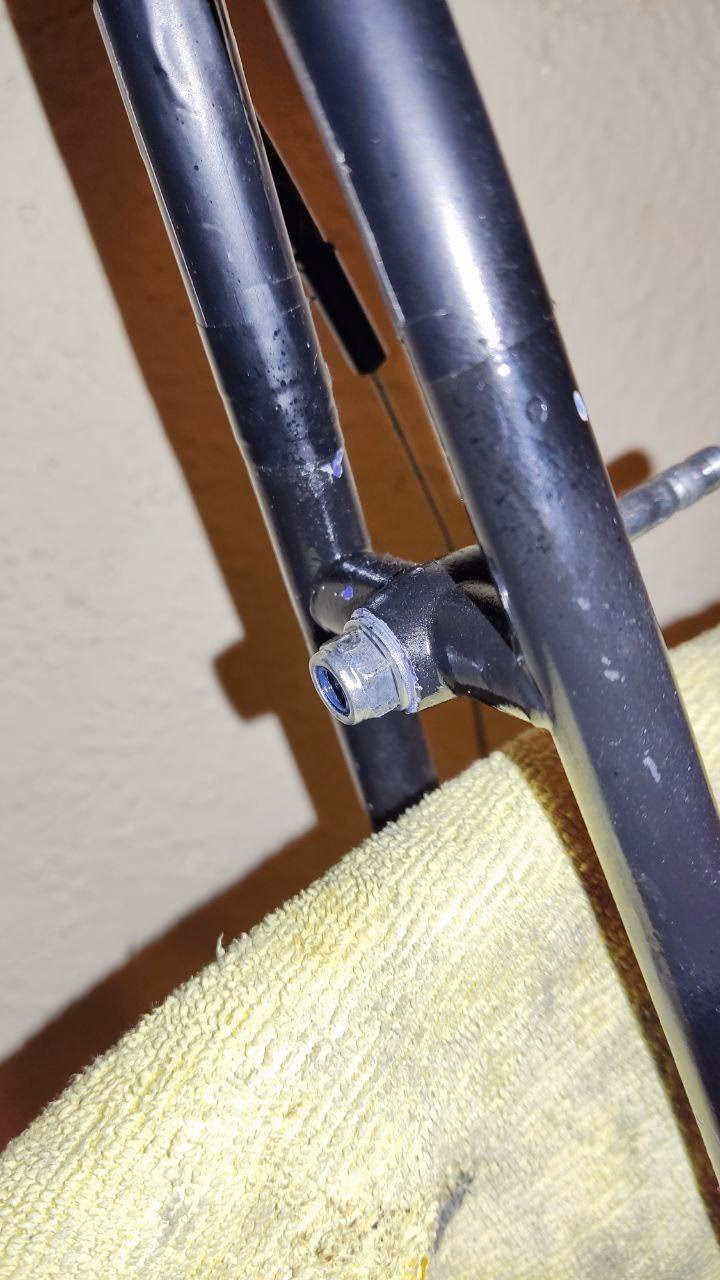

With careful precision, I used the cutting wheel to carefully slice a new slot across the top of the mangled bolt head. It required a few passes to create a slot deep and wide enough to accommodate a substantial flat-blade screwdriver. The key here is to create a clean, deep slot that allows for maximum engagement with the screwdriver's tip. The original Torx recess was too damaged to provide adequate grip, but the new slot offered a fresh surface.

Step-by-Step: The Cutting Wheel Method

1. Safety First: Ensure the vehicle is safely supported and the wheel is removed. Wear appropriate safety glasses and gloves.
2. Select the Right Attachment: Use a thin, abrasive cutting wheel designed for metal.
3. Create the Slot: Carefully guide the cutting wheel across the bolt head, creating a straight, deep slot. Aim for a slot that can accept a flat-head screwdriver with a snug fit.
4. Apply Penetrating Oil: Once the slot is made, apply a good quality penetrating oil to the bolt threads. Allow it to soak in for at least 15-30 minutes to help break down the thread-locker.
5. Use the Flat-Head Screwdriver: Insert a sturdy, wide flat-head screwdriver into the newly created slot. Ensure it's seated firmly.
6. Apply Force: With a combination of firm downward pressure and steady rotational force, attempt to unscrew the bolt. You may need to use a hammer to tap the end of the screwdriver handle to help shock the bolt free.
7. Patience is Key: If the bolt doesn't budge immediately, reapply penetrating oil and try again. Avoid excessive force that could break the screwdriver or further damage the bolt.

This method, while not the most elegant, proved remarkably effective. With a bit of muscle and a healthy dose of luck, I managed to break the stubborn thread-locker's grip and successfully unscrew the bolt.

Alternative Methods for Stubborn Bolts

While the cutting wheel method is often effective for stripped Torx or even Allen bolts, other situations might call for different approaches. Here are some other common methods:

Preventing Future Mishaps

The best cure, as they say, is prevention. To avoid the headache of stripped disc brake bolts, consider these preventative measures:

• Use the Correct Tools: Always use the correct type and size of tool for the fastener. For Torx bolts, use a Torx driver; for hex bolts, use a hex key or socket. Ensure the tool fits snugly.
• Apply Adequate Torque: Tighten bolts to the manufacturer's specified torque settings. Over-tightening can strip threads, while under-tightening can lead to loosening.
• Use Quality Fasteners: Invest in good quality bolts and ensure they are in good condition before installation.
• Cleanliness is Key: Ensure the bolt threads and the receiving threads are clean and free of debris before installation.
• Proper Thread-locker Application: If thread-locker is required, apply it correctly. Too much can make removal excessively difficult, while too little might not hold the bolt securely.
• Regular Inspection: Periodically inspect your disc brake bolts for any signs of wear, damage, or loosening.

Frequently Asked Questions

What happens if a disc brake bolt comes loose?

If a disc brake bolt comes loose, it can lead to reduced braking performance, unusual noises, and in severe cases, complete brake failure. It's crucial to address any looseness immediately.

Can I ride my bike with a slightly loose disc brake bolt?

It is strongly advised not to ride your bike if a disc brake bolt is loose. Even a slight looseness can compromise braking safety and lead to further damage.

How tight should disc brake bolts be?

The torque specification for disc brake bolts varies depending on the manufacturer and the specific bike or vehicle. Always consult your owner's manual or a reliable service manual for the correct torque settings. Typically, they range from 4 Nm to 10 Nm for bicycles.

Is it safe to use a Dremel to cut a slot in a stripped bolt?

Yes, using a Dremel with a cutting wheel to create a slot in a stripped bolt is a common and often effective DIY solution. However, it requires care and the use of safety equipment to prevent injury and damage.

What is the best way to remove a seized disc brake bolt?

For a seized bolt, applying a penetrating oil and allowing it ample time to work is crucial. If that doesn't work, methods like using a heat gun (carefully), impact drivers, or the cutting wheel/extractor methods described above may be necessary.

Conclusion

Stripped or broken disc brake bolts are a frustrating, but often fixable, problem. While it's always best to use the correct tools and techniques to avoid such issues, knowing how to remedy them when they do occur is essential. Whether it's a carefully cut slot, the application of specialized extractors, or even the judicious use of heat and force, there are ways to overcome these mechanical hurdles. Remember, safety is paramount, so always proceed with caution and ensure your braking system is in perfect working order after any repairs.
