Choosing the Right Oil for Your Marine Gearbox

Ensuring your marine gearbox operates flawlessly is paramount for the reliability and safety of your vessel. Just like the engine, the gearbox is a complex piece of machinery that relies heavily on the correct lubrication to function efficiently and prevent premature wear. However, navigating the world of gearbox oils can be a perplexing task, as the type of oil required is not universal and depends entirely on the specific design of your gearbox.

Using the wrong type of oil can lead to significant issues, ranging from decreased performance and increased wear to complete gearbox failure, which can be both costly and inconvenient. This guide aims to demystify the choices, providing clear, actionable advice on identifying your gearbox type and selecting the appropriate lubricant, ensuring your marine propulsion system remains in top condition for years to come. Understanding these critical distinctions is the first step towards safeguarding your investment and enjoying trouble-free voyages.

Understanding Your Marine Gearbox Type

Before you can even consider what oil to put into your gearbox, you must first ascertain whether it is a mechanical or a hydraulic unit. This fundamental distinction dictates the type of lubricant that is compatible and effective for your system. Different operational principles mean different lubrication requirements, and a mismatch can be detrimental to the gearbox's health.

For owners of PRM marine gearboxes, identifying your specific model is straightforward. Certain PRM models are inherently mechanical, designed with a direct mechanical connection for power transmission. Specifically, the PRM 60, 80, 90, 120, and 125 gearboxes are classified as mechanical units. These rely on physical engagement of gears and clutches to transfer power from the engine to the propeller shaft.

Conversely, all other PRM marine gearbox models beyond those listed above operate on a hydraulic principle. Hydraulic gearboxes utilise fluid pressure to engage clutches and facilitate gear changes, offering a smoother and often more responsive operation. The lubrication requirements for these systems are vastly different due to the presence of hydraulic components that rely on the oil for both lubrication and power transmission.

Knowing your gearbox model, usually found on the serial plate, is the crucial starting point. Once you have identified whether your unit is mechanical or hydraulic, you can then proceed to select the correct oil, confident that you are providing your gearbox with the precise lubrication it needs to perform optimally.

The Critical Choice: What Oil Does My Gearbox Take?

The type of oil your marine gearbox requires is not a matter of preference but a strict technical specification. Adhering to these guidelines is vital for the longevity and efficient operation of your unit. There are distinct recommendations based on whether your gearbox is mechanical or hydraulic, and using anything other than the specified lubricant can lead to severe operational issues and costly damage.

Oil for Mechanical Gearboxes

For specific mechanical PRM gearboxes, namely the PRM 60, 80, and 90 models, the requirement is very clear: you must use Automatic Transmission Fluid (ATF). More precisely, the recommendation is for Dextron II or Dextron III ATF. These types of fluids are formulated with specific friction modifiers and detergents suitable for the wet clutch systems found in these mechanical gearboxes. They are designed to provide the necessary lubrication while also allowing for smooth engagement and disengagement of the clutches without excessive slip or wear.

The consequences of using an incorrect oil in a mechanical gearbox, or even overfilling it, can be severe. If a mechanical unit is overfilled, or the wrong type of oil is used, it can directly lead to the clutch wearing out prematurely. This wear will manifest as a gradual deterioration in performance, potentially leading to a complete loss of drive over time. The precise formulation of ATF Dextron II or III is essential for maintaining the delicate balance of friction and lubrication required by the clutches in these mechanical systems.

Oil for Hydraulic Gearboxes

In contrast, for all other PRM marine gearbox models, which are classified as hydraulic gearboxes, a different type of oil is recommended. These units rely on fluid pressure to operate, and as such, the oil serves not only as a lubricant but also as the medium for power transmission within the hydraulic system. For these hydraulic gearboxes, the recommendation is to use mineral 15W40 oil. It is crucial to note the emphasis here: it must be mineral oil, not synthetic.

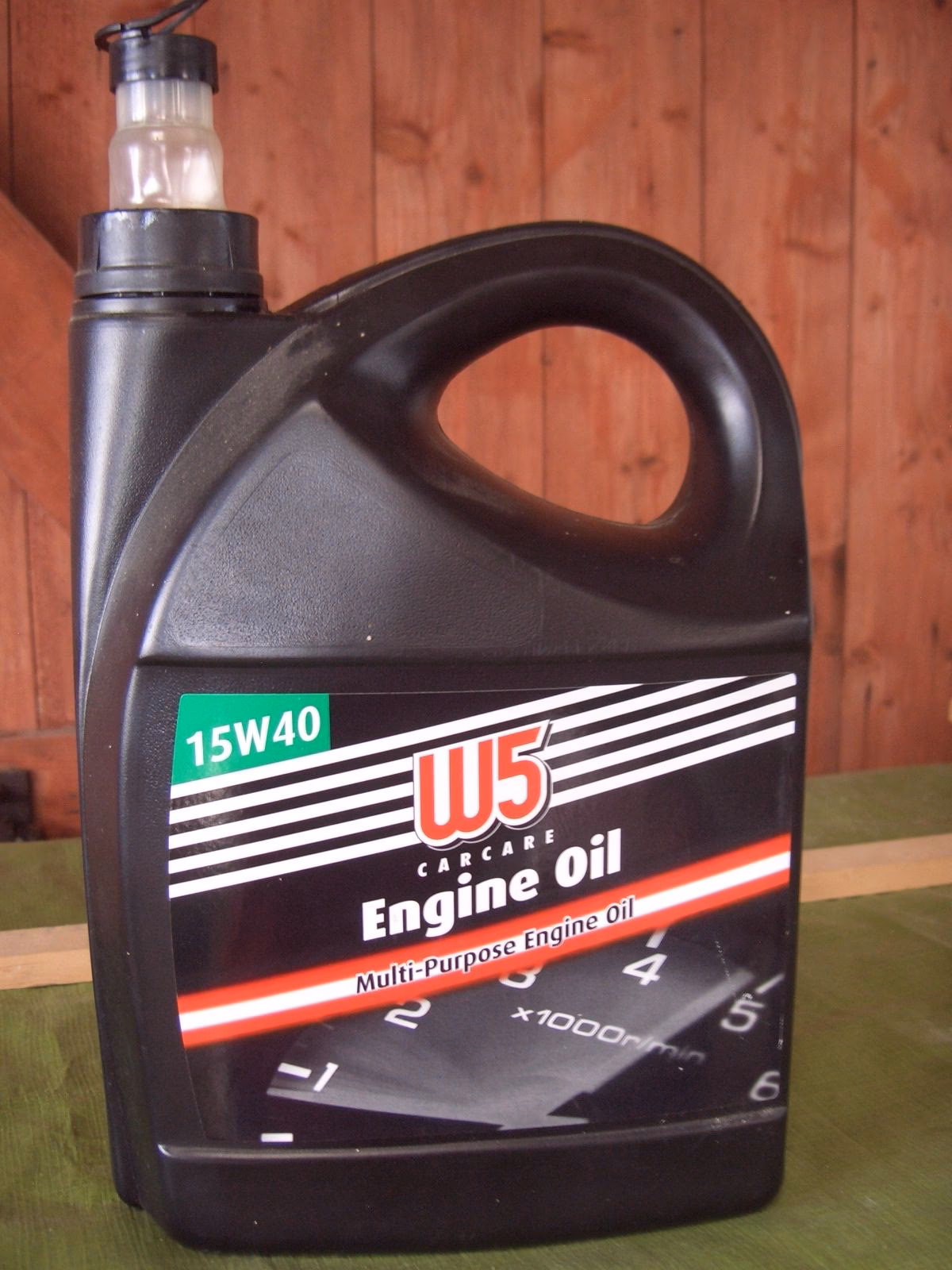

Mineral 15W40 oil possesses the necessary viscosity and protective properties to lubricate the moving parts within a hydraulic gearbox effectively, while also being stable enough to withstand the pressures and temperatures inherent in a hydraulic circuit. The exclusion of synthetic oils is significant; synthetic formulations can sometimes have properties that are incompatible with the seals or materials found in older hydraulic systems, or they may not provide the desired friction characteristics for the internal components. Sticking to a high-quality mineral 15W40 oil ensures proper hydraulic function and long-term reliability.

Checking and Maintaining Your Gearbox Oil Level

Once you've identified the correct oil for your marine gearbox, the next crucial step is to ensure it is maintained at the appropriate level. Proper oil level is just as important as the correct oil type; both underfilling and overfilling can lead to significant operational problems and potential damage to your unit. Regular checks are a fundamental part of a robust maintenance schedule.

How to Check the Oil Level

Checking the oil level in your gearbox is a straightforward procedure, but it requires adherence to a specific method to ensure an accurate reading. The key instruction is that the dipstick must be fully screwed down when taking a level. Unlike some engine dipsticks where you might insert without screwing, for many gearboxes, particularly PRM models, the dipstick is designed to be fully seated to give a true indication of the oil volume. Once fully screwed down, remove the dipstick, wipe it clean, re-insert it fully screwed down, then remove it again to read the level.

The Dangers of Overfilling

A critical warning accompanies the oil level check: DO NOT overfill your gearboxes. While it might seem intuitive to add a little extra for safety, overfilling is genuinely detrimental to their performance. For mechanical units, the consequences are particularly severe. An overfilled mechanical gearbox will cause the clutches to wear out prematurely. This is because excessive oil can lead to hydraulic lock, increased drag, or improper lubrication of the clutch plates, accelerating their degradation. As the clutches wear, the gearbox's performance will steadily deteriorate, leading to slippage and eventual failure.

For hydraulic gearboxes, while the immediate impact on clutch wear might differ, overfilling can still lead to issues such as increased internal pressure, foaming of the oil, or even oil being forced out through seals and breathers. This can result in leaks, reduced lubrication effectiveness, and general operational inefficiencies. Always aim for the specified 'full' mark on the dipstick and never exceed it.

Safety First: Working with Gearbox Oil

When performing any maintenance involving the gearbox oil, safety must be your absolute priority. There's a vital notice regarding the temperature of the gearbox when you are working with its fluids:

IMPORTANT NOTICE: ONLY REMOVE BREATHER, DIPSTICK, OIL DRAIN PLUG OR OIL LEVEL PLUG ONCE THE GEARBOX IS AT AMBIENT TEMPERATURE. REMEMBER HOT OIL CAN CAUSE BURNS – PLEASE WORK SAFELY.

Hot oil can cause severe burns, and attempting to work on a gearbox that has recently been in operation can be extremely dangerous. Always allow sufficient time for the gearbox to cool down completely, reaching ambient temperature, before attempting to check levels, drain oil, or remove any plugs. This ensures not only your safety but also provides a more accurate reading for oil levels, as hot oil expands and can give a misleadingly high reading.

Identifying Your Gearbox Model and Ratio

Knowing the specific model and ratio of your marine gearbox is crucial for various maintenance tasks, including ordering the correct parts, troubleshooting, and, of course, ensuring you use the right type of oil. Fortunately, PRM gearboxes provide this information readily accessible on the unit itself.

The most reliable place to find your gearbox model and ratio is on the serial plate, which is typically located on the top of the gearbox casing. This plate contains vital identification information that uniquely identifies your unit.

For modern PRM gearboxes, the serial plate usually follows a clear and consistent format. The first line of text on this plate will display the serial number of your gearbox. This is a unique identifier for that specific unit, useful for warranty claims or detailed service history. The second line is where you'll find the crucial information regarding the gearbox model number and its ratio. For instance, an example of a modern plate might display "280D2.5". This code provides a wealth of information:

• "280" indicates that the gearbox is a PRM280 model.
• "D" signifies a specific design feature, such as a "drop centre" configuration, which refers to the relative vertical position of the input and output shafts.
• "2.5" denotes the 2.5:1 ratio. This ratio indicates how many times the engine's output shaft rotates for every one rotation of the propeller shaft, which is fundamental to matching engine power to propeller requirements.

If your gearbox features a different style of serial number plate, particularly on older models, the gearbox ratio and serial number are often hand-stamped directly onto the top of the plate. While perhaps less aesthetically uniform than modern plates, the information is still present. In cases where identification proves difficult or the plate is unreadable, it is always best to consult with a specialist. Providing a photograph of the serial number plate can often assist experts in correctly identifying your gearbox model and ratio, ensuring you receive accurate advice for maintenance and parts.

Addressing Common Issues: Oil Leaks

Discovering an oil leak from your marine gearbox can be a concerning sign, and it's an issue that requires prompt attention. While the exact cause can vary, oil leaks typically point to a few common culprits that compromise the gearbox's integrity and lubrication system.

In the majority of cases, an oil leak from a gearbox indicates one of two primary problems:

1. Damaged or Worn Seal: Gearboxes contain various seals (such as input shaft seals, output shaft seals, or casing seals) designed to contain the oil within the unit. Over time, these seals can harden, crack, or become otherwise damaged due to age, wear, or exposure to extreme temperatures. Once a seal is compromised, it can no longer effectively prevent oil from escaping, leading to a visible leak. The most common solution for a damaged seal is its replacement, which often requires professional intervention due to the need for specific tools and expertise to disassemble and reassemble the gearbox components.
2. Loose Connection in the Cooling Circuit: Many marine gearboxes incorporate a cooling circuit to manage internal temperatures, especially during prolonged operation. This circuit typically involves hoses and connections that route oil through a cooler. If any of these connections become loose, or if a hose develops a crack or a leak, oil can escape from the system. Checking all connections within the cooling circuit for tightness and inspecting hoses for signs of damage or wear is a sensible first step. Tightening loose clamps or replacing a faulty hose can often resolve this type of leak.

Regardless of the suspected cause, if you observe oil leaking from your gearbox, it is highly recommended to seek professional advice. Continued operation with a leak can lead to insufficient lubrication, potentially causing severe internal damage to the gearbox components. Consulting with an engineering department or a qualified marine mechanic ensures that the problem is accurately diagnosed and rectified, preventing minor issues from escalating into major repairs.

Comparative Guide: Mechanical vs. Hydraulic Gearboxes

To summarise the key differences and oil requirements, the following table provides a clear comparison between mechanical and hydraulic marine gearboxes, specifically referencing the PRM models discussed:

Frequently Asked Questions (FAQs)

Even with detailed information, certain questions frequently arise when dealing with marine gearbox maintenance. Here are some common queries and their answers, consolidating the essential information you need to keep your gearbox in top condition.

Q: Is my gearbox mechanical or hydraulic?

A: For PRM gearboxes, you can identify the type based on the model number. Our PRM 60, 80, 90, 120, and 125 gearboxes are mechanical units. This means they rely on direct mechanical engagement for power transmission. All our other marine gearbox models are hydraulic gearboxes, which utilise fluid pressure to operate their clutches and facilitate gear changes.

Q: What oil does my gearbox take?

A: The oil type depends on your gearbox's classification. If you have a mechanical gearbox from the PRM 60, 80, or 90 series, it must use Automatic Transmission Fluid (ATF), specifically Dextron II or Dextron III. For all hydraulic gearboxes, we highly recommend using mineral 15W40 oil. It is crucial to note that synthetic oils are generally not recommended for hydraulic marine gearboxes.

Q: How do I check the oil level of the gearbox?

A: To accurately check the oil level, ensure the gearbox is at ambient temperature. Then, the dipstick must be fully screwed down into its fitting. Once fully seated, remove the dipstick to take your reading. It is vitally important not to overfill your gearbox, as this can be very detrimental to its performance, especially for mechanical units where it can cause the clutch to wear out prematurely.

Q: How do I know what gearbox and ratio I have?

A: This information is conveniently located on the serial plate, which is usually found on the top of your gearbox. The first line of text on this plate will display your gearbox's serial number. The second line will typically show the PRM model number and its ratio. For example, a modern plate might read "280D2.5," indicating a PRM280 gearbox with a drop centre and a 2.5:1 ratio. For older gearboxes, this information might be hand-stamped. If you're unsure, a photo of the serial plate can often help specialists identify your unit.

Q: Oil is leaking from my gearbox. What do I do?

A: An oil leak typically indicates either a damaged seal that requires replacement or a loose connection within your gearbox's cooling circuit. It is best to address this issue promptly. We recommend contacting a qualified engineering department or marine mechanic to discuss the problem and obtain a professional diagnosis and repair plan. Continuing to operate a leaking gearbox can lead to insufficient lubrication and potential internal damage.

Conclusion

The health and longevity of your marine gearbox hinge significantly on the correct choice and consistent maintenance of its lubricating oil. As we've explored, the distinction between mechanical and hydraulic gearboxes is fundamental, dictating whether your unit requires specific Automatic Transmission Fluid (ATF) Dextron II or III, or a mineral 15W40 oil. Overlooking these crucial specifications or neglecting regular oil level checks can lead to serious operational issues, including premature clutch wear, reduced performance, and costly repairs.

By understanding how to identify your gearbox type, knowing the precise oil it requires, and adhering to safe practices when checking and replenishing levels, you are taking proactive steps to safeguard your vessel's propulsion system. Remember the importance of checking oil only when the gearbox is at ambient temperature and the strict warning against overfilling. Should you encounter any issues like oil leaks, seeking professional advice promptly is always the wisest course of action. Investing a little time in understanding and applying these maintenance principles will ensure your marine gearbox delivers reliable and efficient performance for many years, keeping you confidently on the water.
