Kawasaki 4-Stroke Engine Rebuild & Maintenance

Can a Kawasaki 4-Stroke Engine Be Rebuilt?

The question of whether a Kawasaki 4-stroke engine can be rebuilt is a common one among owners of lawnmowers, generators, and other outdoor power equipment. The short answer is a resounding yes. Kawasaki engines, known for their durability and meticulous manufacturing, are indeed designed with rebuildability in mind. While they are built to last, like any mechanical component, they can suffer wear and tear over time, or be damaged by improper use or lack of maintenance. Fortunately, many common issues can be addressed through a comprehensive rebuild process, allowing you to restore your engine's performance and extend its lifespan significantly. This article will delve into the specifics of rebuilding a Kawasaki 4-stroke engine, focusing on common repair areas like piston ring replacement and head gasket issues, as well as the crucial aspect of regular maintenance to prevent the need for such extensive work.

The Rebuild Process: What's Involved?

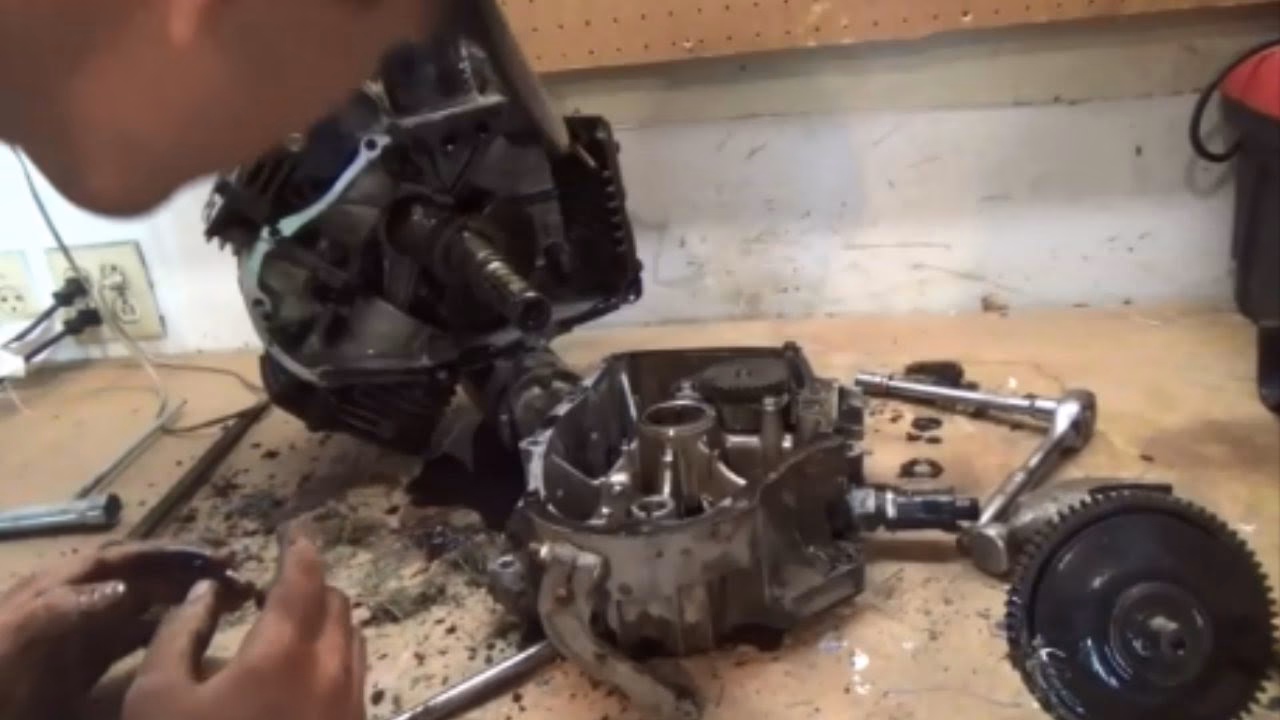

Rebuilding a Kawasaki 4-stroke engine typically involves disassembling the engine down to its core components, inspecting each part for wear or damage, and replacing or refurbishing those that are no longer within specification. This is a task that requires a certain level of mechanical skill, the right tools, and access to quality replacement parts. A typical rebuild might include:

• Complete Disassembly: The engine is taken apart, from the cylinder head and block to the crankshaft, connecting rods, pistons, and valves.
• Cleaning: All components are thoroughly cleaned to remove carbon deposits, oil residue, and any debris. This is crucial for accurate inspection.
• Inspection: Each part is meticulously inspected for wear, cracks, warping, or any other damage. This includes checking cylinder bore for ovality, piston ring groove wear, crankshaft journals for scoring, and valve seats for sealing.
• Piston Ring Replacement: Worn piston rings are a common cause of reduced compression, increased oil consumption, and blow-by. Replacing these is a fundamental part of many engine rebuilds. We'll discuss this in more detail below.
• Head Gasket Replacement: A blown head gasket can lead to coolant leaks, oil contamination, and loss of compression. This is another frequent repair item.
• Valve Servicing: Valves may need to be lapped, replaced, or have their guides serviced to ensure proper sealing and operation.
• Bearing Inspection/Replacement: Crankshaft and connecting rod bearings are checked for wear and may need replacement.
• Gasket and Seal Replacement: All gaskets and seals are typically replaced during a rebuild to ensure proper sealing and prevent leaks.
• Reassembly: The engine is carefully reassembled using new parts where necessary, with all components torqued to the manufacturer's specifications.
• Testing: After reassembly, the engine is tested to ensure it runs smoothly and meets performance expectations.

Common Rebuild Tasks: Piston Ring Repair

One of the most common reasons for a Kawasaki 4-stroke engine to require a rebuild is worn or damaged piston rings. Piston rings serve several critical functions:

• Sealing: They create a seal between the piston and the cylinder wall, preventing combustion gases from escaping into the crankcase (blow-by).
• Oil Control: The oil control ring scrapes excess oil from the cylinder walls, preventing it from entering the combustion chamber.
• Heat Transfer: Rings help transfer heat from the piston to the cylinder wall, which is then dissipated by the cooling system.

When piston rings wear down, they lose their ability to seal effectively. This can manifest in several ways:

• Loss of Power: Leaking compression reduces the engine's ability to generate power.
• Increased Oil Consumption: Worn oil control rings allow more oil into the combustion chamber, leading to blue smoke from the exhaust and fouled spark plugs.
• Blow-by: Combustion gases escaping past the rings into the crankcase can pressurize the crankcase, potentially blowing out seals and gaskets.
• Increased Emissions: Poor combustion and oil burning lead to higher exhaust emissions.

Replacing piston rings involves removing the cylinder head, the oil pan, and the connecting rod cap. The piston is then pushed out of the cylinder, and the old rings are carefully removed. New rings are installed, ensuring they are oriented correctly and that their end gaps are properly staggered. It's often recommended to hone the cylinder walls when replacing rings to provide a fresh surface for the new rings to seat against, promoting better sealing and reducing wear. In cases of significant cylinder wall wear or damage, boring the cylinder and fitting oversized pistons and rings may be necessary.

Common Rebuild Tasks: Head Gasket Replacement

The head gasket is a vital seal that sits between the engine block and the cylinder head. Its primary job is to seal the combustion chamber, coolant passages, and oil passages. When a head gasket fails, it's often referred to as a 'blown' head gasket.

Symptoms of a blown head gasket can include:

• Coolant Loss: Coolant may leak externally from the engine or internally into the combustion chamber or oil system.
• White Smoke from Exhaust: Coolant burning in the combustion chamber produces white, sweet-smelling smoke.
• Milky Oil: If coolant leaks into the oil system, the oil can take on a milky or frothy appearance.
• Overheating: Loss of coolant or combustion gases entering the cooling system can cause the engine to overheat.
• Loss of Compression: A breach in the head gasket can allow compression to leak between cylinders or into coolant/oil passages.
• Bubbles in the Radiator/Coolant Reservoir: This indicates combustion gases are being forced into the cooling system.

Replacing a head gasket requires careful removal of the cylinder head. This involves disconnecting fuel lines, exhaust systems, electrical connections, and valve train components. Once the head is removed, the gasket material is cleaned from both the block and head surfaces. It's crucial that these surfaces are perfectly clean and flat. If the cylinder head or block mating surfaces are warped, they may need to be resurfaced by a machine shop. New head bolts are often recommended, as they are designed to stretch upon initial torquing and should not be reused. The new gasket is carefully positioned, the head is reinstalled, and the head bolts are torqued in the correct sequence and to the specified tension, often in multiple stages. This is a critical step to ensure the new gasket seals properly.

Kawasaki Engine Maintenance: Preventing the Need for Rebuilds

While rebuilding a Kawasaki engine is possible, the best approach is always preventative maintenance. Kawasaki themselves emphasize that their engines are more than just components; they are an "ownership experience." With the right support and proper maintenance practices, you can keep your engine performing well season after season. Regular maintenance not only prevents costly repairs but also ensures your equipment operates at peak efficiency and reliability.

Key maintenance tasks for your Kawasaki 4-stroke engine include:

• Regular Oil Changes: Use the correct type and grade of oil as specified in your owner's manual. Change the oil at the recommended intervals, or more frequently if operating in dusty or severe conditions. Low or dirty oil is a leading cause of engine wear.
• Air Filter Maintenance: A clean air filter is essential for proper combustion. A clogged filter restricts airflow, leading to reduced power and potential internal damage from dirt ingress. Clean or replace the air filter according to the manual's recommendations.
• Spark Plug Service: Inspect and clean the spark plug regularly. A fouled or worn spark plug can cause misfires and poor starting. Replace it at the recommended intervals.
• Fuel System Care: Use fresh, clean fuel. If the equipment is stored for extended periods, use a fuel stabilizer or drain the fuel system to prevent gumming and carburetor issues.
• Cooling System Checks (if applicable): For liquid-cooled engines, ensure the coolant level is correct and that the cooling fins on air-cooled engines are kept clean and free of debris.
• Check for Leaks: Periodically inspect the engine for any signs of oil or coolant leaks. Addressing small leaks early can prevent larger problems.
• Listen for Unusual Noises: Knocking, rattling, or excessive smoking can be early indicators of internal engine problems.

Table: Common Issues and Solutions

Frequently Asked Questions

Q1: How much does it cost to rebuild a Kawasaki 4-stroke engine?
The cost can vary significantly depending on the extent of the rebuild, the availability of parts, and whether you do the work yourself or hire a professional. A basic rebuild involving piston rings and gaskets might cost a few hundred pounds for parts, while a full overhaul could run into the thousands.

Q2: Can I rebuild my Kawasaki engine myself?
If you have a good understanding of mechanics, the necessary tools, and access to a service manual, it is possible to rebuild a Kawasaki 4-stroke engine yourself. However, precision is key, especially when torquing bolts and ensuring proper assembly. If you're unsure, it's best to seek professional help.

Q3: What is the typical lifespan of a Kawasaki 4-stroke engine?
With proper maintenance, a Kawasaki 4-stroke engine can last for many hundreds or even thousands of hours of operation. Regular oil changes, clean air filters, and careful operation are crucial for maximizing its lifespan.

Q4: When should I consider rebuilding instead of replacing the engine?
Rebuilding is often a more cost-effective option than replacing the entire engine, especially for smaller outdoor power equipment where a new engine might be a significant portion of the equipment's cost. If the core components like the crankshaft and block are in good condition, a rebuild is usually worthwhile.

Q5: Where can I find parts for a Kawasaki engine rebuild?
Genuine Kawasaki parts can be sourced from authorised Kawasaki dealers. Aftermarket parts are also available from various suppliers, but it's important to ensure they are of good quality for a successful rebuild.

Conclusion

In summary, Kawasaki 4-stroke engines are robust and definitely rebuildable. Whether it's worn piston rings causing a loss of power or a blown head gasket leading to coolant issues, these common problems can be rectified through a rebuild. However, the most effective strategy is always diligent preventative maintenance. By adhering to the recommended service schedule, using the correct fluids, and keeping the engine clean and well-maintained, you can significantly prolong its life and ensure it continues to perform reliably for years to come, making the most of your investment in quality Kawasaki engineering.
