The Heart of a 125cc Engine

The 125cc engine, a staple in the world of motorcycles, scooters, and even some go-karts, is a marvel of compact engineering. Despite its relatively small displacement, it packs a punch, offering a balance of performance, efficiency, and affordability. Understanding what makes up a 125cc engine is key for anyone involved in its maintenance, tuning, or simply curious about the mechanical heart of their ride. This article delves into the fundamental components and principles that define these popular powerplants, drawing on expertise in servicing and providing parts for various makes and models.

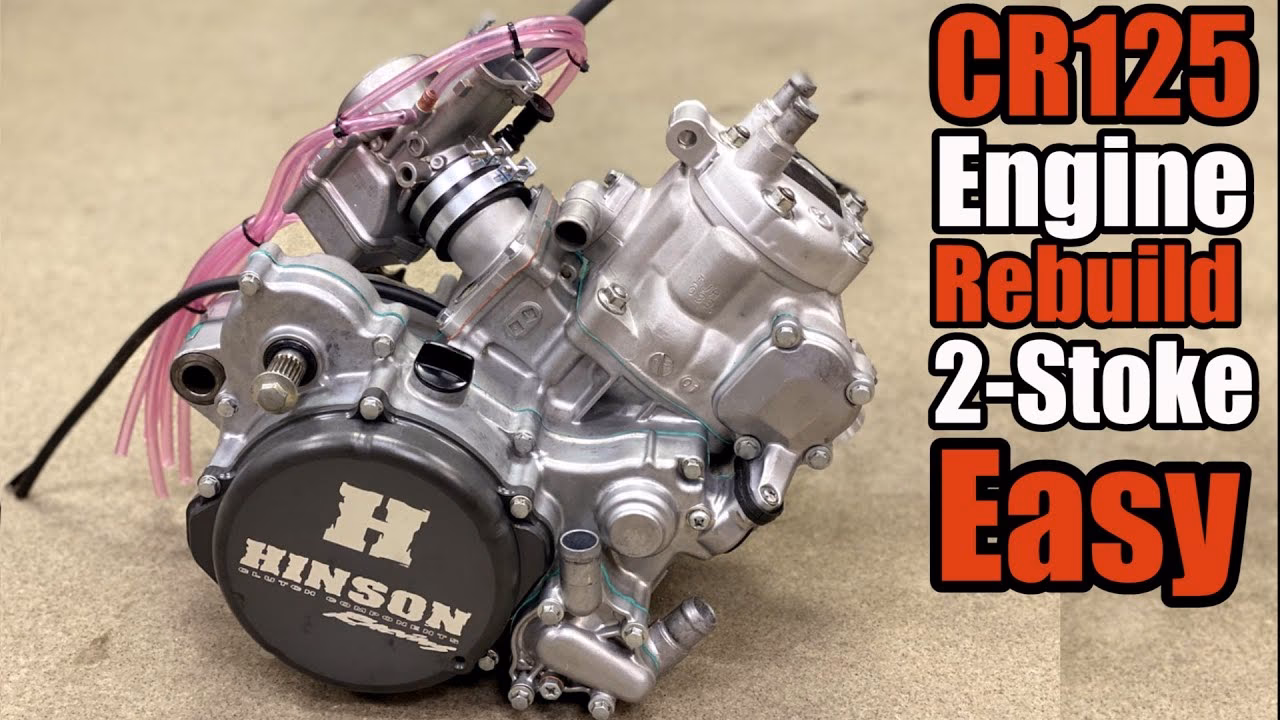

The Core Components of a 125cc Engine

At its most basic, a 125cc engine, typically a two-stroke or four-stroke internal combustion engine, converts fuel into mechanical motion. This transformation relies on a series of precisely engineered parts working in harmony. Let's break down the essential elements:

1. The Cylinder: The Heart of Combustion

The cylinder is the chamber where the magic of combustion happens. In a 125cc engine, it's a precisely bored cylinder made of robust materials like cast iron or aluminium, often with a steel liner for durability. The size of the cylinder bore and the stroke length of the piston determine the engine's displacement – in this case, 125 cubic centimetres (cc). The cylinder's internal surface must be incredibly smooth to facilitate the piston's movement and maintain a proper seal with the piston rings. For two-stroke engines, the cylinder also features crucial transfer ports and an exhaust port, which are meticulously designed for optimal gas flow.

2. The Piston: The Moving Force

The piston is a cylindrical component that moves up and down within the cylinder. It's driven by the expanding gases produced during combustion. The piston is fitted with piston rings, which are vital for sealing the combustion chamber, preventing gases from escaping into the crankcase, and controlling the amount of lubricating oil that reaches the cylinder walls. The design and material of the piston, often aluminium alloy for its lightness and heat conductivity, are critical for its performance and longevity.

3. The Connecting Rod: Linking Piston to Crankshaft

The connecting rod, or con-rod, is a sturdy metal link that connects the piston to the crankshaft. It transmits the reciprocating (up-and-down) motion of the piston into the rotational motion of the crankshaft. The con-rod must withstand significant forces and is typically made from high-strength steel. The small end of the con-rod connects to the piston via a gudgeon pin, while the big end connects to the crankshaft's crankpin.

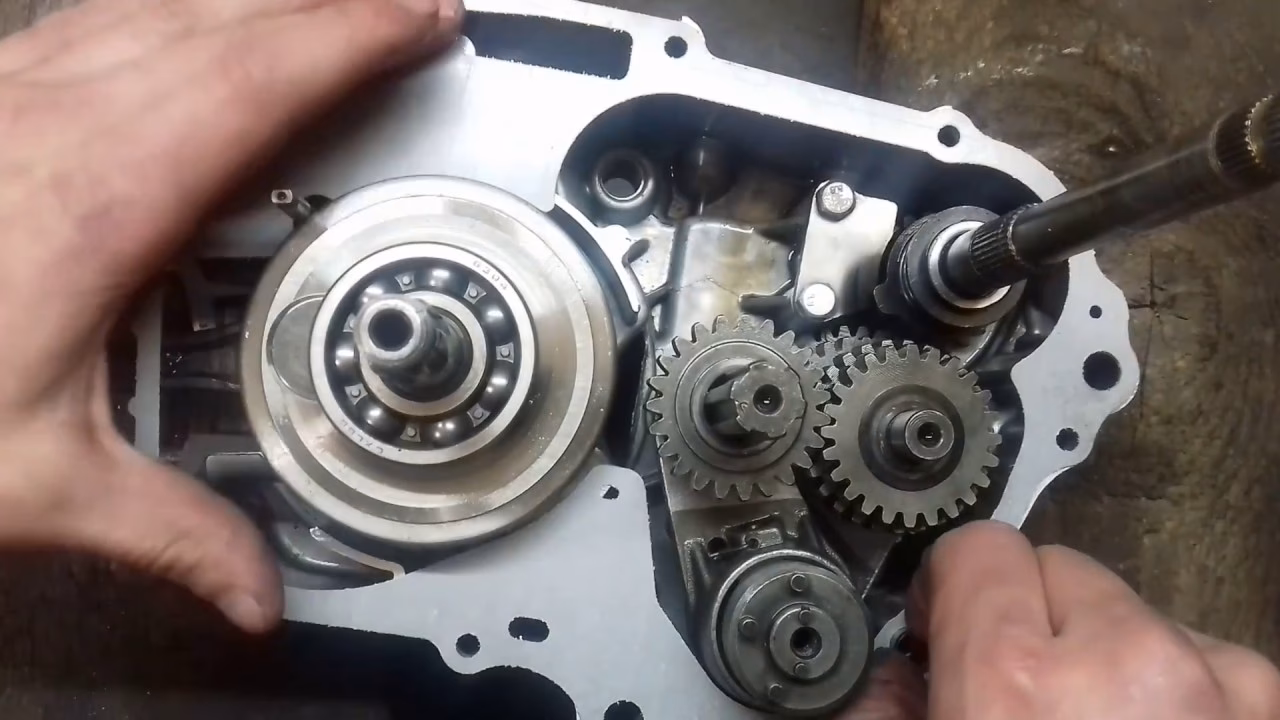

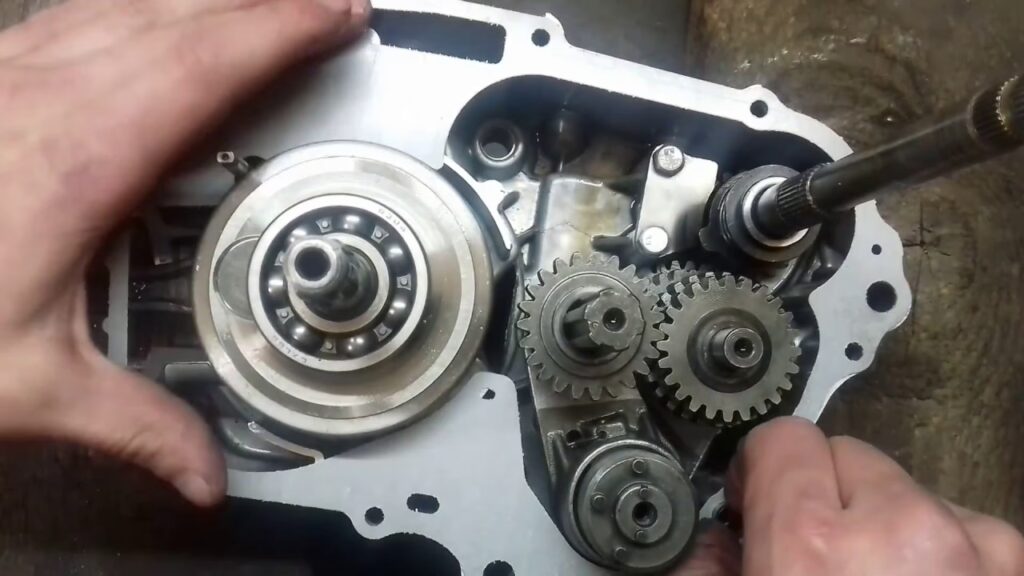

4. The Crankshaft: Converting Linear to Rotary Motion

The crankshaft is the backbone of the engine's power output. It's a rotating shaft with offset throws (crankpins) to which the connecting rods are attached. As the pistons move up and down, they push and pull on the connecting rods, causing the crankshaft to rotate. The crankshaft's design, including its balance and the mass of its counterweights, significantly impacts the engine's smoothness and operating range. A well-balanced crankshaft is essential for reducing vibrations, especially in high-revving 125cc engines.

5. The Cylinder Head: Sealing the Combustion Chamber

The cylinder head is mounted on top of the cylinder, forming the upper boundary of the combustion chamber. In four-stroke engines, the cylinder head houses the valves, camshaft(s), and spark plug. The precise shape of the combustion chamber within the head is crucial for efficient combustion and power generation. In two-stroke engines, the cylinder head is simpler, typically housing only the spark plug and a squish band designed to promote turbulence.

6. The Valvetrain (Four-Stroke Engines)

For four-stroke 125cc engines, the valvetrain is a complex but essential system. It comprises:

• Valves: Typically intake and exhaust valves, which open and close at precise moments to allow the air-fuel mixture into the cylinder and the exhaust gases out.
• Camshaft: Driven by the crankshaft (often via a timing chain or belt), the camshaft has lobes that push open the valves.
• Pushrods/Rocker Arms: In some designs, these components transfer the camshaft's motion to the valves.

The timing and lift of these valves are critical for engine performance. Brands like Mac Minarelli and certain Rotax models often feature sophisticated valvetrain designs.

7. The Carburetor or Fuel Injection System: Fuel Delivery

This is the system responsible for mixing fuel and air in the correct ratio before it enters the combustion chamber.

• Carburetor: A traditional and common component in many 125cc engines, especially older or simpler designs. It uses vacuum created by the engine to draw fuel and air through jets and passages. Tuning a carburetor involves adjusting jet sizes, needle settings, and air/fuel screws.
• Fuel Injection (FI): More modern 125cc engines, particularly performance-oriented ones from manufacturers like TM or SGM, may feature electronic fuel injection. FI systems use sensors and an electronic control unit (ECU) to precisely meter fuel delivery, offering better efficiency, throttle response, and emissions control.

8. The Ignition System: Sparking the Combustion

The ignition system provides the high-voltage spark to ignite the air-fuel mixture in the combustion chamber. This typically involves a spark plug, an ignition coil, and a source of power (like a magneto or battery). The timing of the spark is crucial for optimal power and efficiency. Modern systems often use electronic ignition, which offers greater precision and reliability than older contact breaker systems.

9. The Exhaust System: Expelling By-products

The exhaust system's primary role is to safely channel the burnt gases away from the engine. In two-stroke engines, the exhaust pipe (often called an expansion chamber) is a highly engineered component that plays a significant role in power delivery by using pressure waves to help scavenge the cylinder and improve volumetric efficiency. For four-stroke engines, the exhaust system typically includes headers, a catalytic converter (in modern applications), and a muffler.

Two-Stroke vs. Four-Stroke 125cc Engines

The 125cc engine can be found in both two-stroke and four-stroke configurations, and their internal workings differ significantly:

Expertise in 125cc Engine Services

At PFP Services, we have extensive experience with a wide range of 125cc engines, including those from SGM, TM, Pavesi, Mac Minarelli, and various Rotax 124, 128, and 129 models. Our services encompass:

• Engine Servicing and Rebuilds: From routine maintenance to complete overhauls, we ensure your engine runs at its peak.
• Tuning: Optimising engine performance for specific applications, whether for racing or everyday use.
• Spare Parts Provision: Supplying high-quality components for a variety of makes and models, ensuring your engine's longevity.
• Advice and Development: Offering expert guidance and supporting development plans to give you that competitive edge.

Whether you're dealing with a classic two-stroke motocross engine or a modern four-stroke commuter powerplant, understanding its components is the first step to effective care and performance enhancement. The intricate interplay of the cylinder, piston, connecting rod, crankshaft, and associated systems is what defines the character and capability of any 125cc engine.

Frequently Asked Questions About 125cc Engines

Q1: What is the main difference between a 125cc two-stroke and a 125cc four-stroke engine?

The primary difference lies in their operating cycle. A two-stroke completes its power cycle in two piston strokes (one crankshaft revolution), while a four-stroke takes four piston strokes (two crankshaft revolutions). Two-strokes are generally simpler, lighter, and produce more power for their size, but are often less fuel-efficient and produce more emissions. Four-strokes are more complex, smoother, more fuel-efficient, and cleaner.

Q2: What does '125cc' actually mean?

'125cc' refers to the engine's displacement, which is the total volume swept by all the pistons inside the cylinders. It's calculated by multiplying the area of the cylinder bore by the length of the piston's stroke, and then by the number of cylinders. In this case, it's approximately 125 cubic centimetres.

Q3: How often should a 125cc engine be serviced?

The service interval depends heavily on the type of engine (two-stroke vs. four-stroke), its application (racing, commuting), and the manufacturer's recommendations. Generally, two-strokes may require more frequent top-end rebuilds due to their design, while four-strokes will need regular oil changes and valve checks. Always consult your owner's manual or a qualified mechanic for specific advice.

Q4: Can I upgrade my 125cc engine?

Yes, upgrades are possible, but they can range from simple tuning adjustments (carburetor, exhaust, ignition) to more involved modifications like big bore kits, performance camshafts, or porting. The feasibility and effectiveness of upgrades depend on the specific engine model and your goals. It's advisable to seek expert advice for significant performance modifications.

Q5: What are the most common issues with 125cc engines?

Common issues can include wear on piston rings and cylinder bores, problems with the carburetor or fuel injection system, ignition system faults, and in two-strokes, issues with reed valves or the exhaust power valve. Regular maintenance is key to preventing most of these problems.
