Unpacking the Honda CT70 Engine: A UK Insight

The Honda CT70, affectionately known as the Honda ST70 in the UK and Canada, holds a special place in the hearts of motorcycle enthusiasts. Manufactured by Honda from 1969 through 1994, this compact yet capable machine blurred the lines between a dual-purpose motorcycle and a larger-than-usual minibike. Its enduring appeal, from being an entry-level street-legal option to a robust off-road companion, owes much to the simple yet remarkably effective engine nestled within its distinctive pressed-steel 'T-bone' frame. But what exactly powered this legendary small-capacity Honda?

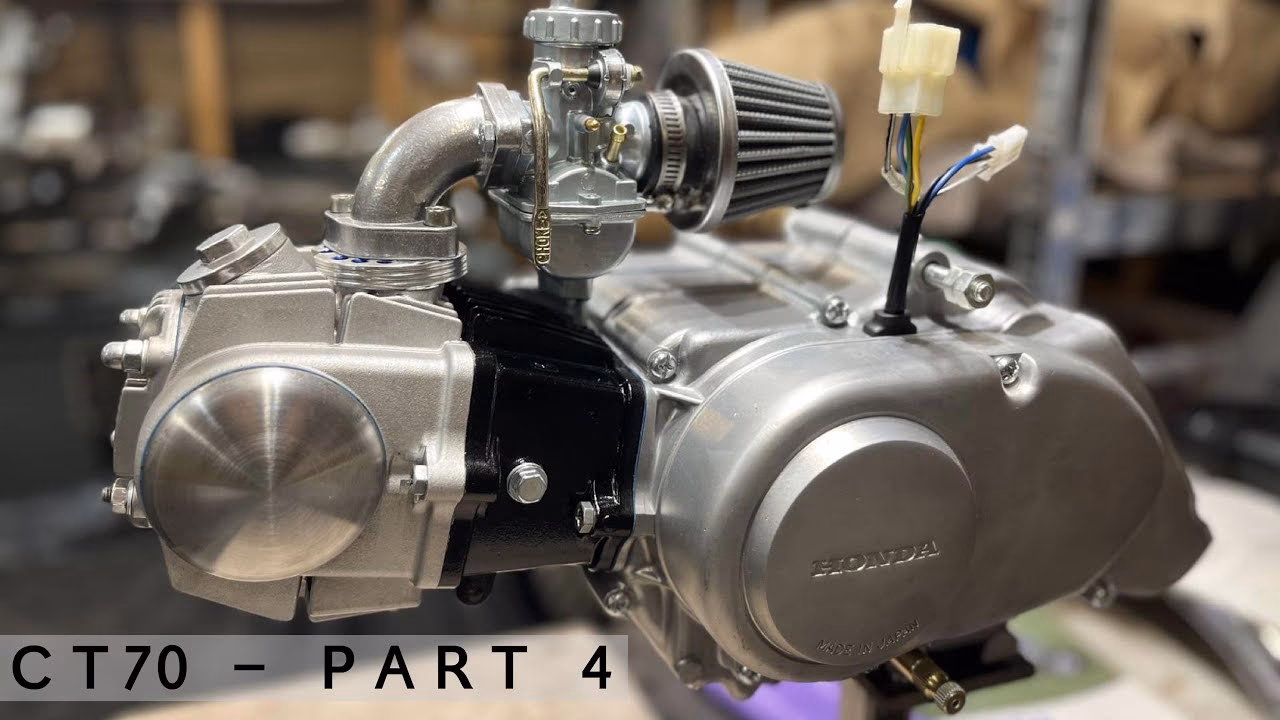

The Heart of the CT70: A Resilient 72cc OHC Single

At the core of every Honda CT70 was a meticulously engineered 72cc, 4-stroke, OHC (Overhead Camshaft), single-cylinder engine. This engine design was a hallmark of Honda's reliability and efficiency, perfectly suited for the diverse demands placed upon the CT70. While often referred to colloquially as a '70cc' bike, the engine's precise displacement was 72 cubic centimetres, offering a slight edge in performance and torque for its size.

The 4-stroke configuration meant cleaner emissions and better fuel economy compared to two-stroke alternatives, a factor that Honda even highlighted by marketing the CT70 as an environmentally friendly motorcycle, equipped with USDA-approved spark arresters and mufflers. The Overhead Camshaft design, a more advanced feature for a bike of this class at the time, allowed for more precise valve timing, contributing to the engine's smooth operation and dependable power delivery across its RPM range. This simple yet robust power plant was key to the CT70's success, enabling it to navigate everything from urban streets to rugged trails with surprising ease.

Shared Lineage: Engines Across Honda's Mini Range

Honda's philosophy of using proven components across various models meant that the CT70's engine wasn't an isolated design. It shared its fundamental architecture and many components with other popular Honda machines of the era. Most notably, the CT70's engine was essentially the same as that found in its taller cousin, the Honda CL70, a small-capacity scrambler-style motorcycle. Furthermore, it bore a very close resemblance, and often shared parts, with the engine powering the Honda ATC70, one of Honda's pioneering all-terrain cycles. This commonality not only streamlined production for Honda but also meant that parts availability for these engines remained relatively good, even decades after production ceased, a boon for today's restoration enthusiasts.

This interchangeability highlights Honda's commitment to a modular design approach, ensuring that a successful engine platform could serve multiple purposes, from street riding to off-road adventures. It also speaks to the inherent durability and versatility of this particular 72cc OHC unit.

Transmission Variations: Automatic vs. Manual Clutch

While the core engine displacement and OHC design remained consistent throughout the CT70's long production run, Honda offered variations in the transmission to cater to different rider preferences and skill levels. This is a crucial detail for owners and restorers, as it significantly impacts the riding experience and specific parts required. The CT70 models came with either a 3-speed transmission with an automatic clutch or a 4-speed transmission with a manual clutch.

The automatic clutch versions (often denoted by 'K' in the model designation, e.g., CT70K0, CT70K1, and later 1984 onwards models) were particularly appealing to new riders and those seeking maximum convenience. With an automatic clutch, riders simply shift gears without needing to operate a clutch lever, making the CT70 incredibly easy to learn and ride. This feature greatly contributed to its appeal as an entry-level motorcycle for younger riders or adults seeking a hassle-free experience.

Conversely, the manual clutch versions (often denoted by 'HK' in the model designation, e.g., CT70HK0, CT70HK1, and most models from 1972-1982) offered more control for experienced riders. The 4-speed manual transmission allowed for greater flexibility in power delivery, especially beneficial for navigating challenging off-road terrain where precise gear selection could make a significant difference. The CT70K2 and subsequent models through to 1982 also featured a 3-speed manual clutch, providing a simpler manual experience without the extra gear.

Understanding which transmission type your specific CT70 (or ST70) model possesses is vital for maintenance, parts ordering, and even diagnosing riding characteristics. This table summarises the primary transmission types across key model designations:

Spark Plugs: A Small Detail with Big Impact

Even a seemingly minor component like the spark plug plays a crucial role in the engine's performance. For the early Honda CT70 models, the specified spark plug was the NGK C7HSA. However, with later models, particularly from 1991 onwards when the CT70 made a return to the market after an eight-year hiatus, the recommended spark plug changed to the NGK CR6HSA. This change might seem small, but using the correct spark plug is essential for optimal combustion, fuel efficiency, and overall engine health. Always consult your specific model's manual or a reliable parts guide to ensure you're fitting the right plug.

The spark plug's role is to ignite the air-fuel mixture in the combustion chamber. An incorrect heat range (indicated by the number in the plug's designation) can lead to fouling, misfires, or even engine damage. For enthusiasts undertaking a restoration, paying attention to these seemingly minor details is paramount to achieving a truly authentic and reliable machine.

Engine Durability and Maintenance for the Modern Enthusiast

The Honda CT70's engine is renowned for its exceptional durability. These small 4-stroke units were built to last, capable of withstanding years of use and abuse, whether on or off the road. This inherent robustness is a primary reason why so many CT70s (or ST70s) are still around today, often becoming cherished restoration projects.

Maintenance for these engines is relatively straightforward, making them ideal for budding mechanics or those looking to learn more about motorcycle repair. Regular oil changes, air filter cleaning, valve clearance checks, and spark plug replacement are the primary tasks. The OHC design means no pushrods, simplifying valve train adjustments compared to older OHV designs. Given their age, specific attention should also be paid to carburettor cleaning and adjustment, as fuel quality and ethanol content can wreak havoc on older fuel systems.

For those diving into a restoration, the simplicity of the CT70 engine is a major advantage. Parts are still widely available through specialist websites and communities dedicated to these classic mini-trail bikes. The strong community support also means a wealth of technical advice is often just a few clicks away, making the journey of bringing a CT70 back to life a rewarding experience.

Why the CT70 Engine Remained a Classic

The longevity of the Honda CT70's production run, spanning over two decades, is a testament to the success of its engine design. It wasn't about raw power or blistering speed; it was about reliability, ease of use, and versatility. The 72cc OHC single-cylinder engine provided just enough grunt to make the lightweight CT70 surprisingly capable. It was powerful enough to carry an adult through rugged trails yet gentle enough for children to enjoy safely.

Its compact nature also contributed to the bike's remarkable portability. Weighing only about 143lbs (69.5 kg for the 1984 model), and with folding handlebars and footpegs, the CT70 could easily fit into the boot of a car, making it an ideal companion for camping trips or adventures away from home. This convenience, directly facilitated by the engine's compact design and the bike's overall lightweight construction, further solidified its legendary status.

Today, the CT70 is largely a collector's item, but its engine continues to be a focal point for enthusiasts. The joy of hearing that familiar 72cc thrum, knowing it's the result of decades of Honda engineering and perhaps your own restoration efforts, is a unique pleasure for any vintage motorcycle aficionado.

Frequently Asked Questions About the Honda CT70 Engine

What is the exact engine size of a Honda CT70?

While often referred to as a '70cc', the Honda CT70 (and ST70) is equipped with a 72cc, 4-stroke, Overhead Camshaft (OHC), single-cylinder engine.

Did all Honda CT70s have the same engine?

The fundamental engine design (72cc, 4-stroke, OHC, single-cylinder) remained consistent throughout its production. However, minor internal revisions or component updates may have occurred over the years. The most significant variation related to the engine was the type of transmission and clutch paired with it (3-speed automatic, 3-speed manual, or 4-speed manual).

Is the CT70 engine easy to maintain?

Yes, the 72cc OHC engine is known for its simplicity and robust design, making it relatively easy to maintain. Common tasks like oil changes, spark plug replacement, and carburettor cleaning are straightforward for those with basic mechanical knowledge.

What spark plug does a Honda CT70 use?

Early models typically used an NGK C7HSA spark plug. Later models, particularly those produced from 1991 onwards, switched to an NGK CR6HSA. Always verify the correct plug for your specific model year.

Can I still get parts for a Honda CT70 engine?

Yes, despite being discontinued in 1994, there is a strong aftermarket for Honda CT70/ST70 parts. Many websites and specialist suppliers cater to owners and restorers, offering everything from genuine Honda parts to high-quality reproductions.

What is the difference between an automatic and manual clutch CT70?

An automatic clutch CT70 (often 3-speed) allows the rider to shift gears without manually operating a clutch lever, making it very easy to ride. A manual clutch CT70 (either 3-speed or 4-speed) requires the rider to pull a clutch lever while shifting gears, offering more control over power delivery.

Was the CT70 engine used in other Honda bikes?

Yes, the CT70's engine shared its design and many components with other Honda mini-bikes and ATCs, such as the Honda CL70 and the Honda ATC70, showcasing Honda's efficient use of a proven engine platform.

The Honda CT70's engine, a simple yet effective 72cc OHC single, was the beating heart of a truly pioneering machine. Its reliability, coupled with the bike's versatile transmission options and compact design, ensured its place in motorcycle history. For enthusiasts in the UK and beyond, the ST70 remains a cherished classic, a testament to Honda's engineering prowess in creating small, mighty, and enduring motorcycles.
