2-Stroke vs 4-Stroke: Power Explained

When delving into the world of internal combustion engines, two primary configurations dominate: the 2-stroke and the 4-stroke. While both serve the fundamental purpose of converting fuel into mechanical energy, their operational methodologies and resulting characteristics are remarkably distinct. Understanding these differences is crucial for anyone involved in mechanics, from hobbyists tinkering in their garage to professionals specifying engines for demanding applications. This article aims to demystify why 2-stroke engines, in particular, often boast a superior power-to-weight ratio, and how this advantage is achieved, alongside a comprehensive comparison of their other key attributes.

The Heart of the Matter: Power Output

The most frequently cited advantage of a 2-stroke engine is its ability to generate more power relative to its size and weight when compared to a 4-stroke engine. This isn't a mere coincidence but a direct consequence of their fundamental operational cycles. A 2-stroke engine achieves a power stroke with every revolution of the crankshaft, whereas a 4-stroke engine requires two full revolutions to complete its power cycle. Let's break down why this is the case.

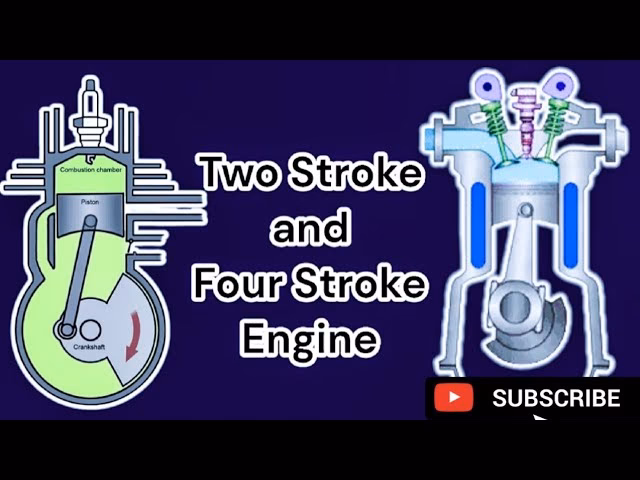

Understanding the Cycles

A 4-stroke engine operates through four distinct piston movements (strokes):

• Intake: The piston moves down, drawing the fuel-air mixture into the cylinder.
• Compression: The piston moves up, compressing the fuel-air mixture.
• Power: The spark plug ignites the compressed mixture, forcing the piston down. This is the stroke that generates usable power.
• Exhaust: The piston moves up again, expelling the burnt gases from the cylinder.

In contrast, a 2-stroke engine condenses these four functions into just two strokes:

• Upstroke: The piston moves upwards, compressing the fuel-air mixture in the combustion chamber. Simultaneously, as the piston rises, it creates a vacuum in the crankcase, drawing in a fresh fuel-air mixture.
• Downstroke: The spark plug ignites the compressed mixture, driving the piston downwards. As the piston descends, it first uncovers the exhaust port, allowing burnt gases to escape, and then uncovers the transfer ports. The downward movement of the piston also pressurises the crankcase, forcing the fresh fuel-air mixture through the transfer ports into the cylinder, where it helps to scavenge the remaining exhaust gases and prepare for the next compression stroke.

The key takeaway here is that a 2-stroke engine fires once every revolution, effectively doubling the power strokes compared to a 4-stroke engine of the same displacement and operating at the same RPM. This inherent characteristic gives 2-stroke engines a significant advantage in terms of power density.

Weight and Simplicity: The Trade-offs

The simpler design of a 2-stroke engine directly contributes to its lighter weight. By eliminating the complex valvetrain system found in 4-stroke engines – which includes valves, camshafts, pushrods, and rockers – 2-stroke engines have fewer moving parts. This reduction in components not only lowers manufacturing costs but also significantly reduces the overall weight of the engine. This makes 2-stroke engines ideal for applications where weight is a critical factor, such as chainsaws, leaf blowers, and many smaller motorcycles and scooters.

A typical 4-stroke engine, with its intricate valvetrain, requires precise timing and lubrication for these components. While this complexity leads to better efficiency and cleaner emissions, it also adds considerable weight and bulk. The presence of valves means the cylinder head is more substantial, and the additional moving parts require a more robust crankcase and lubrication system.

Fuel Efficiency: Where 4-Strokes Shine

While 2-strokes offer more frequent power pulses, this comes at a cost to fuel efficiency. The scavenging process in a 2-stroke engine, where the incoming fresh fuel-air mixture helps push out the exhaust gases, is not perfectly efficient. Some of the fresh fuel-air mixture inevitably escapes through the exhaust port before it can be burned. This phenomenon, known as 'short-circuiting', leads to a loss of unburnt fuel, directly impacting fuel economy. Furthermore, the oil mixed with the fuel for lubrication is also burnt during combustion, contributing to lower efficiency and increased emissions.

4-stroke engines, with their dedicated intake and exhaust strokes and a separate lubrication system, achieve a much cleaner and more complete combustion. The precise control over valve timing ensures that only exhaust gases are expelled, and fresh fuel-air mixture is drawn in without loss. This makes 4-stroke engines significantly more fuel-efficient, a critical consideration for passenger vehicles, generators, and any application where running costs and fuel range are paramount.

Emissions and Environmental Impact

The efficiency of combustion and the method of lubrication have a profound impact on the environmental footprint of an engine. As mentioned, the loss of unburnt fuel in 2-stroke engines contributes to higher levels of hydrocarbons and particulate matter in their exhaust. The burning of lubricating oil, often a mix of mineral or semi-synthetic oil, also adds to the emission profile, producing more smoke and a characteristic smell. Consequently, 2-stroke engines generally struggle to meet modern stringent emissions regulations without significant technological intervention.

4-stroke engines, with their cleaner combustion and the ability to incorporate advanced emission control technologies like catalytic converters, are far more environmentally friendly. The separate lubrication system means oil is not intentionally burnt, leading to significantly lower emissions of unburnt hydrocarbons, carbon monoxide, and particulate matter. This has led to the widespread adoption of 4-stroke engines in automotive and many other applications where environmental compliance is a key requirement.

Maintenance and Durability: A Tale of Two Designs

The inherent simplicity of the 2-stroke engine can also translate to simpler maintenance in some respects. With fewer moving parts, there are fewer potential points of failure related to the valvetrain. However, the constant burning of oil mixed with fuel can lead to carbon buildup on piston rings, cylinder walls, and exhaust ports, which can require more frequent cleaning or de-carbonisation. The lubrication, relying on the fuel-oil mixture, is also less consistent than a dedicated oil sump system, potentially leading to increased wear over time if not managed correctly.

4-stroke engines, while having a more complex initial design, often benefit from a more robust and consistent lubrication system. The engine oil is circulated and filtered, ensuring all moving parts receive adequate lubrication, reducing wear and tear. This dedicated lubrication system, combined with cleaner combustion, generally leads to greater durability and longer service intervals between major overhauls. However, when maintenance is required, such as valve adjustments or timing belt replacements, it can be more labour-intensive and costly.

Comparison Table: 2-Stroke vs. 4-Stroke

To summarise the key differences, let's look at a comparative table:

Frequently Asked Questions

Why do 2-stroke engines sound different?

The distinct 'ring-ding' sound of a 2-stroke engine is due to its firing once every crankshaft revolution, producing more frequent exhaust pulses. This rapid firing, combined with the characteristic exhaust systems often found on 2-stroke machines, creates a higher-pitched, more "buzzy" sound compared to the smoother, lower-frequency sound of a 4-stroke engine firing only half as often.

Can I convert a 2-stroke to a 4-stroke or vice versa?

No, converting between 2-stroke and 4-stroke designs is not feasible. The fundamental operating principles, internal componentry (like the presence or absence of a valvetrain), and even the crankcase design are entirely different. These are distinct engine architectures, not interchangeable configurations.

Which type of engine is better?

There isn't a universally 'better' engine; the choice depends entirely on the intended application. If high power-to-weight ratio and simplicity are paramount, a 2-stroke might be suitable. However, for applications requiring fuel efficiency, lower emissions, and greater long-term durability, a 4-stroke is the clear winner. Modern engineering has also seen advancements in 2-stroke technology, such as direct injection, which improve their efficiency and emissions, but they still generally lag behind their 4-stroke counterparts in these areas.

Conclusion

The question of why 2-stroke engines produce more power than 4-strokes boils down to their fundamental design and operational cycle. By completing a power stroke with every crankshaft revolution, 2-stroke engines offer a significant advantage in power density, making them lighter and more potent for their size. This advantage, however, is typically offset by lower fuel efficiency, higher emissions, and potentially reduced durability compared to the more sophisticated and efficient 4-stroke engine. Understanding these trade-offs is essential for making informed decisions in the selection and maintenance of engines across a wide spectrum of applications, from the smallest garden tools to larger industrial machinery.
