BMW Brake Pad Sensor Fault: What Happens Next?

When you're behind the wheel of a BMW, you expect a sophisticated driving experience, and that includes advanced safety features. One such feature is the brake pad wear sensor, a seemingly small component designed to give you an early warning when your brake pads are nearing the end of their life. However, what happens when this crucial sensor itself malfunctions or breaks? It can lead to confusion, unnecessary worry, and, more importantly, a compromised understanding of your vehicle's braking health. Understanding the implications of a broken BMW brake pad sensor is vital for any owner, ensuring both your safety and the longevity of your vehicle's braking system.

These sensors are an integral part of modern BMWs, providing real-time data to the vehicle's onboard computer. They are designed to prevent the dangerous and damaging scenario of metal-on-metal braking, which occurs when brake pads are completely worn down. But like any electronic component, they are susceptible to failure. Ignoring a sensor fault, or misunderstanding what it signifies, can have significant consequences. This article will delve into the precise role of these sensors, the tell-tale signs of their failure, the potential risks involved, and how to address the issue effectively.

What Exactly is a BMW Brake Pad Sensor?

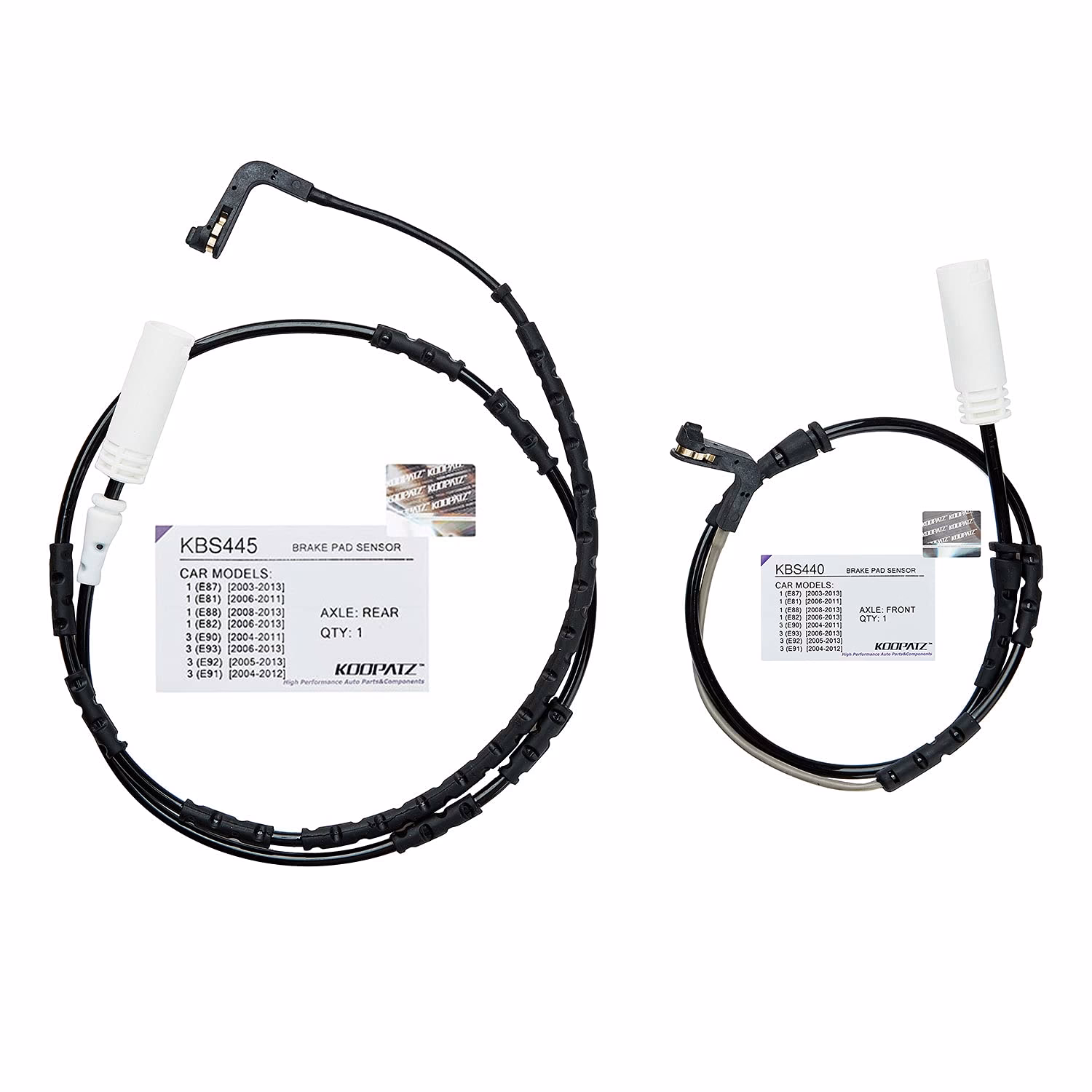

A BMW brake pad sensor is essentially a small, inexpensive component made of plastic with an electrical circuit embedded within it. It's typically attached to one brake pad on each axle (though some models might have them on more wheels, it's generally one per axle for the wear indication). Its purpose is straightforward: as the brake pad wears down, the sensor's tip, which is designed to make contact with the brake rotor, eventually gets worn through. When this happens, the electrical circuit within the sensor is broken, triggering a warning light on your dashboard, usually a yellow or red brake symbol, accompanied by a message on your iDrive screen indicating that the brake pads need checking or are worn.

This system provides a proactive alert, allowing you to schedule brake service before the pads are dangerously thin, preventing damage to the brake rotors and maintaining optimal braking performance. It's a simple yet highly effective piece of preventative maintenance technology.

Identifying a Broken or Faulty Brake Pad Sensor

When a brake pad sensor malfunctions, it can manifest in several ways, often leading to confusion for the driver. Here are the common symptoms:

• Premature or Constant Warning Light: The most common sign. Your dashboard brake warning light (often yellow) illuminates, even if your brake pads have plenty of life left. This can happen shortly after a brake service, or seemingly at random. The iDrive system might display a message like 'Brake Pad Wear' or 'Check Brakes', despite recent inspection showing good pad thickness.
• No Warning Light When Pads Are Worn: Conversely, a broken sensor might fail to trigger the warning light even when your brake pads are critically worn. This is a far more dangerous scenario, as you lose the vital early warning system, risking metal-on-metal contact.
• Intermittent Warning Light: The light might come on and off, particularly during bumps or turns, suggesting a loose connection or a sensor that's on the verge of breaking.
• Error Codes: A diagnostic scan using an OBD-II tool will likely reveal specific fault codes related to the brake pad wear sensor circuit (e.g., codes related to open circuit, short circuit, or implausible signal).
• Physical Damage: During a visual inspection, you might see a sensor wire that is cut, frayed, melted, or disconnected from its mounting point or the brake pad itself.

Common Causes of Sensor Failure

While designed to be robust, brake pad sensors operate in a harsh environment. Several factors can lead to their demise:

• Physical Damage: This is arguably the most common cause. The sensor's wiring can be snagged, cut, or abraded by road debris, potholes, or even improper routing during installation.
• Wear and Tear: Although the sensor's tip is designed to wear with the pad, the plastic housing and wiring can degrade over time due to exposure to heat, cold, moisture, and road salt.
• Corrosion: Moisture and road salt can lead to corrosion in the electrical connector, interrupting the circuit.
• Improper Installation: If the sensor isn't correctly clipped into its bracket or connected securely during a brake pad replacement, it can become loose, leading to damage or intermittent signals. Using excessive force can also crack the plastic housing.
• Cheap Aftermarket Parts: Non-OEM or low-quality aftermarket sensors might use inferior materials, making them more susceptible to premature failure.

The Consequences of a Broken Brake Pad Sensor

Ignoring a faulty brake pad sensor, or simply assuming the warning light is always due to worn pads, can have significant repercussions. It's more than just an annoying light on your dash; it impacts your safety and your wallet.

Safety Implications: The Hidden Danger

The primary concern with a broken sensor is the loss of your early warning system. If the sensor is broken in a way that prevents it from triggering a warning when your pads are genuinely worn, you could be driving with critically thin brake pads without knowing it. This leads to:

• Reduced Braking Performance: Severely worn pads have less friction material, reducing your vehicle's stopping power and increasing stopping distances.
• Metal-on-Metal Braking: Once the friction material is gone, the metal backing plate of the brake pad grinds directly against the metal brake rotor. This creates a harsh, grinding noise and significantly reduces braking effectiveness. It's incredibly dangerous, especially in emergency braking situations.
• Brake Fade and Overheating: Metal-on-metal contact generates immense heat, leading to brake fade (loss of braking power due to overheating) and potential damage to other braking components.

Financial Impact: Costly Repairs Down the Line

Driving with a faulty sensor that doesn't warn of worn pads can quickly escalate a relatively inexpensive brake job into a much more costly repair:

• Rotor Damage: Metal-on-metal contact will severely score, warp, and damage your brake rotors. What might have been a simple pad replacement now necessitates replacing the brake rotors as well, significantly increasing parts and labour costs. Brake rotors are far more expensive than pads.
• Caliper Damage: In extreme cases, if pads are completely gone and the caliper piston extends too far, it can damage the brake caliper, leading to an even more expensive repair.
• Unnecessary Repairs: If the sensor is giving a false positive (warning light on but pads are good), you might be tempted to replace pads prematurely, incurring unnecessary costs.

Legal and MOT Implications

While a faulty sensor itself might not be an MOT failure, driving with critically worn brake pads due to a lack of warning certainly is. Your vehicle will be deemed unroadworthy if its braking system is compromised, which can lead to legal issues and invalidate insurance in the event of an accident.

Troubleshooting and Diagnosis

When the brake warning light appears, the first step is to determine if it's due to genuinely worn pads or a sensor fault. Here’s how:

1. Visual Inspection: Safely lift your vehicle and remove the wheels (if necessary) to visually inspect the brake pads. Check the thickness of the friction material on all pads. If they look thin (less than 3-4mm), then the warning is likely legitimate. Also, physically inspect the brake pad sensors: are they securely attached? Are the wires intact and not frayed or cut?
2. Listen for Sounds: If you hear grinding, squealing (other than typical cold brake squeal), or scraping noises when braking, it's a strong indicator of critically worn pads, regardless of the sensor's status.
3. Use an OBD-II Scanner: A diagnostic tool is invaluable. Connect it to your BMW's OBD-II port. Fault codes related to brake pad wear sensors (e.g., 'open circuit' or 'short circuit' errors) will confirm a sensor issue. Many scanners can also read live data from the brake system.
4. Check iDrive Service Menu: Newer BMWs often have a service menu in iDrive that displays the estimated remaining life of brake pads (in kilometres). While this is an estimate based on driving style and sensor input, it can provide context. If the sensor is broken, this reading might be stuck or give an implausible value.

Table: Faulty Sensor vs. Worn Pads – Key Differences

Replacing a BMW Brake Pad Sensor

Fortunately, replacing a brake pad sensor is a relatively straightforward and inexpensive procedure, particularly if done in conjunction with a brake pad replacement. It's strongly recommended to replace the sensor every time you replace the brake pads, even if the old sensor appears intact, as they are designed as a wear item.

• Parts: Always opt for genuine BMW (OEM) sensors or high-quality aftermarket equivalents. Inferior sensors are a false economy and prone to premature failure.
• Location: Sensors are typically located on the inner brake pad of one wheel per axle (e.g., front left and rear right, but check your specific BMW model's manual).
• Process: The process involves removing the wheel, detaching the old sensor from its clip on the brake pad, unplugging it from its connector in the wheel arch, and then reversing the steps with the new sensor. Ensure the wiring is routed correctly and secured to prevent future damage.

Resetting the Brake Warning Light

After replacing the sensor and/or brake pads, the warning light will not automatically extinguish. It needs to be manually reset. This can typically be done in one of two ways:

1. Via the Dashboard/iDrive System: Many BMW models allow for a manual reset through the instrument cluster's service menu or the iDrive system. The exact steps vary by model and year, but generally involve navigating to the 'Service Info' or 'Vehicle Status' menu, selecting the relevant brake service item, and holding down a button (e.g., the BC button on the stalk or a button on the iDrive controller) to initiate the reset.
2. Using a Diagnostic Tool: A professional diagnostic tool (like ISTA/D for BMWs, or a capable aftermarket scanner) can also reset the brake service intervals and clear related fault codes. This is often the most reliable method, especially if the manual reset procedure is proving difficult or if there are persistent codes.

It's crucial to perform the reset correctly. If the light persists after replacement and reset, it suggests either an incorrect installation, a faulty new sensor, or another underlying issue with the braking system that requires further investigation.

Preventative Measures and Best Practices

While sensor failure can sometimes be unavoidable, certain practices can minimise the risk and ensure your braking system remains in top condition:

• Regular Inspections: Include a visual check of your brake pads and sensors during routine maintenance or tyre rotations. Look for any signs of damage to the sensor wires.
• Use Quality Parts: When replacing brake pads, always replace the sensor with an OEM or reputable aftermarket equivalent. Don't try to reuse old sensors or opt for cheap, unbranded alternatives.
• Proper Installation: If you're undertaking a DIY brake job, ensure the sensor wiring is routed precisely as per the manufacturer's guidelines and secured with all original clips. This prevents chafing, snagging, and premature failure.
• Address Warnings Promptly: Don't ignore any brake warning lights. Investigate them immediately to determine the root cause, whether it's genuinely worn pads or a sensor fault.

Frequently Asked Questions (FAQs)

Can I drive my BMW with a broken brake pad sensor?

You can, but it's not advisable for long. If the sensor is giving a false warning (light on, pads good), it's annoying but not immediately dangerous. However, if the sensor is broken in a way that it won't warn you when your pads are actually worn, you lose a critical safety feature. You risk severe damage to your rotors and a dangerous loss of braking ability.

Does a broken sensor mean my brake pads are definitely worn?

No. A broken sensor can trigger the warning light even if your pads have plenty of life left. Always visually inspect your pads or have them checked by a mechanic to confirm their actual condition.

How much does it cost to replace a BMW brake pad sensor?

The sensor itself is relatively inexpensive, typically ranging from £15 to £40 for an OEM part. Labour costs will vary, but if it's replaced during a full brake job, the additional labour for the sensor is minimal. If replaced alone, expect around 0.5 to 1 hour of labour.

Do all four wheels have brake pad sensors on a BMW?

Typically, BMWs have one brake pad wear sensor per axle, meaning one on the front (e.g., front left wheel) and one on the rear (e.g., rear right wheel). This is sufficient to monitor the wear across both sides of each axle. Always check your specific model's configuration.

Can I bypass the brake pad sensor?

While it's technically possible to bypass the sensor by connecting the wires (creating a permanent closed circuit), it is strongly discouraged. Bypassing the sensor eliminates your vehicle's ability to warn you about worn brake pads, creating a significant safety hazard and potentially leading to much more expensive repairs in the long run.

Why did my new brake pad sensor break so quickly?

Common reasons for premature failure of a new sensor include improper installation (e.g., wires pinched or routed incorrectly), physical damage from road debris shortly after installation, or using a low-quality aftermarket sensor.

In conclusion, while a broken BMW brake pad sensor can be a source of frustration, it's a problem that should be addressed promptly. Understanding whether the warning light signifies actual wear or a sensor fault is crucial for making informed decisions about your vehicle's maintenance. Prioritising the health of your braking system ensures your BMW remains safe, reliable, and a pleasure to drive on the UK's roads.
