Injection Rate-Shaping: Controlling Fuel Flow

The question of whether injection rate-shaping controls fuel flow is a critical one for engine performance and efficiency. While not a direct throttle or fuel pump control, injection rate-shaping fundamentally alters the *way* fuel is delivered into the combustion chamber. This method manipulates the injection pressure and timing profile to achieve specific spray characteristics, which in turn influences how much fuel is effectively burned and when. By precisely controlling the initial rate of injection, its duration, and the overall pressure envelope, engineers can significantly impact atomisation, penetration, and the subsequent combustion process. This article will explore the intricacies of injection rate-shaping and its profound effect on fuel flow dynamics within an internal combustion engine, drawing upon research into spray characteristics.

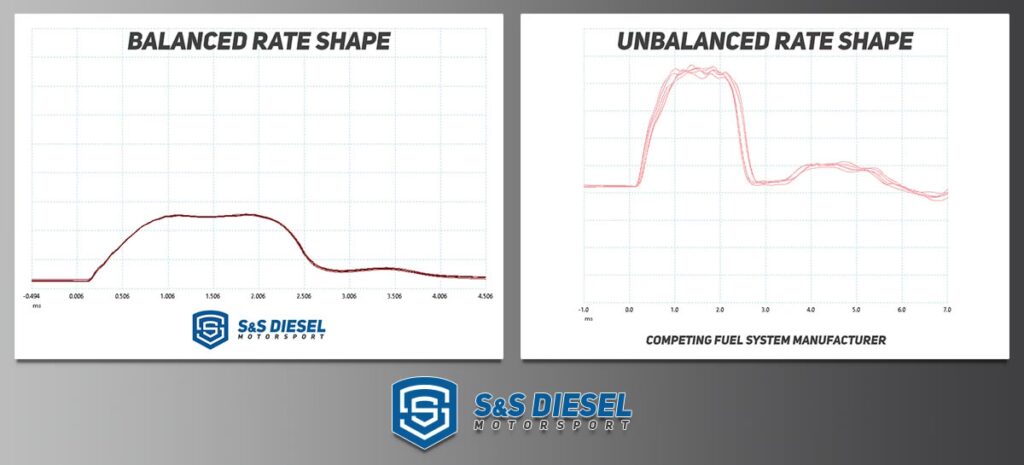

Understanding Injection Rate-Shaping

Injection rate-shaping is a sophisticated technique employed in modern fuel injection systems, particularly in diesel and direct-injection petrol engines. Unlike conventional injection, which often delivers fuel at a relatively constant pressure and flow rate, rate-shaping allows for a dynamically controlled injection profile. This is typically achieved through electronic control of the injector's needle valve, modulating its opening and closing characteristics. The primary goal is to optimise the combustion process by influencing the fuel spray's behaviour within the cylinder. This can lead to reduced emissions, improved fuel economy, and enhanced power output.

Impact on Fuel Spray Characteristics

The research presented delves into the geometric quantities of fuel sprays under different injection strategies. Specifically, it compares conventional injection (at maximum and minimum injector opening voltages) with injection rate-shaping. The analysis focuses on several key parameters:

• Linear Fuel Spray Penetration (S_L): This measures how far the fuel spray travels in a straight line from the injector.
• Fuel Spray Surface Area (A_L): This refers to the area of the spray in a plane parallel to the injector axis.
• Fuel Spray Width (W_L): The lateral extent of the spray.
• Radial Fuel Spray Penetration (S_R): The penetration of the spray in a radial direction, perpendicular to the injector axis.
• Radial Fuel Spray Surface Area (A_R): The surface area of the spray in a cross-section perpendicular to the injector axis.
• Radial Spray Width (W_R): The width of the spray in a radial direction.

The study highlights that the voltage applied to the injector (U) directly influences these spray parameters. For instance, a higher voltage (U = 170 V) typically corresponds to maximum injector opening, resulting in a larger linear spray range compared to a lower voltage (U = 120 V).

Rate-Shaping's Initial Effect

Crucially, the research indicates that injection rate-shaping, often implemented with a variable voltage profile (e.g., U = 90/170 V), can initially limit the linear spray range. However, the subsequent increase in injector opening later in the injection event causes a significant rise in this range. This controlled initial limitation is a key aspect of rate-shaping, as it can influence the initial mixing of fuel and air.

Back Pressure Influence

The experiments were conducted at two different medium back pressures (P_b = 1.0 MPa and P_b = 1.5 MPa). The results show that back pressure also plays a role, influencing the magnitude of the differences observed between the injection methods. For example, the maximum differences in spray surface area were 63% at a higher back pressure, suggesting that the surrounding cylinder pressure can modulate the effectiveness of rate-shaping.

Repeatability and Coefficient of Variation (CoV)

A significant aspect of the research is the assessment of repeatability using the Coefficient of Variation (CoV). In engine testing, low CoV values are desirable, indicating consistent results. The study found that while the initial injection time might show higher CoV(S_L) due to measurement limitations (calculating spray range from images at high frequencies), the values generally drop below 5% as the injection progresses. This suggests a high degree of repeatability in the fuel spray's linear range under controlled conditions, validating the use of these results for further analysis.

However, for injection rate-shaping, the CoV for radial range (CoV(S_R)) can be very large in the initial phase. Similarly, CoV(A_R) values can sometimes exceed 5% at lower back pressures, though higher back pressures generally confirm high repeatability for the spray surface area.

Comparative Analysis of Spray Geometry

The research provides detailed comparisons of the geometric indicators:

Linear Spray Analysis

• Linear Range (S_L): At approximately 2 ms after injection, the maximum linear range is achieved with U = 170 V. This is about 12% higher than with U = 120 V or rate-shaping.
• Early Injection Differences: The most significant differences in range and rate-shaping occur after the initial injection phase (t = 0.5 ms, with an injection duration of t_inj = 0.4 ms). At lower back pressure, the linear range difference can be up to 48%, and at higher back pressure, up to 47%.
• Spray Surface Area (A_L): Maximum differences in spray surface area reach 63% at t = 0.5 ms with higher back pressure, which is three times greater than changes observed at t = 2 ms.
• Spray Width (W_L): The spray width follows a similar trend to the linear range, with the largest changes (40%) observed at t = 0.5 ms relative to maximum needle opening.

Radial Spray Analysis

• Radial Range (S_R): At t = 2.0 ms, the radial range is largest with maximum needle opening (U = 170 V). However, during injection rate-shaping, the spray range can be greater than the minimum range observed with U = 120 V.
• Early Radial Differences: The radial range is significantly reduced with rate-shaping in the initial phase compared to both conventional injection methods, regardless of back pressure.
• Radial Surface Area (A_R): Similar changes are seen in the radial surface area. The surface area limitation during rate-shaping is about 50% at t = 0.5 ms from the start of injection.
• Radial Width (W_R): The calculation of radial width involves averaging the radial ranges over a 360-degree angle. The accuracy of this measurement can be affected by the spray's structure.

Does Injection Rate-Shaping Control Fuel Flow?

Based on the analysis, the answer is a nuanced 'yes'. While injection rate-shaping doesn't directly alter the *total* amount of fuel delivered by the pump, it profoundly controls the *rate* at which that fuel is injected. The research demonstrates that by manipulating the injector's opening and closing characteristics, engineers can significantly alter the fuel spray's geometric properties, such as its penetration, surface area, and width, both linearly and radially.

Consider the implications: by limiting the initial spray penetration and surface area (as seen with rate-shaping), the fuel is introduced into the cylinder more gradually. This can lead to:

• Improved Air-Fuel Mixing: A slower, more controlled initial injection can allow for better mixing with the air, potentially reducing soot formation and improving combustion completeness.
• Reduced Injection Lag: While the overall penetration might be initially limited, the shaping can potentially reduce the time it takes for the fuel to reach optimal atomisation.
• Controlled Pressure Waves: The precise control over the injection event can help manage pressure waves within the injection system and the combustion chamber.

The research concludes that by changing the injector supply voltage, it is possible to achieve a time-varying fuel flow. This means that the rate-shaping system, by controlling the injector's behaviour, directly dictates how the fuel is released into the cylinder over time. This controlled release is, in essence, controlling the fuel flow rate into the combustion zone, even if the mechanical fuel supply remains constant.

Table: Key Spray Geometric Indicators Comparison

The following table summarises some of the key findings regarding the differences in geometric indicators between injection methods at specific time points, illustrating the impact of rate-shaping.

Frequently Asked Questions (FAQs)

What is the primary benefit of injection rate-shaping?

The primary benefit is the ability to precisely control the fuel delivery profile, leading to optimised air-fuel mixing, reduced emissions (like soot and NOx), improved fuel efficiency, and potentially enhanced engine power and smoothness.

How does injection rate-shaping differ from simply changing the injection duration?

Injection duration controls the total amount of fuel injected for a given injection event. Injection rate-shaping controls the rate at which that fuel is delivered during the injection event. It's about the shape of the injection pulse, not just its length or total volume.

Can injection rate-shaping be used in petrol engines?

Yes, while the term is perhaps more commonly associated with diesel engines, the principles of controlling the injection rate to influence spray characteristics and combustion apply to direct-injection petrol engines as well.

What is the role of back pressure in these tests?

Back pressure, simulating the pressure within the combustion chamber, influences how the fuel spray expands and behaves. The research shows that higher back pressures can sometimes amplify or modulate the differences observed between different injection methods, affecting the spray's geometric properties.

Does injection rate-shaping affect fuel economy?

By enabling more complete and efficient combustion, injection rate-shaping can contribute to improved fuel economy. Better control over the combustion process means less fuel is wasted, and more energy is extracted from each injection.

What does a high Coefficient of Variation (CoV) indicate?

A high CoV indicates a lack of repeatability in the measured parameter. In this context, a high CoV for spray penetration or area would mean that consecutive injections, even under the same conditions, produce significantly different spray patterns. Low CoV values are crucial for reliable engine operation and for validating experimental results.

Conclusion

In conclusion, injection rate-shaping is a sophisticated method that directly influences the flow rate of fuel into the combustion chamber by precisely controlling the injector's valve dynamics. The research presented clearly demonstrates that this control over the injection profile significantly alters the fuel spray's geometric characteristics, including its penetration, surface area, and width, both linearly and radially. While it doesn't change the overall fuel volume delivered by the pump for a given engine load, it dictates the timing and intensity of fuel delivery within each injection event. This capability allows for finer tuning of the combustion process, leading to potential improvements in efficiency and emissions. Therefore, injection rate-shaping is a vital tool for controlling fuel flow dynamics at the injector level, contributing to the advancement of modern internal combustion engine technology.
