Mastering Race Car Alignment: The String Method

When it comes to extracting every last ounce of performance from a race car, few aspects are as critical, yet as often overlooked, as a meticulously set up wheel alignment. While high-tech laser and 3D imaging systems dominate professional workshops, there's a timeless, incredibly effective, and remarkably accessible method that continues to be the backbone for many grassroots racers and even seasoned professionals: the string alignment method.

If you haven't spent much time in the paddock or delving into the intricacies of race car setup, you might not be familiar with the process of aligning a car with strings. It's a basic method, yet not one commonly taught outside of motorsport circles, which is a shame, as its precision and cost-effectiveness make it an invaluable tool for anyone serious about track performance.

Why Race Car Alignment is Paramount

Proper wheel alignment is not merely about ensuring your car drives straight; in a racing context, it's about optimising the contact patch between your tyres and the road surface under various dynamic conditions. Every bump, every corner, every braking zone puts immense strain on your suspension and tyres. Incorrect alignment can lead to:

• Poor handling and predictability, making the car difficult to control at speed.
• Excessive and uneven tyre wear, costing you valuable rubber and performance.
• Reduced grip and traction, leading to slower lap times.
• Increased aerodynamic drag if the wheels aren't tracking correctly.
• Premature wear on suspension components.

Ultimately, a well-aligned race car inspires confidence in the driver, allows for later braking, earlier throttle application, and more consistent lap times.

Understanding Key Alignment Parameters

Before diving into the string method, it’s crucial to understand the core alignment parameters you'll be adjusting:

Camber

Camber is the inward or outward tilt of the wheel when viewed from the front of the car. Negative camber (top of the wheel tilted inwards) is common on race cars as it helps maintain a larger tyre contact patch during cornering, where the car rolls onto the outer edge of the tyre. Positive camber (top of the wheel tilted outwards) is rare in racing and generally undesirable.

Caster

Caster is the angle of the steering axis when viewed from the side of the car. Positive caster (top of the steering axis tilted rearward) is almost universally used in racing. It helps with steering self-centring, improves high-speed stability, and can increase dynamic negative camber when turning, further aiding grip.

Toe

Toe is the most critical and frequently adjusted parameter in string alignment. It refers to how much the front or rear of the wheels are angled inwards or outwards when viewed from above. Toe-in means the fronts of the wheels are closer together than the rears. Toe-out means the fronts of the wheels are further apart than the rears.

• Front Toe: Often set to a small amount of toe-out on race cars to aid turn-in response and reduce understeer. Too much toe-out can cause instability and excessive tyre wear. Toe-in might be used for stability on high-speed ovals.
• Rear Toe: Typically set to a small amount of toe-in to enhance stability and improve traction under acceleration. Too much rear toe-in can cause snap oversteer.

Thrust Angle

While not directly measured by the string method in the same way as toe, the string method inherently helps ensure a zero thrust angle if the strings are set perfectly parallel to the car's true centreline. Thrust angle refers to the direction the rear wheels are pointing relative to the car's true centreline. A non-zero thrust angle means the car will 'crab' down the track, causing increased drag and poor handling.

The String Alignment Method Explained

The beauty of the string method lies in its simplicity and reliance on fundamental geometric principles. It works by creating a perfectly square reference box around the car, allowing for precise measurements of toe at each wheel.

Tools You'll Need:

• Four sturdy stands: Purpose-built alignment stands are best, but robust jack stands or even concrete blocks can work if stable.
• High-quality string or fishing line: Non-stretching, thin, and strong.
• Tape measure: A long, accurate one, preferably steel.
• Spirit level: For ensuring your stands are level.
• Wheel alignment plates or slip plates: These allow the wheels to move freely without scrubbing the tyres, crucial for accurate measurements.
• Digital camber/caster gauge: While strings primarily do toe, a separate gauge is essential for camber and caster.
• Tyre markers or scribes: For marking the centre of the tyre tread.
• Patience and a keen eye for detail.

The Setup Process:

1. Level Surface: This is non-negotiable. The car must be on a perfectly flat and level surface. Even a slight incline can drastically skew your readings. Use shims under the wheels if necessary to achieve level.
2. Ride Height: Set the car to its desired race ride height. Bounce the suspension a few times to settle it, and ensure all springs are seated correctly.
3. Tyre Pressure: Inflate all tyres to their target hot pressures. This is crucial as tyre deflection affects measurements.
4. Steering Wheel Straight: Ensure the steering wheel is perfectly straight and locked in position.

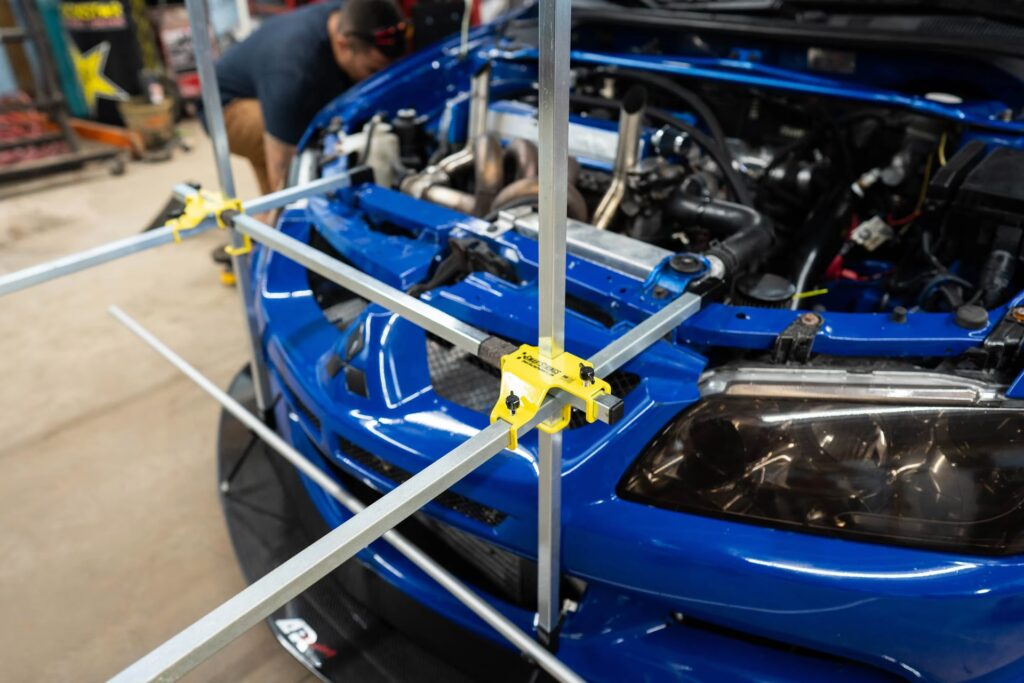

5. Establish a Reference Line: This is the most critical step. Place your four stands around the car, ensuring they are equidistant from the car's hub centres. The goal is to create a rectangular box with the strings.
6. Run the Strings: Stretch the string from front to back on each side, passing just outside the tyre sidewalls. Crucially, the strings must be perfectly parallel to each other and parallel to the car's true longitudinal centreline. This is achieved by measuring the distance from the string to the hub centre at the front and rear of the car, adjusting until all four measurements are identical. You'll also need to ensure the strings are perpendicular to the car's track, creating a perfect rectangle.

Measuring and Adjusting Toe:

Once your strings are perfectly set up, you can begin measuring toe.

1. Mark the Tyres: Rotate each wheel so that the tread is facing you. Use a tyre marker or scribe to draw a continuous line around the circumference of the tyre tread, ensuring it's as central and consistent as possible.
2. Measure at the Front: At the front of the car, measure the distance from the string to your marked line on the tyre, both at the leading edge (front) and trailing edge (rear) of the tyre.
3. Calculate Toe: The difference between these two measurements tells you the toe. For example, if the measurement at the front of the tyre is smaller than the measurement at the rear, you have toe-in. If it's larger, you have toe-out.
4. Adjust: Use your car's tie rods (for front toe) or eccentric bolts/shims (for rear toe) to make adjustments. Make small, incremental adjustments.
5. Re-measure: After each adjustment, roll the car back and forth a few feet to settle the suspension, then re-measure. Repeat until you achieve your desired toe setting.
6. Repeat for All Wheels: Follow the same process for the rear wheels. Remember that front toe influences rear toe and vice-versa, so you may need to iterate.

The Advantages of String Alignment

Despite the rise of advanced technology, the string alignment method remains incredibly popular for several compelling reasons:

• Cost-Effectiveness: This is perhaps its biggest draw. The initial investment in string, stands, and a tape measure is minimal compared to a laser or 3D alignment system. This makes it accessible to privateers and hobbyists.
• Accuracy: When performed meticulously and on a truly level surface, string alignment can be astonishingly accurate. Its reliance on direct physical measurement eliminates potential calibration errors seen in electronic systems.
• Portability: You can take your string alignment kit to the track, allowing for on-site adjustments and fine-tuning between sessions, which is invaluable for adapting to changing track conditions or tyre wear.
• Understanding: The hands-on nature of string alignment forces you to truly understand the geometry of your suspension. You gain an intuitive feel for how adjustments affect the car, something that can be lost when relying solely on automated systems.
• Independence: You are not reliant on a workshop or specialised equipment. You can perform precise alignments whenever and wherever you need to.

Limitations and Challenges

While powerful, string alignment isn't without its challenges:

• Time-Consuming: Setting up the strings perfectly parallel and square takes time and patience. The measurement and adjustment process is also slower than with automated systems.
• Requires a Level Surface: As mentioned, this is paramount. Any unevenness will lead to inaccurate readings.
• Operator Skill Dependent: The accuracy of the results heavily relies on the operator's attention to detail, precision in measuring, and consistent technique.
• Doesn't Directly Measure Caster: While you can use a digital gauge for camber and caster, the string method itself is primarily for toe.
• No Compensation for Bent Chassis: Unlike some advanced systems that can map chassis geometry, string alignment assumes a straight chassis and works off that assumption.

Comparing Alignment Methods

Let's look at how string alignment stacks up against other common methods:

Tips for Successful String Alignment

• Consistency is Key: Always measure from the exact same points on the string and tyre.
• Check Tyre Pressures: Ensure tyres are at target hot pressures before starting.
• Settle the Suspension: After any adjustment, roll the car forward and backward a few feet, or bounce the suspension, to allow everything to settle before re-measuring.
• Record Everything: Keep a detailed log of your settings, what changes you made, and how they affected performance. This data is invaluable.
• Work Systematically: Start with one corner and work your way around, or follow a logical sequence for adjustments.
• Use Wheel Alignment Plates: These are not strictly necessary but make a massive difference, allowing the wheels to move freely as you adjust, preventing 'tyre scrub' that can give false readings.

When to Align Your Race Car

Your race car's alignment isn't a 'set it and forget it' item. Regular checks and adjustments are essential:

• After Any Suspension Work: Replacing components, adjusting ride height, or changing springs/dampers will alter your alignment.
• After a Track Incident: Even a minor bump can knock your settings out.
• Pre-Race or Pre-Test Session: A quick check ensures you're starting with optimal settings.
• When Troubleshooting Handling Issues: If the car suddenly feels 'off' or exhibits unusual tyre wear, alignment is often the first place to look.
• Seasonal Checks: If the car has been stored, a check before the new season is prudent.

Frequently Asked Questions (FAQs)

Is string alignment accurate enough for serious racing?

Absolutely. Many professional teams and top-tier privateers still rely on string alignment for its precision, especially for toe settings. Its accuracy is often limited more by the operator's skill than the method itself.

What are the absolute minimum tools I need for string alignment?

You'll need four stable stands, good quality non-stretching string, a reliable tape measure, and a level surface. A digital camber/caster gauge is also highly recommended for a complete setup.

Can I perform string alignment by myself?

Yes, it's entirely possible to do it alone, though having an extra pair of hands can speed up the process, especially when setting up the initial strings perfectly parallel to the car's centreline.

How often should I check my race car's alignment?

It's advisable to check alignment before every race weekend or major test session. After any significant suspension work or an on-track incident, an immediate check is crucial.

Does tyre pressure affect alignment readings?

Yes, significantly. Differences in tyre pressure can alter the tyre's shape and contact patch, leading to inaccurate readings. Always set your tyres to their target hot pressures before measuring.

What's the hardest part of string alignment?

The most challenging aspect is often ensuring your setup surface is perfectly level and that your strings are perfectly parallel to the car's true centreline and perpendicular to the axles. This foundational step dictates the accuracy of all subsequent measurements.

Ultimately, what's most appealing about the string alignment tool and method is its empowering nature. It demystifies a critical aspect of race car setup, putting the power of precision adjustment directly into the hands of the enthusiast or team, without requiring a massive financial outlay. It’s a testament to the enduring principles of mechanics and geometry, proving that sometimes, the simplest tools yield the most profound results on the track.
