Holley Sniper EFI: Quadrajet Reimagined

For enthusiasts of classic American muscle, the Rochester Quadrajet (Q-jet) carburetor has long been a familiar, albeit sometimes frustrating, component. Known for its robust design and widespread use across various GM vehicles, the Q-jet can be a temperamental beast. Rebuilding these aging carburetors can be a frequent and often challenging task, leading many to seek more reliable and performance-oriented solutions. Enter the Holley Sniper EFI Quadrajet self-tuning fuel injection system, a groundbreaking product designed to bring modern electronic fuel injection (EFI) technology to classic vehicles without the need for extensive modifications. This system offers a compelling alternative for those looking to ditch the complexities of their vintage carburetor while retaining the characteristic spread-bore mounting pattern of the original Quadrajet.

What is the Holley Sniper EFI Quadrajet System?

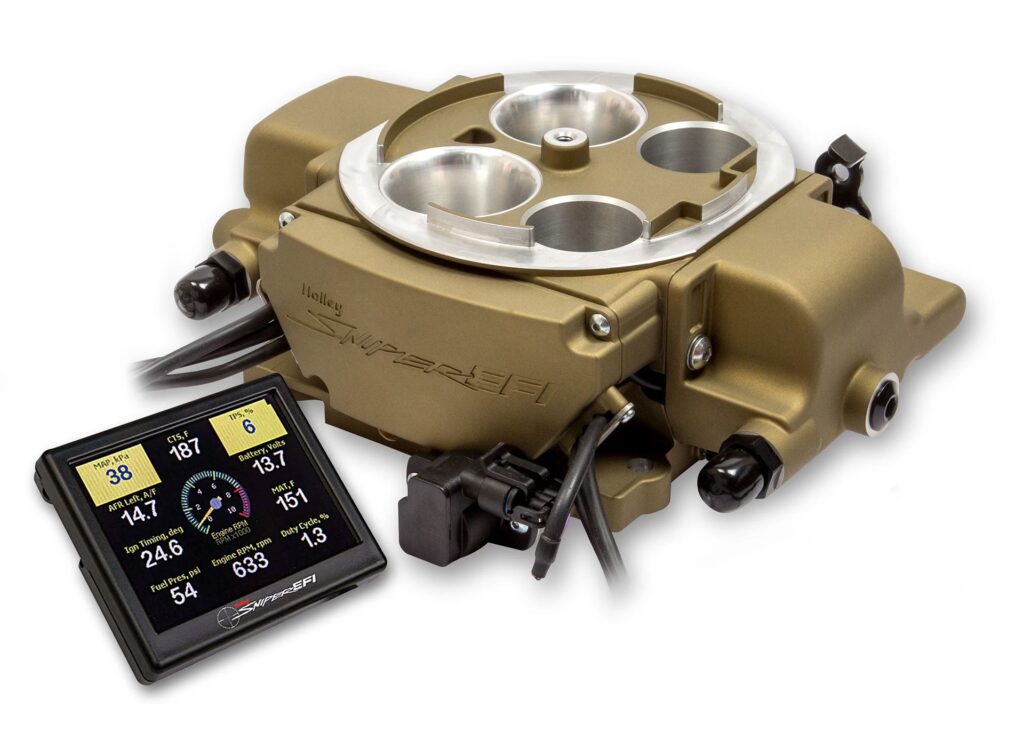

The Holley Sniper EFI Quadrajet system is a sophisticated, self-tuning fuel injection throttle-body designed as a direct, bolt-on replacement for the classic Rochester Quadrajet carburetor. What sets it apart is its ability to seamlessly integrate with the existing spread-bore intake manifold of many classic vehicles. This means no need for adapter plates, sealing plates, or the costly and time-consuming process of swapping out the entire intake manifold. It's a true plug-and-play solution for modernising your classic car's fuel delivery system.

Key Features and Technology

This system inherits many of the celebrated features found in Holley's popular 4150 Sniper EFI version, bringing cutting-edge technology to your vintage ride. Let's delve into some of the standout features:

• Four 100 lbs./hr. Injectors: These high-flow injectors provide ample fuel delivery for a wide range of engine configurations, supporting naturally aspirated power outputs of up to 500 horsepower.
• Self-Tuning Technology: This is arguably the system's most significant advantage. The Sniper EFI system features a built-in ECU (Engine Control Unit) that constantly monitors engine performance using integrated sensors. It then automatically adjusts fuel delivery and other parameters to optimise air-fuel ratios for maximum efficiency, power, and drivability. This means you don't need to be an EFI tuning expert to get your classic running smoothly.
• Built-in Timing Control: Beyond just fuel delivery, the system also offers integrated ignition timing control. This allows for further refinement of engine performance, improving throttle response, fuel economy, and overall power output.
• High-Resolution Colour Touchscreen: A user-friendly 3.5-inch full-colour touchscreen display provides intuitive control and monitoring of the system. This allows you to easily set up parameters, view real-time engine data, and even make on-the-fly adjustments without the need for a separate laptop.
• Integrated Fuel Pressure Regulator: For simpler installation, the Sniper EFI Quadrajet system typically includes an integrated fuel pressure regulator, reducing the number of external components required.
• Multiple Fuel Delivery Options: The system is designed to work with various fuel delivery setups, whether you're using a new fuel pump or adapting an existing one.

Benefits of Upgrading to Holley Sniper EFI Quadrajet

The advantages of transitioning from a traditional carburetor to a modern EFI system like the Holley Sniper EFI Quadrajet are numerous:

Improved Drivability and Performance

EFI systems excel at providing precise fuel delivery under all operating conditions. This translates to:

• Smoother Idle: No more loping or inconsistent idle speeds.
• Better Throttle Response: Instantaneous reaction to throttle inputs.
• Enhanced Cold Starts: EFI eliminates the need for manual chokes and provides reliable starting in all temperatures.
• Consistent Power: Power delivery remains strong and consistent, regardless of altitude or temperature changes.

Increased Fuel Efficiency

The self-tuning capabilities ensure the engine always receives the optimal air-fuel mixture. This precise control leads to:

• Better MPG: Significant improvements in fuel economy compared to carbureted systems.
• Reduced Emissions: A cleaner-burning engine with lower exhaust emissions.

Simplified Maintenance

While the initial installation might seem daunting to some, the long-term maintenance is considerably simpler:

• No More Rebuilding: Say goodbye to frequent carburetor rebuilds and the associated costs and downtime.
• Diagnostic Capabilities: The ECU can often provide diagnostic information, making troubleshooting easier.

Retains Classic Aesthetics

One of the most significant selling points for classic car owners is that the Sniper EFI Quadrajet system is designed to look like a carburetor. It maintains the characteristic spread-bore appearance, preserving the period-correct look under the hood while offering modern performance benefits. This is crucial for concourse restorations or for owners who want the best of both worlds.

Installation Considerations

While Holley designs these systems for ease of installation, it's important to be aware of the requirements:

Fuel System Upgrade

EFI systems require a higher fuel pressure than most carbureted systems. This typically means upgrading your fuel pump to one capable of delivering the required pressure (usually around 58-60 PSI) and potentially installing a new fuel line if the existing one is too restrictive. Holley offers complete fuel system kits to simplify this process.

Wiring

The system requires power, ground, and connections for sensors. While the wiring harness is designed to be straightforward, some basic automotive wiring knowledge is beneficial. The touchscreen interface guides you through the initial setup.

Sensors

The Sniper EFI system relies on various sensors to monitor engine parameters. These are typically included with the kit or are available as separate components. Common sensors include:

• Throttle Position Sensor (TPS)
• Manifold Absolute Pressure (MAP) sensor
• Coolant Temperature Sensor (CTS)
• Oxygen (O2) Sensor (for closed-loop tuning)

Holley Sniper EFI Quadrajet vs. Other EFI Systems

When comparing the Sniper EFI Quadrajet to other EFI solutions, its primary advantage lies in its direct Quadrajet compatibility. This niche focus makes it a standout for owners of specific classic vehicles.

Frequently Asked Questions

Q1: Will the Holley Sniper EFI Quadrajet fit my specific car?
As long as your vehicle originally came with a Rochester Quadrajet carburetor, which features a spread-bore mounting pattern, this system is designed to be a direct bolt-on replacement without requiring adapter plates.

Q2: Do I need to tune the system myself?
No, the 'self-tuning' aspect is a core feature. The system's ECU automatically learns and adjusts the air-fuel mixture based on real-time engine data, making it user-friendly even for those new to EFI.

Q3: What kind of horsepower can this system support?
The Sniper EFI Quadrajet throttle body, with its four 100 lbs./hr. injectors, is rated to support naturally aspirated engines producing up to 500 horsepower.

Q4: Do I need to upgrade my fuel pump?
Yes, EFI systems require higher fuel pressure (typically 58-60 PSI) compared to carbureted systems. You will need to install a compatible fuel pump and potentially upgrade your fuel lines.

Q5: Can I use this system with forced induction (supercharger/turbocharger)?
While the standard Sniper EFI Quadrajet is designed for naturally aspirated applications up to 500 hp, Holley offers other Sniper EFI systems that are specifically designed to handle the demands of forced induction. It is crucial to select the correct system for your specific engine modifications.

Q6: How does the self-tuning work?
The system uses an oxygen sensor placed in the exhaust to monitor the air-fuel ratio. The ECU reads this data and makes continuous adjustments to fuel delivery to achieve the optimal ratio for performance and efficiency. It also monitors other sensors like MAP, TPS, and CTS to fine-tune the process.

Conclusion

The Holley Sniper EFI Quadrajet self-tuning fuel injection system represents a significant leap forward for classic car owners looking to modernise their vehicles without compromising their vintage appeal. By offering a direct, spread-bore replacement for the Quadrajet, Holley has made the transition to EFI more accessible than ever. The combination of self-tuning capabilities, integrated timing control, and a user-friendly interface ensures improved drivability, enhanced performance, and better fuel efficiency, all while retaining the classic look under the bonnet. For those tired of wrestling with their old Quadrajet, the Sniper EFI Quadrajet system is a compelling and highly effective solution that brings your classic into the modern era of engine management.
