PSV Brake Force Requirements Explained

Ensuring the braking performance of a Passenger Service Vehicle (PSV) is paramount for public safety. The ability of a PSV to stop effectively under various conditions is not just a matter of good engineering; it's a legal requirement governed by strict regulations. If you're a fleet manager, owner, or mechanic responsible for PSVs, understanding these brake force requirements is absolutely essential. This article will delve into where you can find this vital information, what it typically entails, and why it's so important.

Understanding PSV Braking Standards

Passenger Service Vehicles, encompassing a wide range of vehicles from minibuses to large coaches, are subject to rigorous testing and certification to ensure they meet safety standards. The braking system is a critical component of these standards. The 'brake force requirements' essentially dictate the minimum deceleration or stopping distance a PSV must achieve under specific test conditions. These requirements are designed to guarantee that the vehicle can be brought to a safe stop, even when fully laden and in demanding situations.

Where to Find Official Brake Force Requirements

The most definitive source for PSV brake force requirements will always be the official regulatory bodies and their published documentation. The specific authority and legislation will depend on the region or country where the PSV is operated and registered. However, here are the common places to look:

1. National Vehicle Regulations and Type Approval Documentation

In the United Kingdom, the primary authority for vehicle standards is the Department for Transport (DfT), which oversees the Vehicle Certification Agency (VCA). When a PSV is first manufactured or imported, it must undergo a type approval process. This process involves demonstrating compliance with numerous technical requirements, including braking. The detailed technical specifications and requirements, including specific brake force figures, are documented within the type approval legislation.

For PSVs operating in the UK, you'll likely be referring to regulations derived from European Union directives (which largely remain in force post-Brexit) and subsequent UK-specific amendments. Key documents often include:

• The Road Vehicles (Construction and Use) Regulations: These regulations outline general requirements for vehicle safety, including braking.
• Specific Annexes to EU Directives (now retained EU law): For example, Directive 2007/46/EC (framework for type-approval) and its subsequent annexes related to braking systems (e.g., UNECE Regulations).
• VCA (Vehicle Certification Agency) Guidelines: The VCA often publishes guidance documents and manuals that interpret and apply the legislation to specific vehicle types.

2. Vehicle Operator Licensing and Compliance

For operators of PSVs, ongoing compliance is crucial. The Driver and Vehicle Standards Agency (DVSA) is responsible for enforcing roadworthiness, including the condition of braking systems. While the DVSA enforces the standards, the original requirements are set by the legislation mentioned above.

During roadside checks or periodic technical inspections (PSV tests), the DVSA will assess whether the vehicle's braking system is functioning correctly and meets the required performance levels. The specifications they use for these checks are based on the type approval standards.

3. Manufacturer's Technical Manuals and Specifications

While not the primary legal source, the PSV manufacturer will have detailed technical manuals for their vehicles. These manuals will specify the design parameters and expected performance of the braking system, including the forces it's designed to generate and how it should perform. These manuals are invaluable for maintenance and repair work, as they often translate the regulatory requirements into practical, measurable values and procedures.

4. Specialist PSV Testing Facilities

Companies that specialise in PSV testing and certification will have access to and be familiar with the relevant regulations. If you are undergoing a pre-registration inspection or a specific brake performance test, these facilities will be operating under the mandated standards.

What Do Brake Force Requirements Typically Specify?

Brake force requirements are usually expressed in terms of:

• Deceleration (g or m/s²): This is the rate at which the vehicle slows down. For example, a requirement might be a minimum average deceleration of 0.5g.
• Stopping Distance: This is the distance the vehicle travels from a specified initial speed until it comes to a complete stop. This is often linked to deceleration.
• Brake Efficiency (%): This is a common metric, particularly in UK MOT testing for heavier vehicles. It relates the total braking force applied by all wheels to the vehicle's gross weight. A typical requirement for a PSV might be a minimum brake efficiency of 50% or higher for service brakes.

These requirements are usually specified for:

• Service Brakes: The primary braking system used during normal driving.
• Secondary Brakes: A backup system, which may be less powerful but still needs to meet certain performance criteria.
• Parking Brakes: The system used to hold the vehicle stationary.

Tests are conducted under various conditions, including different speeds and sometimes with simulated adverse road conditions, to ensure consistent performance.

Example: Brake Efficiency in the UK

A common way brake performance is assessed in the UK, especially during MOT testing for heavier vehicles, is through brake efficiency. This is calculated using a roller brake tester or a plate brake tester.

The formula is essentially:

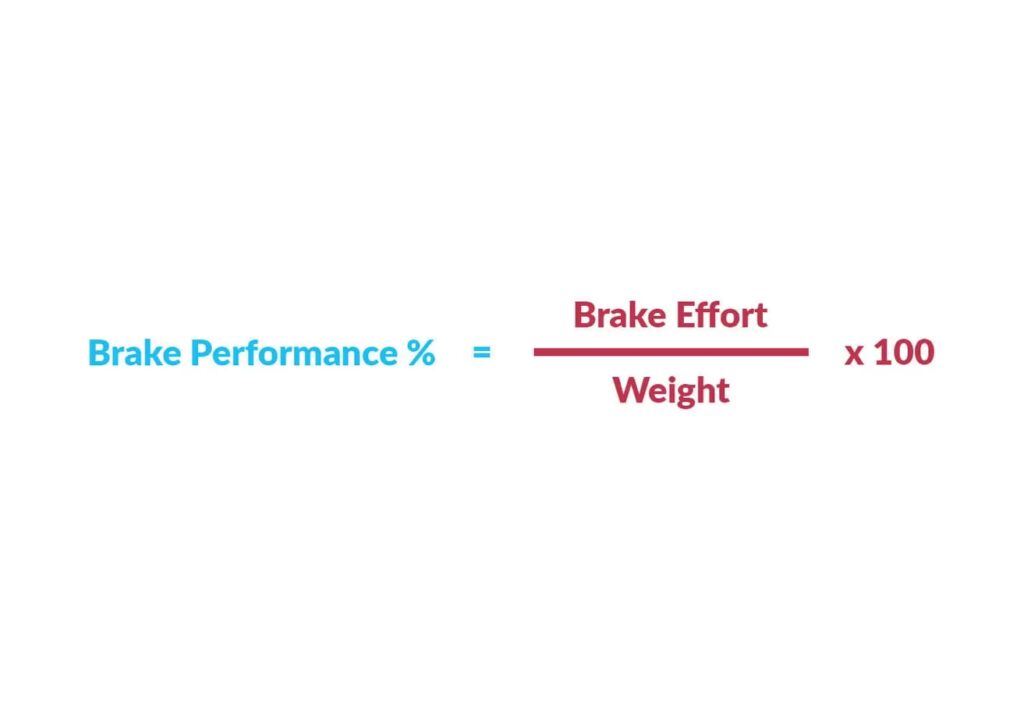

Brake Efficiency (%) = (Total Braking Force / Vehicle Weight) x 100

Where:

• Total Braking Force: The sum of the braking forces measured at each wheel.
• Vehicle Weight: The actual weight of the vehicle being tested (often referred to as 'Weight on Rollers' or similar).

Different classes of PSVs and different types of brakes (service, secondary, parking) will have specific minimum efficiency percentages mandated by law. For instance, a PSV might be required to achieve:

Note: These percentages are illustrative examples. Always refer to the current official regulations for precise figures applicable to your specific vehicle type and operating jurisdiction.

Why Are These Requirements So Important?

The rigorous brake force requirements for PSVs are not arbitrary. They are in place to:

• Protect Passengers and the Public: The primary goal is to prevent accidents caused by braking system failures or inadequate performance.
• Ensure Driver Confidence: Drivers need to trust that their vehicle can stop safely, especially when carrying passengers.
• Maintain Road Safety: A PSV with faulty or underperforming brakes poses a significant risk to all road users.
• Legal Compliance: Operating a PSV that does not meet braking standards can lead to prohibition notices, fines, prosecution, and suspension of operating licenses.
• Vehicle Longevity and Maintenance: Understanding these requirements helps in proactive maintenance, preventing premature wear and ensuring the braking system is always in optimal condition.

Common PSV Braking System Components to Consider

When discussing brake force, it's worth remembering the components that contribute to it:

• Brake Discs and Pads/Shoes: The friction materials are critical for generating stopping power.
• Brake Calipers/Wheel Cylinders: These apply the force to the friction materials.
• Brake Lines and Hoses: Must be free from leaks and blockages to ensure consistent pressure.
• Brake Fluid: Needs to be at the correct level and quality.
• ABS (Anti-lock Braking System): While primarily for control, it contributes to effective braking.
• Air Brake Systems (common on larger PSVs): Involve complex components like air tanks, compressors, valves, and actuators, all of which must function correctly.

Any of these components failing can significantly impact the vehicle's ability to meet the mandated brake force requirements.

Frequently Asked Questions (FAQs)

Q1: Where can I find the specific brake force requirement for my older model PSV?

A1: For older vehicles, the original type approval documentation or the manufacturer's service history would be the best place to start. You can also consult the DVSA or VCA, who may have archived information or can direct you to the relevant historical legislation that applied at the time of manufacture.

Q2: How often should PSV brakes be tested?

A2: PSVs are subject to annual MoT testing, which includes a thorough brake test. Additionally, operators should have a robust preventative maintenance schedule that includes regular checks and testing of the braking system as part of their commitment to roadworthiness.

Q3: What is the difference between brake efficiency and deceleration?

A3: Brake efficiency is a measure of the total braking force relative to the vehicle's weight, often expressed as a percentage. Deceleration is the rate at which the vehicle slows down, measured in units of acceleration (like m/s² or g). While related (higher force leads to higher deceleration), they are different metrics used in different testing contexts.

Q4: Can I use aftermarket brake parts on a PSV?

A4: Yes, but it's crucial that any aftermarket parts meet or exceed the original equipment manufacturer's (OEM) specifications and are certified for use on PSVs. Using non-compliant parts can lead to failure to meet brake force requirements and legal issues.

Conclusion

The brake force requirements for PSVs are a critical aspect of their safety and legal operation. The definitive sources are the national vehicle regulations and type approval documentation, often overseen by bodies like the VCA and enforced by the DVSA. Manufacturers' manuals provide practical details. Adhering to these requirements, through diligent maintenance and understanding the underlying principles of brake efficiency and deceleration, is non-negotiable for anyone involved in the operation or maintenance of Passenger Service Vehicles. Always consult the latest official documentation relevant to your operating region to ensure full compliance and the utmost safety for your passengers and the public.
