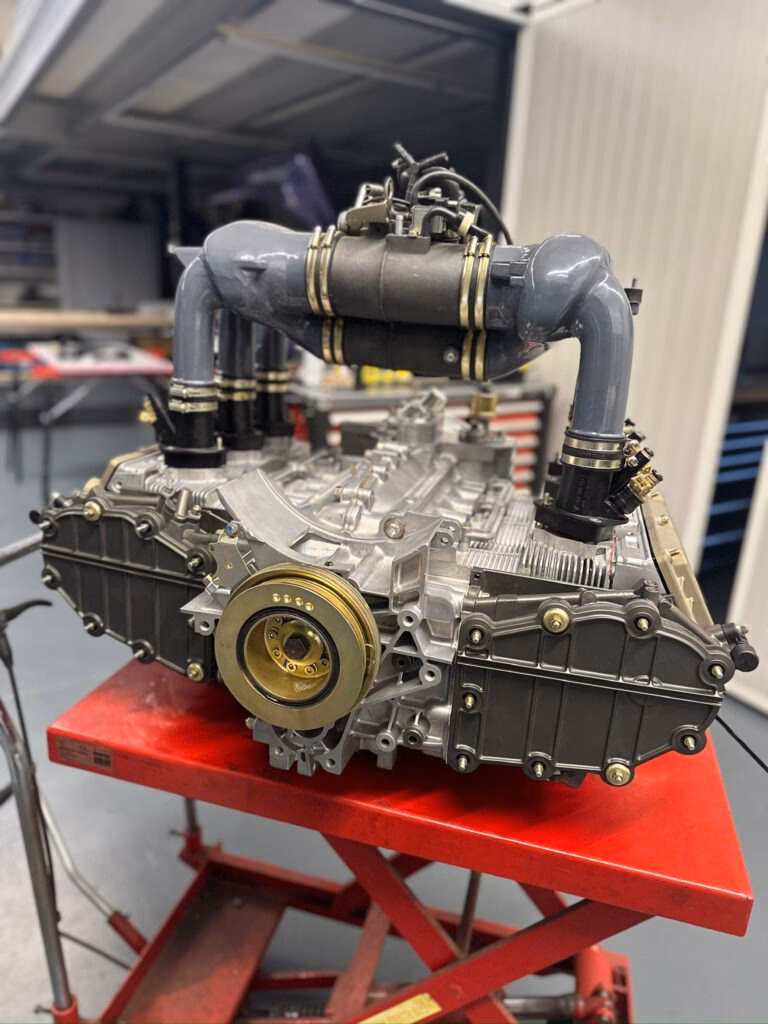

Rebuilding Your Porsche 964 Engine: A Deep Dive

The Porsche 964, a true icon in the automotive world, holds a special place in the hearts of enthusiasts. Its air-cooled flat-six engine is a masterpiece of engineering, known for its distinctive sound and robust performance. However, even the finest engines eventually require attention, and for many 964 owners, an engine rebuild becomes a necessary, albeit significant, undertaking. This isn't just about replacing worn parts; it's a deep dive into the very soul of your Porsche, a meticulous process that, when executed correctly, can breathe new life into your cherished classic, ensuring many more years of exhilarating driving.

Understanding the scope of such a project is crucial, not least to appreciate where the considerable investment of time and money goes. A full engine rebuild is a journey from a tired, potentially leaky or underperforming unit, to a factory-fresh or even enhanced powerplant. It demands specialist knowledge, an array of specific tools, and an unwavering commitment to precision. What follows is a comprehensive look at the stages involved in bringing a 964 engine back to its prime, drawing from the detailed processes employed by leading specialists.

The Initial Disassembly: A Forensic Approach

The rebuild process begins with the careful and systematic disassembly of the engine. This is far more than just unbolting components; it's a diagnostic phase where every part is scrutinised for wear, damage, and the tell-tale signs of its operational history.

• Ancillary Removal: First, the heat exchangers, often seized onto their studs due to years of thermal cycling and corrosion, must be carefully removed, sometimes requiring heat. Oil pipes and corroded front tin-ware sections are detached, followed by the engine cowling, cam covers, and timing covers.
• Top End Strip-Down: The timing gears, timing cases, rocker arms, and shafts are removed for both the left and right-hand sides, followed by the camshafts. The cam carrier, oil drain tubes, and cylinder heads are then unbolted. Each cylinder head is subsequently stripped, with guides, springs, and retainers meticulously inspected. Old exhaust gaskets are removed, often revealing the extent of carbon build-up.
• Bottom End Access: Air deflectors and knock sensor bridges are taken off, leading to the removal of pistons and cylinders. The cylinder bores are carefully inspected for wear and ovality. Piston rings are removed, pistons inspected, and ring gaps measured. Even the crank pulley boss is examined for the source of any oil leaks.

During this initial phase, every bolt, nut, and washer is accounted for, and often, notes are made regarding their condition and location. This systematic approach is vital for a smooth reassembly.

Cleaning and Preparation: The Foundation of a Flawless Rebuild

Once disassembled, the real work of preparation begins. Cleanliness is paramount in engine building; even the smallest speck of dirt or debris can lead to premature wear or failure.

• Vapour Blasting: A key technique for restoring components to a near-new finish is vapour blasting. This process is applied to the cylinder heads, cam carriers, cam covers, timing cases and covers, knock sensor bridges, intake stubs, and even the piston crowns. It removes carbon, grime, and corrosion without damaging the underlying metal, leaving a uniform, clean surface.
• Detailed Cleaning: Beyond blasting, intensive manual cleaning is performed. This includes thoroughly cleaning out piston ring lands, oil spray bars (often requiring drilling out old plugs), and thread chasing various drillings to ensure proper bolt engagement later. Corroded areas within the cam cases, particularly where through bolts pass, are meticulously cleaned.
• Surface Preparation: All mating faces – cam cases, cam carriers, oil drain tube holes, cam thrust plates – are carefully prepped, removing old sealant and ensuring they are perfectly flat and clean for new gaskets and sealants.

Addressing seized or broken fasteners is also a critical part of preparation. Sheared bolts, such as those in cam carriers or the L/H front tin-ware, are drilled out and repaired, often with helicoils or time-serts, restoring thread integrity. Cylinder head studs, particularly the lower cam case studs that might come out with seized nuts, are carefully heated, removed, and their drillings re-tapped in preparation for new stud sets.

Internal Component Restoration and Assembly: The Core of the Engine

With all components cleaned and prepared, the rebuild truly begins. This phase demands extreme care, as it involves the very heart of the engine.

• Bottom End Assembly: The crankcases are meticulously cleaned and dried. New main bearings, intermediate shaft bearings, and number 8 bearings are fitted into the right-hand crankcase. The intermediate shaft gallery is cleaned, and the shaft itself inspected before reinstallation. The crankshaft and conrods, having been thoroughly inspected and cleaned, are then installed with new big end bearings, rod bolts, and nuts. This is where torque specifications are absolutely critical; every fastener must be tightened to the manufacturer's precise values to ensure proper clearances and prevent failure. The left-hand crankcase is then mated, followed by new outer casing nuts and washers, and through bolts with new seals, all torqued to specific settings.
• Pistons and Cylinders: New piston and cylinder sets are unpacked. Circlips and gudgeon pins are fitted, ring gaps set, and the assemblies built up. New cylinder base gaskets are installed before the piston and cylinder sets are carefully fitted into the crankcase. Air deflectors and knock sensors are then reinstalled.
• Top End Assembly: This involves fitting new Dilavar head studs to the correct heights. The cylinder heads, having undergone valve refacing and lapping (ensuring perfect valve-to-seat sealing), are assembled with new stem oil seals and valve springs, and their installed valve heights checked and reset. The heads are then installed onto the cam carriers and torqued to specification. New oil drain tubes with fresh O-rings are fitted, often with a protective coating like Waxoyl.

The timing cases, new chain guide set, and camshafts (right and left) are then installed, complete with new gaskets and seals for the cam thrust plates. Timing gears and guide support plates are fitted, and the engine cowling with its knock sensor grommets and cylinder head temperature sensor are reinstalled. Intake stubs receive new seals and nuts.

Final Assembly and Ancillaries: Bringing it All Together

With the core engine assembled, the focus shifts to the vital ancillary components that allow the engine to run smoothly and efficiently.

• Valve Train and Timing: Intake rocker arms and shafts are installed, sealed with Loctite. Valve clearances are meticulously set, tensioner tools removed, and hydraulic tensioners refitted with new gaskets. Timing covers with new seals are installed. The rebuilt distributor, having been fully stripped, checked, cleaned, and reassembled with a new belt and drive pin, is refitted.
• Fuel and Air Systems: The intake manifold is fully stripped, washed, and rebuilt with new vacuum hoses, a cleaned throttle body, idle valve, and centre sections. Fuel rails, injectors, fuel pipes, and the engine spacer plate are cleaned. The engine wiring loom is cleaned, and corroded earth terminals are addressed.
• External Components: Cam oil feed elbows with new seals are fitted, followed by new front tin-ware sections. New lower and upper billet cam covers are installed, along with spark plugs and cleaned plug leads. The PAS pump assembly is refitted with new seals and belts.
• Exhaust and Final Details: Oil scavenge and feed pipes are connected. Heat exchangers are re-fitted, often requiring fabrication and welding of new catalyst flanges due to corrosion. The breather tower hose is fitted, and the intake manifold, air flow meter, and air box base are installed. The engine wiring loom is connected, often requiring modification for later-type crank sensor plugs, ensuring all connections are secure.

Every step in this final phase is about ensuring the engine is not only mechanically sound but also ready to integrate seamlessly with the vehicle's systems.

Key Stages and Critical Considerations During a 964 Engine Rebuild

Frequently Asked Questions About 964 Engine Rebuilds

Is a 964 engine rebuild a DIY project?

For the vast majority of enthusiasts, a full 964 engine rebuild is not a DIY project. It requires a significant investment in specialised tools (e.g., engine stands, torque wrenches for specific Porsche fasteners, valve spring compressors, dial gauges for timing), a comprehensive understanding of engine mechanics, and access to a clean, dedicated workspace. The precision required for component clearances, torque settings, and timing is beyond what most home mechanics possess. It's highly recommended to entrust this work to a reputable Porsche specialist who has the experience and equipment.

What are the most common parts that need replacing during a 964 engine rebuild?

While an engine rebuild aims to replace all worn components, common items include piston rings, main and big end bearings, all gaskets and seals (crank seals, cam carrier seals, valve stem seals), cylinder head studs (often upgraded to Dilavar), valve guides, timing chains and chain guides. Fasteners that show signs of corrosion or stretching are also routinely replaced. The longevity of the rebuild depends heavily on using high-quality, often genuine Porsche, replacement parts.

How long does a typical 964 engine rebuild take?

The duration of a 964 engine rebuild can vary significantly depending on the workshop's schedule, the extent of damage found, and the availability of parts. Typically, once the engine is in the workshop, the physical work can take several weeks to a few months. However, the entire process, including initial assessment, parts ordering (which can involve lead times for specialist components), and final testing, can stretch to several months.

What are the primary cost drivers in a 964 engine rebuild?

The cost of a 964 engine rebuild is primarily driven by three factors: labour, parts, and machining/specialist services. Labour hours are extensive due to the intricate nature of the disassembly, cleaning, and reassembly. Parts, especially genuine Porsche components, are expensive, and a full rebuild requires a considerable number of them. Specialist services such as vapour blasting, cylinder head machining, crankshaft grinding, and re-tapping/helicoil repairs add to the overall cost. Unexpected issues, such as a cracked crankcase or severely worn camshafts, can further escalate expenses.

Why rebuild an engine instead of just replacing it?

For a Porsche 964, rebuilding is often preferred over sourcing a replacement engine for several reasons. Firstly, a correctly rebuilt engine, using new components and adhering to modern standards, can often surpass the reliability and performance of an old, unknown used engine. Secondly, it preserves the 'numbers matching' aspect of the car, which is important for collector value. Thirdly, it provides complete transparency regarding the condition of every internal component, something you don't get with a used engine. Finally, there's immense satisfaction in knowing the heart of your classic has been meticulously restored to its former glory.

Conclusion: The Reward of Restoration

Rebuilding a Porsche 964 engine is undoubtedly a complex and costly endeavour. It demands an extraordinary level of attention to detail, specialist tools, and a deep understanding of these magnificent machines. However, for the dedicated owner, the reward is immeasurable. The transformation from a tired, aging engine to a vibrant, powerful, and reliable unit is a testament to the engineering brilliance of Porsche and the craftsmanship of those who undertake these demanding rebuilds. The result is a renewed driving experience, a revitalised classic that will continue to thrill for decades to come, embodying the true spirit of Porsche longevity.
