Porsche 944 Brakes: Ultimate Guide & Upgrades

The braking system on any vehicle is paramount, but for a performance classic like the Porsche 944, it's not merely a safety feature; it's an integral part of the driving experience. Ensuring your 944's brakes are in optimal condition is crucial for both your security on the road and for preserving the car's legendary handling characteristics. From routine maintenance to significant performance upgrades, understanding your 944's braking system is key to enjoying your classic Porsche to its fullest potential.

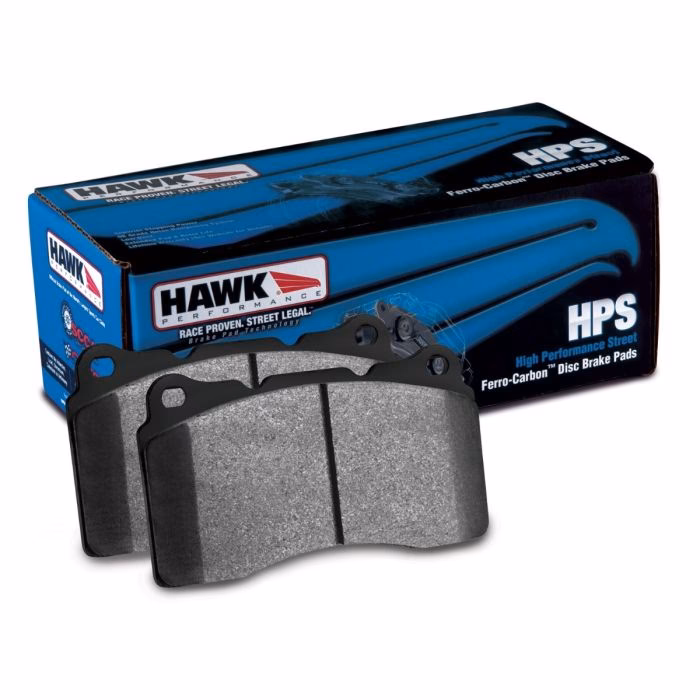

Where to Source Porsche 944 Brake Parts

Finding the right parts for a classic car can sometimes feel like a treasure hunt, but for your Porsche 944, a dedicated supplier like Heritage Parts Centre offers a comprehensive solution. They are known for their selection of brake parts specifically designed to fit your classic 944, including essential components such as brake discs, backing plates, replacement brake pads, and calipers. As a 'one-stop shop', they continuously expand their range of classic Porsche accessories and spares, making them a reliable choice for your 944 braking needs. When sourcing parts, it's always advisable to choose reputable suppliers who understand the specific requirements of classic Porsches, ensuring compatibility and quality that meets or exceeds original specifications.

Deciphering Your Porsche 944 S2 Brake Specifications

Understanding the precise specifications of your Porsche 944 S2's braking system is fundamental, especially when considering replacements or upgrades. The S2 model, known for its spirited performance, came equipped with robust braking capabilities, with variations depending on the vehicle's original factory options.

Standard Front Brakes

The standard front brakes on the 944 S2 were directly carried over from the 1987 and later standard 944 Turbo models. These featured formidable 4-piston Brembo calipers, utilising two pistons of 36mm and two of 40mm in diameter. The brake pads for this setup boasted a width of 98mm, identical to those found on the iconic original 911 Turbo (the 930 model). The front rotors paired with these standard calipers measured 298mm (11.73 inches) in diameter and 28mm (1.10 inches) in thickness. This setup provided excellent stopping power for everyday driving and spirited road use.

M030 Option Front Brakes

For those seeking enhanced performance, the very rare M030 Sports Suspension option on the 944 S2 included a more aggressive braking system. This upgrade utilised the same size front brakes as the 1988 944 Turbo S or the 1989 944 Turbo. Often referred to as "S4 brakes" due to their initial appearance on the 928 S4, these larger Brembo calipers featured piston sizes of 36mm and 44mm. Correspondingly, the brake pad width was a substantial 132mm, offering a much larger contact area. The front rotors used with these "S4" calipers increased in size to 304mm (11.97 inches) in diameter and 32mm (1.26 inches) in thickness. It's important to note that M030 cars also required different steering knuckles and hubs; the knuckles were necessary because the S4 caliper attached using a radial mount, as opposed to the axial mount of the standard caliper, and the different hubs accommodated the 4mm increased thickness of the M030 rotor.

Rear Brakes

The rear brakes on the 944 S2 also borrowed from the 944 Turbo, ensuring balanced braking performance. These employed 4-piston Brembo calipers with piston sizes of 28mm and 30mm in diameter. Interestingly, the rear brake pads were exactly the same size as the standard front "930" pads, simplifying part commonality. The rear rotors measured 299mm (11.77 inches) in diameter and 24mm (0.94 inches) in thickness.

Porsche 944 S2 Brake Specifications at a Glance

Exploring Porsche 944 Brake Components

Beyond just the large components, understanding the role of each part within your 944's braking system is crucial for effective maintenance and performance tuning.

Brake Discs (Rotors)

Brake discs are the surfaces against which the pads clamp to create friction and slow the car. They must be able to dissipate immense heat generated during braking. For the 944, various types exist: solid, vented, drilled, and slotted. Vented discs, standard on the 944, have internal fins to promote cooling. Drilled or slotted discs are often preferred for performance applications as they help dissipate heat and gasses more effectively, though they can sometimes be more prone to cracking under extreme conditions. Discs wear over time, becoming thinner and sometimes developing a 'lip' at the edge. Regular inspection for thickness, cracks, and warping is essential.

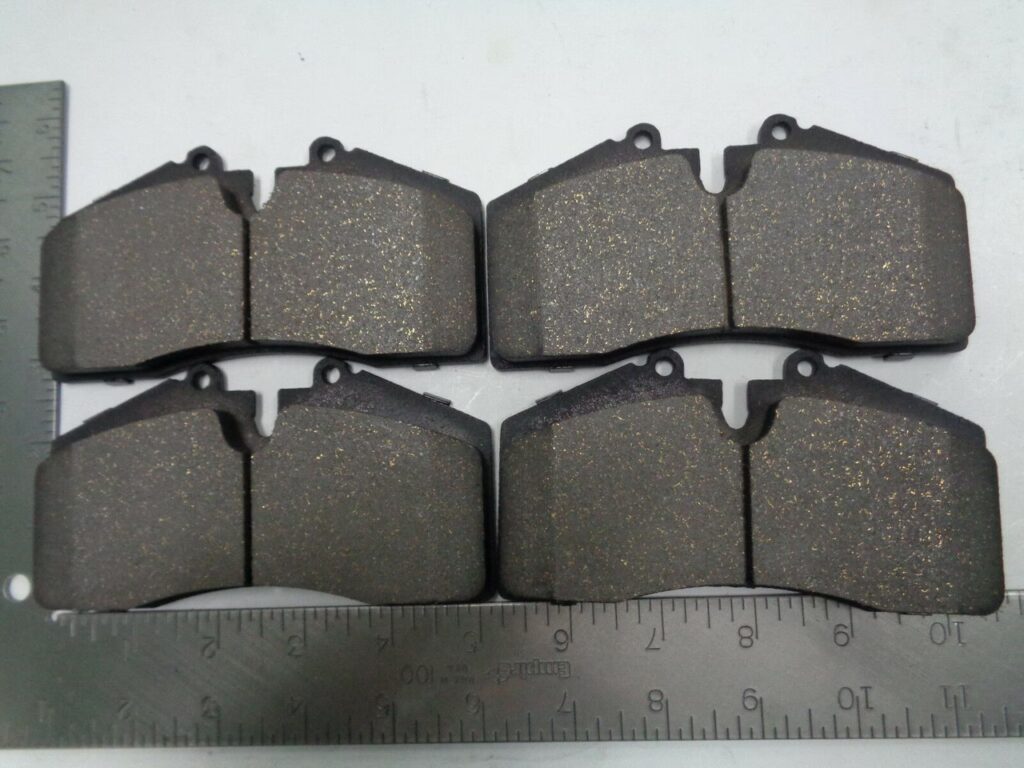

Brake Pads

Brake pads are the sacrificial components that press against the discs. They are made from various friction materials, each with different characteristics. Organic pads are quiet and provide good cold bite for street use. Semi-metallic pads offer better performance and heat resistance but can be noisier and produce more dust. Ceramic pads are known for being quiet, producing less dust, and having good durability and temperature stability. Choosing the right pad depends on your driving style and intended use – street, track, or a combination. Worn pads will typically produce a squealing sound, indicating they need replacement.

Brake Calipers

The calipers house the pistons that push the brake pads onto the discs. The 944 uses fixed calipers, meaning they are rigidly mounted and have pistons on both sides of the disc. Brembo, a renowned manufacturer, supplied the calipers for the 944. Maintaining caliper health involves checking for fluid leaks, ensuring pistons move freely, and lubricating slide pins (if applicable) to prevent sticking. Caliper rebuild kits with new seals are available if the calipers become sticky or leak.

Brake Fluid and Lines

Brake fluid is a hydraulic fluid that transmits the force from your pedal to the calipers. It's crucial for its high boiling point, as braking generates significant heat. Over time, brake fluid absorbs moisture, which lowers its boiling point and can lead to a spongy pedal feel, especially under hard braking. Regular fluid flushes (typically every two years) are highly recommended. Brake lines, connecting the master cylinder to the calipers, can be rubber or braided steel. Rubber lines can expand under pressure, leading to a slightly spongy pedal. Braided steel lines offer a firmer pedal feel by resisting expansion, making them a popular upgrade for performance enthusiasts.

Elevating Performance: Porsche 944 Big Brake Upgrades

For 944 Turbo and 944 S2 owners, the quest for superior stopping power often leads to factory-derived big brake upgrades. These modifications significantly enhance braking performance, particularly for track use or very spirited driving, though they often require larger wheels to accommodate the bigger calipers.

The Legendary "Big Red" Calipers

The famous Porsche "big red" Brembo calipers, originating from late-model 911 C2 Turbo or 993 Twin Turbo models, are a popular choice for enhancing 944/968 braking. These 4-piston calipers use the same piston sizes (36mm and 44mm) and brake pad width (132mm) as the M030 S4 calipers but are designed for larger rotors. A key consideration is that these calipers were originally designed to mount in the leading position (in front of the axle) on 911s. When used on a 944 or 968, they must be rotated for use in the trailing position (behind the axle). This rotation necessitates swapping the location of the bleeder fittings and cross-over tube to ensure proper bleeding, and the brake pad retention spring will then hinge at the top instead of the bottom. While minor, these adaptations are important for correct functionality.

The Practical "Big Black" Calipers

While the "big red" calipers are iconic, some enthusiasts opt for the 928 GTS "big black" calipers. These are physically the same size as the big reds and utilise the same brake pads and piston sizes. However, they are designed to mount in the trailing position, making them a true bolt-on option without the need for swapping bleeder fittings or cross-over tubes. This 'plug-and-play' nature, combined with their ability to hide brake dust better, makes them a practical and aesthetically pleasing choice for many. Furthermore, their design allows for the use of the 2-piece combination steel and rubber brake lines from the M030 944 S2, which feature a rigid steel tube between the caliper and strut mount, aiding in brake fluid cooling.

Rotor Options for Big Brake Setups

With big calipers come big rotors. Three primary factory front rotor options are available for use with either big red or big black calipers, all sharing a diameter of 322mm (12.68 inches) and a thickness of 32mm (1.26 inches):

• 928 GTS Rotors: These are 1-piece, non-drilled rotors with the same offset as the '87 and later 944 Turbo or 944 S2. They are generally reasonably priced and perform well on the street.
• 911 C2 3.6 Turbo Rotors: Also 1-piece and drilled, these share the same offset as the 928 GTS rotors. The cast-in ventilation holes provide a more aggressive look and potentially better cooling.
• 993 Twin Turbo (TT) Rotors: These are 2-piece rotors (separate rotor and mounting hat) and are drilled. They have 5mm less offset than the other options, meaning they are not directly suitable for cars originally equipped with S4 calipers (M030 option) unless custom alloy hats are used to correct the offset. They are often chosen for their reduced unsprung weight.

For a complete big brake aesthetic, many also opt to install drilled rotors at the rear, with the M030 968 "holy" rotors being a popular, albeit expensive, choice.

The Role of Dust Shields

When upgrading to larger front rotors, the stock brake rotor dust shields often become an interference. It is necessary to either remove them entirely or modify them. Many enthusiasts choose to trim away everything except the protective guard ring around the ABS sensor, then paint them black for a factory-like appearance. Removing the rear shields can also be done to promote better brake cooling.

Fine-Tuning Brake Bias

Brake bias refers to the distribution of braking force between the front and rear axles. The 944 Turbo and 944 S2 typically use a 5/18 brake bias valve. The '18' denotes the pressure in bars where the slope of the pressure curve changes; beyond 18 bar in the rear brake line, any further increase in pedal pressure results in a smaller increase in rear brake line pressure. This is a safety feature to prevent premature rear wheel lockup, but it can limit the effectiveness of the rear braking circuit, especially with larger front brakes. Upgrading to a 5/33 bias valve is common with larger front brake setups, allowing the rear brakes to contribute more effectively before the bias shifts. Porsche also offers 45 and 55 bar valves, though extreme caution is advised when considering these for a street car, particularly one without ABS, as they significantly alter the bias towards the rear and could increase the risk of lockup.

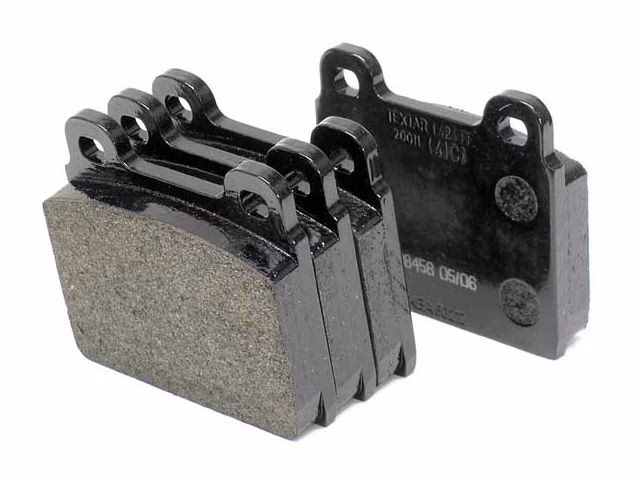

Adjusting Your Porsche 944 Parking Brake

A properly functioning parking brake is essential for safety and convenience. Over time, the parking brake on your Porsche 944 may become unadjusted, leading to poor performance. Fortunately, adjusting the brake shoes that control the parking brake is a straightforward process that typically takes about an hour.

To begin, you will need to raise the rear of the vehicle safely using a floor jack and secure it with jack stands. Remember to use wheel chocks on the front wheels for added safety. Remove the rear wheels using your lug wrench. Once the wheels are off, you'll gain access to the parking brake mechanism. The adjustment typically involves a small flathead screwdriver and a 10mm wrench. Locate the adjustment point for the brake shoes, which is usually found within the hub assembly. Make small adjustments, ensuring the wheel can still spin freely with the parking brake disengaged, but firmly engages when applied. It's crucial to double-check the adjustment before reinstalling the wheels and lowering the vehicle. This ensures proper parking brake function and can be complemented by replacing the parking brake shoes if they are excessively worn.

Identifying Your Porsche 944 Model for Correct Parts

With several versions and specific options available for the Porsche 944, correctly identifying your vehicle is paramount to ordering the right brake parts. Brake components, from pads and discs to calipers and master cylinders, vary significantly between models and even within the same model year if specific options like the M030 suspension were fitted. Most reputable parts suppliers will provide a drop-down menu or a search function where you can select your Porsche 944's version, typically by year of manufacture and engine size. Always double-check that the details you select – such as 944 S2, 944 Turbo, or a specific year – precisely match your vehicle's specifications. This due diligence prevents ordering incorrect parts and ensures a perfect fit, maintaining the integrity and performance of your 944's braking system.

Essential Porsche 944 Brake Maintenance Tips

Regular maintenance is key to prolonging the life and performance of your Porsche 944's braking system. Here are some essential tips:

• Routine Inspection: Periodically inspect your brake pads for wear (look for minimum thickness indicators) and your discs for cracks, scoring, or warping. Listen for any unusual noises like squealing or grinding, which often indicate worn pads.
• Brake Fluid Checks: Check your brake fluid level regularly and ensure it's clean. As mentioned, brake fluid should be flushed and replaced every two years, or more frequently if you track your car, to prevent moisture contamination and maintain a high boiling point.
• Bleeding the Brakes: If your pedal feels spongy, it might indicate air in the brake lines. Bleeding the brakes removes this air, restoring a firm pedal feel. This should be done carefully, ideally with a helper or a pressure bleeder.
• Caliper Maintenance: Ensure your calipers are not seized. Check for even pad wear, which indicates healthy caliper operation. If a caliper is sticking, it can lead to uneven pad wear and pulling to one side under braking.
• Tyre Condition: Remember that even the best brakes rely on tyre grip. Ensure your tyres are in good condition and correctly inflated to maximise braking efficiency.

Frequently Asked Questions (FAQs)

Q: How do I know if my 944 needs new brake pads?
A: Common signs include a squealing or grinding noise when braking, a noticeable decrease in braking performance, a spongy or low brake pedal, or visible wear indicators on the pads themselves. Many pads have a metal tab that squeals when they get low.

Q: Can I upgrade my standard 944 S2 brakes to M030 specification?
A: Yes, it is possible, but it's not a direct bolt-on. The M030 option requires different steering knuckles and hubs to accommodate the larger, radially mounted calipers and thicker rotors. It's a more involved upgrade than simply swapping calipers and discs.

Q: What's the benefit of drilled or slotted brake discs?
A: Drilled and slotted discs are designed to improve heat dissipation and provide a cleaner pad surface by allowing gases and debris to escape. This can lead to more consistent braking performance, especially under high-stress conditions. However, they can be more prone to cracking than plain discs under extreme thermal cycling.

Q: Is it necessary to bleed the brakes after replacing pads or discs?
A: While not always strictly necessary after just replacing pads or discs, it's highly recommended to bleed the system if you open any brake lines or replace calipers. Even if not, a full fluid flush and bleed is good practice every couple of years to maintain optimal fluid quality.

Q: Why is my parking brake not holding?
A: The most common reasons are maladjusted parking brake shoes, worn-out shoes, or stretched parking brake cables. Adjusting the shoes is the first step, and if that doesn't resolve it, inspect the shoes for wear and the cables for stretching or corrosion.

Conclusion

The braking system of your Porsche 944 is a complex, yet vital, part of its engineering marvel. From understanding the nuances of your S2's factory specifications to exploring the exhilarating potential of big brake upgrades, investing time in learning and maintaining these components is paramount. Whether you're sourcing replacement parts from trusted suppliers like Heritage Parts Centre, meticulously adjusting your parking brake, or embarking on a performance enhancement journey, a well-maintained braking system ensures your classic 944 delivers both the safety and the exhilarating driving dynamics it was designed for. Prioritise your brakes, and your 944 will reward you with confidence and control on every twist and turn.
