DIY: Polaris Ranger Front Diff & Gearbox Fluid

Ensuring your Polaris Ranger runs smoothly and reliably for years to come hinges on consistent, high-quality maintenance. Among the most critical tasks for any off-road vehicle owner is the regular changing of both front differential and transmission fluids. These fluids are the lifeblood of your drivetrain, protecting vital components from wear, dissipating heat, and ensuring seamless power transfer. While the thought of performing this maintenance yourself might seem daunting, it's a straightforward process that can save you significant workshop costs and give you a deeper understanding of your machine.

This comprehensive guide will walk you through the essential steps for changing the front differential and transmission fluids on your Polaris Ranger. While we'll reference the Polaris Ranger 800 Crew as a prime example, the procedures outlined here are remarkably similar, if not identical, across a wide range of Polaris side-by-sides. Following these instructions will help you maintain your Ranger's peak performance, safeguarding its gear longevity and overall reliability.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and more efficient. Don't rush this step; proper preparation is key to a successful fluid change.

• New Front Differential Fluid: Always refer to your Polaris owner's manual for the exact specification. Polaris Demand Drive Fluid is typically recommended for the front differential.
• New Transmission Fluid: Again, consult your manual. Polaris AGL (All-Gear Lubricant) is commonly specified for the transmission/gearbox. Ensure you purchase the correct quantity – typically around 1 litre for each component, but always verify.
• Drain Pans: At least two clean pans to collect old fluid.
• Socket Wrench Set: Including an 8mm socket (for the fill screw), and potentially other sizes for drain plugs (often 10mm or 13mm, or specific Torx bits).
• Extension Bar: Crucial for reaching recessed plugs.
• Universal Joint (Swivel Adapter): Invaluable for accessing bolts at awkward angles, like the front differential fill screw.
• Torque Wrench: Absolutely essential for tightening drain and fill plugs to the manufacturer's torque specifications, preventing leaks or damage.
• Funnel: A clean funnel with a flexible spout or hose attachment will make refilling much easier and prevent spills.
• Clean Rags or Shop Towels: For cleaning up spills and wiping down components.
• Gloves: To protect your hands from old fluid and chemicals.
• Safety Glasses: To protect your eyes from splashes.
• Wheel Chocks: To secure the vehicle.
• Jack and Jack Stands (Optional but Recommended): For raising the vehicle to gain better access, especially for the transmission. Ensure the vehicle is level when draining and filling for accurate fluid levels.
• Fluid Pump (Optional): A small hand pump can make refilling the differential and transmission much easier, especially if access is tight.

Safety First: Protecting Yourself and Your Ranger

Before you even think about loosening a bolt, prioritise safety. Working under a vehicle carries inherent risks. Take the following precautions:

• Park on a Level Surface: This is crucial for accurate fluid level readings and to prevent the vehicle from rolling.
• Engage Parking Brake: Always engage the parking brake.
• Chock the Wheels: Place wheel chocks on the wheels opposite to where you are working.
• Allow Engine to Cool: Hot fluids and components can cause burns. Let the Ranger cool down for at least an hour before starting.
• Wear Personal Protective Equipment (PPE): Gloves and safety glasses are non-negotiable.
• Proper Disposal: Old fluids are hazardous waste. Do not pour them down the drain or into the ground. Collect them in sealed containers and take them to an approved recycling centre or auto parts store that accepts used oil.

Changing the Front Differential Fluid

The front differential is a critical component for your Ranger's all-wheel-drive system. Regular fluid changes prevent premature wear on gears and bearings, especially given the demanding conditions off-road vehicles operate in.

Step-by-Step Guide: Front Differential

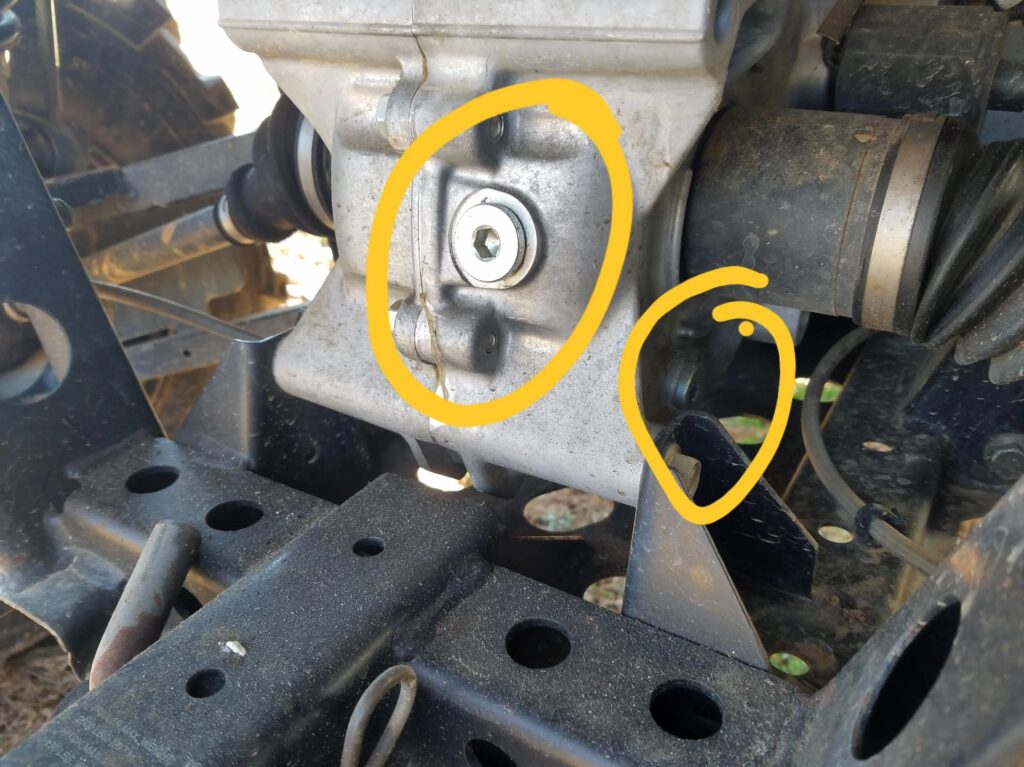

1. Locate and Access the Fill Screw: The fill screw for the front differential is typically located on the upper left side of the differential housing. Due to its position, it can be tricky to access. This is where your extension bar and universal joint become indispensable. Attach the 8mm socket to the universal joint, then to the extension bar, and finally to your ratchet or breaker bar. Carefully manoeuvre the tools to engage the fill screw.
2. Loosen the Fill Screw FIRST: This is a golden rule for fluid changes: always loosen the fill plug before the drain plug. Why? Because if you drain the fluid and then can't get the fill plug off, you're stuck with a vehicle that can't be moved. Once you've successfully loosened the 8mm fill screw, remove it completely. This allows the differential to vent, ensuring proper and complete drainage of the old fluid.
3. Locate and Remove the Drain Plug: The drain plug for the front differential is usually located on the bottom of the differential housing. Place your first clean drain pan directly underneath it. Using the appropriate socket (often 10mm or 13mm, or a specific Torx bit, check your manual), carefully loosen and remove the drain plug. Be prepared for the fluid to come out quickly.
4. Allow Complete Drainage: Let the old fluid drain completely. This can take some time, especially if the fluid is cold and thick. Wiggle the vehicle gently from side to side if possible to help dislodge any remaining fluid. Once the flow has slowed to a drip, clean the drain plug and its sealing surface. Inspect the drain plug for any metal shavings, which could indicate internal wear.
5. Reinstall the Drain Plug: Once satisfied that all the old fluid has drained, reinstall the drain plug. Tighten it to the factory recommendations using your torque wrench. Over-tightening can strip threads, while under-tightening can lead to leaks. Refer to your owner's manual for the exact torque specification (e.g., typically around 10-15 ft-lbs or 14-20 Nm for small drain plugs).
6. Refill the Front Differential: Using your funnel, carefully pour the new, specified Polaris Demand Drive Fluid into the fill hole. Fill slowly to prevent air bubbles and spills. The correct fill level for the front differential is typically until the fluid just begins to weep out of the fill hole. This indicates it's full.
7. Reinstall the Fill Screw: Once the differential is full, reinstall the 8mm fill screw. Tighten it to the specified torque.
8. Clean Up: Wipe away any spilled fluid and clean the differential housing thoroughly.

Changing the Transmission (Gearbox) Fluid

The transmission, or gearbox, on your Polaris Ranger also requires specific fluid to lubricate its gears and bearings, ensuring smooth operation and power delivery to the rear wheels. This is separate from the engine oil and often uses a different type of lubricant.

Step-by-Step Guide: Transmission

1. Locate and Access the Fill Plug: The transmission fill plug is usually located on the upper part of the transmission case. It might be a large plug, sometimes with a dipstick attached, or a simple bolt. As with the front differential, locate and loosen this plug first.
2. Locate and Remove the Drain Plug: The transmission drain plug is typically on the bottom of the transmission case. Position your second clean drain pan underneath it. Remove the drain plug and allow the old transmission fluid to drain completely. Polaris transmissions often use Polaris AGL (All-Gear Lubricant). Note the colour and consistency of the old fluid; excessive metal particles or a milky appearance could indicate internal issues.
3. Allow Complete Drainage and Clean: Give the fluid ample time to drain. Once drained, clean the drain plug and its sealing surface. Some transmission drain plugs are magnetic to capture metallic wear particles; clean off any accumulated filings.
4. Reinstall the Drain Plug: Reinstall the drain plug and tighten it to the manufacturer's specified torque. Do not overtighten.
5. Refill the Transmission: Using a clean funnel, carefully pour the new Polaris AGL fluid into the fill hole. The correct fill level for the transmission can vary. Some models have a dipstick, while others are filled until the fluid reaches the bottom of the fill hole. Consult your owner's manual for the precise fill procedure and capacity. Overfilling can cause foaming and leaks, while underfilling leads to insufficient lubrication and wear.
6. Reinstall the Fill Plug: Once the correct level is achieved, reinstall the fill plug and tighten it to the specified torque.
7. Clean Up and Check for Leaks: Wipe down the transmission case and surrounding areas. Start the Ranger and let it run for a few minutes. Check for any leaks around the drain and fill plugs. If you find leaks, re-check the torque on the plugs.

Why Fluid Changes Are Non-Negotiable

Regular fluid changes are the cornerstone of preventative maintenance for your Polaris Ranger. Here's why they are so vital:

• Lubrication: Fluids reduce friction between moving parts, preventing metal-on-metal contact that leads to wear and tear. Over time, fluids break down and lose their lubricating properties.
• Heat Dissipation: Gears and bearings generate significant heat. Fluids absorb and transfer this heat away from critical components, preventing overheating and material degradation.
• Contaminant Removal: As parts wear, microscopic metal particles and other contaminants accumulate in the fluid. The fluid also absorbs moisture. Draining the old fluid removes these harmful substances, preventing them from circulating and causing further damage.
• Corrosion Protection: Modern gear oils contain additives that protect internal components from rust and corrosion, especially important in environments where moisture is prevalent.
• Maintaining Performance: Fresh fluid ensures optimal fluid viscosity and proper operation of clutches and other internal mechanisms, leading to smoother shifts and consistent power delivery.

Comparative Table: Polaris Fluid Types (Common Examples)

Understanding which fluid goes where is paramount. Using the wrong fluid can lead to catastrophic damage.

Always refer to your specific Polaris Ranger model's owner's manual for the precise fluid type and capacity.

Common Mistakes to Avoid During Fluid Changes

Even simple maintenance tasks can go wrong. Be aware of these common pitfalls:

• Using the Wrong Fluid: This is perhaps the most critical mistake. Using automotive gear oil in a Polaris Demand Drive front differential, for example, can cause the AWD system to malfunction or fail completely. Always use Polaris-recommended fluids.
• Overfilling or Underfilling: Both are detrimental. Overfilling can lead to excessive pressure, foaming, and leaks, while underfilling results in insufficient lubrication and accelerated wear.
• Not Replacing Gaskets/Washers: Drain and fill plugs often have crush washers or O-rings that should be replaced each time to ensure a proper seal and prevent leaks.
• Cross-Threading Plugs: Always start plugs by hand to ensure they thread correctly before using a wrench.
• Forgetting to Loosen Fill Plug First: As mentioned, this can leave you stranded.
• Not Cleaning Around Plugs: Dirt and debris around the plugs can fall into the differential or transmission when the plugs are removed, contaminating the new fluid.
• Ignoring Torque Specifications: Guessing torque can lead to stripped threads (over-tightening) or leaks (under-tightening).

Frequently Asked Questions (FAQs)

Here are some common questions Ranger owners have about fluid changes:

How often should I change my Polaris Ranger's front differential and transmission fluid?

Refer to your owner's manual for the exact service intervals. Generally, Polaris recommends changing these fluids annually or every 100 hours of operation, whichever comes first. If you ride in extremely dusty, wet, or muddy conditions, or engage in heavy-duty towing, more frequent changes might be necessary.

Can I use aftermarket fluids instead of Polaris branded fluids?

While some aftermarket fluids claim to be compatible, it's generally safest and highly recommended to stick with genuine Polaris-branded fluids. They are specifically formulated and tested to meet the unique requirements of Polaris components, ensuring optimal performance and longevity. Using non-approved fluids could void your warranty.

What are the signs that my differential or transmission fluid needs changing?

Visible signs include a change in fluid colour (dark, burnt smell), milky appearance (indicating water contamination), or excessive metal particles on the drain plug. Performance-wise, you might notice unusual noises (whining, clunking), difficulty shifting, or inconsistent power delivery, though these symptoms often indicate more severe issues than just old fluid.

What if my drain plug is stripped?

This is a serious issue. Do not attempt to force it. You may need to use a specialised tool (like a bolt extractor) or, in severe cases, the housing may need to be repaired or replaced. Prevention is key: always use a torque wrench and start plugs by hand.

How do I dispose of the old fluid?

Never dispose of used fluids in household bins, drains, or on the ground. They are hazardous waste. Collect them in sealed, leak-proof containers and take them to an authorised recycling centre, an auto parts store that accepts used oil, or a local hazardous waste collection event.

Conclusion

Changing the front differential and transmission fluids on your Polaris Ranger is a vital part of its regular maintenance schedule. By following these detailed steps, adhering to safety precautions, and using the correct fluids and torque specifications, you can ensure your off-road companion continues to perform at its best for many adventures to come. This routine vehicle care not only extends the life of your Ranger but also empowers you with the knowledge and satisfaction of maintaining your own machine. Don't underestimate the power of fresh fluids – they are truly the unsung heroes of your drivetrain.
