Peugeot 208 2012 Brake Disc Thickness

Understanding Brake Disc Thickness for Your 2012 Peugeot 208 Allure

Maintaining your vehicle's braking system is paramount for safety and performance. One crucial, yet often overlooked, aspect of this system is the brake discs, also known as brake rotors. These components are vital in dissipating the heat generated during braking, and their thickness directly impacts their effectiveness and lifespan. If you're the owner of a 2012 Peugeot 208 Allure and are curious about the specific dimensions of its brake discs, or simply want to understand why this measurement is so important, you've come to the right place. This article will delve into the typical specifications for the 2012 Peugeot 208 Allure's brake discs and explain the significance of their thickness.

The Role of Brake Discs in Your Vehicle's Stopping Power

Before we get to the specifics, let's briefly touch upon the function of brake discs. When you press the brake pedal, hydraulic pressure forces the brake pads to clamp down onto the spinning brake discs. This friction is what slows your vehicle down. However, this process generates a considerable amount of heat. The brake discs are designed to absorb and dissipate this heat into the surrounding air, preventing the brakes from overheating, a phenomenon known as brake fade, which can severely compromise your stopping ability. The material and thickness of the discs play a significant role in their ability to manage this heat effectively.

Typical Brake Disc Thickness for a 2012 Peugeot 208 Allure

For a 2012 Peugeot 208 Allure, the specifications for the brake discs can vary slightly depending on whether you are referring to the front or rear brakes, and potentially even the engine size or specific trim options. However, generally speaking, you can expect the following:

• Front Brake Discs: The front brake discs on a 2012 Peugeot 208 Allure typically measure around 266 mm in diameter. The new thickness is usually in the region of 22 mm.
• Rear Brake Discs: The rear brake discs are generally smaller, with a diameter of approximately 249 mm. Their new thickness is typically around 9 mm.

It is crucial to note that these are new or minimum thickness specifications. As brake discs wear down over time due to friction with the brake pads, their thickness will decrease. Most manufacturers specify a minimum safe thickness for brake discs. Exceeding this minimum can lead to reduced braking performance and an increased risk of disc failure.

Why Brake Disc Thickness Matters: Wear and Tear

The thickness of your brake discs is a direct indicator of their remaining lifespan. Every time you brake, a small amount of material is worn away from the surface of the disc. This is a normal process, but it means that the discs will eventually become too thin to function safely and effectively.

Manufacturers provide a minimum thickness specification for their brake discs. This is the point at which the discs must be replaced. Continuing to drive with discs below this minimum thickness can lead to:

• Reduced Braking Efficiency: Thinner discs have less thermal mass, meaning they can't dissipate heat as effectively. This can lead to brake fade, especially during prolonged braking or heavy use.
• Increased Risk of Cracking or Failure: Overly worn discs can become brittle and are more susceptible to cracking or even catastrophic failure under braking pressure.
• Damage to Other Braking Components: Very thin or damaged discs can also cause premature wear and damage to your brake pads and calipers.

How to Check Your Brake Disc Thickness

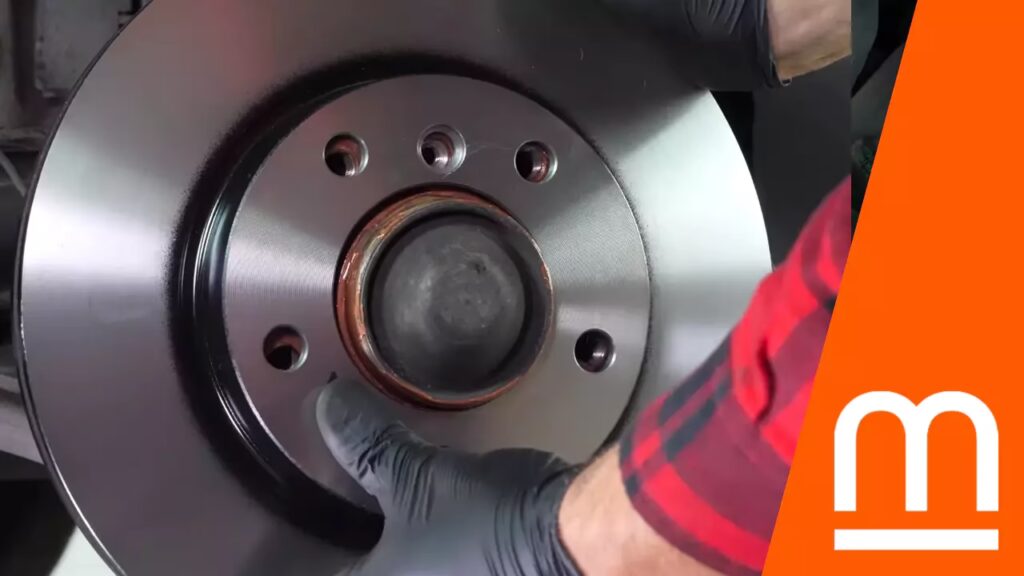

Checking the thickness of your brake discs is a straightforward process, but it requires a specific tool called a vernier caliper or a brake disc micrometer. If you're not comfortable performing this yourself, it's always best to have a qualified mechanic do it during a routine service.

Here’s a general guide on how to check:

1. Safety First: Ensure the vehicle is parked on a level surface, the handbrake is engaged, and the engine is off. If you're lifting the vehicle, use jack stands for support.
2. Remove the Wheel: You'll need to remove the road wheel to access the brake disc.
3. Locate the Wear Indicator Groove: Most brake discs have a small groove around the outer edge. This is the wear indicator.
4. Measure the Thickness: Use your vernier caliper to measure the thickness of the disc at several points around its circumference, ideally at the thickest part of the braking surface. Compare this measurement to the minimum thickness specification provided by Peugeot for your 2012 208 Allure.
5. Inspect for Other Damage: While you're there, also check the discs for any signs of scoring, glazing, cracking, or warping.

Minimum Thickness Specifications

The minimum thickness for the front brake discs on a 2012 Peugeot 208 Allure is typically around 20 mm. For the rear discs, this minimum is usually around 7 mm. Again, these are general figures, and it's always best to consult your vehicle's owner's manual or a Peugeot dealership for the precise specifications for your model.

When to Replace Your Brake Discs

You should consider replacing your brake discs if:

• Their thickness has reached the manufacturer's minimum specification.
• You notice any significant scoring, grooving, or cracking on the surface.
• You experience symptoms such as a pulsating brake pedal, increased stopping distances, or unusual noises during braking.
• The discs appear visibly worn or discoloured (often a bluish tint indicating overheating).

It's often recommended to replace brake discs in pairs (both front discs or both rear discs) to ensure even braking performance. It's also a good opportunity to replace your brake pads at the same time, as worn pads on new discs will quickly cause damage.

Frequently Asked Questions (FAQs)

Q1: Can I just replace the brake pads and not the discs?

A1: You can, provided the discs are still well above their minimum thickness and are not excessively worn or damaged. However, if the discs are close to their minimum thickness or have significant wear, fitting new pads to old discs can lead to poor braking performance and premature wear of the new pads.

Q2: How often should I check my brake discs?

A2: It's advisable to have your brake discs inspected by a qualified mechanic at least once a year, or every 12,000 miles, whichever comes first. More frequent checks are recommended if you drive in demanding conditions (e.g., frequent stop-start traffic, hilly terrain, towing).

Q3: What causes brake discs to wear out?

A3: Brake discs wear out due to the friction created between the pads and the disc surface during braking. Factors like driving style (frequent hard braking), environmental conditions, and the quality of the brake components can influence the rate of wear.

Q4: Are all brake discs the same thickness?

A4: No, brake disc thickness varies significantly between different vehicle makes, models, and even axle positions (front vs. rear) on the same vehicle. This is due to differing braking requirements and vehicle weights.

Conclusion: Prioritising Brake Disc Health

Ensuring your 2012 Peugeot 208 Allure's brake discs are within their specified thickness is not just a matter of compliance; it's a critical safety measure. By understanding the typical dimensions, the importance of wear, and how to check for them, you can take proactive steps to maintain your vehicle's braking system. Regular inspections and timely replacements will not only keep you safe on the road but also contribute to the overall longevity and performance of your Peugeot 208.
