Brake Pad Studs: Unravelling This Vital Component

When you press the brake pedal in your vehicle, a complex yet highly efficient system springs into action, converting kinetic energy into thermal energy to bring your car to a safe halt. While the brake pads themselves are often the focus of attention, a lesser-known but equally crucial component plays a pivotal role in their integrity and performance: the brake pad stud. These small, often overlooked elements are fundamental to ensuring that your brake pads remain securely attached and function correctly under immense pressure and heat. Understanding their design, purpose, and the broader context of brake pad operation, including the critical process of 'bedding-in', is essential for any car owner keen on maintaining their vehicle's safety and performance.

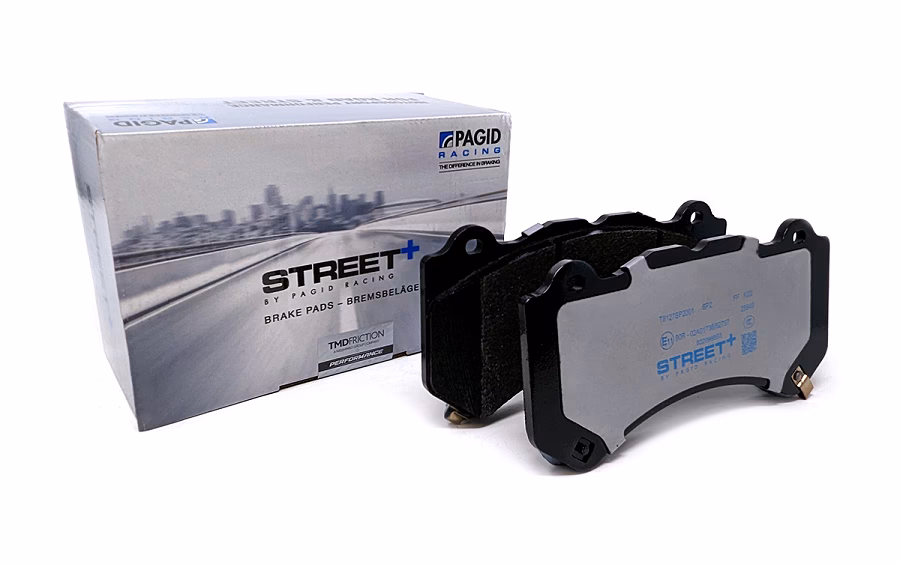

What Exactly Are Brake Pad Studs?

At its core, a brake pad stud is a small, typically cylindrical protrusion engineered directly into the backplate of a brake pad. The backplate is the rigid metal foundation upon which the friction material, or pad compound, is mounted. The primary function of these studs is to create a robust, mechanical bond between the friction material and the backplate. Unlike relying solely on adhesive bonding, which can degrade under extreme temperatures and shear forces, these studs provide a positive, physical interlock. This ensures that the friction material remains firmly attached to its backing, even during the most demanding braking scenarios, preventing any potential separation that could lead to catastrophic brake failure.

The manufacturing process often involves welding these studs directly to the backplate, creating an incredibly strong and integral unit. This meticulous engineering is vital because the friction material is subjected to immense forces during braking – not just the compressive force against the brake disc, but also significant shear forces as the disc attempts to 'drag' the pad compound along with it. Without a secure attachment method like these studs, the friction material could delaminate or tear away from the backplate, rendering the brake pad useless and dangerously compromising your vehicle's stopping power.

The Ingenious Design: Why Brass?

One of the most fascinating aspects of brake pad studs, as highlighted in advanced mechanical systems, is their material composition. They are typically made from brass. This choice of material is far from arbitrary; it's a testament to clever engineering designed to enhance both safety and longevity within the braking system. Brass possesses several key properties that make it ideal for this application:

• Softer than the Brake Disc: Crucially, brass is significantly softer than the cast iron or composite materials used for brake discs (often referred to as rotors in some regions). This differential in hardness is a deliberate safety feature. As the brake pad wears down through normal use, the brass studs will eventually come into contact with the rotating brake disc. Because the studs are softer, they will wear away harmlessly, much like the friction material itself, without causing any damage, scoring, or premature wear to the expensive brake disc. If the studs were made from a harder material, they could gouge or permanently damage the disc, necessitating costly replacements.
• Good Wear Characteristics: While soft relative to the disc, brass still offers sufficient wear resistance to perform its primary function of retaining the friction material for the life of the pad. It wears down predictably and cleanly.
• Non-Corrosive: Brass is highly resistant to corrosion, which is important given the exposed and often wet environment within a wheel well. This ensures the integrity of the stud is maintained over time, even in challenging conditions.

This self-sacrificing design means that the studs act as a 'wear indicator' of sorts, albeit indirectly. When you hear a metallic grinding sound from your brakes, it often means the friction material has worn away completely, and the backplate (or in some designs, the wear indicator attached to it) is now contacting the disc. If studs are present and worn down, they would have done their job without damaging the disc.

How Brake Pad Studs Work in Harmony with Your Braking System

To fully appreciate the role of brake pad studs, it's helpful to understand the overall braking process. When you apply the brakes, hydraulic pressure forces the brake caliper to clamp the brake pads against the rotating brake disc. This clamping action creates friction between the pad's friction material and the disc, slowing the vehicle down. The immense forces generated during this process – both compressive and shear – place significant stress on the bond between the friction material and the backplate. This is precisely where the studs prove invaluable.

The studs, embedded within the friction material and welded to the backplate, act like miniature anchors. They distribute the shear forces more effectively across the entire surface area of the bond, preventing the friction material from tearing away or delaminating under extreme conditions. Without them, even the strongest adhesives might eventually fail, especially when subjected to repeated cycles of high heat and rapid cooling. The mechanical locking provided by the brass studs ensures a consistent and reliable connection, which translates directly into consistent and reliable braking performance.

The Lifecycle of a Brake Pad Stud

A brake pad stud is designed to last for the entire operational life of the brake pad. As the friction material wears down with each application of the brakes, the pad becomes thinner. Eventually, the friction material will be consumed to the point where the brass studs are exposed and begin to make contact with the brake disc. At this stage, the studs, being softer than the disc, will wear away without causing damage. This wear of the studs, alongside the general thinning of the friction material, is a clear indication that the brake pads have reached the end of their useful life and require replacement. It's important to replace brake pads before they wear down to this point, as diminished friction material significantly reduces braking efficiency and can lead to longer stopping distances.

Are All Brake Pads Equipped with Studs?

While brass studs offer a robust method of securing the friction material, not all brake pads utilise this exact design. Many modern brake pads rely on advanced adhesive technologies, often combined with a process called 'scorching' or 'post-curing' during manufacturing, to create an incredibly strong bond between the friction material and the backplate. These adhesives are engineered to withstand the high temperatures and stresses encountered during braking. Some manufacturers might also employ a combination of adhesive bonding and mechanical interlocking features, though not necessarily brass studs, to ensure optimal pad integrity.

The choice of retention method often depends on the specific application, the type of friction material, and the manufacturer's design philosophy. Regardless of the method, the underlying goal remains the same: to ensure the friction material stays firmly attached to the backplate throughout the pad's lifespan, guaranteeing safe and effective braking.

Why Bedding Your Brake Pads is Crucial

The user's direct question, "WHY BEDDING?", points to a vital aspect of brake maintenance that is often misunderstood or overlooked: the bedding-in process for new brake pads. While not directly related to the studs themselves, bedding-in is critical for optimising the performance and longevity of your entire braking system, including the interaction between the pads and discs.

What is Brake Pad Bedding-In?

Bedding-in, also known as 'burnishing' or 'seating' new brake pads, is a controlled process of heating and cooling that transfers a microscopic layer of friction material from the brake pads onto the surface of the brake disc. This transfer layer is crucial for several reasons:

1. Optimised Friction: It creates a uniform layer of friction material on the disc, allowing the pad to achieve its optimal coefficient of friction. This means better stopping power and a more consistent pedal feel.
2. Reduced Noise and Vibration: An uneven transfer layer, or no layer at all, can lead to uneven friction, causing squealing, grinding, or shuddering noises. Proper bedding helps to minimise these undesirable sounds.
3. Increased Pad and Disc Life: A well-bedded system distributes heat more evenly across the pad and disc surfaces, reducing hot spots and premature wear. This can extend the life of both components.
4. Prevention of 'Green Fade': New pads often contain volatile resins and binders that need to be burned off. If not properly bedded, these can create gasses under braking, leading to a temporary loss of friction known as 'green fade'. Bedding helps to eliminate these gasses in a controlled manner.
5. Improved Performance: Ultimately, a properly bedded braking system will perform more consistently, predictably, and effectively, especially under demanding conditions.

How to Bed New Brake Pads (General Guidelines)

While specific instructions may vary slightly between pad manufacturers, a general bedding procedure typically involves a series of progressively harder stops. Always consult your brake pad manufacturer's recommendations, but a common procedure might look like this:

1. Gentle Driving (First 50-100 miles): Avoid hard braking initially. Drive gently, using light brake applications to allow the pads and discs to mate and shed any initial manufacturing residues.
2. Series of Medium Stops: Find a safe, open road with no traffic. Accelerate to approximately 60 mph (around 95 km/h) and then apply the brakes with moderate pressure, slowing down to about 10 mph (15 km/h). Do not come to a complete stop.
3. Repeat and Cool Down: Immediately accelerate back up to 60 mph and repeat the moderate stop. Perform about 6-8 such stops, allowing a few seconds between each to prevent overheating. During this phase, you might notice a slight smell from the brakes, which is normal as resins burn off.
4. Harder Stops (Optional, if recommended): For some performance pads, a few harder stops might be recommended after the initial series. Accelerate to 60-70 mph (100-110 km/h) and brake firmly, but not to ABS engagement, down to about 5-10 mph (8-15 km/h). Perform 2-3 such stops.
5. Cruising to Cool: After the final stop, drive for several minutes at a moderate speed without applying the brakes. This allows the pads and discs to cool down gradually, setting the transfer layer properly. Avoid parking with the brakes applied immediately after bedding, as this can imprint the pad material onto the hot disc, leading to judder.

Important Considerations:

• Safety First: Always perform bedding procedures in a safe, controlled environment away from public roads or traffic.
• Avoid ABS: Try not to engage the Anti-lock Braking System (ABS) during bedding.
• No Hard Stops or Sustained Braking: Don't slam on the brakes or drag them for extended periods during the initial stages. The goal is controlled heat generation.
• New Discs with New Pads: For optimal results, always replace brake discs when installing new pads. This ensures a fresh, clean surface for the transfer layer to form on.

Table: Benefits of Proper Brake Pad Bedding

Maintaining Your Braking System: Beyond the Studs

While brake pad studs and the bedding process are critical, they are part of a larger, interconnected braking system that requires holistic maintenance. Regular inspection of your brake pads, discs, calipers, and brake fluid is paramount for road safety. Check for signs of uneven wear on pads, scoring or grooving on discs, fluid leaks, or a spongy brake pedal. These could indicate underlying issues that need immediate attention from a qualified mechanic. Remember, your brakes are your primary safety system, and their proper functioning is non-negotiable.

Frequently Asked Questions (FAQs)

Q1: Can brake pad studs fail?

A1: It's highly unlikely for the brass studs themselves to 'fail' in the sense of breaking off prematurely. Their design ensures they wear away as the pad wears. However, if the manufacturing process was flawed, leading to a weak weld, it could theoretically compromise the bond. But in properly manufactured pads, they are designed to last the life of the friction material.

Q2: What happens if my brake pads wear down to the studs?

A2: If your brake pads wear down to the point where the brass studs are contacting the disc, you'll likely hear a metallic grinding noise. This indicates that the friction material is almost entirely gone. While the brass studs themselves are designed not to damage the disc significantly, continuous use at this stage is extremely dangerous as your braking efficiency will be severely compromised. It means immediate pad replacement is necessary.

Q3: Is 'rotor' the same as 'brake disc'?

A3: Yes, in the context of automotive braking systems, 'rotor' is the term commonly used in American English, while 'brake disc' is the prevalent term in British English. They refer to the same component – the rotating metal disc that the brake pads clamp onto.

Q4: Do all brake pads need to be bedded-in?

A4: Most new brake pads, especially performance or aftermarket pads, benefit significantly from a proper bedding-in procedure. Some basic or 'ready-to-go' pads for standard vehicles may claim to require less or no bedding, but even for these, a gentle initial period of driving will aid in optimal performance and longevity. It's always best practice to follow the manufacturer's specific recommendations.

Q5: How often should I check my brake pads?

A5: It's recommended to have your brake pads and the entire braking system inspected during your vehicle's regular service intervals, typically every 6 to 12 months or every 10,000 to 15,000 miles (16,000 to 24,000 km), whichever comes first. However, if you notice any changes in braking performance, unusual noises, or warning lights, have them checked immediately.

In conclusion, while brake pad studs may seem like a minor detail, they embody a critical engineering solution for ensuring the reliability and safety of your vehicle's braking system. Their brass construction is a clever design choice that protects your discs while providing robust friction material retention. Coupled with the crucial practice of bedding-in new brake pads, understanding these elements empowers you to maintain your vehicle's stopping power, ensuring a safer and more confident driving experience on the roads of the UK and beyond.
